IMMEDIATE DELIVERY MOBILE CRUSHER FACILITIES FROM GENERAL MAKİNA

We have been bringing life to buildings as a result of your trust since 1976

Available from stock, take a look at our Breakers. General Makina has been producing domestically and internationally for 46 years, with ISO 9001 and CE quality certificates.


GENERAL 944 Mobile Crusher is a crushing and screening plant produced with the latest technology and has a capacity of 200-250 tons/hour.  It is effective in breaking Granite and Basalt, which are the hardest stones in nature.

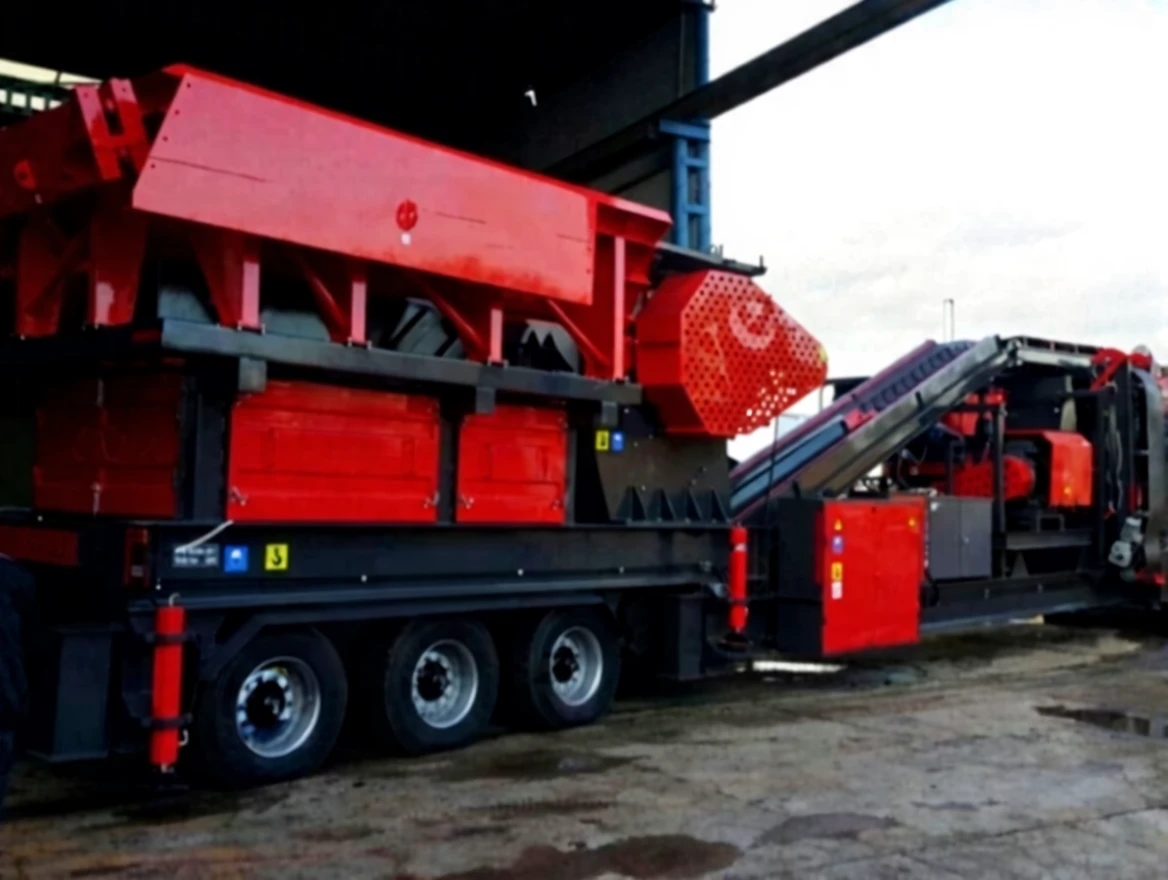

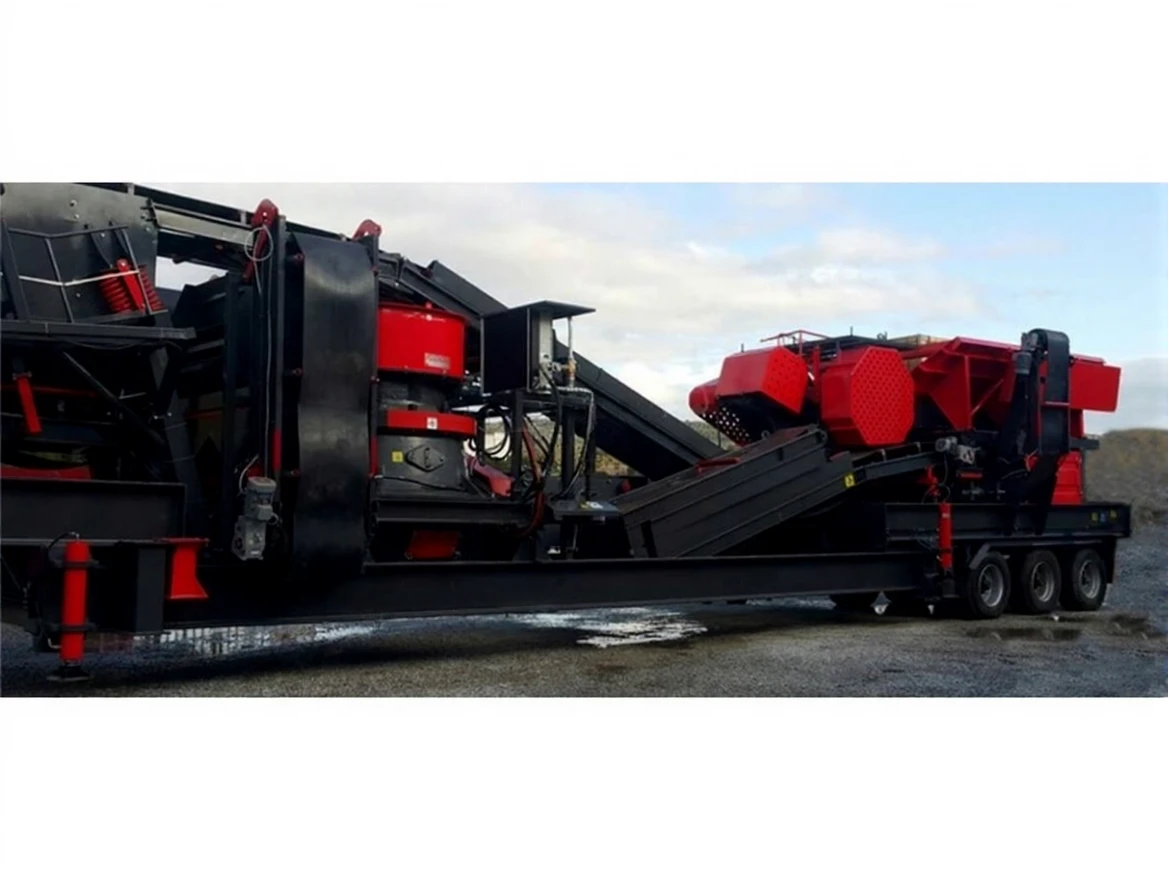

GENERAL 944 Closed circuit crushing and screening plant collects the entire system on just one chassis and can be easily transported by a truck.

It can be easily put into operation and the product can be obtained within 30 minutes.
It is the latest crusher facility that can be used to break natural stones such as hard and hard-to-break stones (Basalt, Granite) and minerals (Iron Ore, Chrome Ore, Quartz).

* Vibrating Feeder and Hopper
The feeder system is driven by 2 vibromotors. 15 m3. In this way, trouble-free operation and minimum maintenance are provided.
The feeder hopper is suitable for feeding with Excavators and Loaders, and in permanent operations, feeding can also be done by truck with additional hoppers.
All wear points in the Feeder and Hopper are protected by replaceable wear armor.
There is a screening system in the Feeder Table. Thanks to the by-pass conveyor, this sifted soiled material can be poured into the stock area.

* Jaw Crusher (Crusher)
Size: 900×650 mm Primary type
Engine power: 75-90 Kw
It has an adjustment mechanism and the jaw crusher can be adjusted easily.

* Main Conveyor Belt System 800 mm
Crawler type conveyor has tires.

* Vibrating Screen System High Capacity type
Size: 1500x3700mm
Engine Power 2 units 7.5 KW
Number of Floors: 3 Storeys

*Hydraulic Cone Crusher Unit
Feeding size max. 210mm
Crusher Engine 132 kW
Hydraulic and lubrication unit
engine pulley
V-belt
engine stand
The machine comes with its own linings.
Adjusting and clamping ring with hydraulic cylinder
Overload protection provided by double-sided cylinders and accumulators
Countershaft system
Conical head system with inner bearings and spherical bearings
eccentric system
Crusher upper frame system with adjustment box and hydraulic motor
Lubrication/ Hydraulics

* Under Sieve Stock Conveyor 1000 mm
Folding type

* Stock Conveyor 2 pieces 600 mm Folding type
* 2. Crusher Main Belt Conveyor 5000 mm Folding type
* Mobile Chassis System 3-Axle Special Construction Chassis
* Hydraulic System
There are 6 hydraulic leg mechanisms in the system. After these legs are locked, they are strengthened with 6 fixed legs.

Hydraulic Power System 125 Liters
Magnetic Conveyor Belt 750 mm (Optional)
* Panel Material is Schneider Electric or Telemecanique Brand.
* The Panel System has Abb Soft Starter system and special control system.
All functions can be controlled with Remote Control (Radio Control System).
Generator System is Optional, 6 Cylinder diesel engine of Cummins,Perkins,Doosan,Deutz brands and Marelli Alternator.
Capacity: It varies according to the crushed material and feeding, final product dimensions and has a capacity of 160 – 240 tons.
Dust Removal System prevents dust by spraying high pressure water into the nozzle to suppress dust on conveyors.
Feeders have vibromotors, Emtaş or Italvibras, Oli brand.
Drive Drums are Rubber Coated and Gear Type.
Electric Motors are Gamak, Emtaş and Inter Branded.
The reducers are special reducers with 3 transmissions.
Conveyor Belt Tires are Derby or Eksaş Brand.
Bearings: SKF or Equivalent Bearings
The flat product used is Ereğli Iron and Steel Product and is A1 Quality.
* By-pass system (optional)
* Magnetic magnet (optional)
* Generator System (optional)
* Additional hopper for truck feeding (optional)
* Dust Decontamination System (optional)
* Frequency Control System is used instead of Soft starter.

This System allows the operating speed of the Crusher to be adjusted. Moreover, when working with a generator, this device enables non-disruption operation, low generator selection and low fuel consumption. Approximate fuel consumption is 30 – 35 Lt/Hour (Optional) ** All our products are European Union CE certified.

** Transportation Dimensions: Width 3000 mm x Length 21.000 mm x Height 4500 mm

GENERAL MACHINE

Priced considering our budget prices.

Please contact us for detailed price information.
