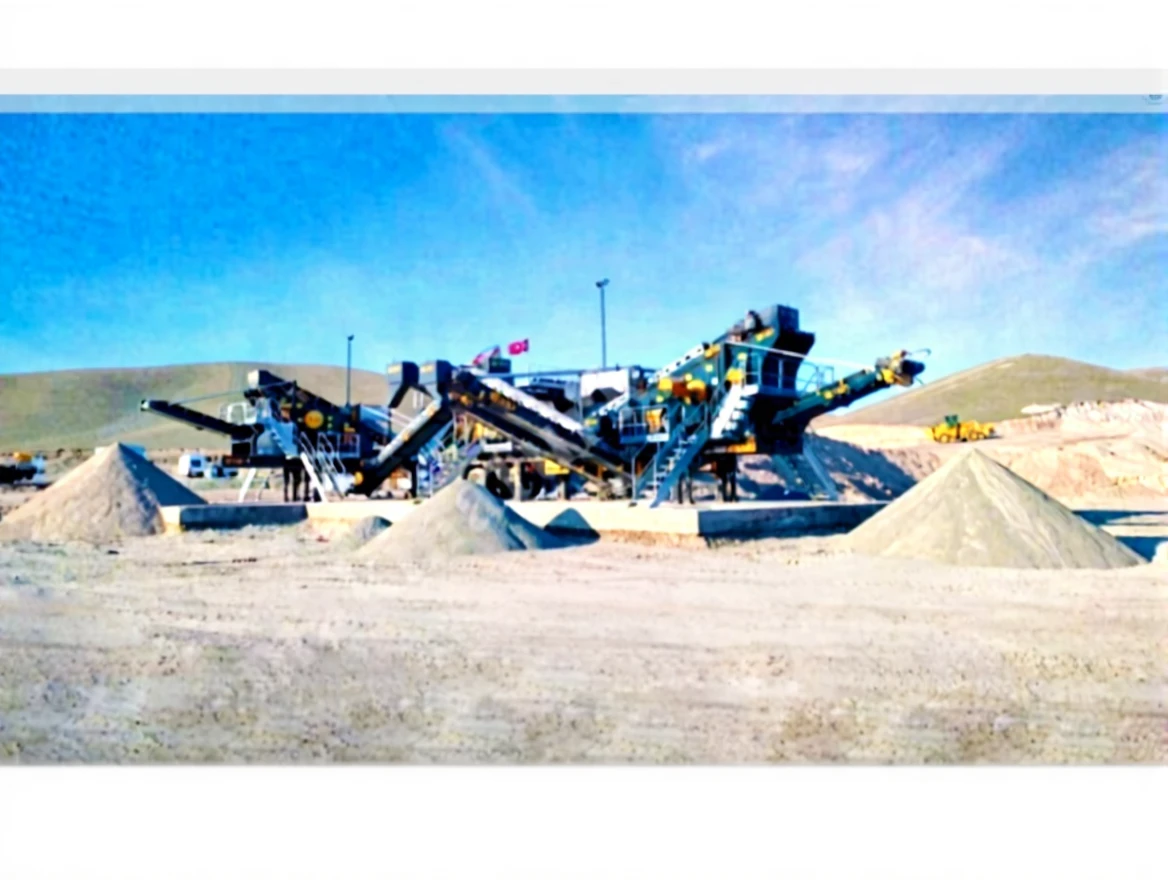

120-180 Tons/Hour Mobile Crusher Washing System

Fabo Machine Fullstar [ PHONE HIDDEN ] Tons/Hour Mobile Crusher Washing System

* All of our products are produced with care and are covered by a 1-year warranty!

* Installation and Operator Training will be provided free of charge.

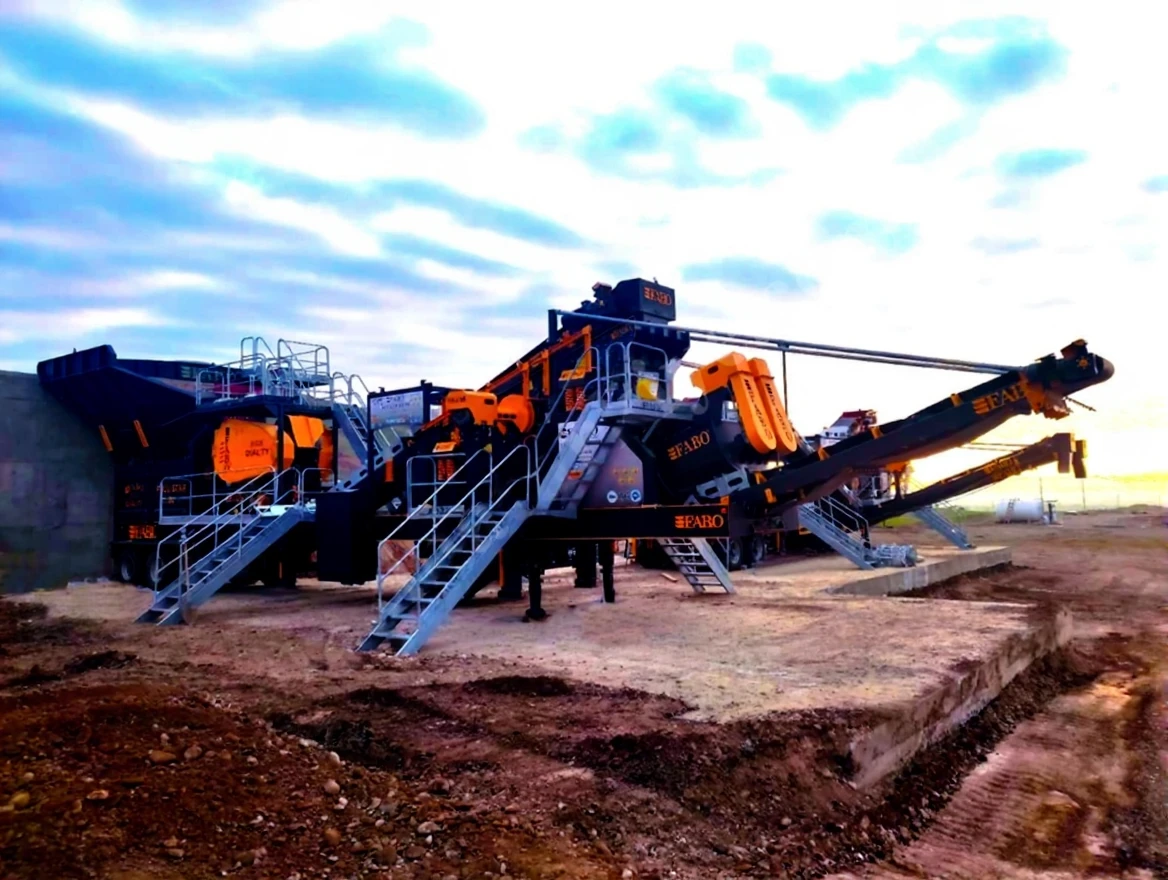

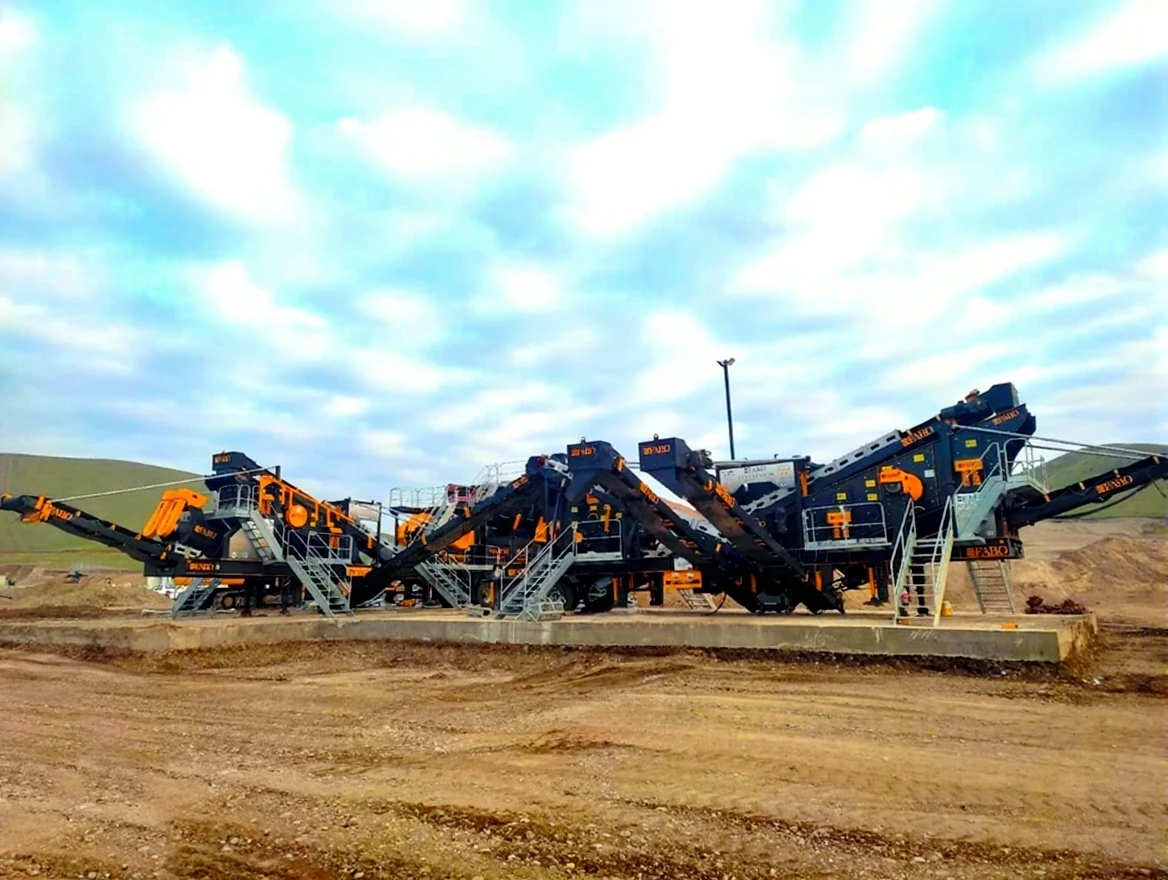

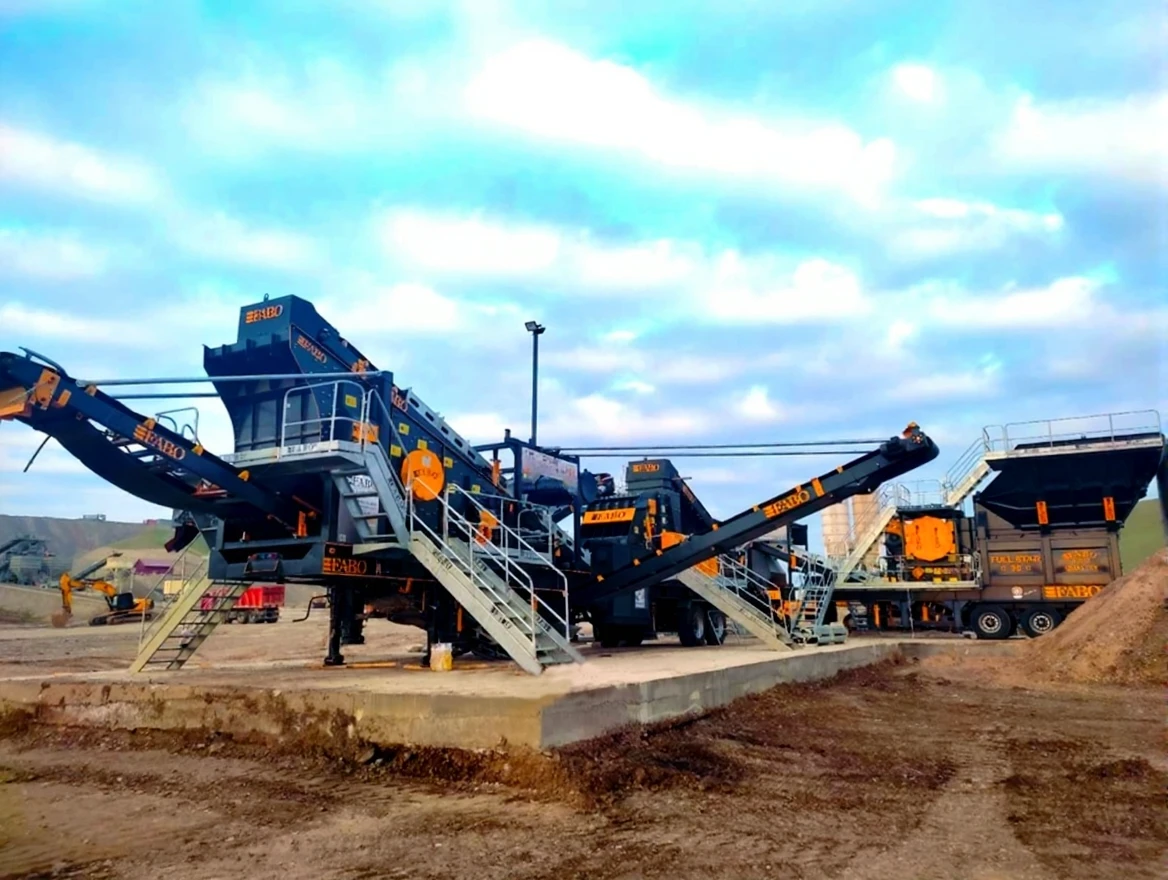

The new generation FULLSTAR series Mobile Crushing, Screening, and Washing Plants are the most preferred machines in recent years due to their easy and cost-effective installation. The primary crushing process is done with a Primary Jaw Crusher, and we can design for the secondary crushing stage with a Secondary Impact Crusher or Cone Crusher according to our customers’ needs. The FULLSTAR-90 plant can perform crushing and screening on two chassis and allows for the simultaneous washing of 0-5 mm sand. Our Fullstar model operates in a closed circuit system and allows you to obtain 4 different final fractions up to a capacity of 300 T/H. We produce Fullstar-90 and 110 models with a foldable type 2 chassis that has 3 functions at the same time with their own tires.

TECHNICAL SPECIFICATIONS:

Bunker: 25 m3

Production Capacity: 120-180 Tons per Hour

                                                          1st Crusher on the 1st Chassis: Primary Jaw Crusher size: 900×650 mm

                                                          2nd Crusher on the 1st Chassis: Secondary Impact Crusher Rotor size: Ø1250×1000 mm

Maximum Feed Size: 600 mm

Vibrating Screen Size and Body: 1st Screen on the 1st Chassis: 1700×4500 mm

                                                        : 2nd Screen on the 2nd Chassis: 1550×4000 mm (Grizzly)

Washing Spiral Size: 600×5000 mm (Double Helix)

Total Motor Power: 377 Kw

Generator (optional): 450 Kw

FULLSTAR-90 is a combination of the following:

• Bunker

• Vibrating Grizzly Feeder (Bypass)

• Primary Jaw Crusher

• Secondary Impact Crusher

• High Stroke Vibrating Screen

• Spiral Sand Washer (Double Helix)

• Foldable type feeding, return, bypass, and stock conveyor belts

• Hydraulic legs

• Mobile Chassis with axles and tires

• Full Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)
