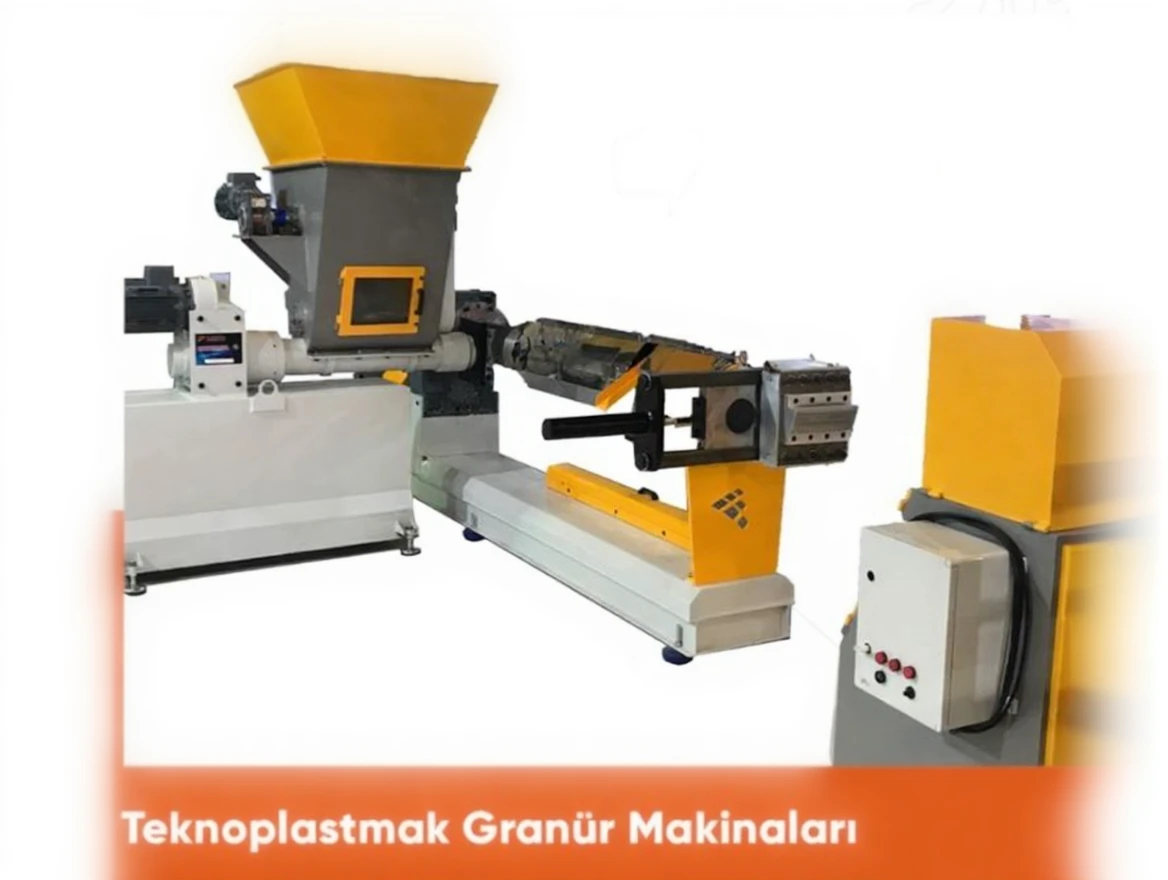

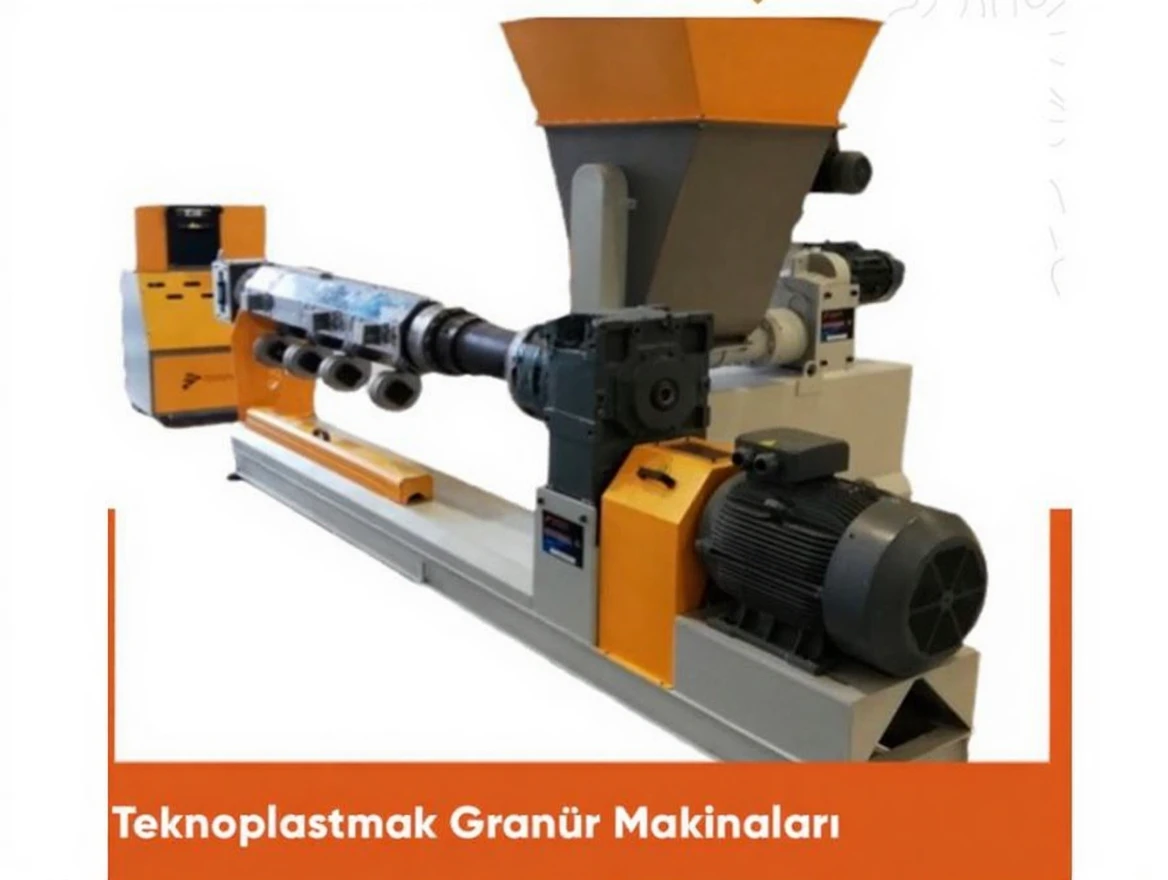

Ø120 280-400 Kg/Hour Plastic Recycling Granule Extruder

The process begins with the separation of plastic materials, which are then cleaned by a washing system after being broken and fragmented, and transported to pools. During this process, they undergo washing and rinsing. In the subsequent stage, to remove the existing water, they are transferred to the agglomerator machine by being dewatered in the squeezing system, which reduces the existing mass and increases the density. At the same time, they undergo a drying process and become ready for processing in the extruder.
In the extruder stage, the plastic material under high temperature and pressure, after passing through the filter with its current specific density, is shaped into granules according to the desired dimensions and stored.

Our agglomerate models suitable for the needs and capacities of our customers are recommended. Agglomerator machines play a role in crushing and drying tasks. Plastic is transferred into the agglomerator and, due to friction from the rotating blades on the high-speed rotating axe and fixed blades, the moisture on the plastic is vaporized, and the product is heated and dried.

Technical Specifications:

Screw Diameter: Ø120

Motor Power: 90 kW

Resistance Power: 80 kW

Screw Ratio (L/D): 36

Capacity: 280-400 kg/h
