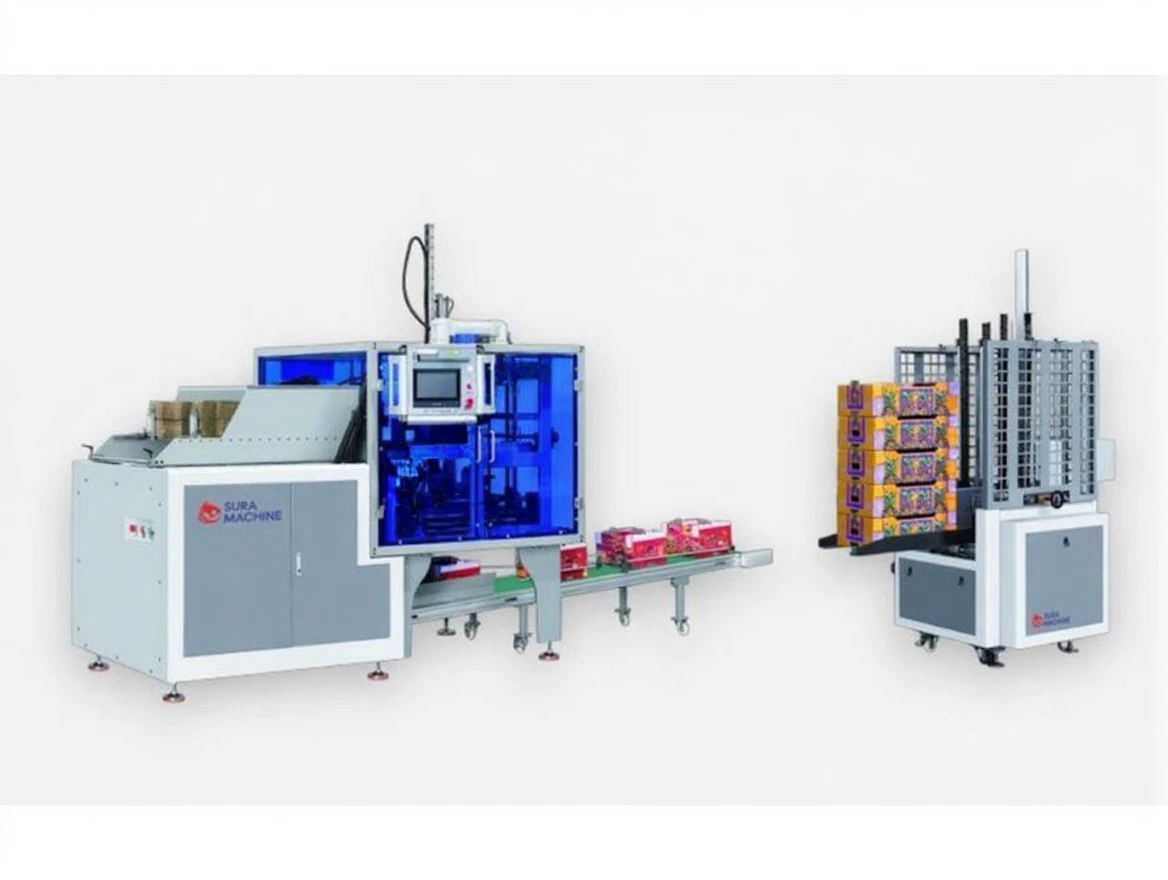

1200-3000 Pieces/Hour Automatic Multi-Functional Box Preparation Machine

Imported glue spraying system with automatic glue spraying emission function;
Folding blades attached to the device can produce various types of boxes;
Cardboard, continuous feeding with automatic feeding via lower vacuum suction system, shaping, conveying, and stacking is offered in one go;
Movable controller, photoelectric monitoring system, gas signal detection system, and packaging process through human-machine interface are fully automated;
Folding and gluing errors are reduced with fiber elements in gluing.
The servo system reduces photoelectric sensor errors for gluing the front and back of the cardboard, making the gluing more precise;
Personal security protection system to provide personal data; Automatic fault diagnosis function;
Quick mold change adjustment device;
Machine schematic cage design, integral processing and grouping; The entire machine takes up little space and has good stability.

Sura Machine SM FBM-50 Technical Specifications

Cardboard thickness:    (Min) 1.5mm, (Max)5mm

Production speed:    1200-3000 Pieces/Hour

Stacking height of cardboard:    280 mm.

Stacked weight:    30 kg.

Power:    380V / 50Hz

Total  power:    15 kw.

Glue capacity:    10L

Noise:     ≤100dB

Air Supply :    50L/Min.

Machine Weight:    1600 kg.

Machine Dimensions:    2750×1550×2500mm
