1200 Kg/Hour Compact Steam Generator
| Brand | Universal |
|---|---|
| Model Type |
KBJ 1250 |
Description

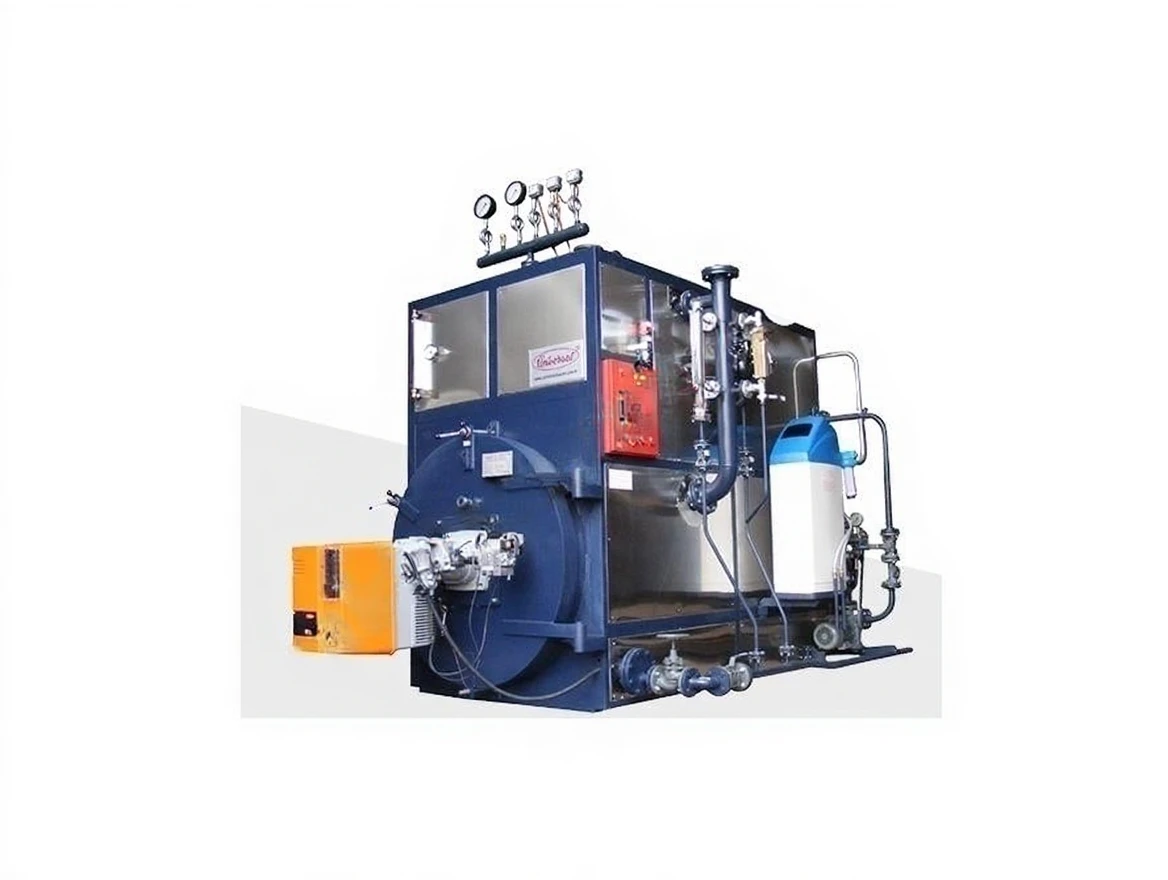

1200 Kg/Hour Compact Steam Generator
Universal Boiler KBJ 1250
GENERAL FEATURES
- Takes up little space and produces economical steam in a very short time.
- Manufactured according to heavy-duty conditions. Not easily affected by hard and turbid waters.
- Operates automatically and safely. Has sequential safety systems.
- Works without requiring excessive information, maintenance, and supervision.
- Proven itself with hundreds of examples operating in Turkey and abroad for years.
- It is a compact unit with a boiler, feed water pump, condensate tank, water filter, automatic water softening unit, and electrical panel.
DESIGN
- An ideal steam producer for hotels, laundries, garment and knitwear factories, feed industry, concrete curing, dry cleaning, beverage bottling industry, steam washing and cleaning, sock industry, and similar industrial facilities.
COMPONENTS
- Steam generator
- Boiler fittings
- Safety systems
- Feed water (condensate) tank and fittings
- Boiler feed pump and fittings
- Burner
- Automatic water softening device
- Water filter
- Electrical panel and installation
|
|
Steam Capacity (kg/h) |

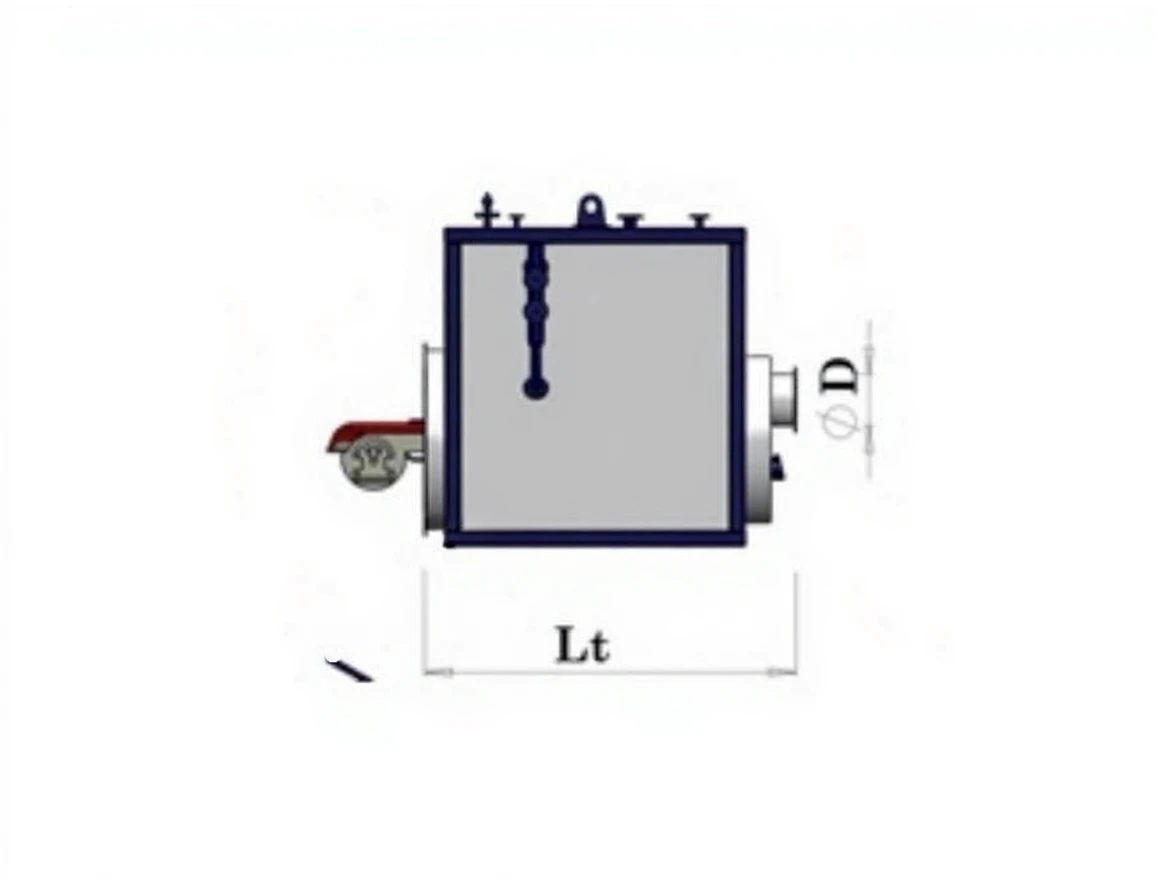

Length Without Fittings L (mm) |
Length With Fittings L (mm) |

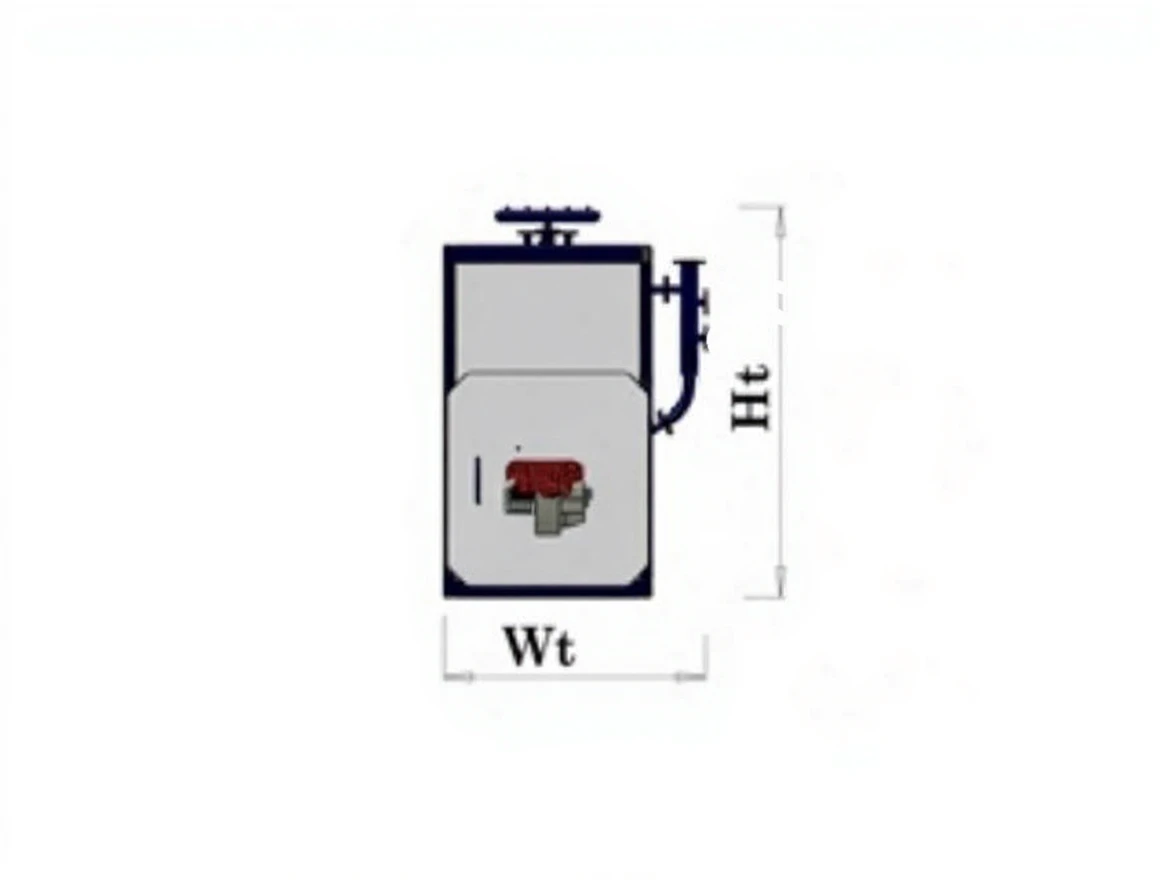

Width With Fittings E (mm) |
Height Without Fittings H (mm) |
Height With Fittings H (mm) |
Water Volume (lt) |
Chimney Diameter (mm) |
Approximate Weight (kg) |
Smoke Duct Resistance (mmSS) |
|
KBJ 1250 |
1,250 |
2,950 |
3,860 |
1,880 |
2,650 |
2,900 |
1,344 |
400 |
4,090 |
35 |
