1200 Kg Lifting Tipping Machine
| Brand | DAMS |
|---|---|
| Model Type |
DKDM-1200 |

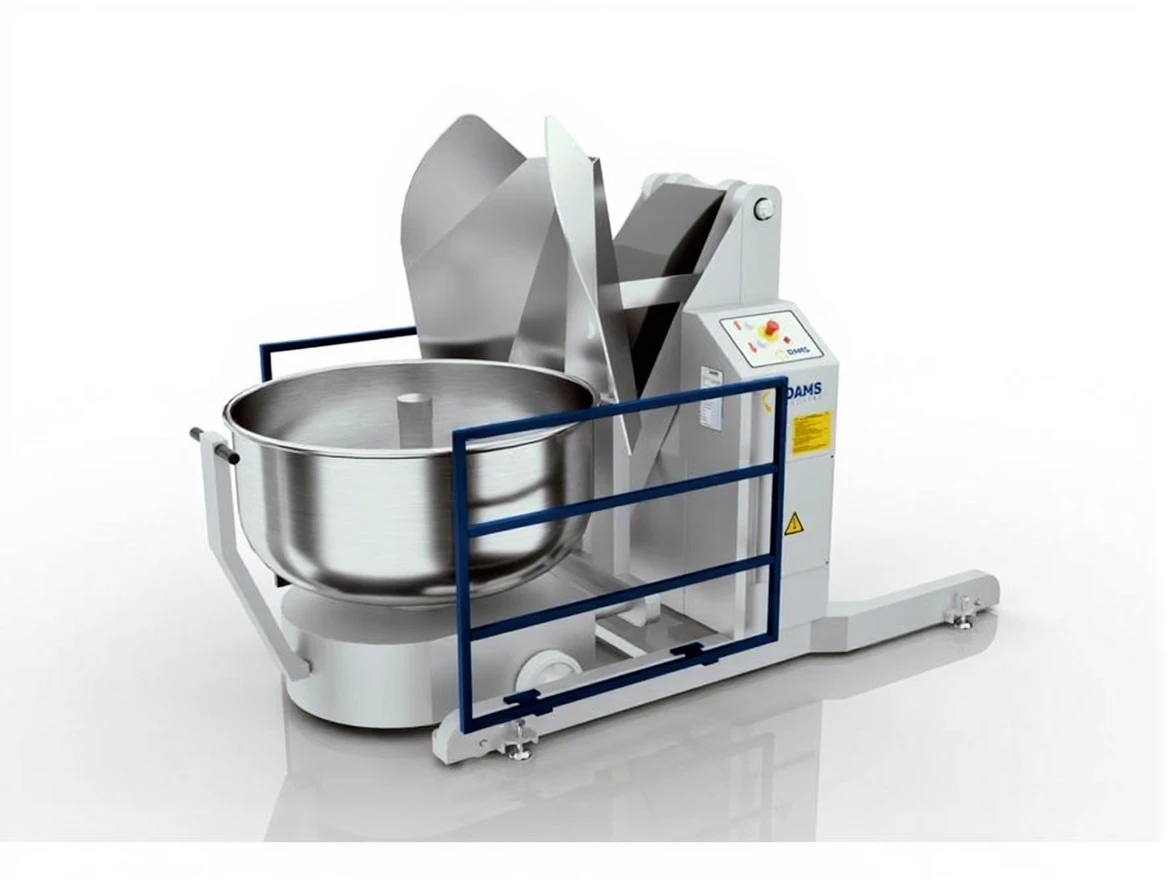

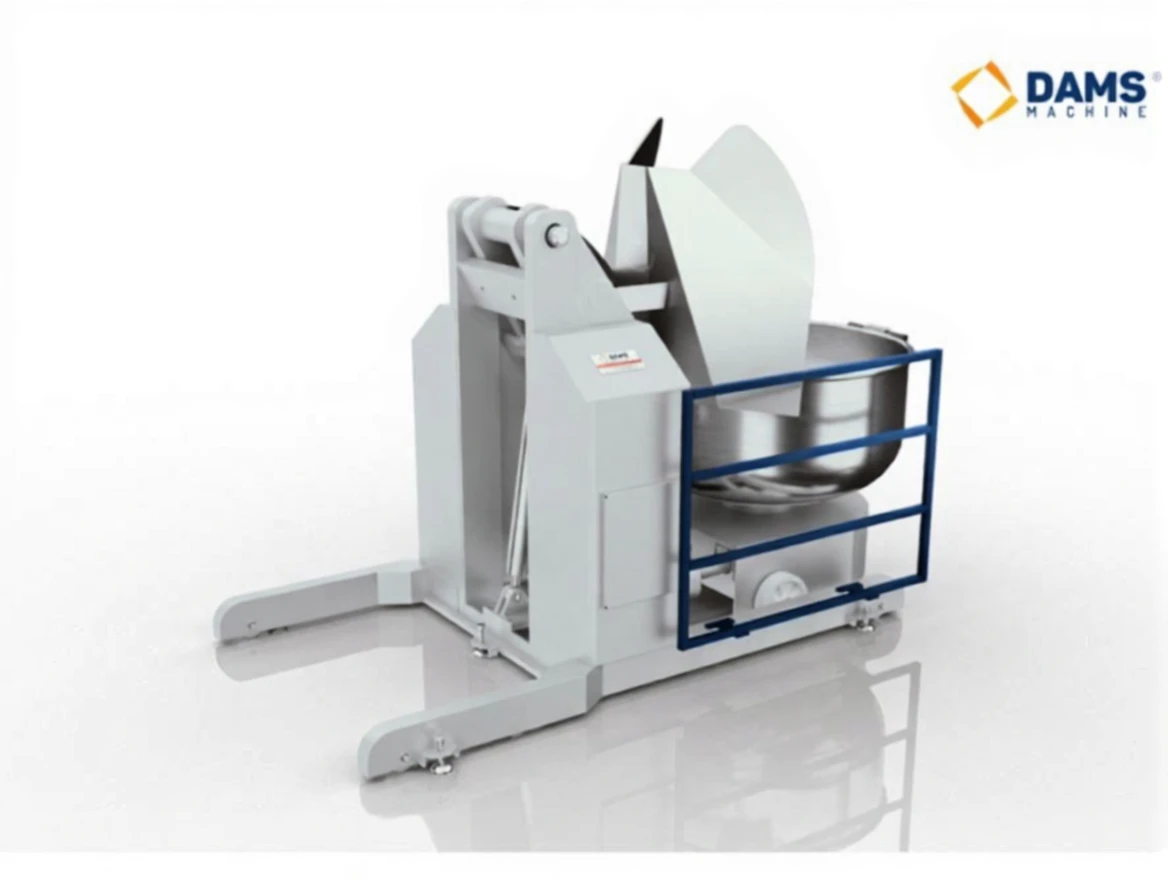

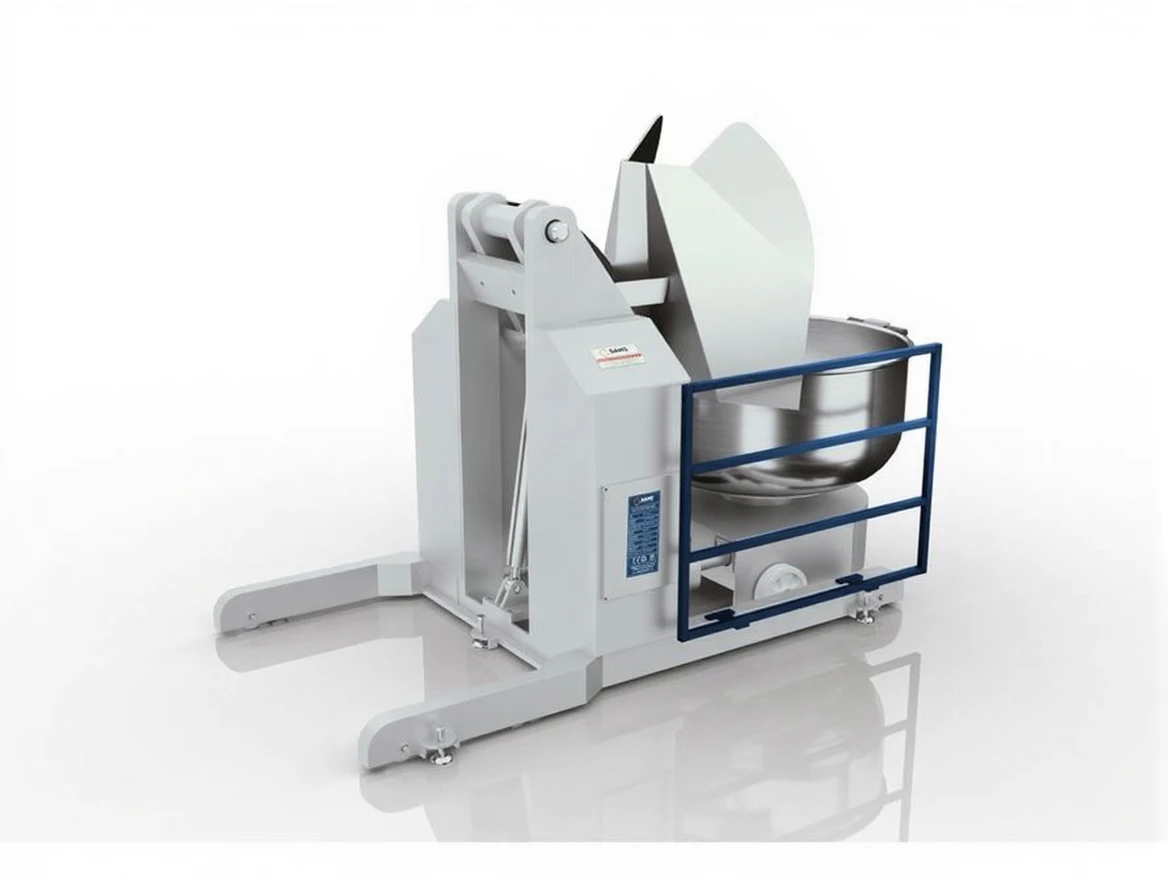

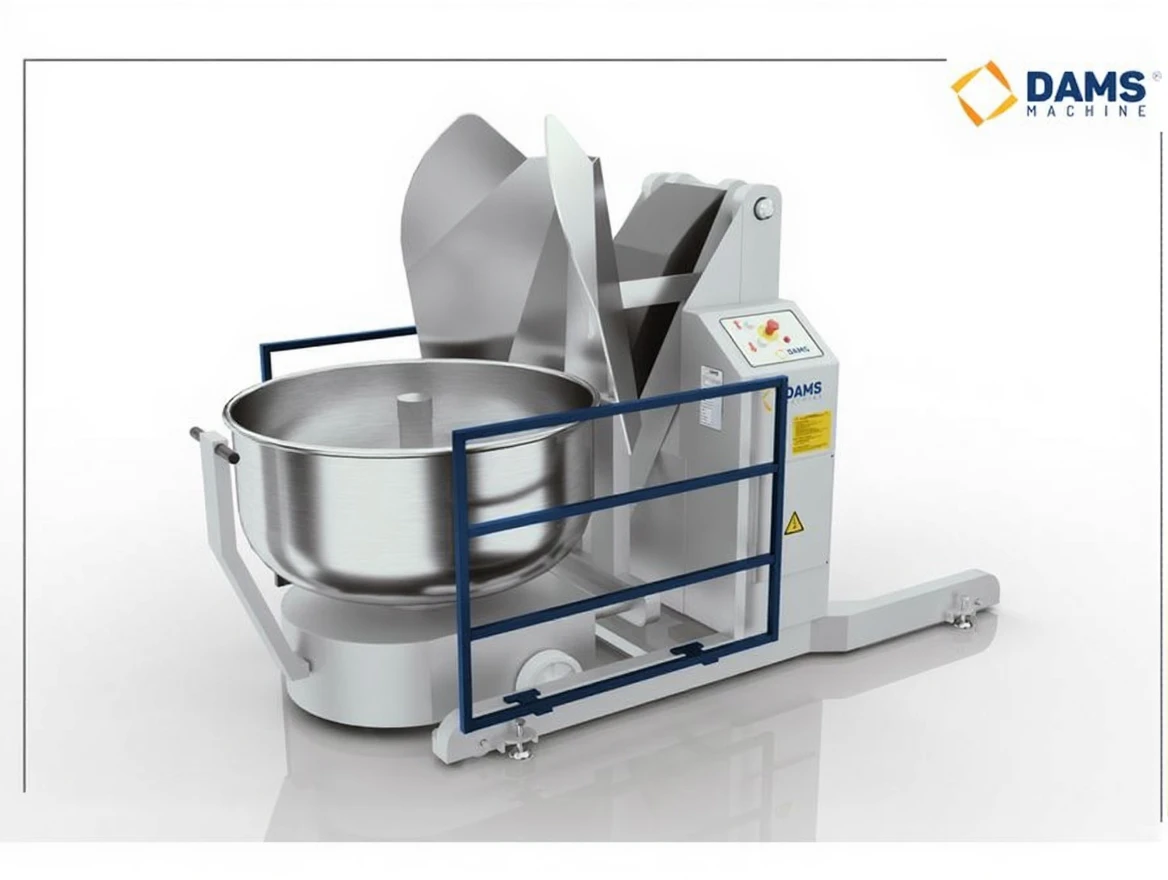

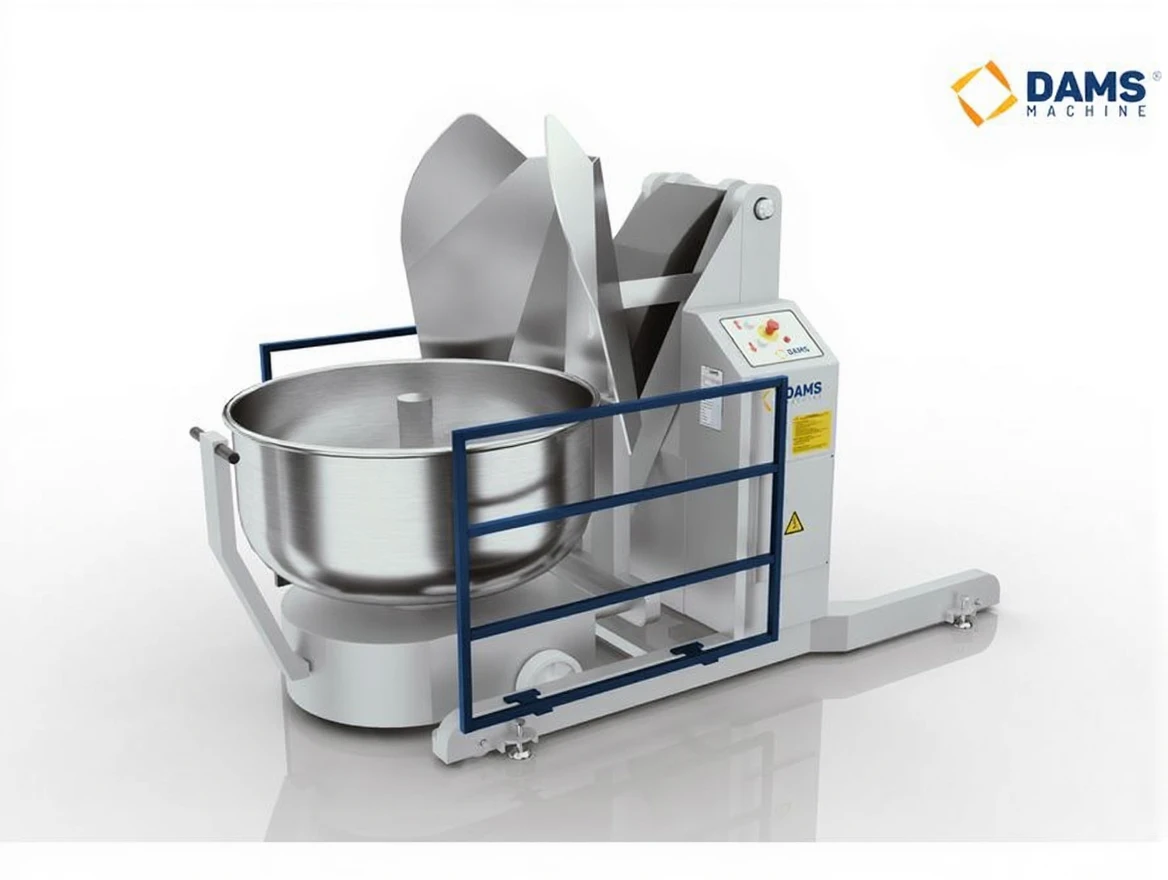

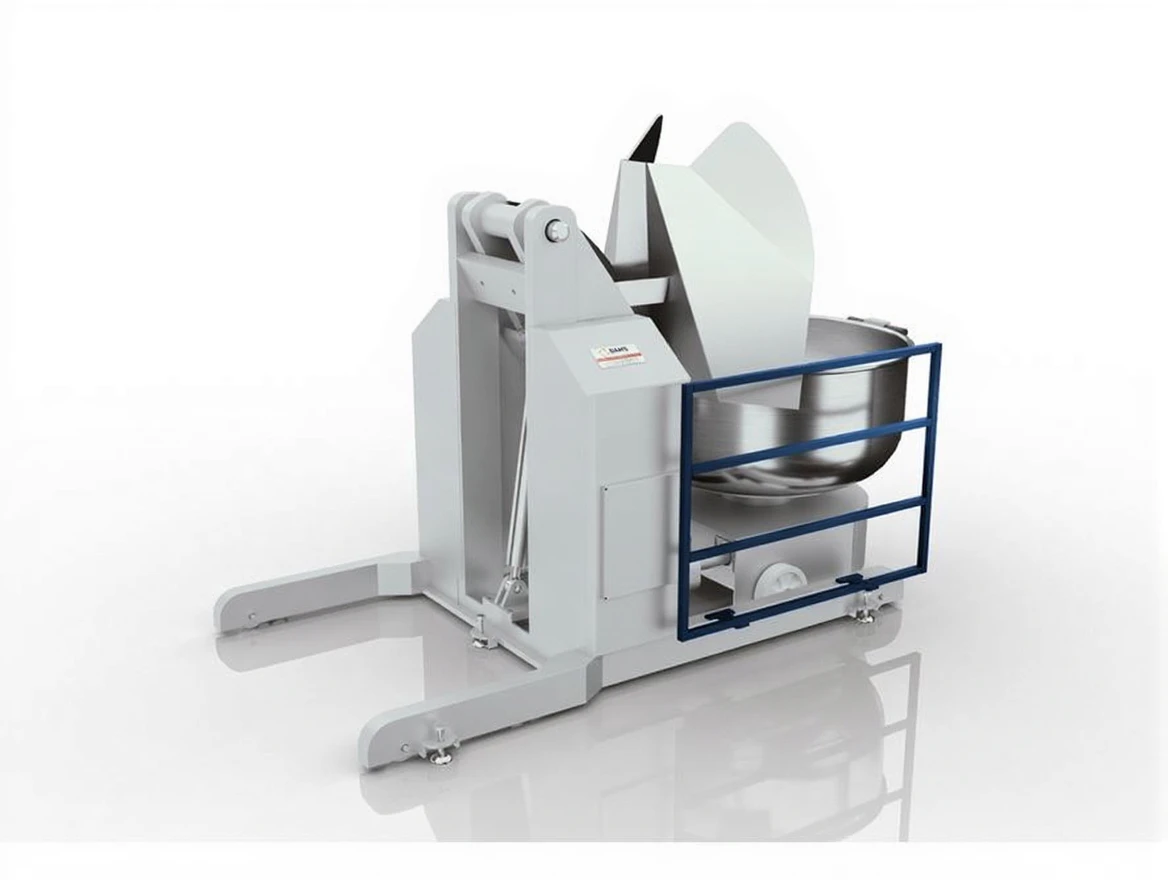

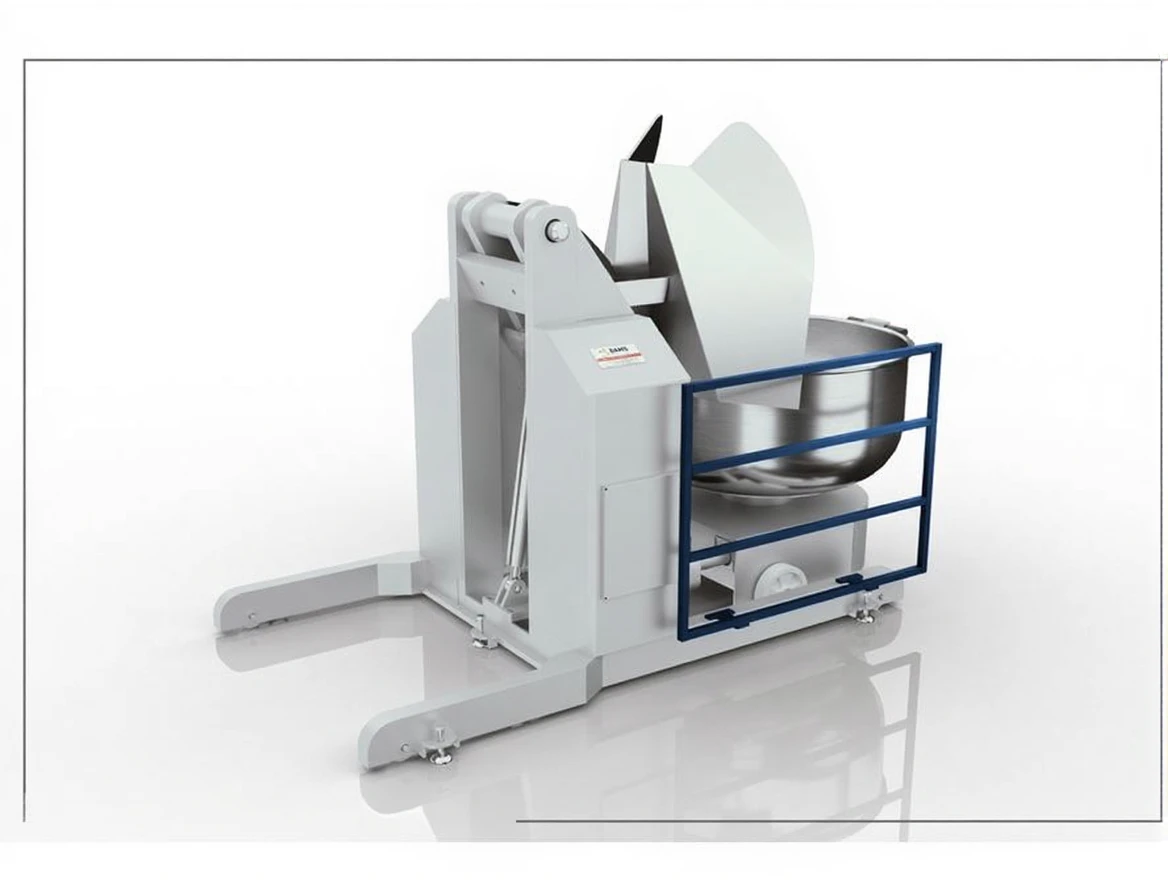

Dams DKDM-1200 1200 Kg Lifting Tipping Machine
The DKDM series is designed to transfer the dough inside the mobile boiler of the GKHYM series to the desired environment practically, aiming to save time, energy, and especially to ensure hygienic production.
PRODUCT FEATURES
Hydraulic lifting system
Reinforced body
Parts in contact with food are made of 304 quality stainless steel
Quiet operation
Emergency stop button
One-touch lifting and lowering function
Electrostatic oven painted surface
" DKDM-700 is prepared with special dimensions upon order ".
|
|
DKDM-700 |
DKDM-800 |
DKDM-1200 |
DKDM-1500 |
|
LIFTING CAPACITY |
700 KG |
800 KG |
1200 KG |
1500 KG |
|
WIDTH |
– |
1160 mm |
1160 mm |
1220 mm |
|
HEIGHT |
– |
1620 mm |
1700 mm |
1800 mm |
|
DEPTH |
– |
2150 mm |
2200 mm |
2200 mm |
|
STARTING HEIGHT |
– |
3000 mm |
3150 mm |
3300 mm |
|
DOUGH FLOW HEIGHT |
– |
1550 mm |
1600 mm |
1600 mm |
|
WEIGHT |
– |
400 KG |
440 KG |
480 KG |
|
MOTOR POWER |
– |
1.1 KW |
1.1 KW |
1.5 KW |
|
VOLTAGE |
380V – 50 HZ |
380V – 50 HZ |
380V – 50 HZ |
380V – 50 HZ |
