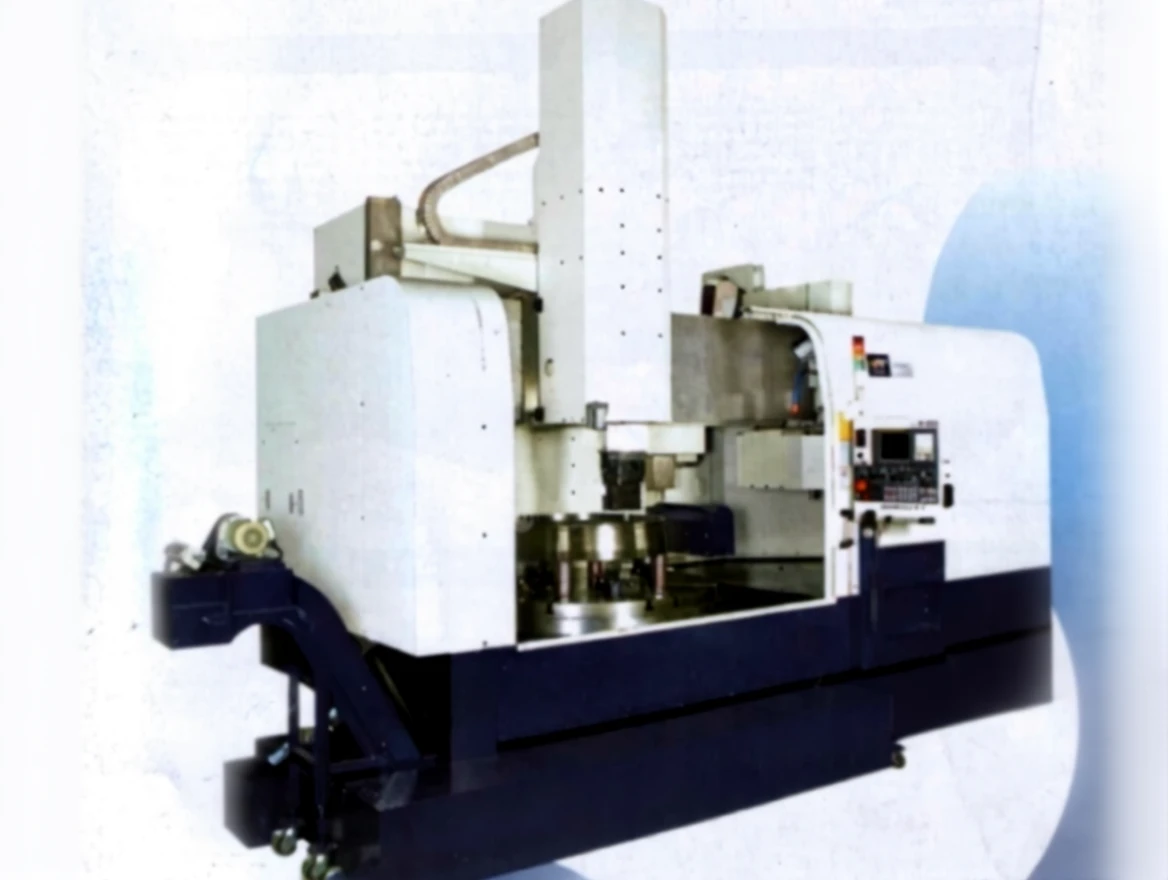

Ø 1200 mm Heavy Duty Vertical Lathe Machine

10DC 10DCM

TURNING CAPACITY Max. Turning Diameter (mm) Ø 1200 Ø 1200 Max. Turning Length (mm) Ø 1100 Ø 1100 Distance from Tool Post to Table Surface (mm) 925 925 Max. Turning Height (mm) 800 800 Max. Workpiece Weight (kg) 3500 3500 SPINDLE Table Diameter (mm) 1000 1000 Spindle Speed (rpm) 3-400 3-400 Live Tool Spindle Speed (rpm) 50-2250 50-2250 Gearbox Steps 2 2 ATC Number of Tool Positions 12 12 Tool Size (mm) 25,32 25,32 Ram Section (mm) 200×200 220×220 AXES Rapid Feeds (m/min) 10 10 X-Axis Travel (mm) -100+700 -100+700 Z-Axis Travel (mm) 600 600 Cutting Feed (mm/rev) 0.001-500 0.001-500 Column Movement Fixed Fixed MOTOR Spindle Motor (50% ED) (kw) 30/37 30/37 X, Z Axis Motor Power (kw) 4.0/4.0 4.0/4.0 C Axis Motor Power (kw) 11/15 11/15 Power Requirements (kva) 75 90 MACHINE SIZE Width x Length (mm) 4050×2900 4050×2900 Height (mm) 4100 4100 Machine Weight (kg) 15500 16300

Equipped with Fanuc OiTC and Standard Accessories.
