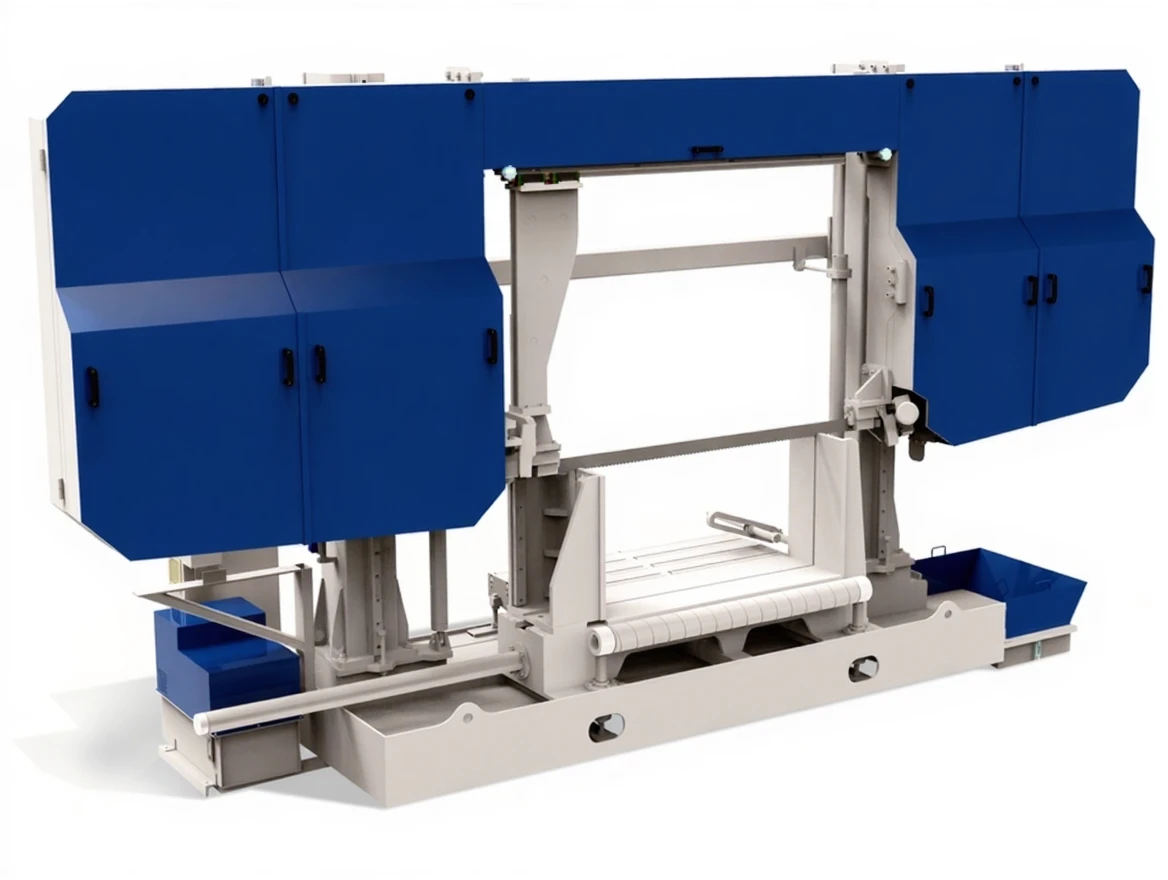

1200 mm Semi-Automatic Hydraulic Column Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
CSM 1200/1300 |
Description
Cuteral CSM 1200-1300
1200 mm Semi-Automatic Hydraulic Column Band Saw Machine
Cuteral CSM 1200-1300 Technical Specifications
| A | 3000 mm | |||
| B | 5625 mm | |||
| C | 1690 mm | |||
| D | 525 mm | |||
| E | 3000 mm | |||
| hmax | 3725 mm | |||
| Semi-Automatic | ||||
| Blade Size | 67 x 1.6 x 12450 mm | |||
| Blade Motor | 7.5 kW – 1500 rpm | |||
| Chip Conveyor Motor | 0.09 kW – 1500 rpm | |||
| Hydraulic Motor | 3 kW – 1500 rpm | |||
| Coolant Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 10.71 kW | |||
| Cutting Speed | 15 m/min – 49 m/min | |||
| Weight | 7000 kg | |||
| Material Clamping System | Hydraulic | |||
| Blade Tensioning System | Hydraulic | |||
| Cutting Capacity 90° Length | 1200 mm | |||
| Cutting Capacity 90° Width | 1300 mm | |||
| Angle of Cut Material | 0° | 1200 mm | 1200 x 1200 mm | 1200 x 1300 mm |
| Model | Motor | Compatible Mill | Weight |
| VHF 400 | 1.5 | VHM 70×40 | 240 |
| VHF 500 | 0.55 | VHM 115×50 | 280 |
| VHF 600 | 0.75 | VHM 115×60 | 320 |
| VHF 800 | VHM 115×80 | 395 | |
| VHF 1000 | 1.1 | VHM 115×100 | 485 |
| VHF 1200 | VHM 115×120 | 555 |
