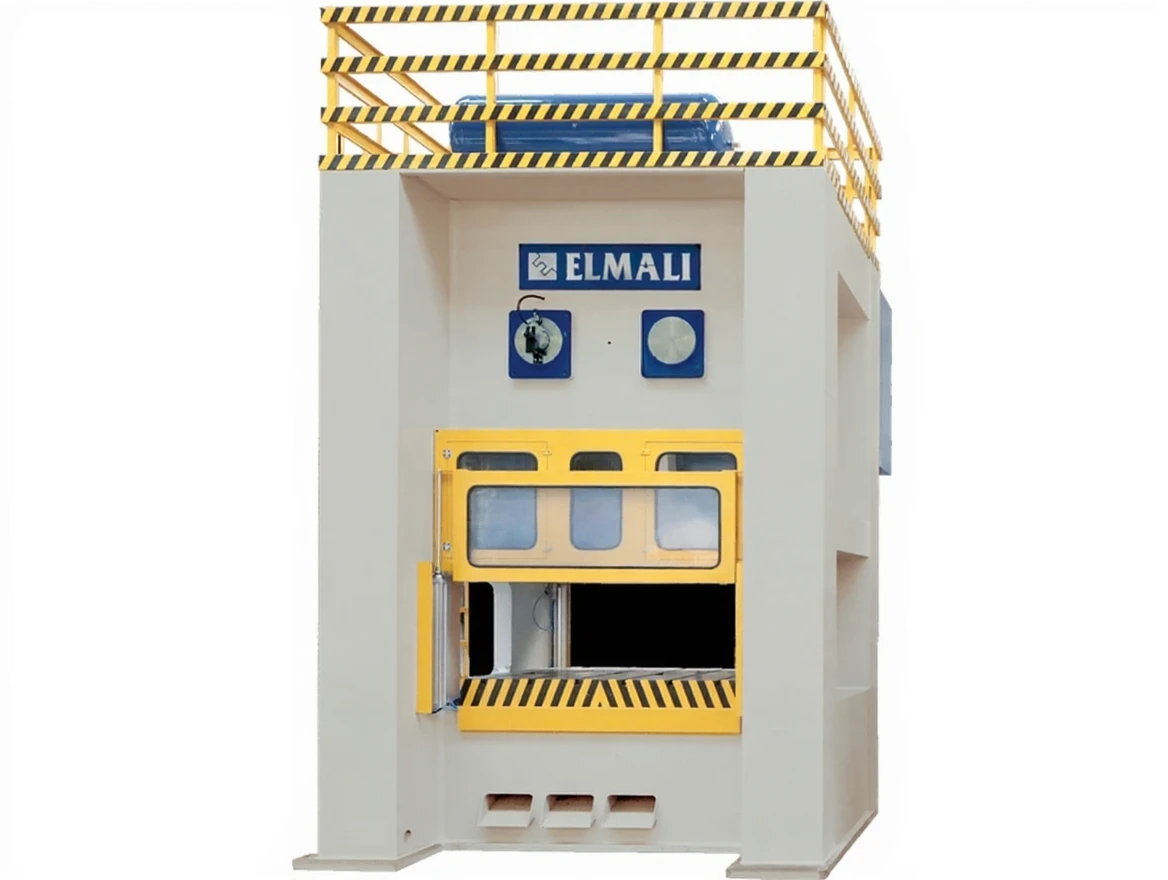

125-600 Tons H Type Eccentric Press
| Brand | Biko Export |
|---|
Description
Biko Export EHEP-CB-125/600
125-600 Tons H Type Eccentric Press
Biko Export EHEP-CB Series General Features:
– Steel frame construction body
– Pneumatic clutch and break combination
– PLC application and monitor
– Double arm
– Motorized table-ram adjustment
– Central automatic lubrication system
– 8 guided ram
– Main table and ram with T slots
– Ram cushioning cylinders
– Hydraulic overload safety desvice
– Speed control unit
– Conformity to the European Directives (CE)
– Custom designed table and stroke
– Servo feeder
– Anti vibration pads
– Hydraulic clutch and brake combination
Biko Export EHEP-CB Series Technical Features:
|
Capacity
ton
|
Table-Ram Distance
mm
|
Housting Width
mm
|
Ram Adjusment
mm
|
Press Width
mm
|
Press Depth
mm
|
Press Height
mm
|
Table Dimenston
mm
|
Ram Face Size
mm
|
Stroke
mm
|
Motor Power
kW
|
Weight
kg
|
|
| EHEP-CB-125 | 125 | 500 | 1930 | 100 | 3500 | 2200 | 4500 |
1800
750
|
1800
750
|
200 | 18,5 | 23000 |
| EHEP-CB-160 | 160 | 500 | 1930 | 120 | 2700 | 2200 | 4600 |
1800
750
|
1800
750
|
200 | 22 | 26000 |
| EHEP-CB-200 | 200 | 500 | 2130 | 120 | 2900 | 2550 | 4600 |
2000
100
|
2000
1000
|
200 | 30 | 32000 |
| EHEP-CB-250 | 250 | 500 | 2130 | 120 | 2900 | 2650 | 4600 |
2000
1100
|
2000
1100
|
200 | 37 | 38000 |
| EHEP-CB-300 | 300 | 500 | 2130 | 120 | 2900 | 2750 | 4700 |
2000
1200
|
2000
1200
|
200 | 45 | 41000 |
| EHEP-CB-400 | 400 | 500 | 2130 | 120 | 3050 | 3200 | 4700 |
1200
2000
|
1200
2000
|
200 | 45 | 51000 |
| EHEP-CB-500 | 500 | 500 | 2330 | 120 | 2900 | 3350 | 5000 |
2200
1200
|
2200
1200
|
200 | 75 | 68000 |
| EHEP-CB-600 | 600 | 500 | 2350 | 120 | 3100 | 3500 | 5200 |
2200
1200
|
2200 1200 | 200 | 90 | 77000 |
