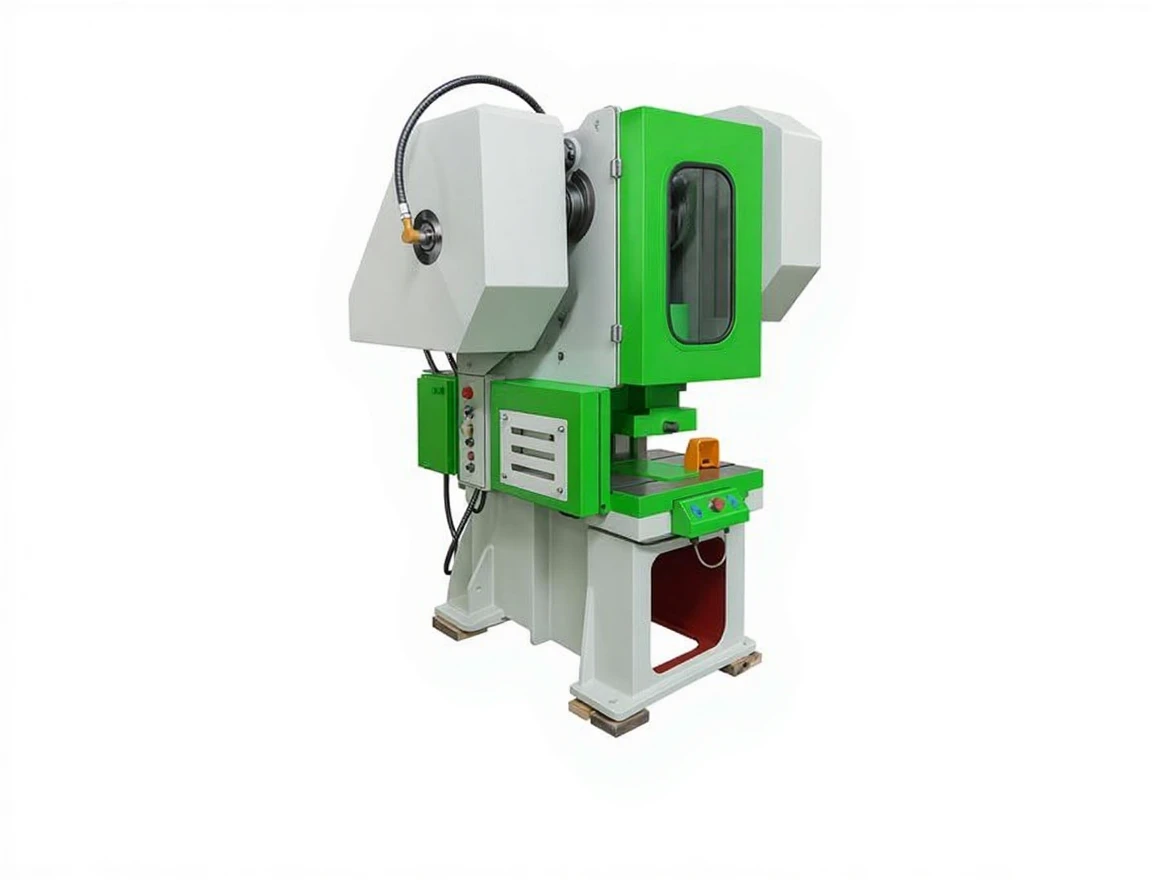

125 Ton C Type Eccentric Press

C Type Eccentric Press – CECP 125 Tons

Standard Features

• Steel construction body

• Registration from 4 surfaces

• Sphere cast connecting rod and gear bearings

• Crankshaft and transmission shafts 4140 annealed steel

• Central system fully automatic grease lubrication

• Pneumatic clutch and brake combination

• Compliant with CE safety directives

• Double coil safety valve

• Manually adjustable stroke

• Beam barrier finger – hand protection safety system

• PLC control system

• Double foot pedal control system

• Mechanical fuse system

• Emergency reverse motor movement

• Compliant with occupational safety regulations

• Compliant with CE standards

Optional Features

• Vibration reducing wedge

• Spare table

• Press feeding systems

• 1 set of mold with desired features

• 8 bearing slideway

Technical Specifications

• Capacity: 125 Tons

• Throat Depth: 310 mm

• Bed – Ram Distance: 500 mm

• Slider – Bed Distance: 510 mm

• Distance Between Walls: 450 mm

• Alignment Adjustment: 100 mm

• Press Width: 1500 mm

• Press Depth: 2200 mm

• Press Height: 2700 mm

• Front Anchorage Size: 790 mm

• Side Anchorage Size: 1250 mm

• Table Hole Diameter: 210 mm

• Table Size: 630 × 820 mm

• Mold Binding Slot Diameter: 55 mm

• Ram Size: 500 × 250 mm

• Floor Table Size: 785 mm

• Stroke Adjustment: 10 – 125 mm

• Strokes per Minute: 50 spm

• Motor Power: 11 kW

• Motor Speed: 1450 RPM

• Approximate Weight: 6000 kg

Production Information

This machine is manufactured by CronossTech in Turkey.
