1250 x 290 mm Inverter Motor Milling Machine
| Brand | King |
|---|---|
| Model Type |
SZ 1820-VS |
Description

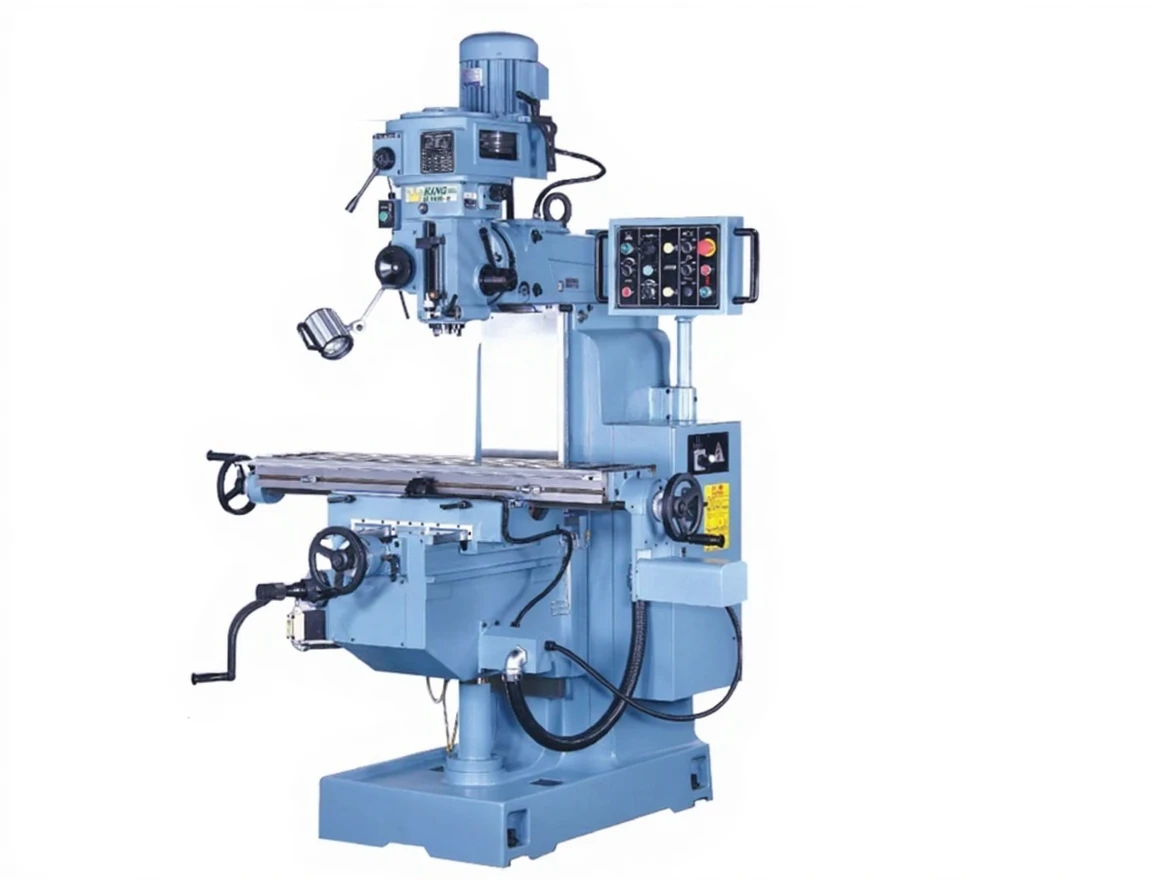

King SZ 1820-VS
1250 x 290 mm Table Range Inverter Motor Milling Machine
King SZ 1820-VS Technical Specifications
|
SPINDLE CONE |
ISO 40 |
|
QUILL DIAMETER |
110 mm |
|
QUILL MOVEMENT |
140 mm |
|
HEAD TILT |
45 degrees LEFT-RIGHT |
|
TABLE LENGTH |
1250 x 290 mm |
|
X AXIS MOVEMENT |
650 mm |
|
Y AXIS MOVEMENT |
350 mm |
|
Z AXIS MOVEMENT |
400 mm |
|
T CHANNEL DIMENSION |
3 x 16 x 63 mm |
|
CUTTING SPEED X,Y |
0 – 1500 mm / min |
King SZ 1820-VS General Features
-
5 Hp Motor Power
-
DC Servo motor on X – Y axes
-
Rapid Motor on Z axis
-
16 speed options
-
C5 class bearing shaft on X-Y axes
-
All parts of the machines have been checked with a 3D (German) coordinate measuring device.
-
Single piece body structure
-
Guide pull mechanism
