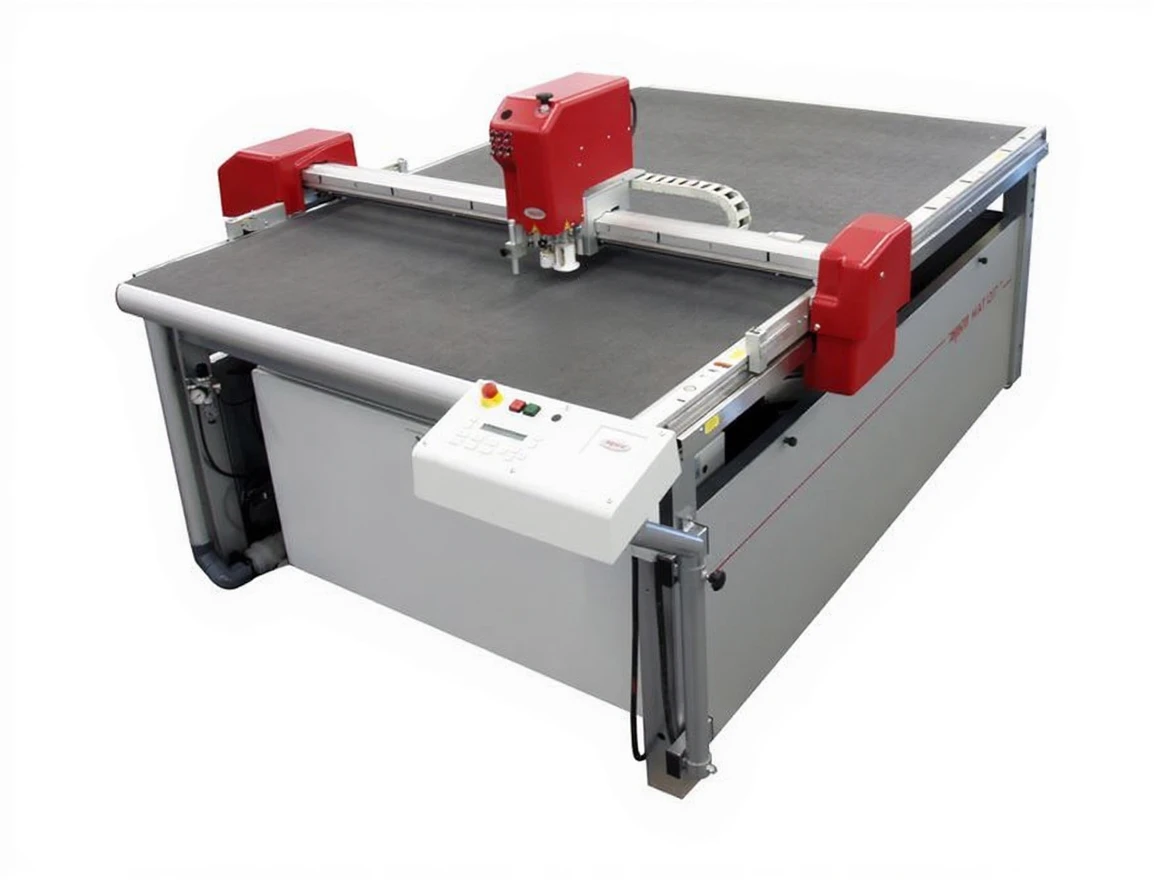

1250×1700 mm Digital Cutting Machine

GERMAN TECHNOLOGY, FAST, PRECISION CUTTING, PRODUCTION AUTOMATION, INNOVATIVE
Table Option from 100 cm to 800 cm.
100’s of Cutting, Milling, Scoring, Grinding, Marking, Creasing, Drawing Pens and Blades

Cardboard / Corrugated Cardboard Cuttings, Advertising, Signage, Packaging, Textile, Shoes, Gasket, Sealing Products, Model, Stand, Decoration, Reflective Foil (Traffic), Display Product Cutting, Label (Full, Half Cut), Industrial Sampling, Production Automation and Solution Systems

V Cut, Textiles, Technical Textiles, Composite Materials, Leather, PVC Plates and More

Gasket Cutting, Model, Cardboard Stand, Model Toy, Box Manufacturing

ARISTOMAT SL Technical Specifications

Models and Dimensions

Technical Specifications

• Speed:1.4 m/s (55 in/s) – Adjustable from menu or software

• Acceleration Point:1.1G

• Material Thickness:Max. up to 35mm

• Static Sensitivity:± 0.02 mm/m (0.0008 in/40 in) @20°C

• Electrical Control Mechanism:Digital servo motors

• Data Format:HPGL

• Processor Interface:Serial RS 232C/V.24; D-Sub, 25 pins

• Cache:400 KB, with repeatable function

• Vacuum:Adjustable Matrix vacuum fields

• Power Supply:230V, 50/60 Hz or 3 Phase Connection, 400V, 50Hz

• Operating System:Integrated console, functional switches and multi-line display
  (English, German, French, Spanish, Italian)

Operating and Environmental Conditions

• Operating Temperature:10°C ~ 30°C / 50°F ~ 86°F

• Ambient Temperature:-15°C ~ 45°C / 5°F ~ 113°F

• Humidity:40% – 80%

Certificates

• CE Label

• Emergency Stop

• Luminous Barrier

• Automatic Shutdown

Optional Equipment

• Motorized feeding and collecting system for roll materials

• Material holding systems

• Matching blades/tools – for different materials and applications
