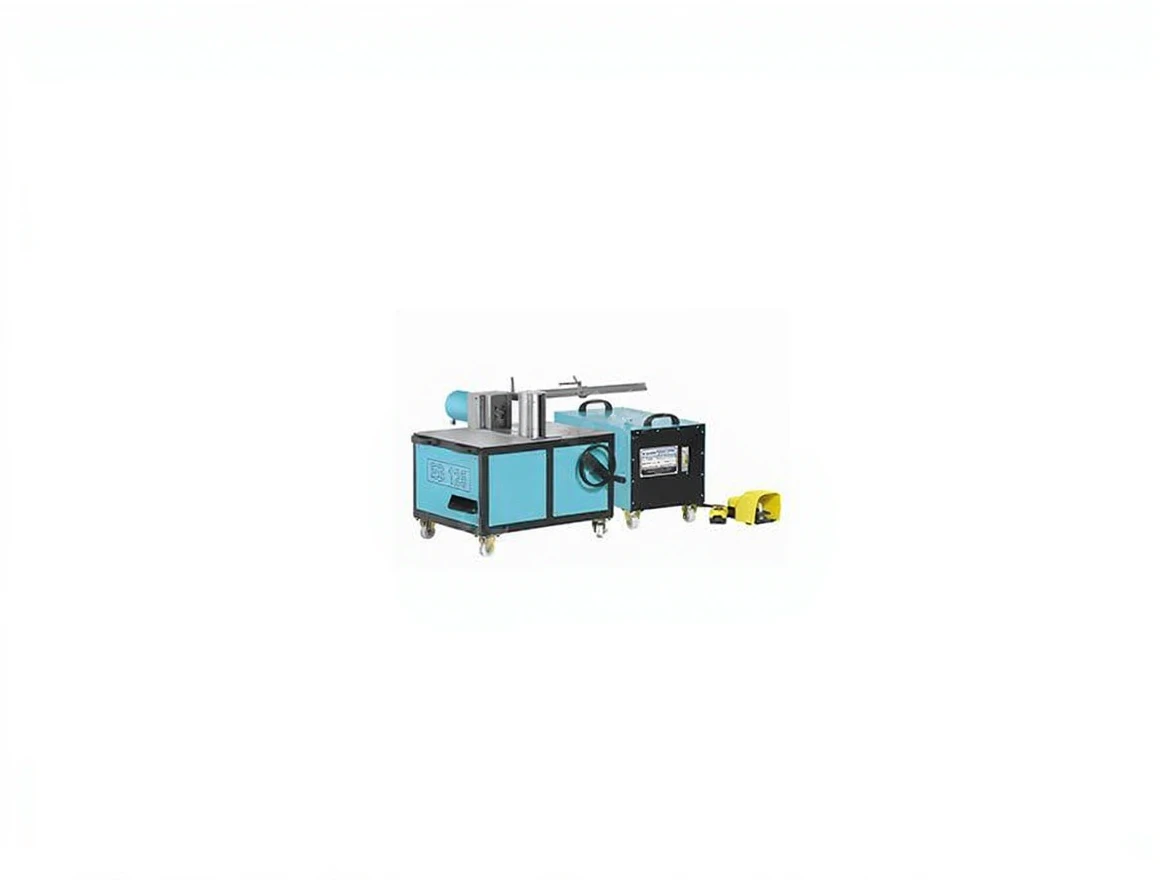

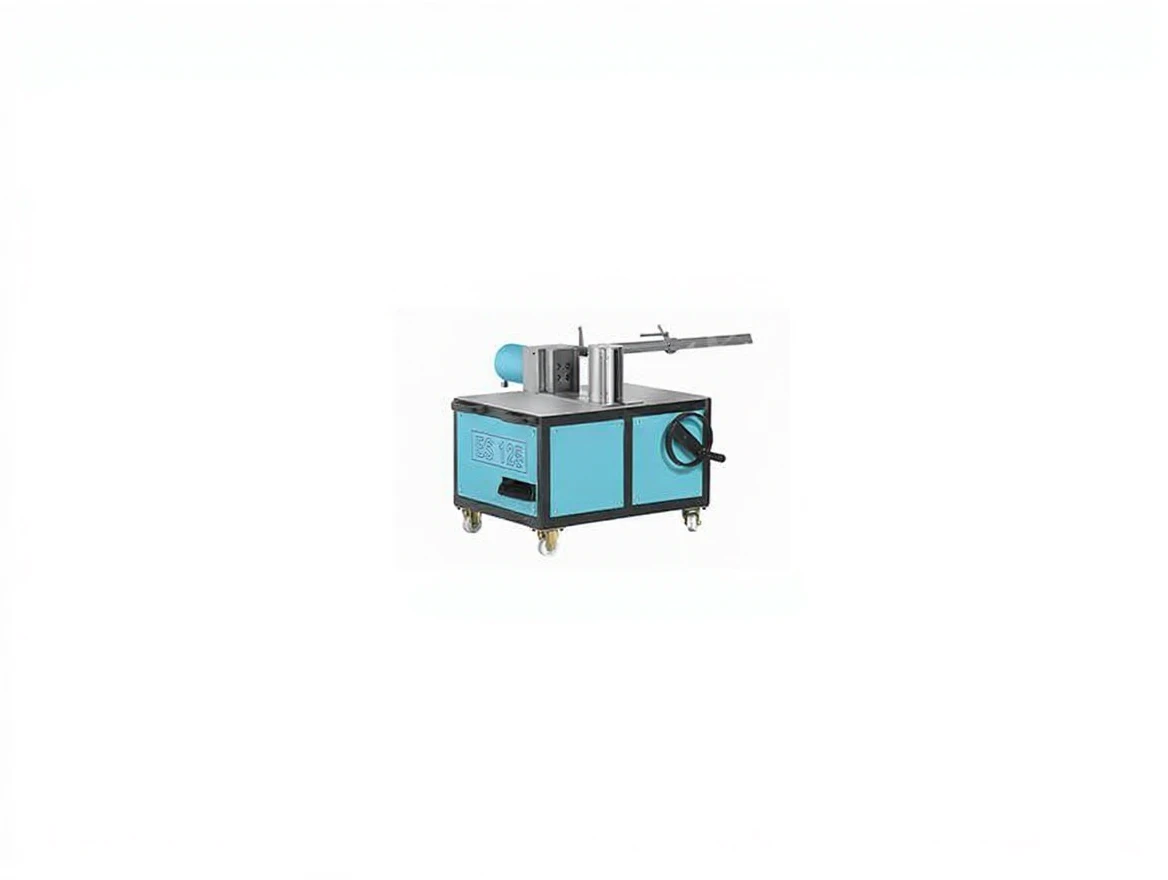

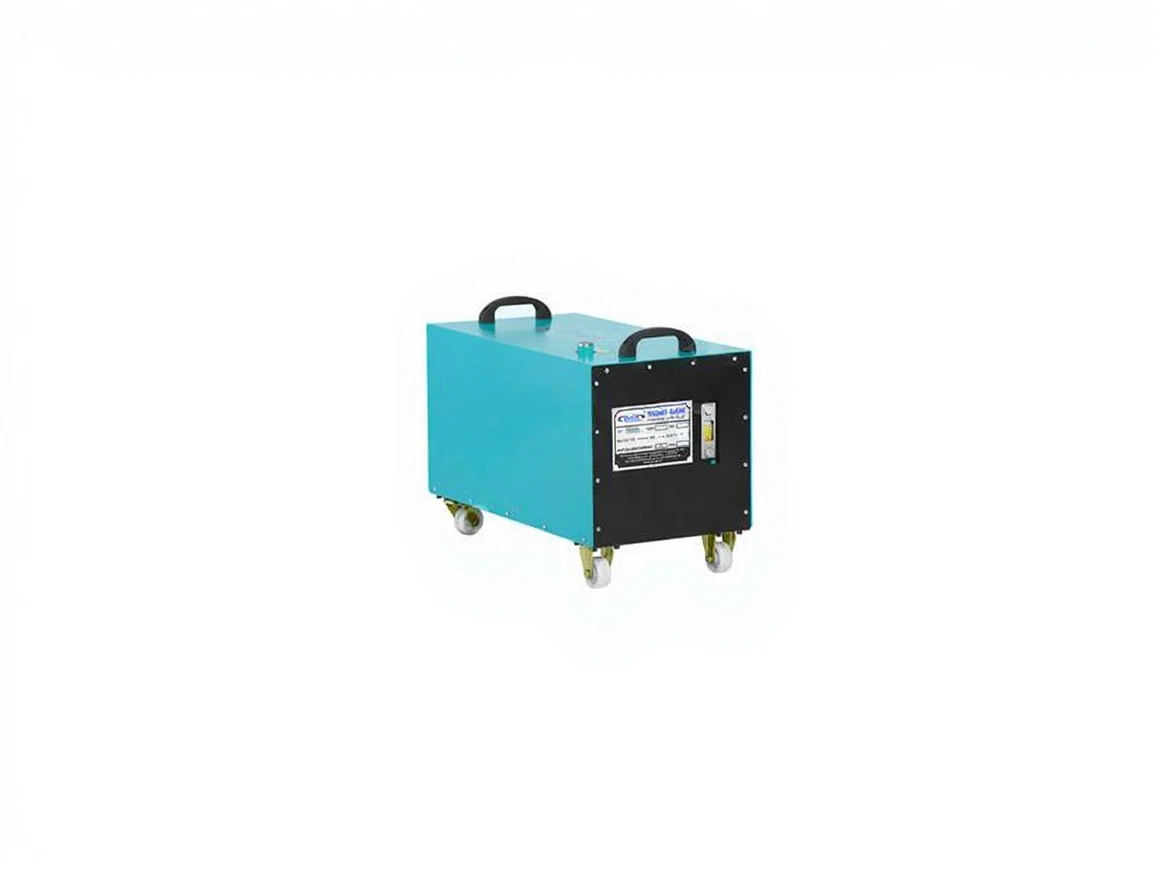

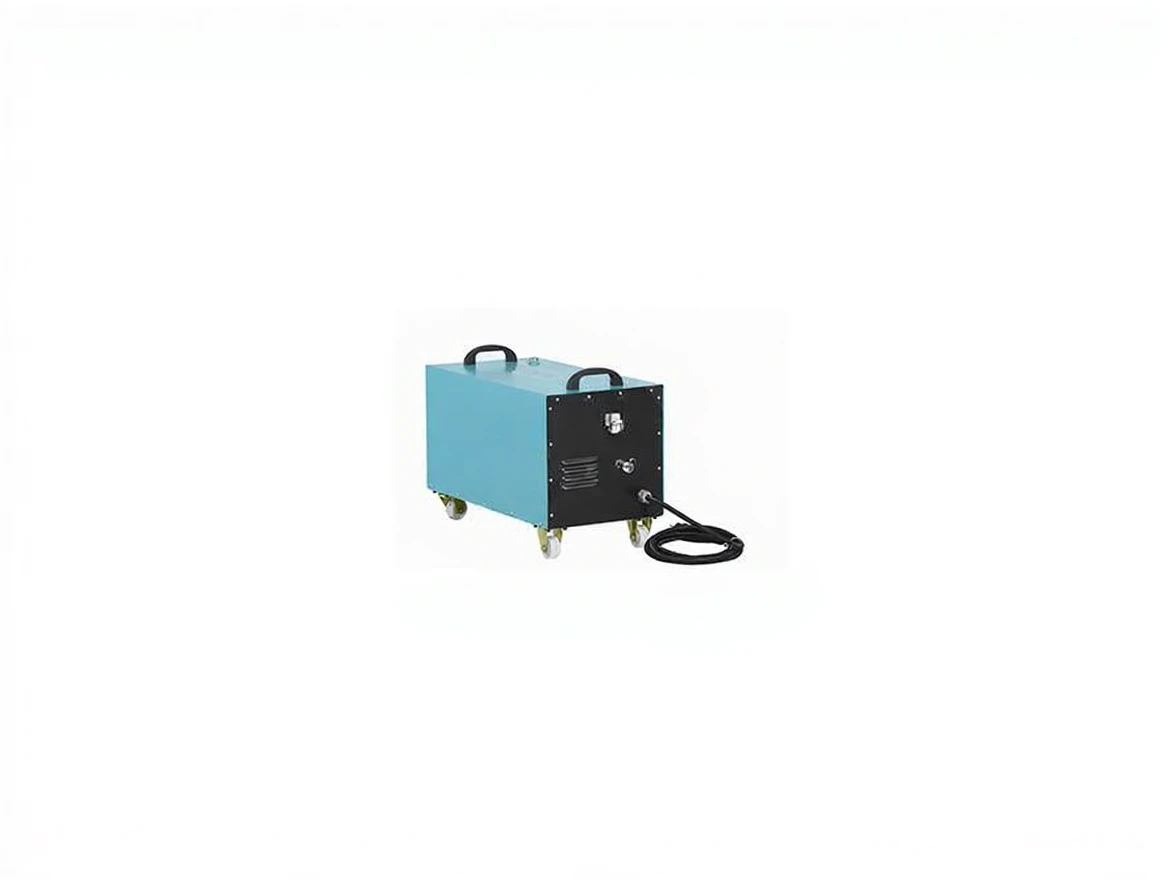

12×125 mm Portable Busbar Bending Punching Cutting Machine

Technical Specifications

ES125

 Mechanic  Information

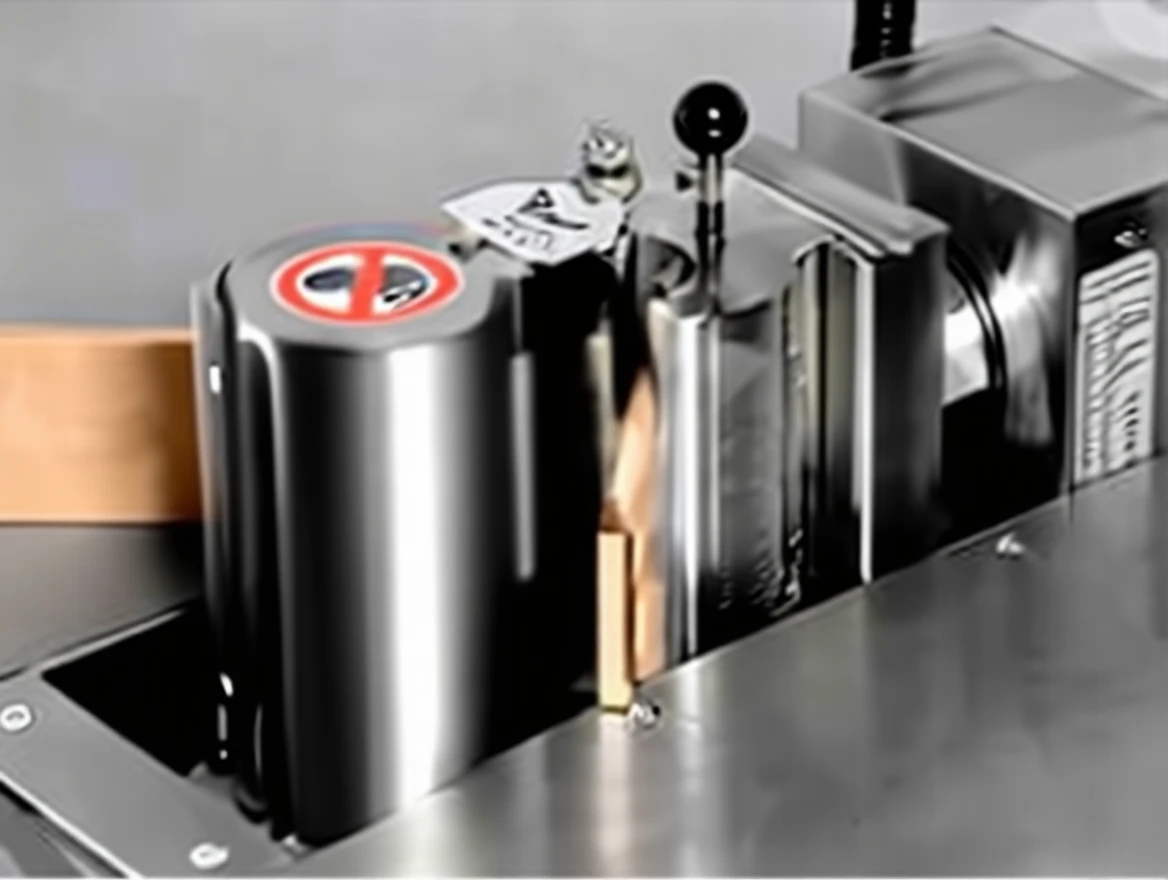

 Cutting

 Maximum Capacity

mm

12×125

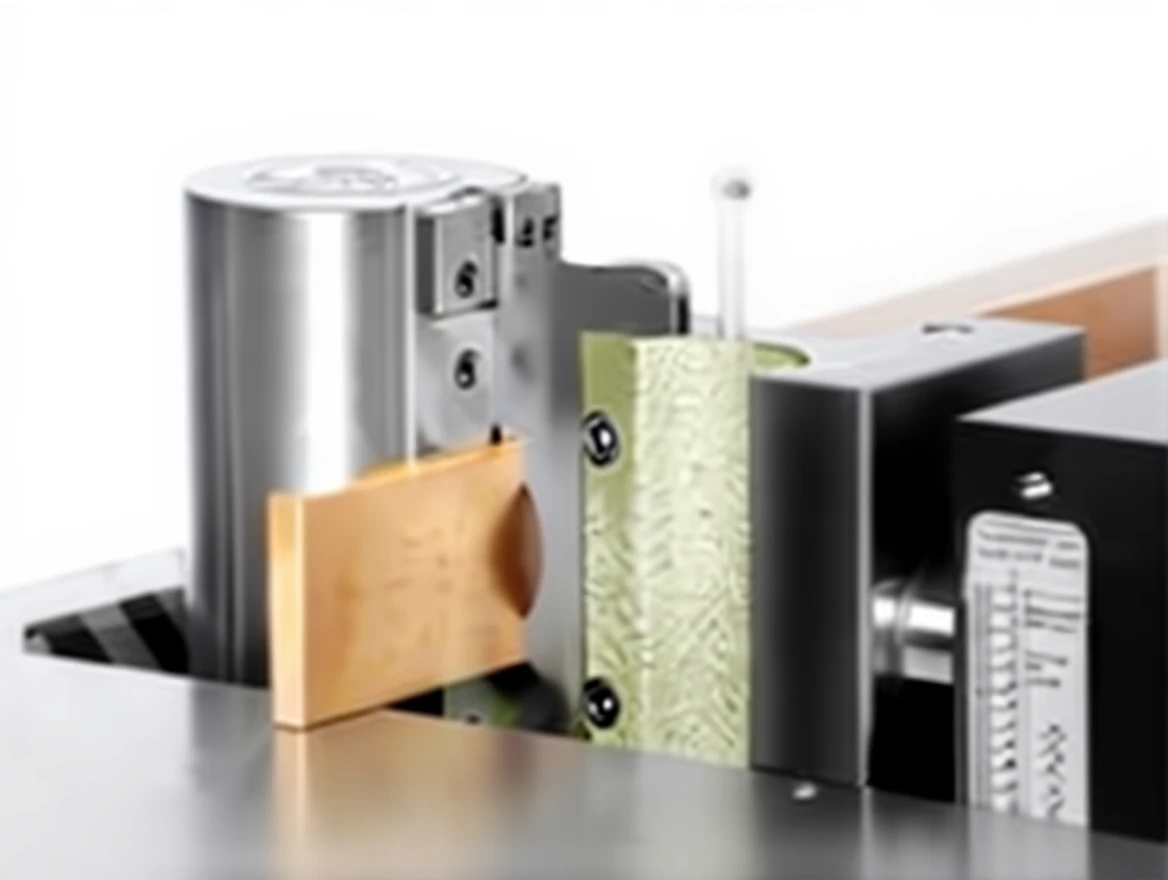

 Punching

 Minimum – Maximum Diamater

mm

Ø4~21

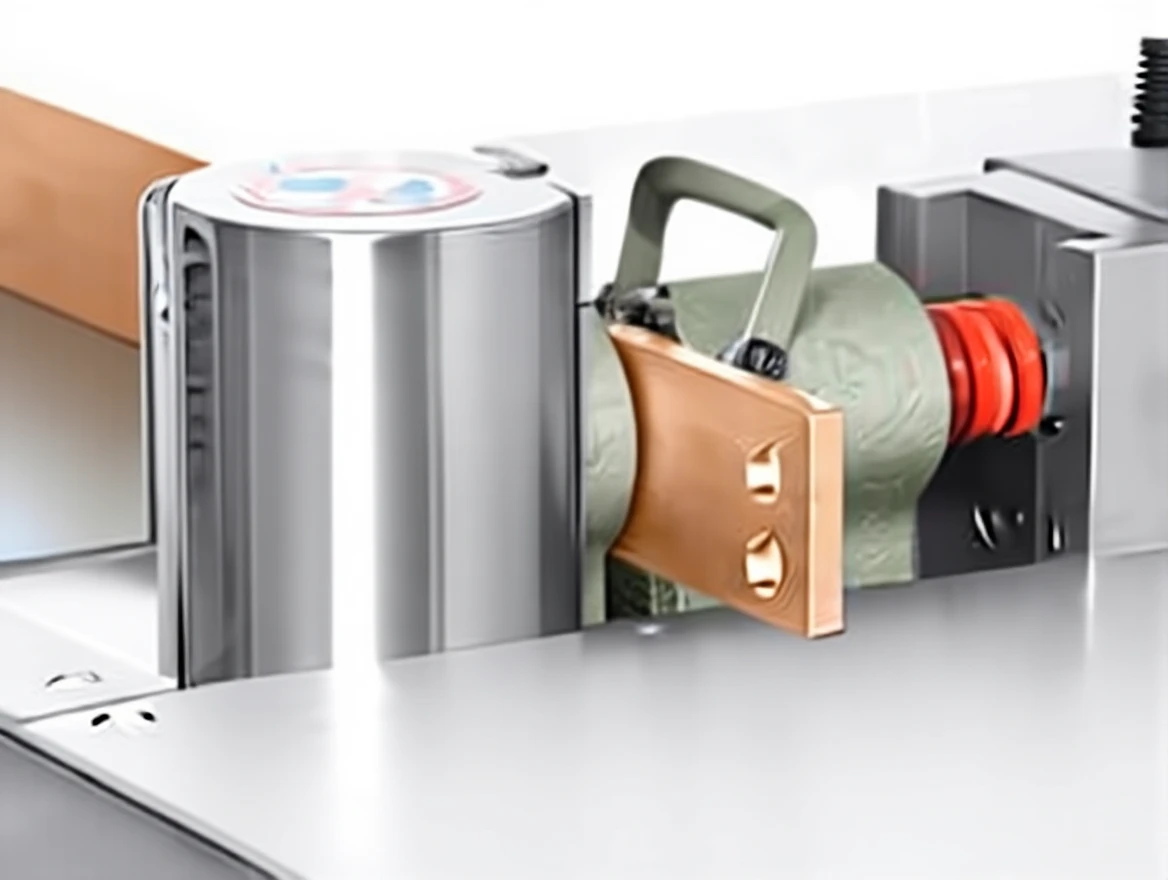

 Bending

 Bending Range in Degrees

mm

80°-150°


 Dimensions/
 Weight

 Width x Length x Height

cm

70x100x60

 Space

m³

0.42

 Total Weight

kg

160

Standard Tools

 Punching Tool
 Round Ø6,6 – Ø9 – Ø11 – Ø14 – Ø16,5 ( 5 Pcs. Punch-Die)

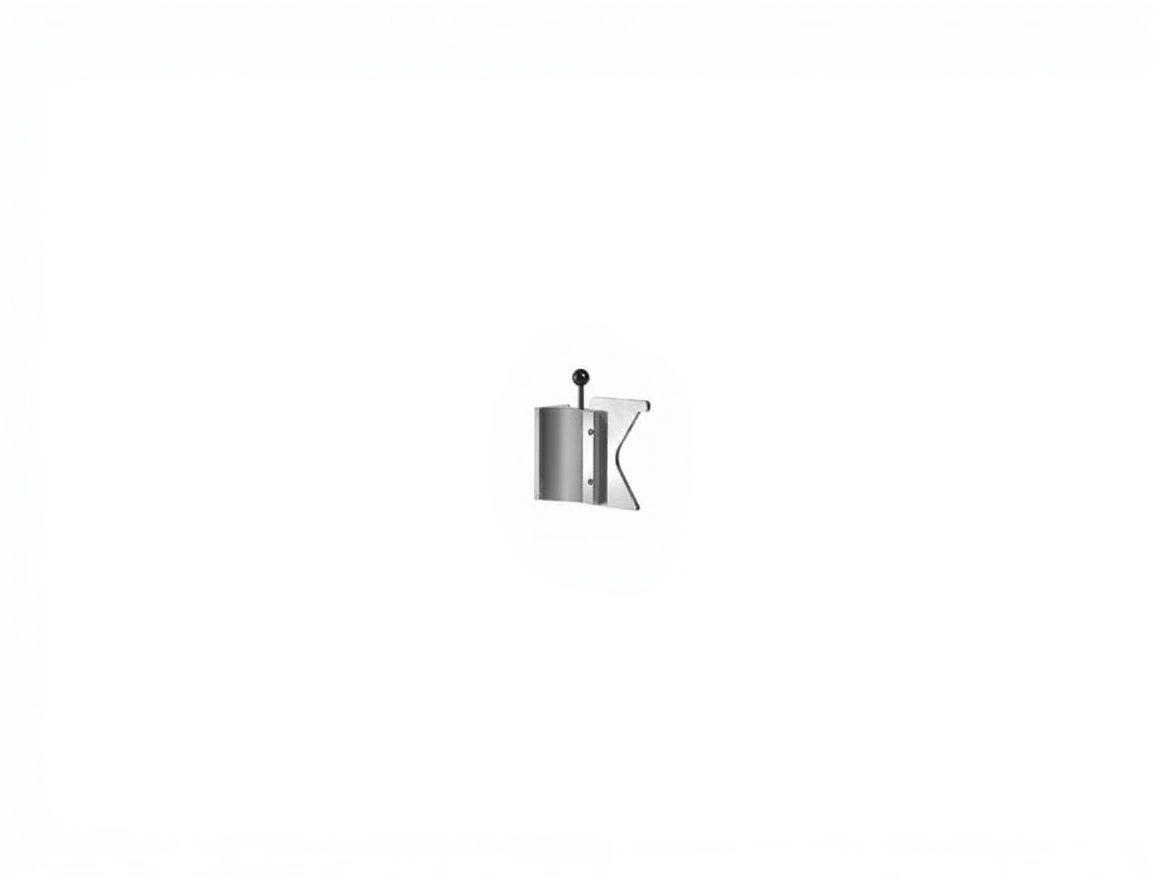

 Cutting Tool

 Wide Bending Tool R10

 Wide Bending Tool Die R10

 Narrow Bending Tool R5

 Narrow Bending Tool Die R5

 Foot switch

PUNCHING TOOL TABLE

Metric

Free parts with machine
Ø mm

Optional Round
Ø mm

Optional
Elliptic
mm

3

4

4

5

6

6.6

7

7×11

8

9

10

9×13

10

11

12

11×15

12

14

13

13×17 / 14×18

14

16.5

16×19

16

18

18

19

20

21

• Punching Tool
• Round Ø6,6 – Ø9 – Ø11 – Ø14 – Ø16,5 Punching Tools (5 Set Punch-Die)

rlak Ø6,6 – Ø9 – Ø11- Ø14 – Ø16,5mm (5 Takım Zımba-Matris)

• Cutting Tool

• Wide Bending Tool R10
• Wide Bending Tool Die R10
• Narrow Bending Tool R5
• Narrow Bending Tool Die R5
