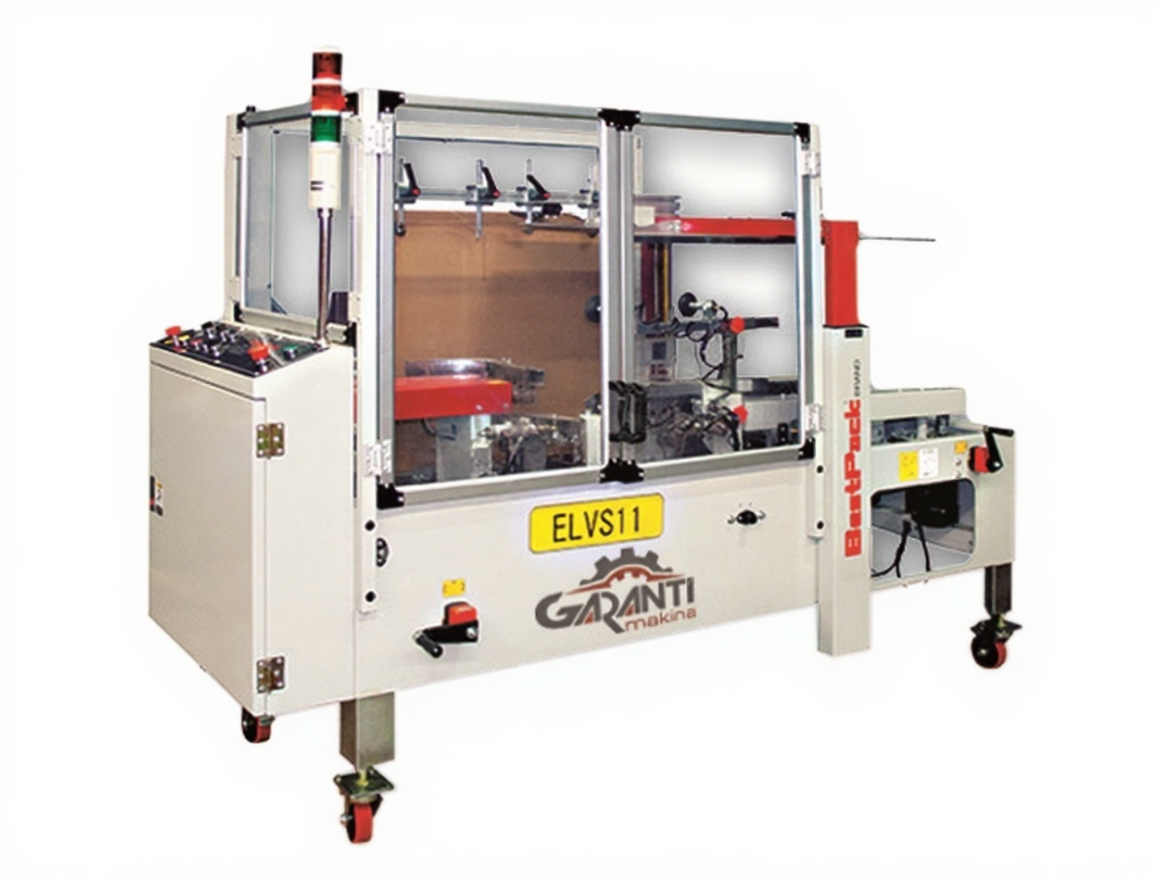

13-15 Box/min Automatic Box Taping Machine
| Brand | Best Pack |
|---|---|
| Model Type |
BP ELVS 11 |
Description
FEATURES
Automatic Air Box Preparation,
Manual Width and Height Adjustment,
Bottom Taping Unit, Side Belt Unit, 2 Motor (Taiwan)
Maximum Tape Length Used 1000 Mt.,
Automatic Box Detection, Siemens PLC HMI, Touch Screen
Box Dimensions L 190-450 mm W 180-350 mm H 150-450 mm
Working Speed 13-15 Box/min
Tape Size 2’ – 3’
Power Requirement 220 50/60 Hz 1 Ph
Motor 2 x 140 w
Machine Weight 400 Kg
Machine Dimensions L 2000 mm W 1900 mm H 1450 mm
Air Requirement 100 PSI10 + CFM
Air Consumption 450 Nl/Min
Box Feeding Capacity 100 Boxes
