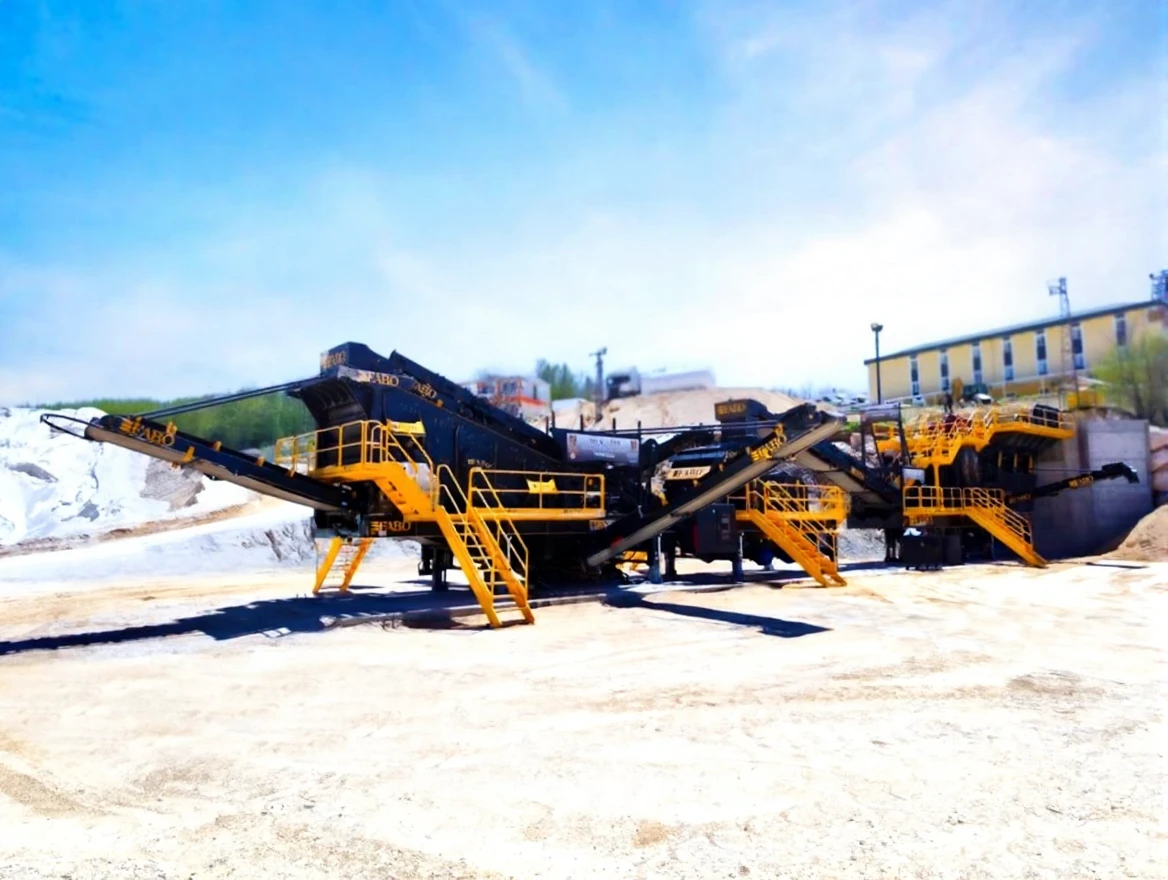

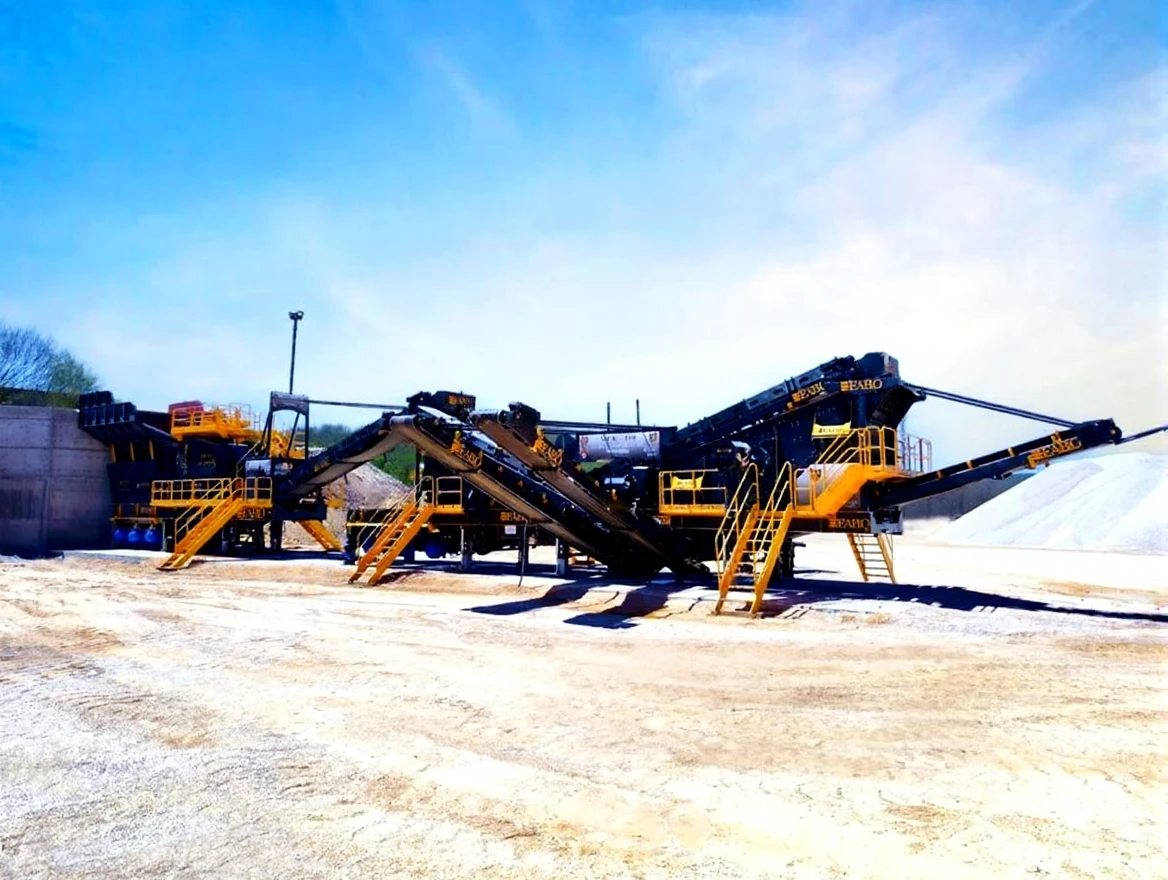

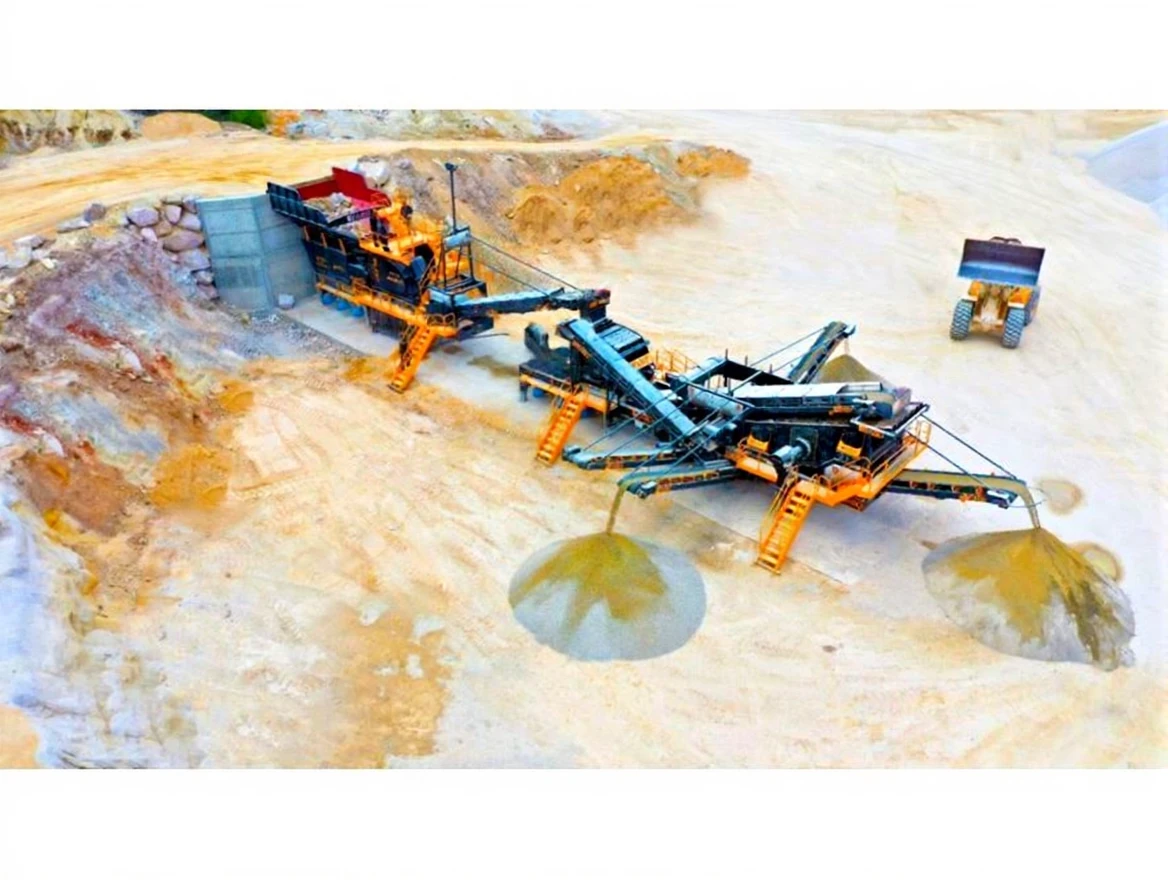

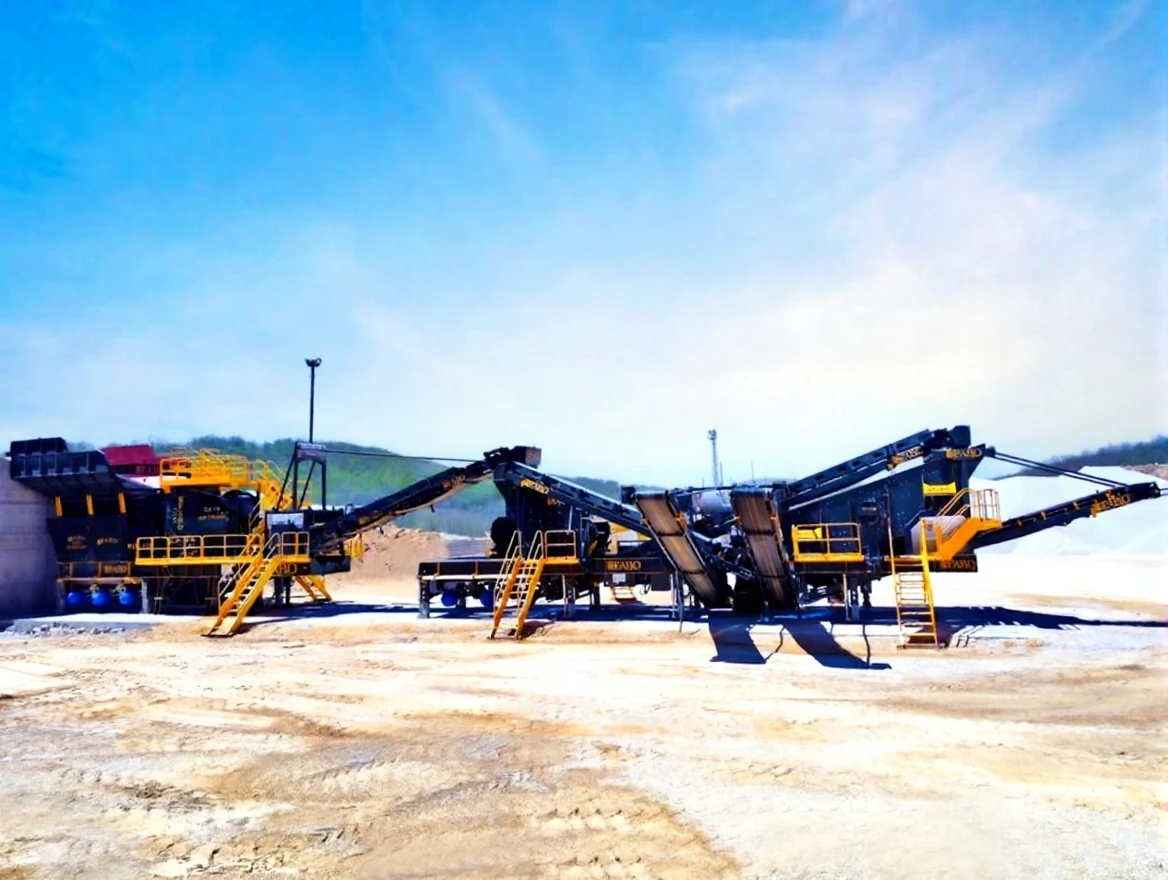

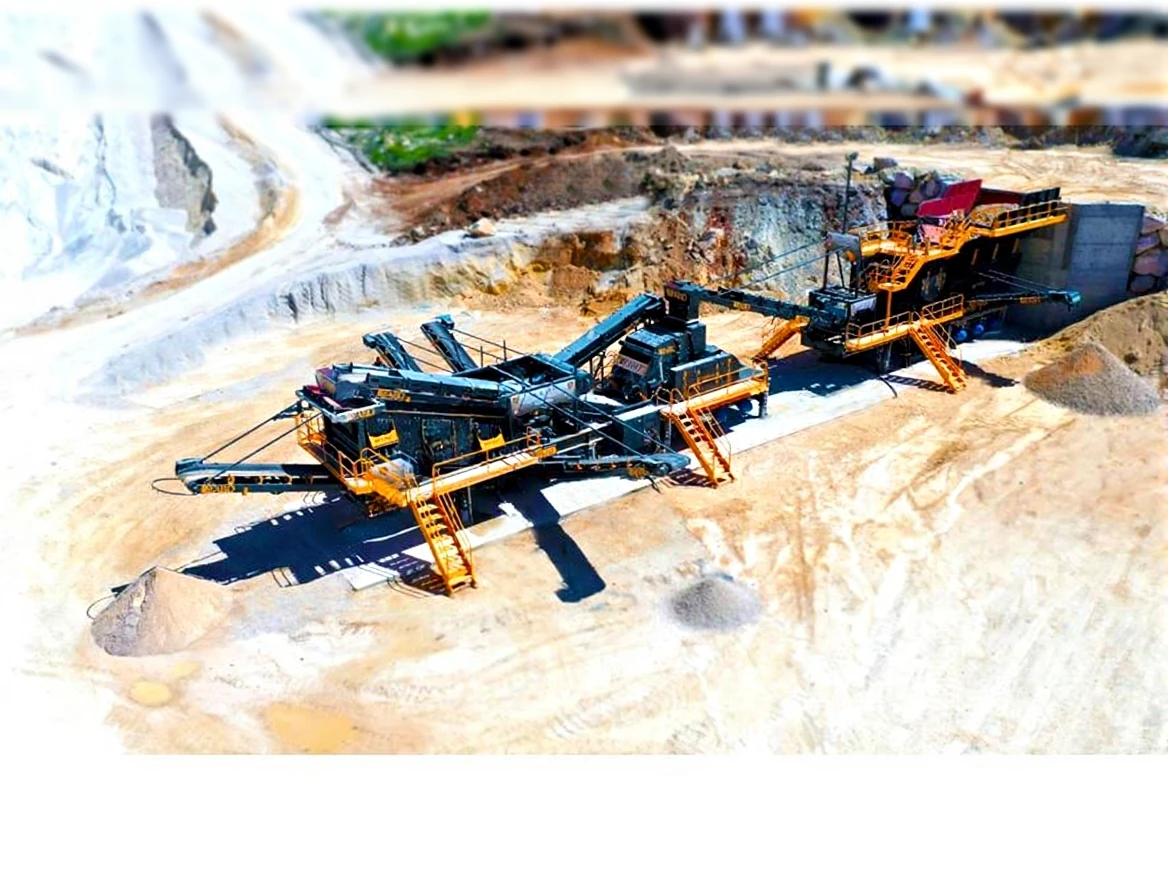

130-300 Tons/Hour Mobile Hard Stone Crushing and Screening Plant

*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

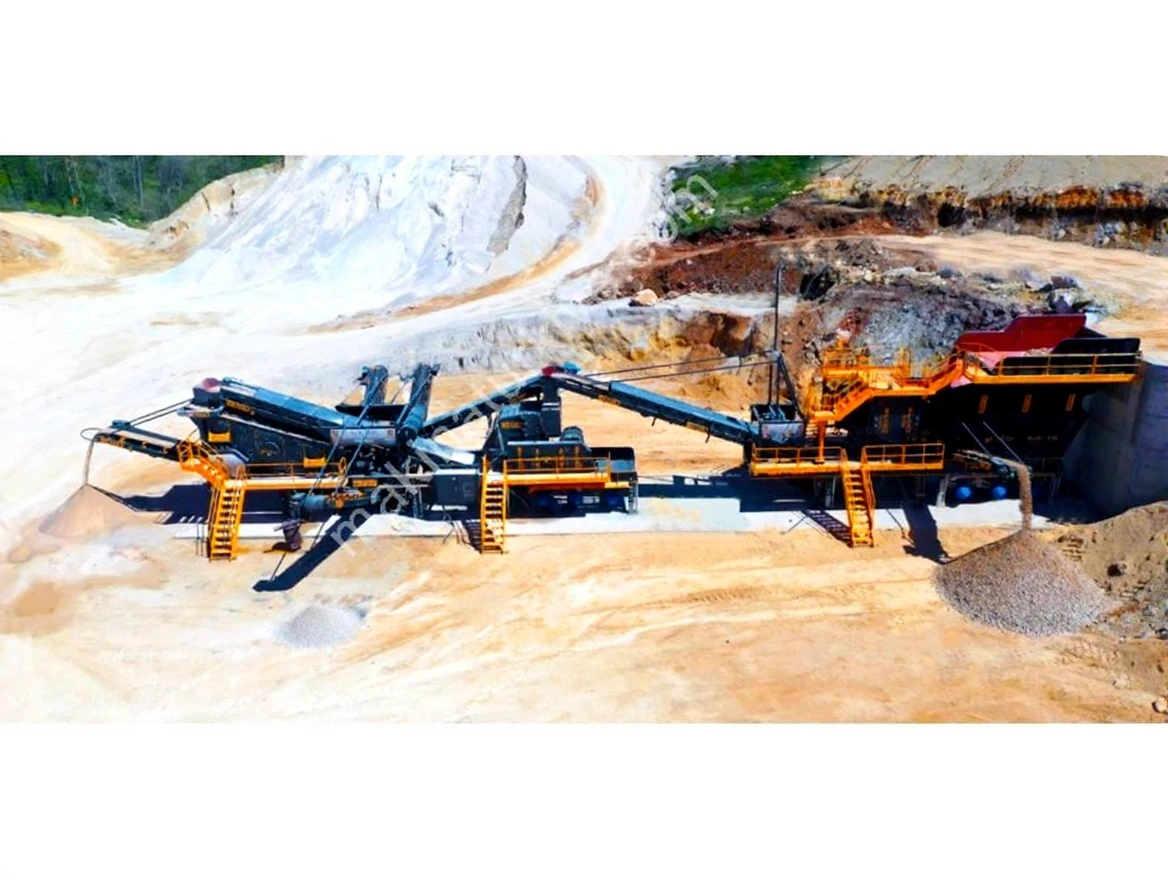

FABO MCK-110 is the biggest model of MCK series, those are a mobile type & closed circuit crushing and screening plants that is used for processing of hard materials such as basalt, granite, gabbro, dolomite and other types of hard stones. MCK-110 includes two stages of crushing process which is made by primary jaw crusher and Secondary impact crusher.

TECHNICAL SPECIFICATIONS:

– Bunker: 35 m3
– Plant Dimensions (1st chassis): 13000x4700x4400 mm
– Second chassis: 17500x47000x4600 mm
– Production Capacity: 180-300 Tons Per Hour
– 1st Crusher: Jaw Crusher – 1100×850 mm
– 2nd Crusher: Secondary Impact Crusher – 1120×1500 mm
– Maximum Feeding Size: 800 mm
– Vibrating Screen Size and Deck: 2200x5000mm 3-4 decks
– Total Motor Power: 500 Kw
– Generator (optional): 660 kvA

MCK-110 IS A COMBINATION OF:

•    Bunker(Hopper)
•    Vibrating Grizzly Feeder (bypass)
•    Primary Jaw Crusher
•    Secondary Impact Crusher
•    High Stroke Type Vibrating Screen
•    Folding type feeding, feedback, bypass and stock conveyor belts
•    Hydraulic feet
•    Mobile Chassis with axles and tires
•    Fully Automation System
•    Dust Suppression System
•    Easy walking platforms for maintenance
•    Diesel Generator (Optional)

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
