1300-1580mm Plotter Cutting Machine

1300-1580mm Plotter Cutting Machine

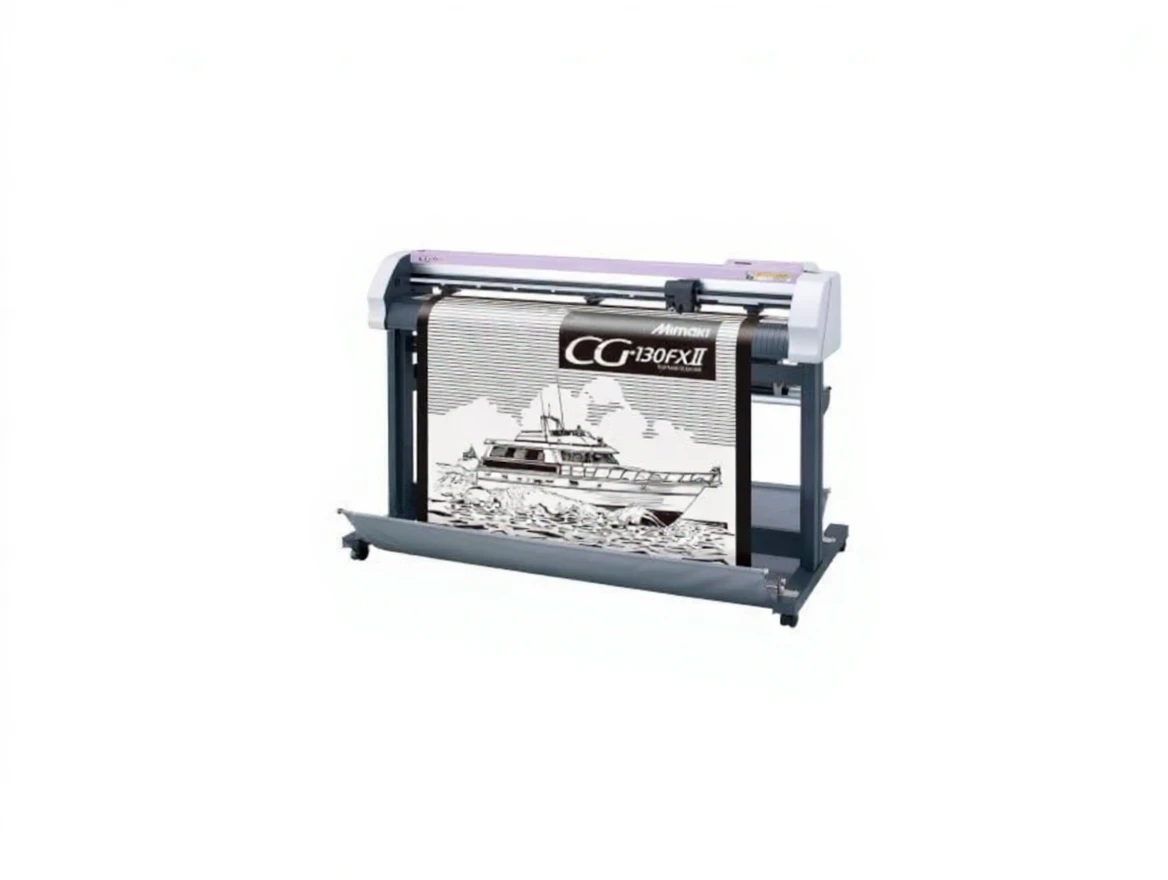

Mimaki CG-130FXII Plus is a roll-type cutting plotter capable of high precision cutting and is especially ideal for applications such as label, sticker, signage and packaging production.

Thanks to its high-speed and continuous cutting mark detection feature, CG-130FXII Plus provides precise contour cutting by automatically detecting alignment marks on printed materials. Additionally, Mimaki’s unique Half-Cut function leaves small connection points on the carrier paper, allowing the cut pieces to be easily separated.

The Over-Cut feature allows full and clean cuts to be obtained by overlapping the starting and ending points. The device comes with user-friendly FineCut software and is compatible with both CorelDRAW and Adobe Illustrator.

Key Features:

• Maximum Media Width:1,580mm

• Effective Cutting Width:1,300mm

• Maximum Cutting Speed:100cm/sec

• Maximum Movement Speed:140 cm/sec (45° direction and pen up position)

• Maximum Pressure:500g

• Suitable Media Types:Vinyl, fluorescent vinyl, reflective foils up to 0.25 mm thick

• Connection Options:USB, RS-232C

• Dimensions (W x D x H):1,825 x 700 x 1,217 mm

• Weight:62kg
