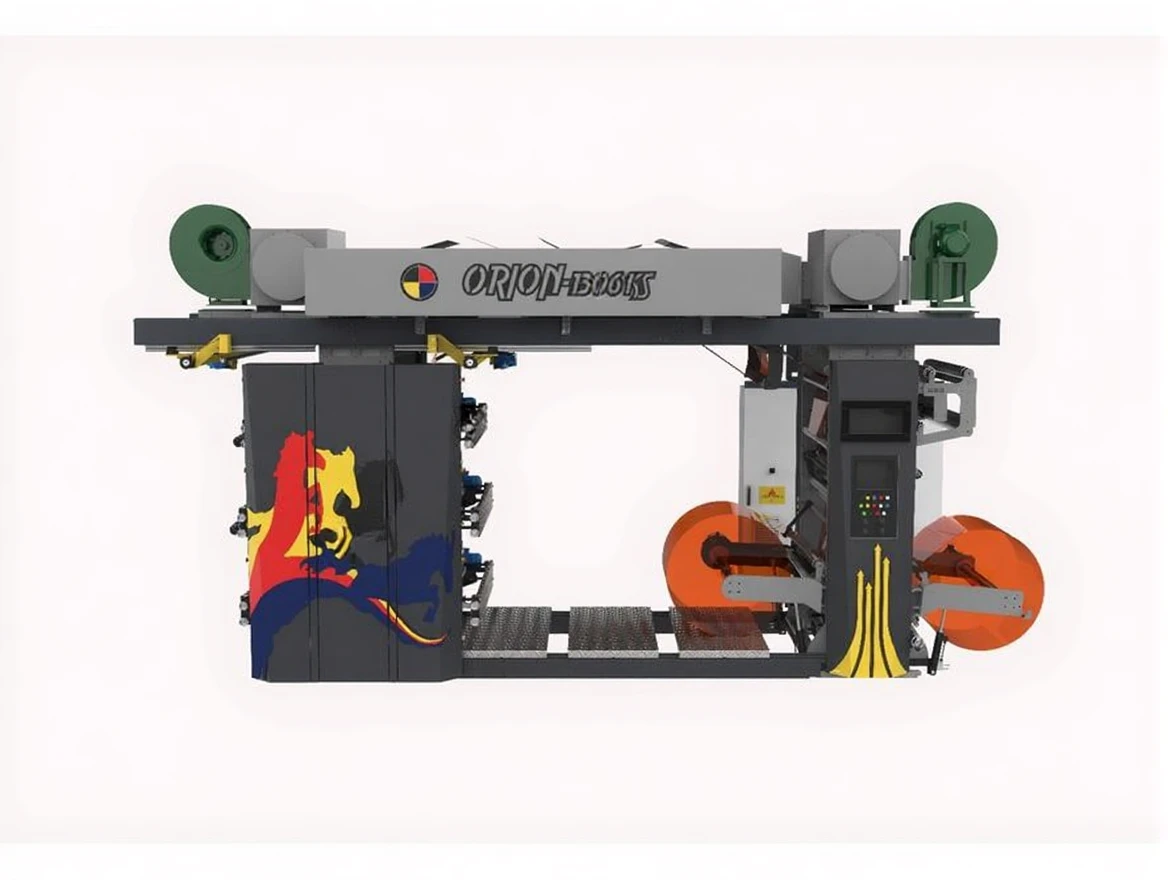

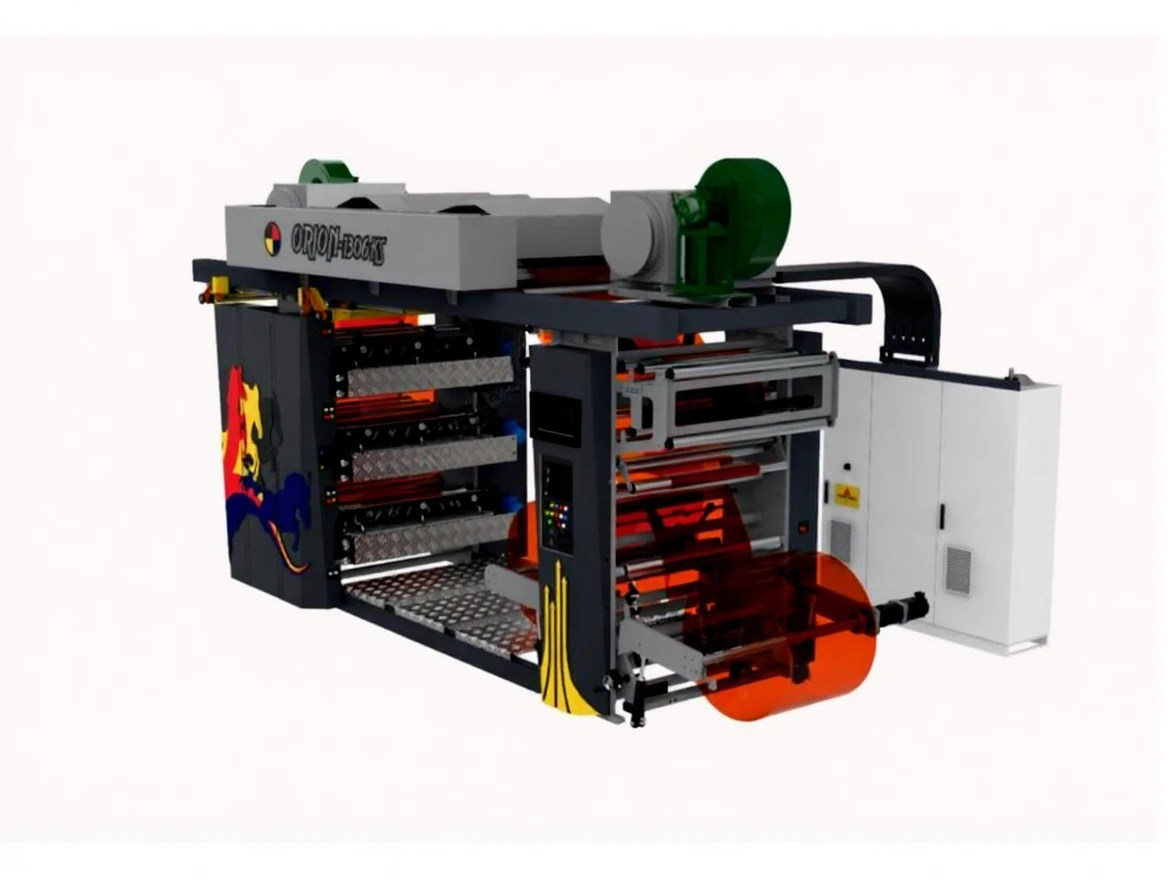

1300 mm 10 Axis Closed Rack Servo Flexo Printing Machine

Technical Details

900 KS

1300 KS

1600 KS

2000 KS

Maximum Reel Loading Diameter

:

Ø1200mm

Ø1200mm

Ø1200mm

Ø1200mm

Rewinder Unloading (Up Down)

:

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Rewinder Edge Control

:

Maximum Film Width

:

950mm

1350mm

1650mm

2050mm

Maximum Print Width

:

900mm

1300mm

1600mm

2000mm

Roll Size

:

76mm (3”)-152mm(6”) Optional

776mm (3”)-152mm(6”) Optional

Printing Unit

:

4-6-8 Color

4-6-8 Color

4-6-8 Color

4-6-8 Color

Print Types

:

6+0
(Optional 3+3-4+2-5+1)

6+0
(Optional 3+3-4+2-5+1)

6+0
(Optional 3+3-4+2-5+1)

6+0
(Optional 3+3-4+2-5+1)

Print Repeat

:

250-800mm

250-800mm

250-800mm

250-800mm

Tension Control

:

Min. 25 – Max 300 nm

Min. 25 – Max 300 nm

Min. 25 – Max 300 nm

Min. 25 – Max 300 nm

Tension System

:

BALER CONTROLLED TRANSDUCER RULER TENSION FOLLOWING SYSTEM

Loadcell

:

NONE

NONE

NONE

NONE

Gear Pitch

:

5mm

5mm

5mm

5mm

Plate Thickness

:

1.14mm

1.14mm

1.14mm

1.14mm

Machine Line Speed

:

200m/min.
(Optional 300m/min.)

200m/min.
(Optional 300m/min.)

200m/min.
(Optional 300m/min.)

200m/min.
(Optional 300m/min.)

Printing Speed

:

200m/min.

200m/min.

200m/min.

200m/min.

Plate Cylinder System

:

Pneumatic Control

Pneumatic Control

Pneumatic Control

Hydraulic Control

Tram Stand By System

:

AC Motor

AC Motor

AC Motor

AC Motor

Control System

:

PLC  + 10 Axis Servo

PLC  + 10 Axis Servo

PLC  + 10 Axis Servo

PLC  + 10 Axis Servo

Print Length (Register) 360°

:

Servo Control

Servo Control

Servo Control

Servo Control

Side Register Adjustment

:

± 10mm Mechanical

± 10mm Mechanical

± 10mm Mechanical

± 10mm Mechanical

Camera

:

Optional, Single Camera & Double Camera

Optional, Single Camera & Double Camera

Optional, Single Camera & Double Camera

Optional, Single Camera & Double Camera

Drying

:

Independent 2 Centers, Printing – Tunnel 3 Stage PID Controlled

Back Waste Collection and Vacuum System

:

Optional
