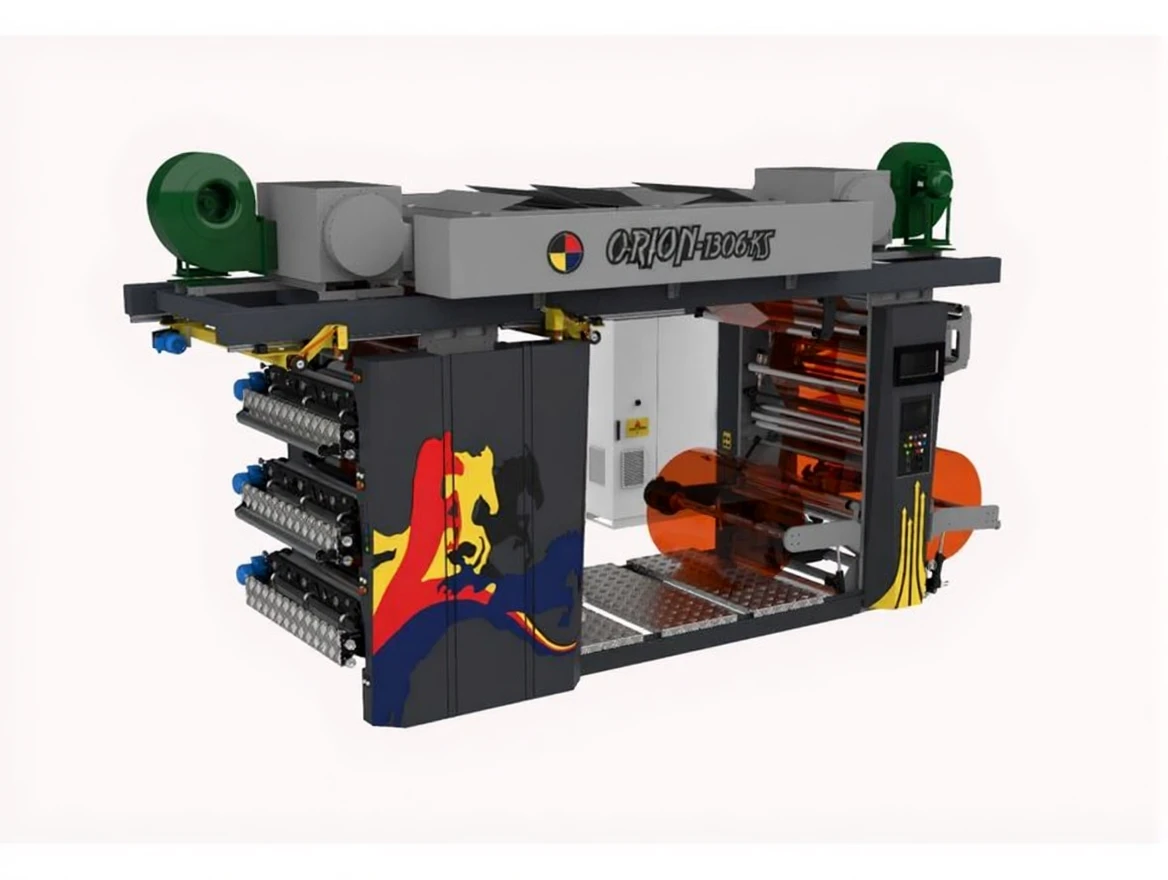

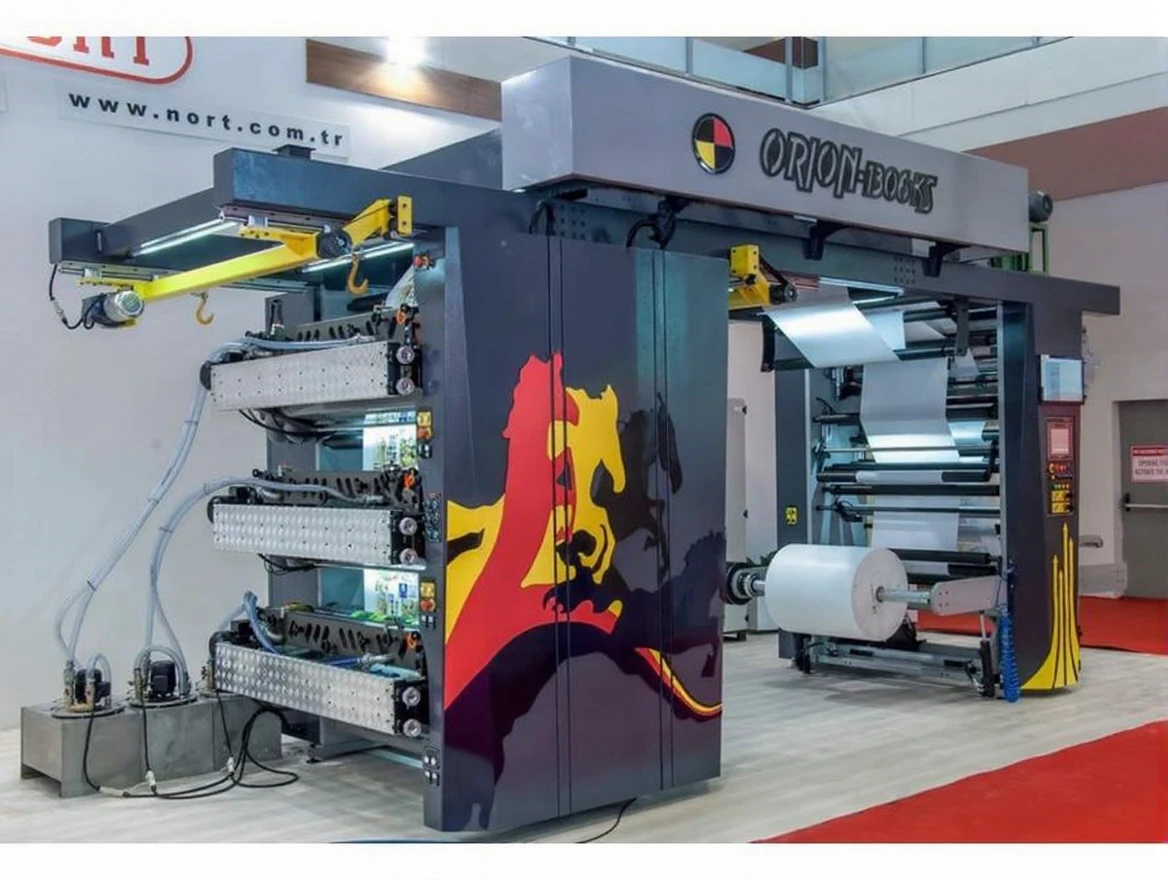

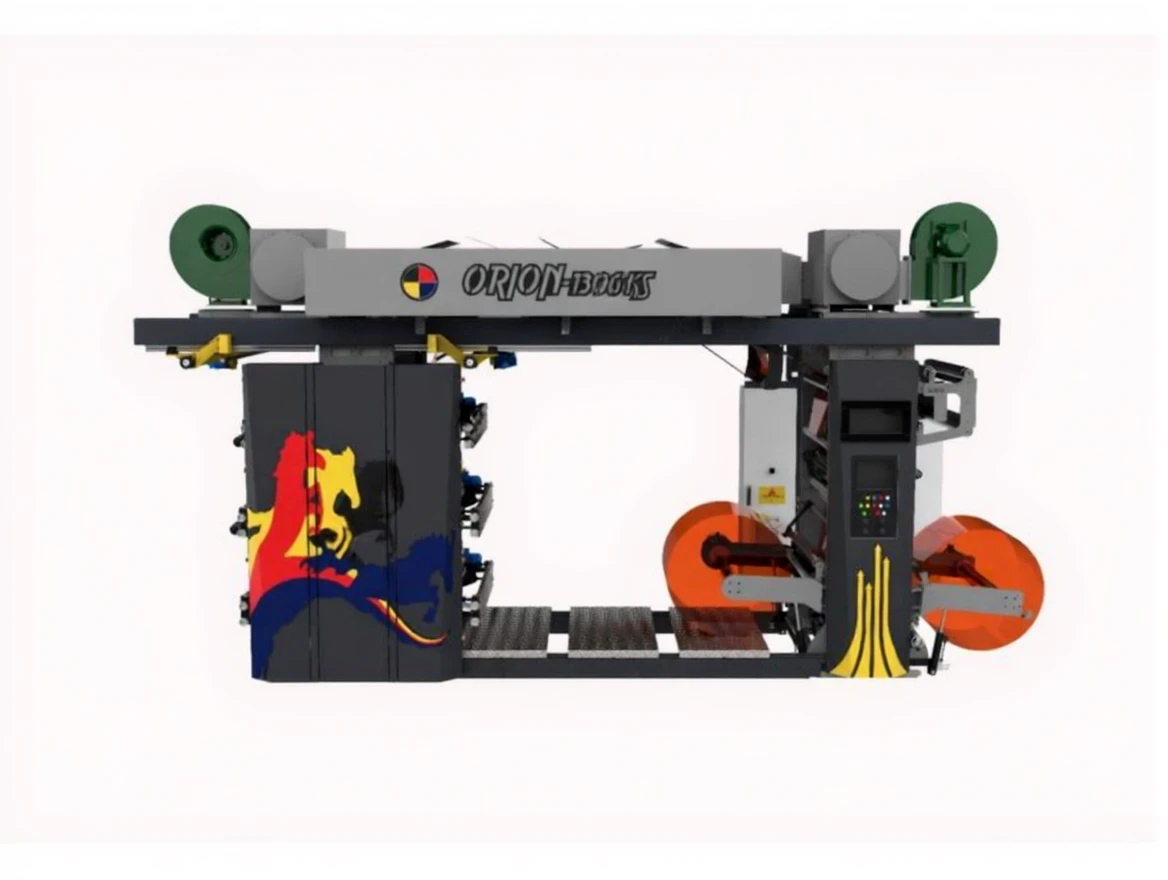

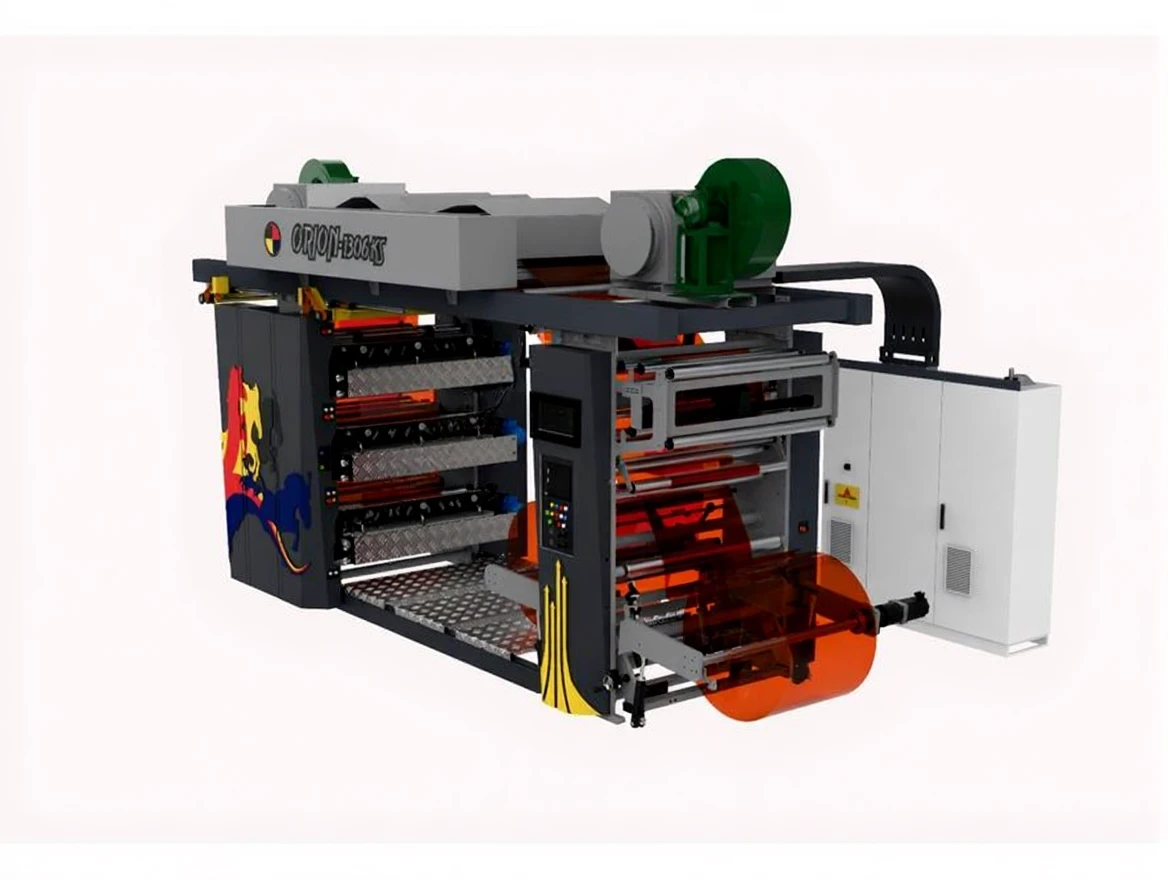

1300 mm 10 Axis Closed Squeegee Servo Flexo Printing Machine

Technical Details

900 KS

1300 K.S.

1600 KS

2000 KS

Maximum Coil Loading Diameter

:

Ø1200mm

Ø1200mm

Ø1200mm

Ø1200mm

Winder Solvent Loading Unloading (Up and Down)

:

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Unwinder Edge Control

:

Maximum Film Width

:

950mm

1350mm

1650mm

2050mm

Maximum Print Width

:

900mm

1300mm

1600mm

2000mm

Bobbin Diameter

:

76mm (3”)-152mm(6”) Optional

776mm (3”)-152mm(6”) Optional

Printing Unit

:

4-6-8 Colors

4-6-8 Colors

4-6-8 Colors

4-6-8 Colors

Printing Types

:

6 0
(Opt. 3 3-4 2-5 1)

6 0
(Opt. 3 3-4 2-5 1)

6 0
(Opt. 3 3-4 2-5 1)

6 0
(Opt. 3 3-4 2-5 1)

Print Repeat

:

250-800mm

250-800mm

250-800mm

250-800mm

Solvent Tension

:

Min. 25 – Max 300nm

Min. 25 – Max 300nm

Min. 25 – Max 300nm

Min. 25 – Max 300nm

Blood Pressure System

:

BALLERINE CONTROLLED BLOOD PRESSURE MONITORING SYSTEM WITH TRANSDUCER RULER

load cell

:

NO

NO

NO

NO

Gear Pitch

:

5mm

5mm

5mm

5mm

Plate Thickness

:

1.14mm

1.14mm

1.14mm

1.14mm

Machine Line Speed

:

200m/min
(Opt. 300m/min.)

200m/min
(Opt. 300m/min.)

200m/min
(Opt. 300m/min.)

200m/min
(Opt. 300m/min.)

Print Speed

:

200m/min

200m/min

200m/min

200m/min

Cliche Boiler System

:

Pneumatic Control

Pneumatic Control

Pneumatic Control

Hydraulic Control

Tram Stand By System

:

AC Motor

AC Motor

AC Motor

AC Motor

Control System

:

PLC 10 Axis Servo

PLC 10 Axis Servo

PLC 10 Axis Servo

PLC 10 Axis Servo

Print Size (Register) 360°

:

Servo Control

Servo Control

Servo Control

Servo Control

Side Register Setting

:

±10mm Mechanical

±10mm Mechanical

±10mm Mechanical

±10mm Mechanical

Camera

:

Optional, Single Camera Dual Camera

Optional, Single Camera Dual Camera

Optional, Single Camera Dual Camera

Optional, Single Camera Dual Camera

Drying

:

2 Independent Centers, Printing – Tunnel 3 Stage PID Controlled

Rear Waste Removal and Vacuum System

:

optional
