1300 x 1150 mm Concrete Brick Paving Stone Machine
| Brand | Yontar |
|---|---|
| Model Type |
KPM-36 |

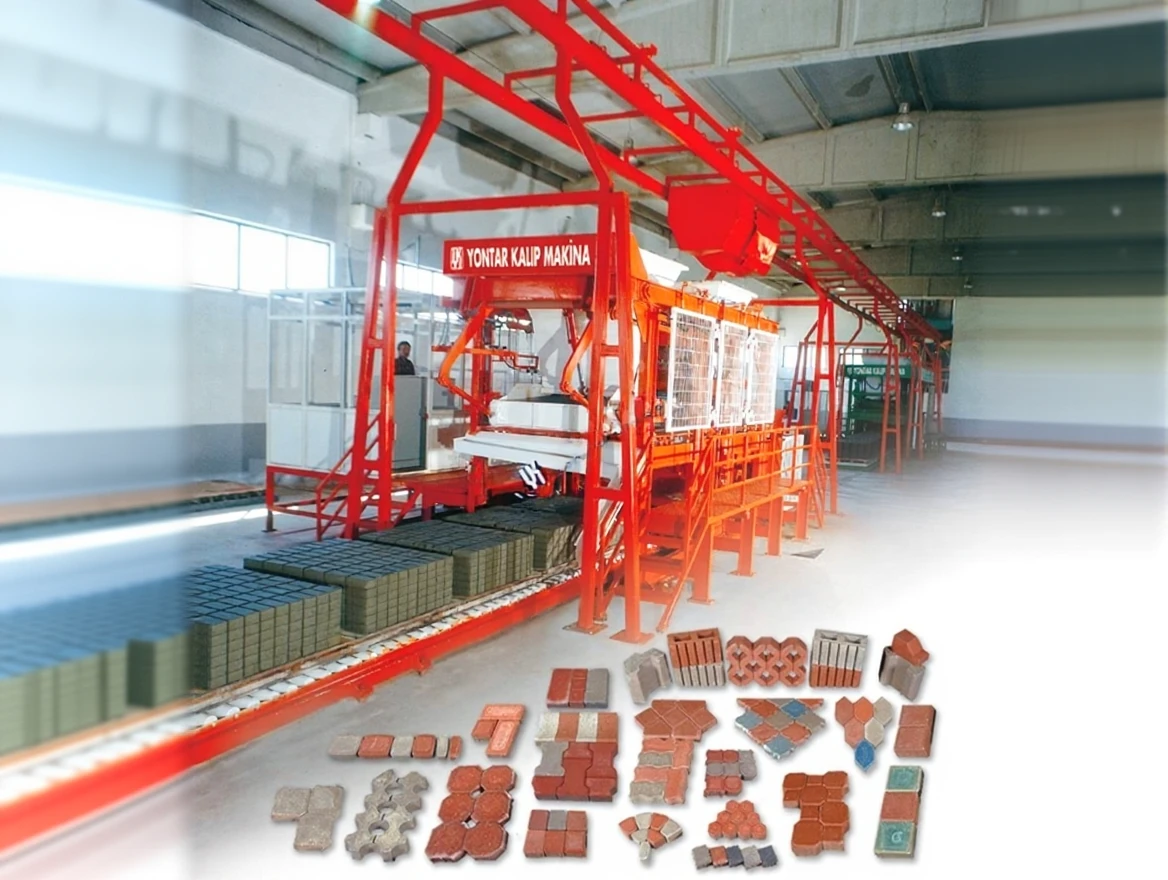

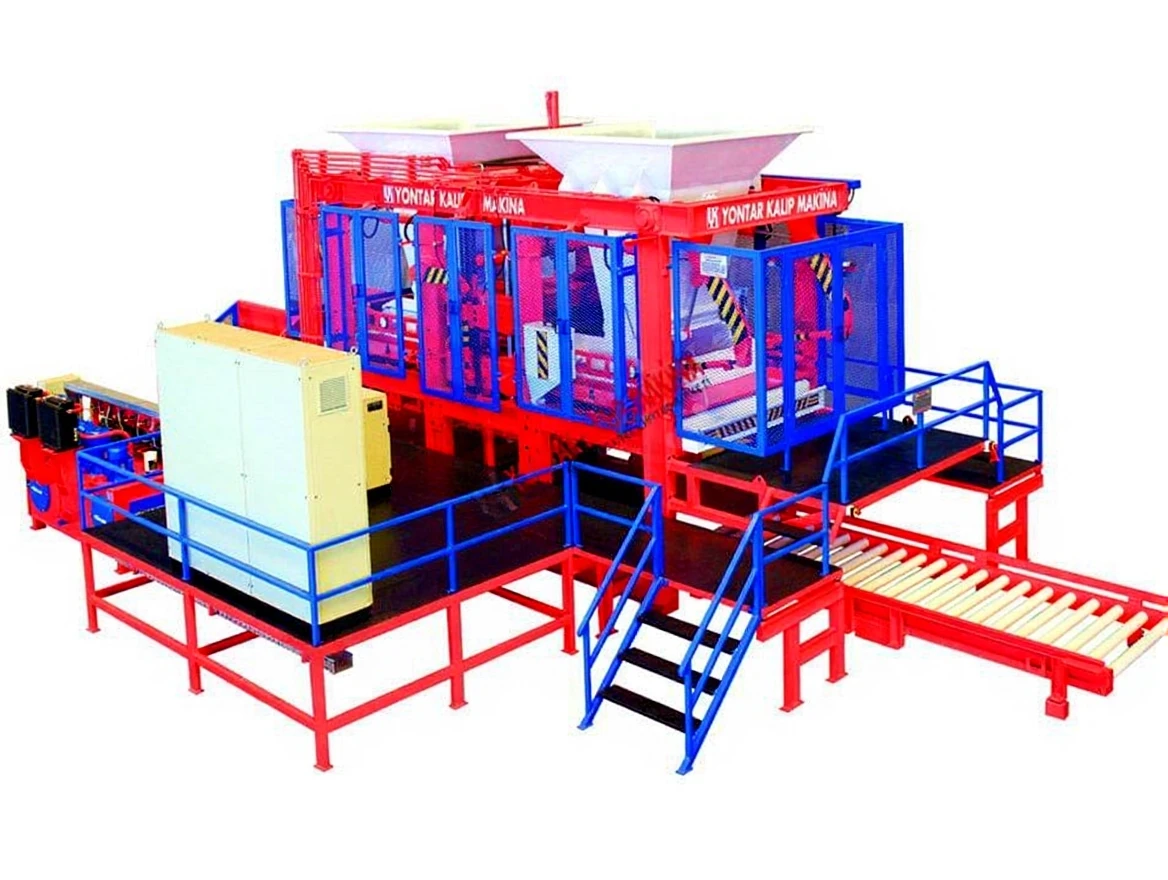

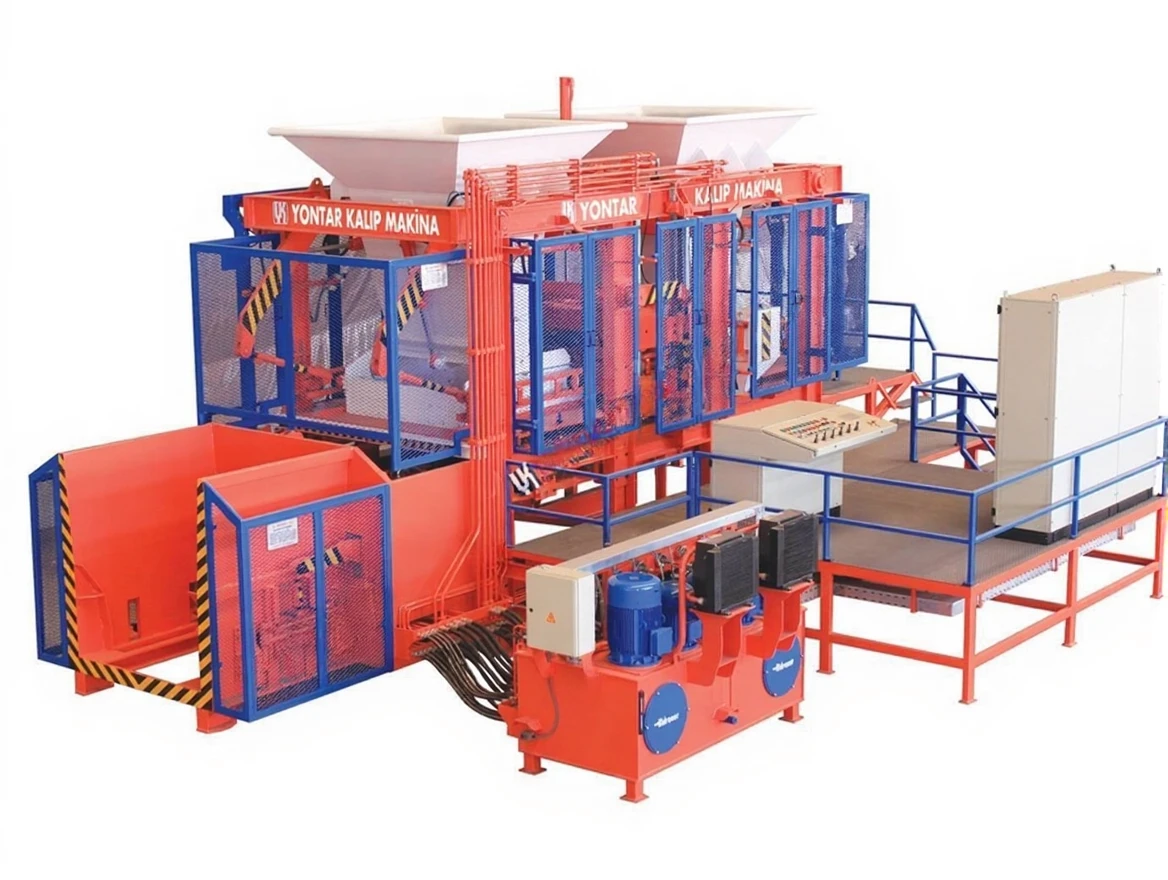

Yontar KPM-36 1300 x 1150 mm Concrete Paving Stone Production Machine
-
KPM-36; a fully automatic concrete paving machine that can produce locked or unlocked paving stones in series, capable of multi-layer production by pressing 8 rows of stones stacked on a wooden pallet at a height of 80 cm, with the machine’s movement programmed by a PLC microprocessor computer.
-
If the height of the produced stone falls below 80 mm, the number of rows pressed on top also increases.
-
The hydraulic system is equipped with medium-pressure hydraulic valves and is fed by 6 hydraulic pumps.
-
If desired, the flow rate of more than two pumps can be sent to the same cylinder to achieve maximum flow rate.
-
Thanks to the heater and cooler in the system, the temperature of the unit is continuously monitored.
Technical Details:
|
Operating Mode |
Fully Automatic |
Machine Dimensions |
|
|
Max. Length |
13700 mm |
Max. Width |
6500 mm |
|
Max. Height |
4150 mm |
Max. Product Height |
300 mm |
|
Min. Product Height |
50 mm |
Production Pallet Dimensions |
1300 x 1150 mm |
|
Number of Hydraulic Pumps |
5 |
Hydraulic Tank Capacity |
1000 ltr. |
|
Hydraulic Oil Flow Rate |
137 ltr./min |
Circulation Flow Rate |
150 ltr./min |
|
Average Hydraulic Pressure |
150 bar |
Cycle Time |
38 ÷45 sec. |
|
Waste Bunker Capacity |
2×1800 ltr. |
Number of Lower Vibrators |
2 pcs. |
|
Number of Upper Vibrators |
4 pcs. |
Total Electric Motor Power |
80.72 Kw |
