1300×930 mm Semi-automatic Paper Cardboard Cutting Machine
| Brand | Baştürk |
|---|---|
| Model Type |
MY-1300 |

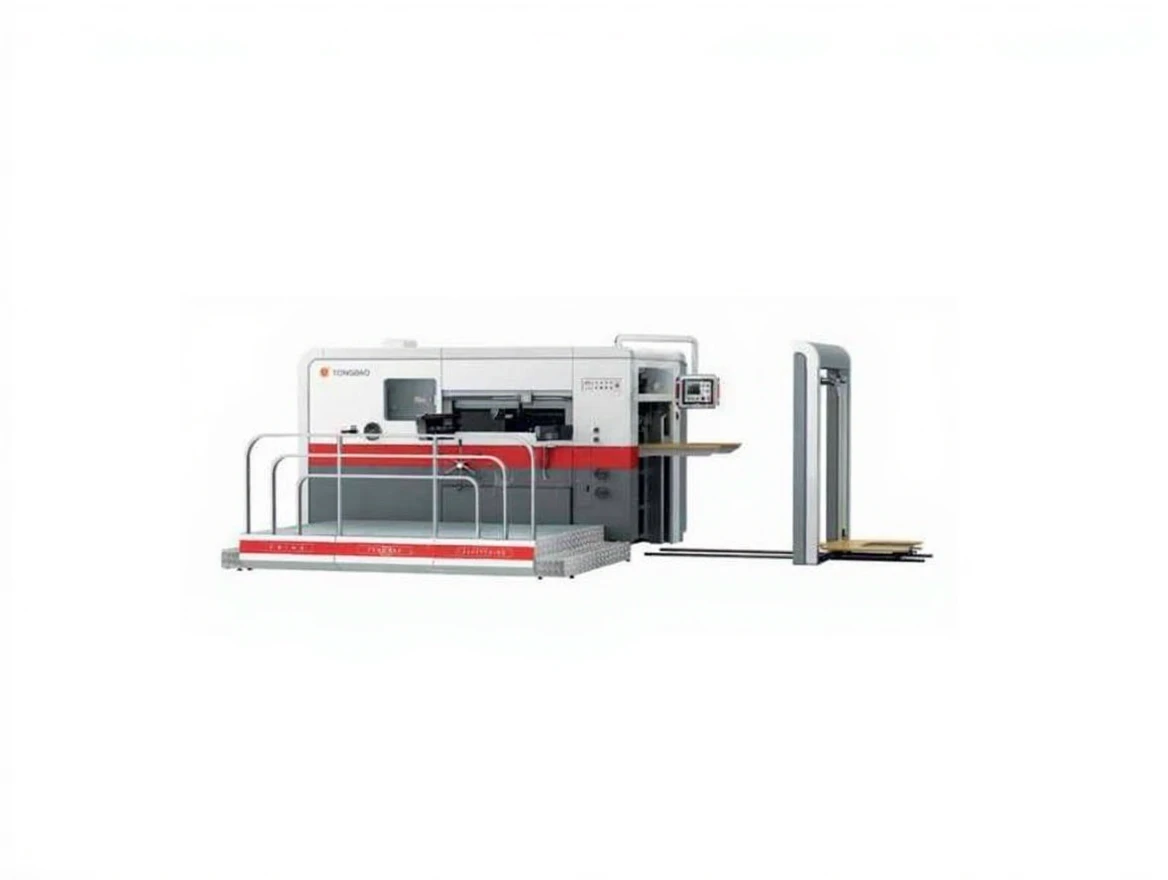

1300 x 930 mm Semi-Automatic Paper and Cardboard Cutting Machine
Baştürk MY-1300
Manual feeding can better adapt to warp paper and provides easy feeding, allowing the paper to be placed easily in position.
The paper feeding table can be automatically lifted along with the paper, making it easy to use.
The size of the holders can be adjusted up and down according to the paper thickness and can tightly grip the paper.
This machine adopts a high-strength, hard aluminum alloy holder row that is small and stable at the edge of the holder, effectively preventing the holder row from vibrating. An adjustable device has been added for the front and rear positioning of the holder row.
The main drive uses pneumatic clamping, a frequency-modulated motor, and soft and fast braking.
The die-cutting steel plate, made from high-manganese alloy spring steel material, has high hardness and high elasticity, making it durable.
|
Baştürk MY-1300 Teknik Özellikleri |
|
||
|
MODEL |
MY-1300 |
MY-1500 |
MY-1650 |
|
Max paper transmitting size (mm) Maksimum kağıt iletim boyutu (mm) |
1300×930 |
1500×1100 |
1650X1200 |
|
Min paper transmitting size (mm) Min kağıt iletim boyutu (mm) |
500X450 |
550X500 |
600X550 |
|
Max die cutting size (mm) Maksimum kalıp kesim boyutu umm) |
1280X910
|
1480X980 |
1640X1180 |
|
Min gripper size (mm) Min tutucu boyutu (mm) |
8mm |
8mm |
8mm |
|
Max die cutting pressure Maksimum kalıp kesme basıncı |
350N/cm2 |
380N/cm2 |
4000N/cm2 |
|
Max die cutting speed Maksimum kalıp kesme hızı |
5500 sayfa/sa |
5000 sayfa/sa |
5000 sayfa/sa |
|
Max feeding pile height Maksimum besleme yığını yüksekliği |
1400mm |
1400mm |
1400mm |
|
Min collectiing pile height Min toplama yığını yüksekliği |
1200mm |
1200mm |
1200mm |
|
Main motor power Ana motor gücü |
12KW |
15KW |
17KW |
|
Total weight Toplam ağırlık |
17T |
19T |
22T |
