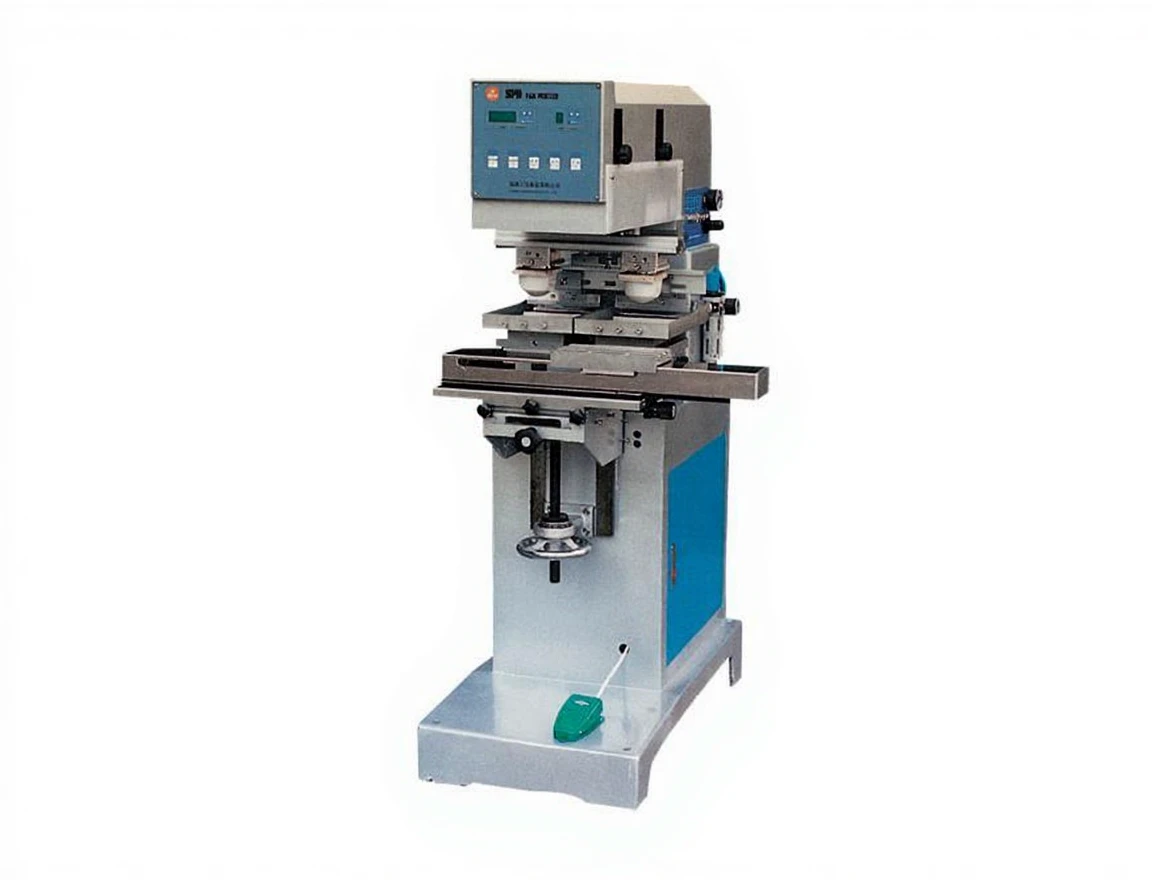

Best Printing SPD2170DE Double Color Pad Printing Machine

Best Printing SPD 2170DE Foot Closed System Shuttle Double Color Pad Printing Machine provides a perfect solution to your industrial printing needs by offering excellent print quality and flexibility. SPD 2170DE modeli, çift renk baskı yapabilme özelliğiyle öne çıkarak, üretim süreçlerinizde zaman ve maliyet verimliliği sağlar. This model offers a large printing area with a plate size of 150 x 300 mm for each chamber, and precise printing results are achieved with a printing area of 120 mm diameter.

Thanks to the shuttle system, the material is dragged under the print heads and the printing process is performed. This feature makes the printing process smoother and more efficient. Additionally, both chambers work independently, allowing you to print in different colors. Silicone pressure force can be adjusted individually for both plate and material. This provides customized solutions for any printing application and ensures you get the best results.

While the machine offers a fast printing process with a printing speed of 1000 rpm, the printing force can be adjusted between 0.3 and 0.7 Mpa, thus effective printing can be done on both thin and thick materials. Thanks to the adjustment table system, you can make precise adjustments and print with high accuracy. Air consumption is 0.04 m³ per minute, which provides energy efficiency and reduces your operating costs.

The compact design of the SPD 2170DE makes efficient use of space, with a width of 590 mm, a length of 1000 mm and a height of 1500 mm. The 125 kg weight of the machine provides a solid structure, increasing its durability and providing high performance even in long-term use. The user-friendly touch panel simplifies operations by offering easy operation and enables users to perform operations quickly.

Thanks to the ink reservoir and knives, silicones and magnetic sub-parts included in the standard equipment of the machine, a simultaneous and efficient printing process is carried out in both chambers. This equipment increases production efficiency with the ability to print in both colors.

Best Printing SPD2170DE Technical Specifications
