1350 mm High Pressure Washing Machine with Rotary Basket with Shock Absorber

Brand Wespy
Model Type

DHS-1500

Description

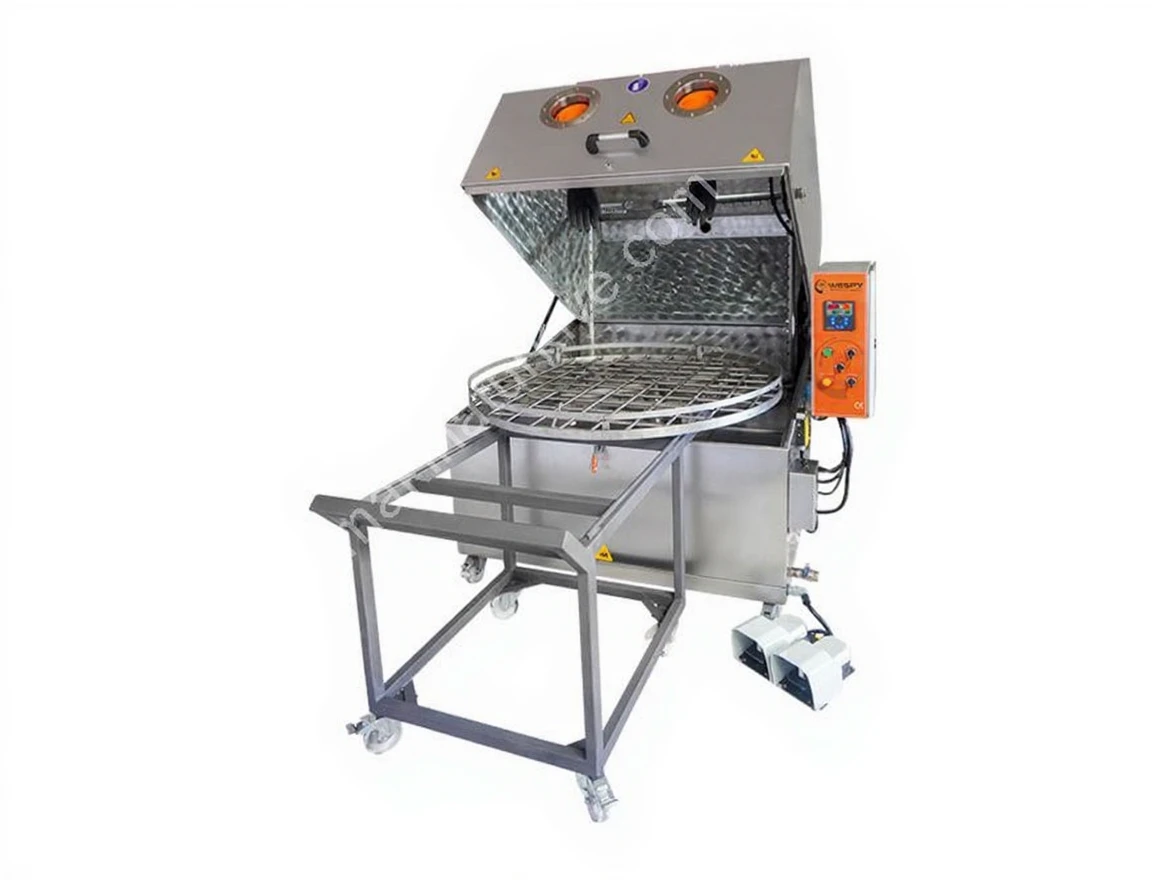

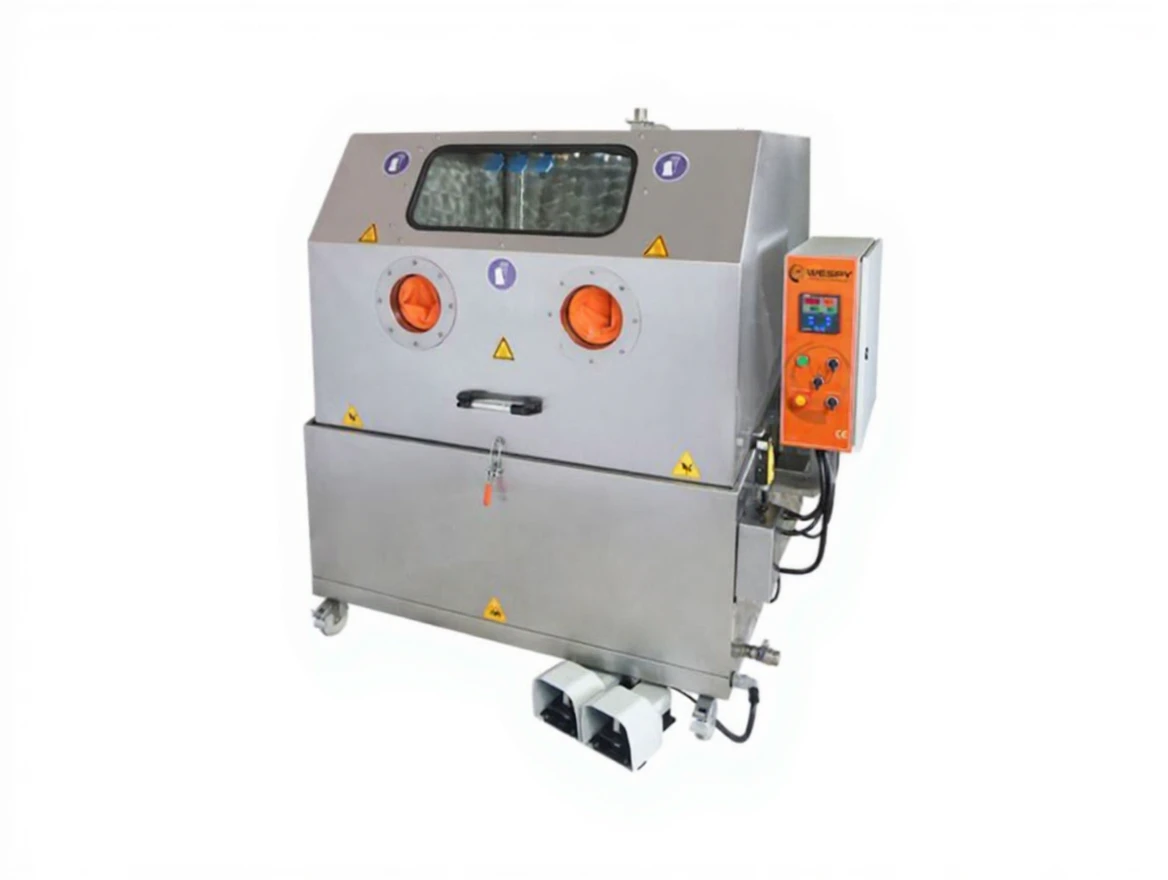

Wespy DHS-1500 High Pressure Washing Machine with Rotary Basket with Shock Absorber

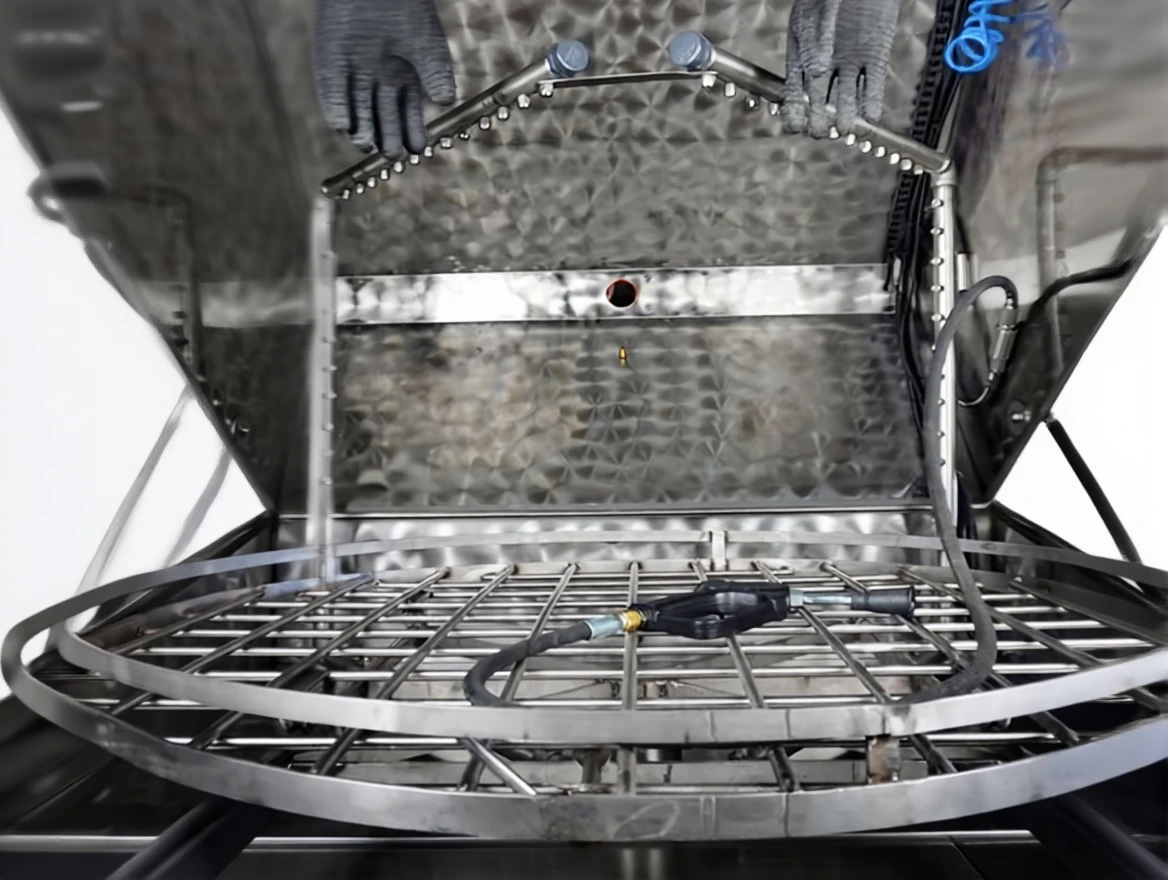

The parts to be washed are placed on the basket, which is placed on a stainless rotating platform with a sliding system, and are subjected to rotating basket washing with high pressure detergent and water in a closed cabin.

Washing process is carried out to clean the oil, sawdust, dirt and waste on the dirty surfaces from different angles by means of timed pressurized water nozzles according to the part structure and pollution rate. By filtering the water with a recirculation system, parts washing is designed to minimize the consumption of water, detergent, electricity and time (labor).

Feature DHS-1250 DHS-1500
Basket Diameter Ø 1150mm 1350mm
Loading Height 550mm 650mm
Basket Capacity 400kg 550kg
Tank Capacity 200 liters 250 liters
Pump Pressure 2.8 bars 2.8 bars
High Pressure Pump 0-150 bars 0-150 bars
Electricity (V/Phase) 220 – 380 220 – 380
Heater (kW) 15 kW 15 kW
Thermostat 0.90 °C 0.90 °C
timer 0-100 min 0-100 min
Body Structure 304-430 (AISI) 304-430 (AISI)
Loading Trolley Standard Standard
Machine Dimensions 130016001450mm 150017501500mm
