1350 mm Pneumatic Front-Loading Rotary Basket Washing Machine
| Brand | Wespy |
|---|---|
| Model Type |
DS-1500 |
Description

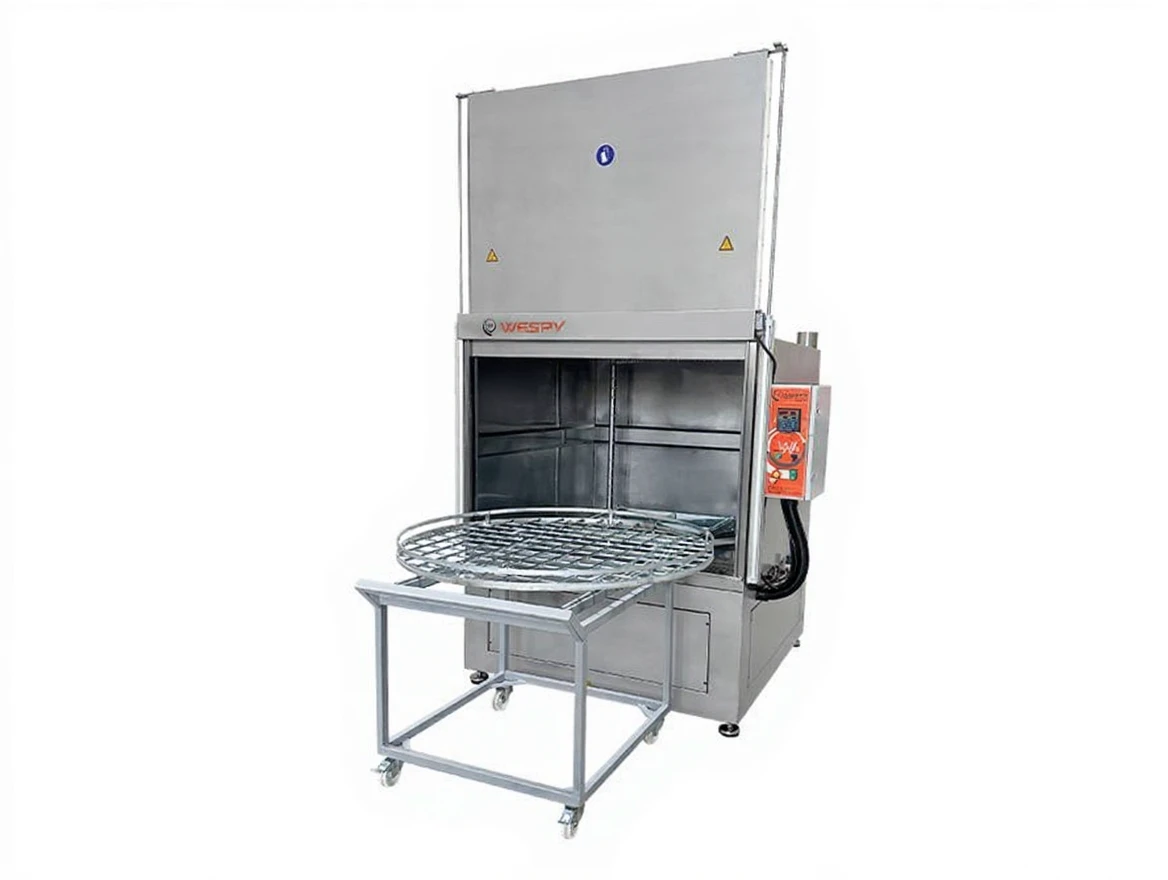

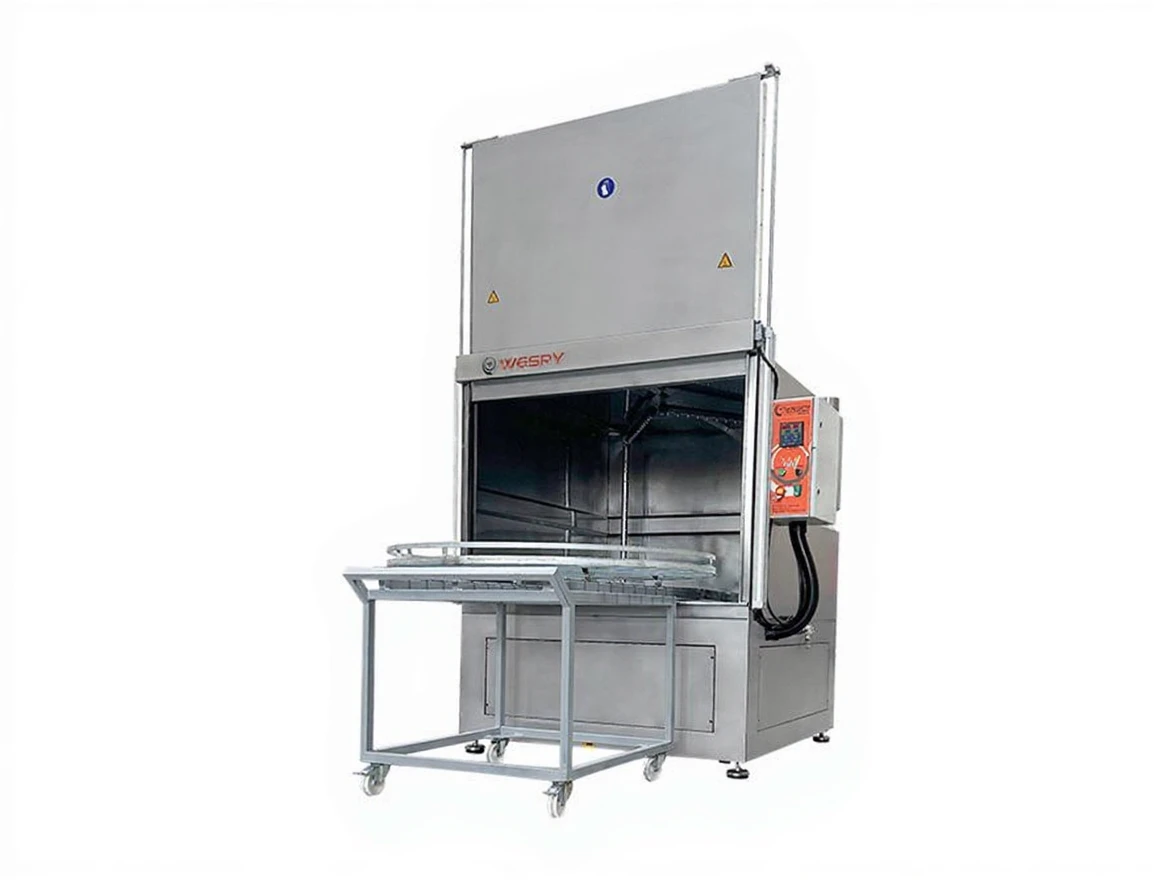

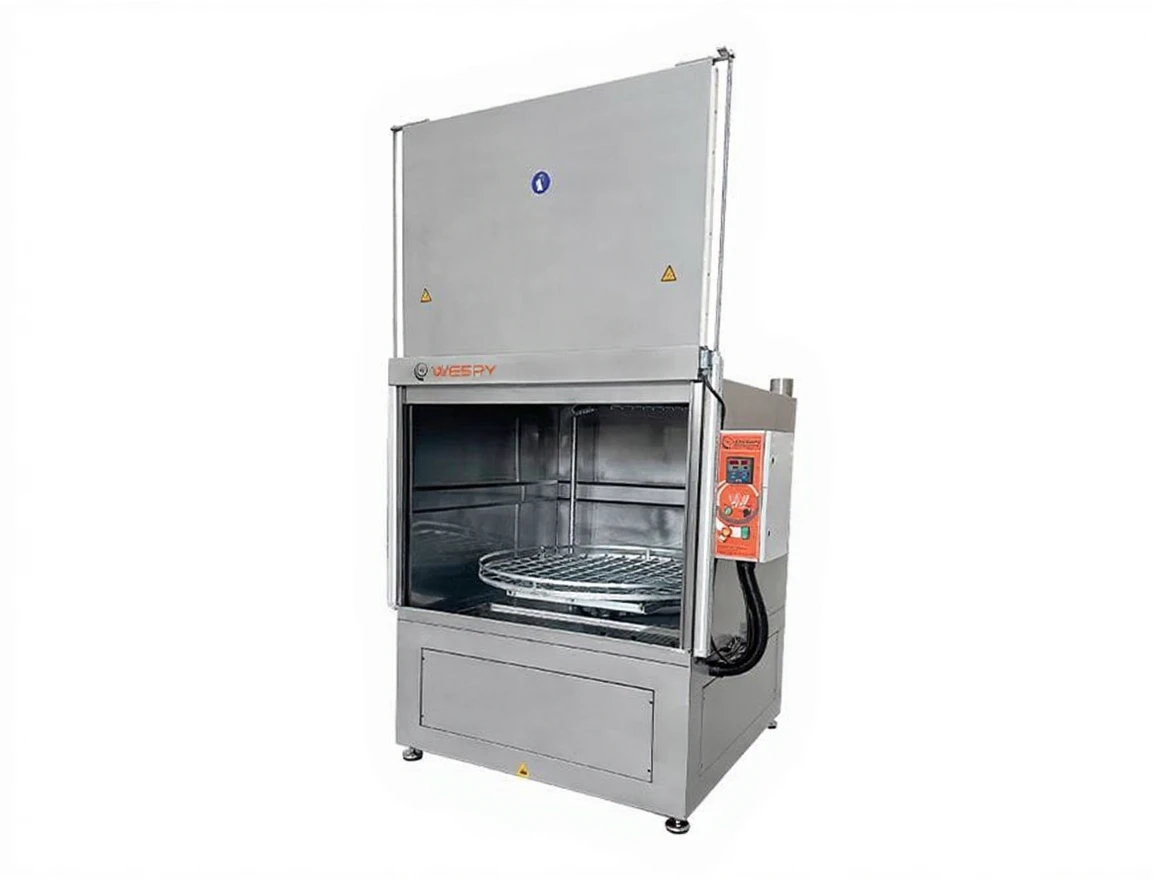

Wespy DS-1500 Pneumatic Front-Loading Rotary Basket Washing Machine

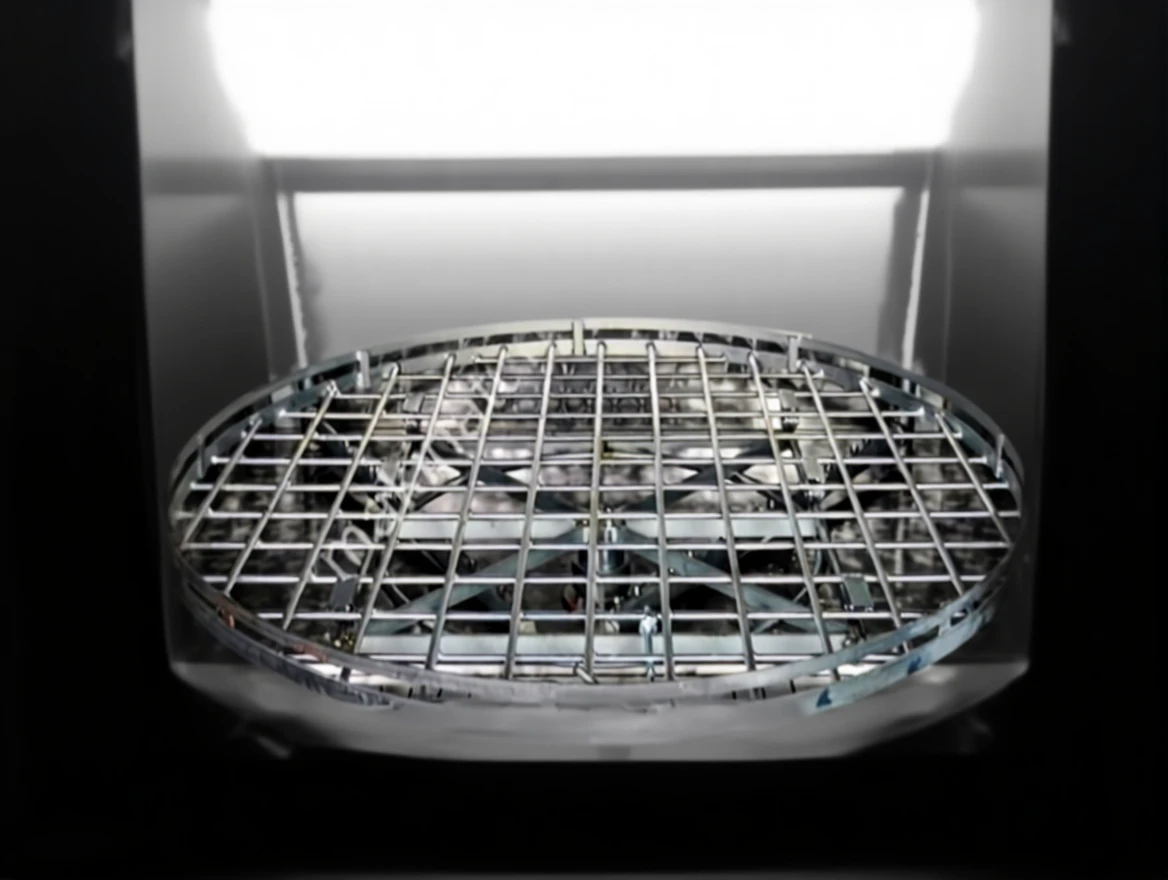

A basket placed on a stainless steel rotating platform with a sliding system is subjected to rotary basket washing with high-pressure detergent and water in a closed cabin where the parts to be washed are placed.
The washing process is carried out to clean oil, chips, dirt, and waste from dirty surfaces at different angles through time-controlled high-pressure water nozzles, depending on the structure and dirtiness of the part. With a circulation system, water is filtered, and the consumption of water, detergent, electricity, and time (work power) is designed to be minimized for part washing.
| Feature | DS-1500 | DS-1750 | DS-2000 |
|---|---|---|---|
| Basket Diameter Ø | 1350 mm | 1600 mm | 1850 mm |
| Loading Height | 800 mm | 800 mm | 850 mm |
| Basket Capacity | 650 kg | 750 kg | 900 kg |
| Tank Capacity | 250 lt | 300 lt | 400 lt |
| Number of Pumps | 2 units | 2 units | 3 units |
| Pump Pressure | 3*2 bar | 3*2 bar | 3*3 bar |
| Oil Skimmer | Standard | Standard | Standard |
| Thermostat | 0.90 °C | 0.90 °C | 0.90 °C |
| Electricity (V/ph) | 220-380 | 220-380 | 220-380 |
| Heater (kW) | 15 | 15 | 22 |
| Timer | 0.30 min | 0.30 min | 0.30 min |
| Automatic Water Feed | Standard | Standard | Standard |
| Liquid Level Control | Standard | Standard | Standard |
| Cover Opening | Pneumatic | Pneumatic | Pneumatic |
| Body Structure | 304-430 (AISI) | 304-430 (AISI) | 304-430 (AISI) |
| Machine Dimensions | 150017501800 mm | 175020001800 mm | 200023502000 mm |
