1350×305 mm Universal Milling Machine
| Brand | King |
|---|---|
| Model Type |
SZ 2200 HVD |
Description

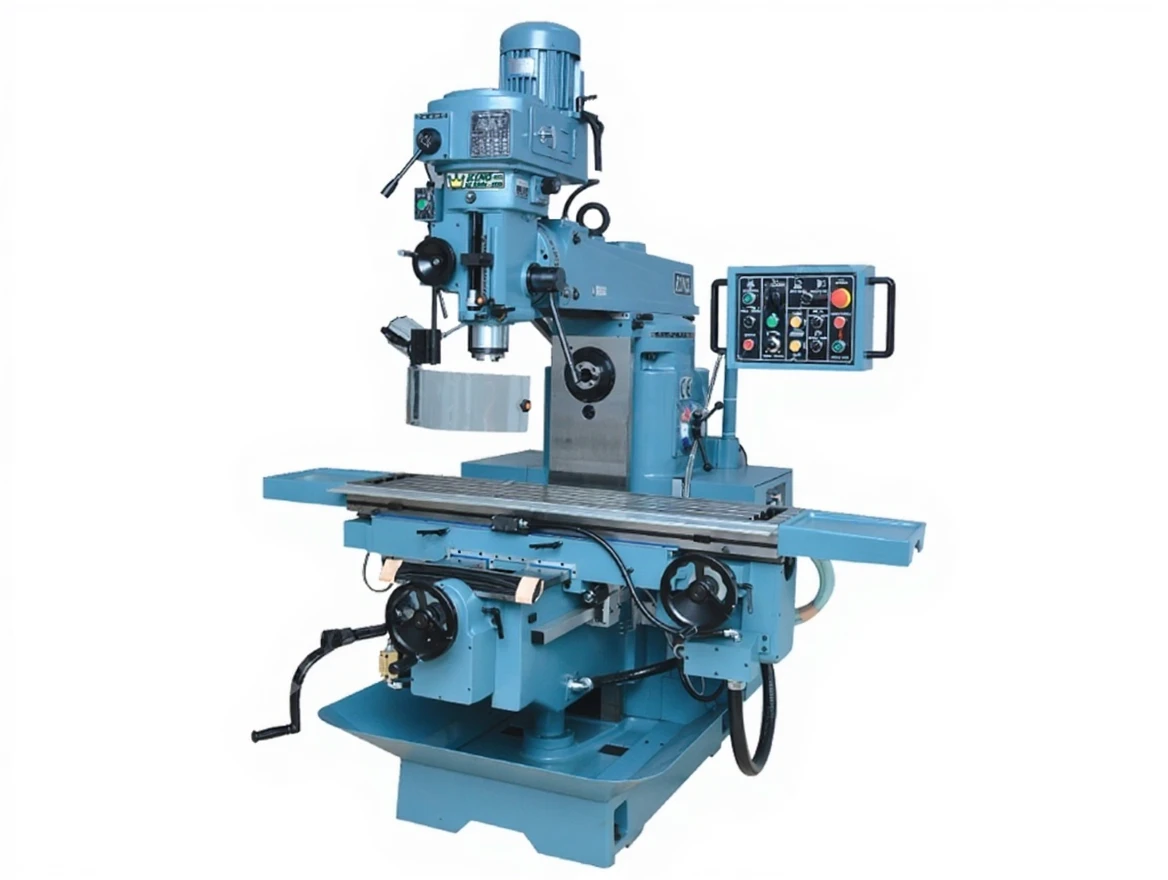

King SZ 2200 HVD
1350×305 mm Table Range Universal Milling Machine
King SZ 2200 HVD Technical Specifications
|
SPINDLE SPEED ( VERTICAL ) |
75 – 3600 rpm 16 steps |
|
SPINDLE SPEED ( HORIZONTAL ) |
80 – 1220 rpm 9 steps |
|
SPINDLE CONE |
ISO 40 |
|
QUILL DIAMETER |
110 mm |
|
QUILL TRAVEL |
140 mm |
|
HEAD ROTATION |
45 degrees LEFT-RIGHT |
|
TABLE LENGTH |
1350 x 305 mm |
|
X AXIS TRAVEL |
950 mm |
|
Y AXIS TRAVEL |
400 mm |
|
Z AXIS TRAVEL |
400 mm |
King SZ 2200 HVD General Features
- 5 Hp Motor Power
-
DC Servo motor on X – Y axes
-
Rapid Motor on Z axis
-
16 step speed option
-
C5 class bearing shaft on X-Y axes
-
All parts of the machines have been checked with a 3D (German) coordinate measuring device.
-
Single piece body structure
-
Guide pull mechanism
