1370×254 mm Moulder Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
F4 |
Description

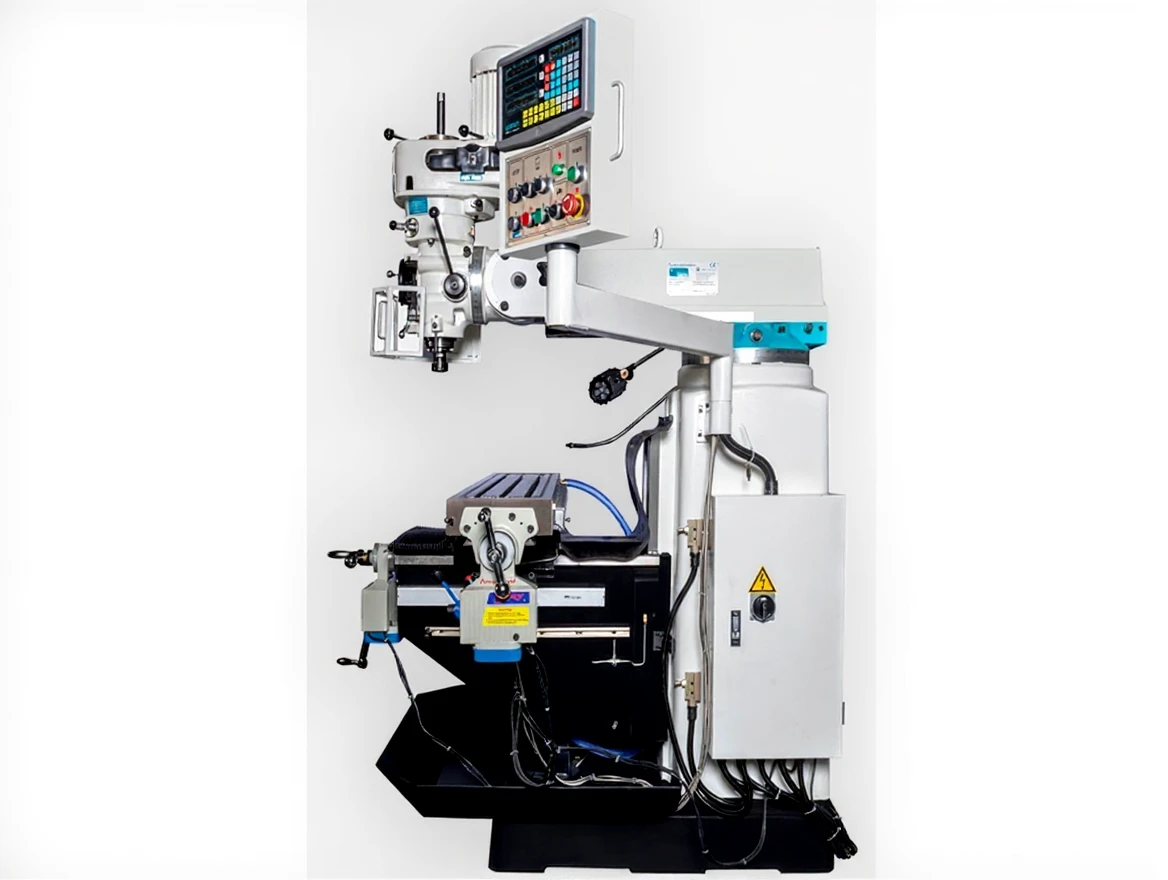

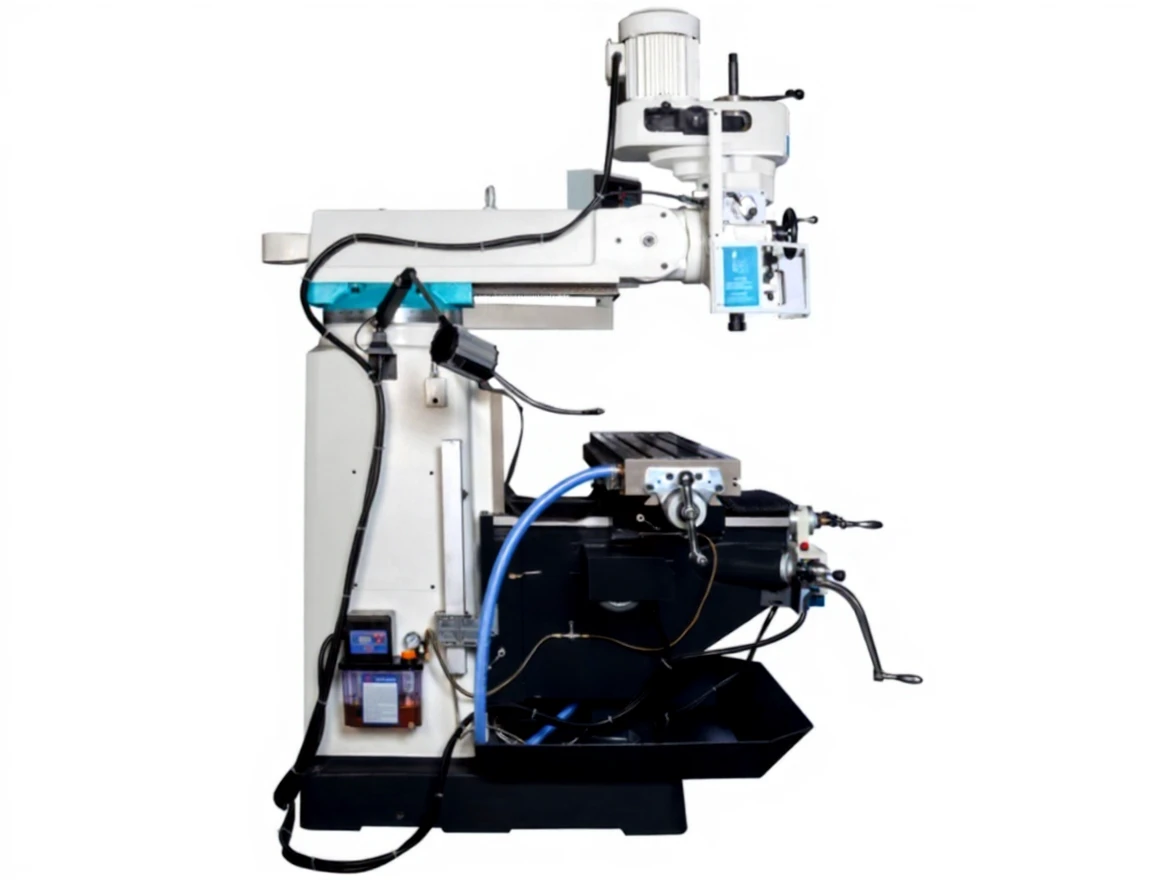

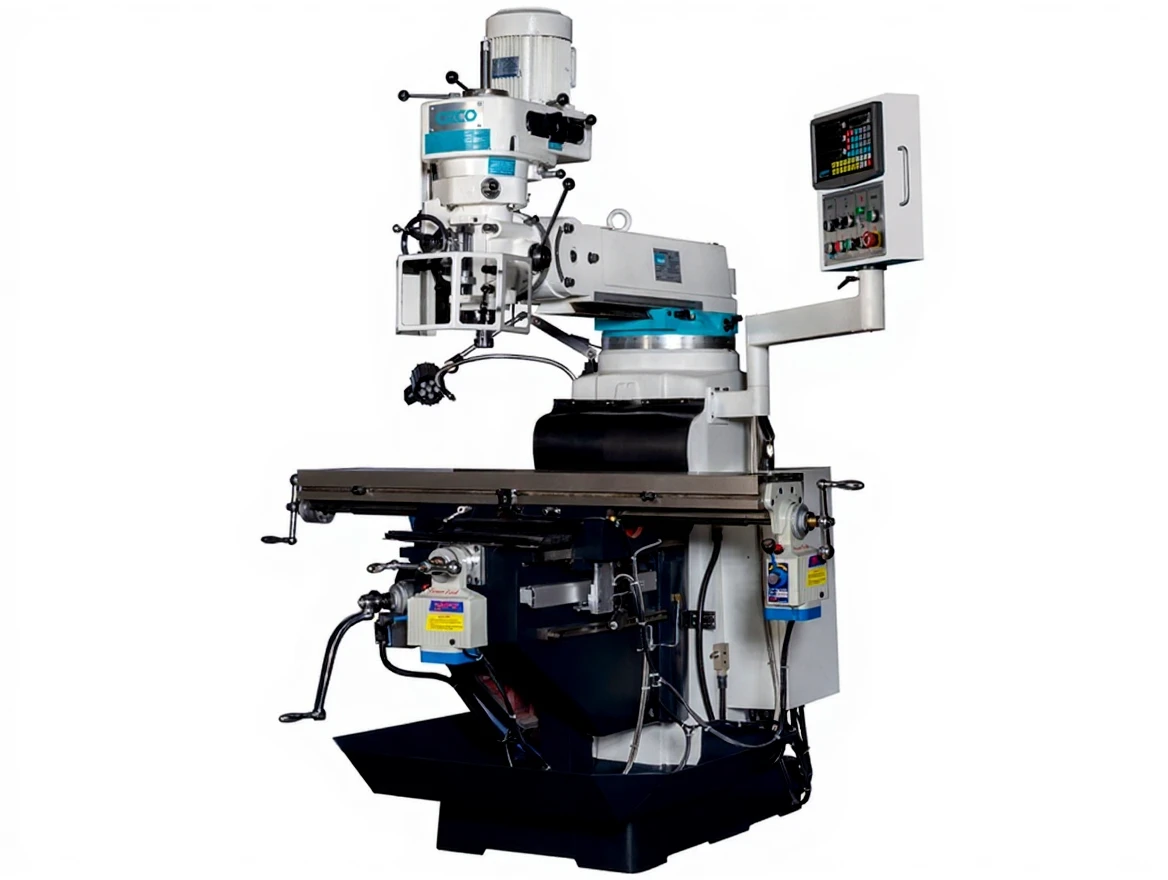

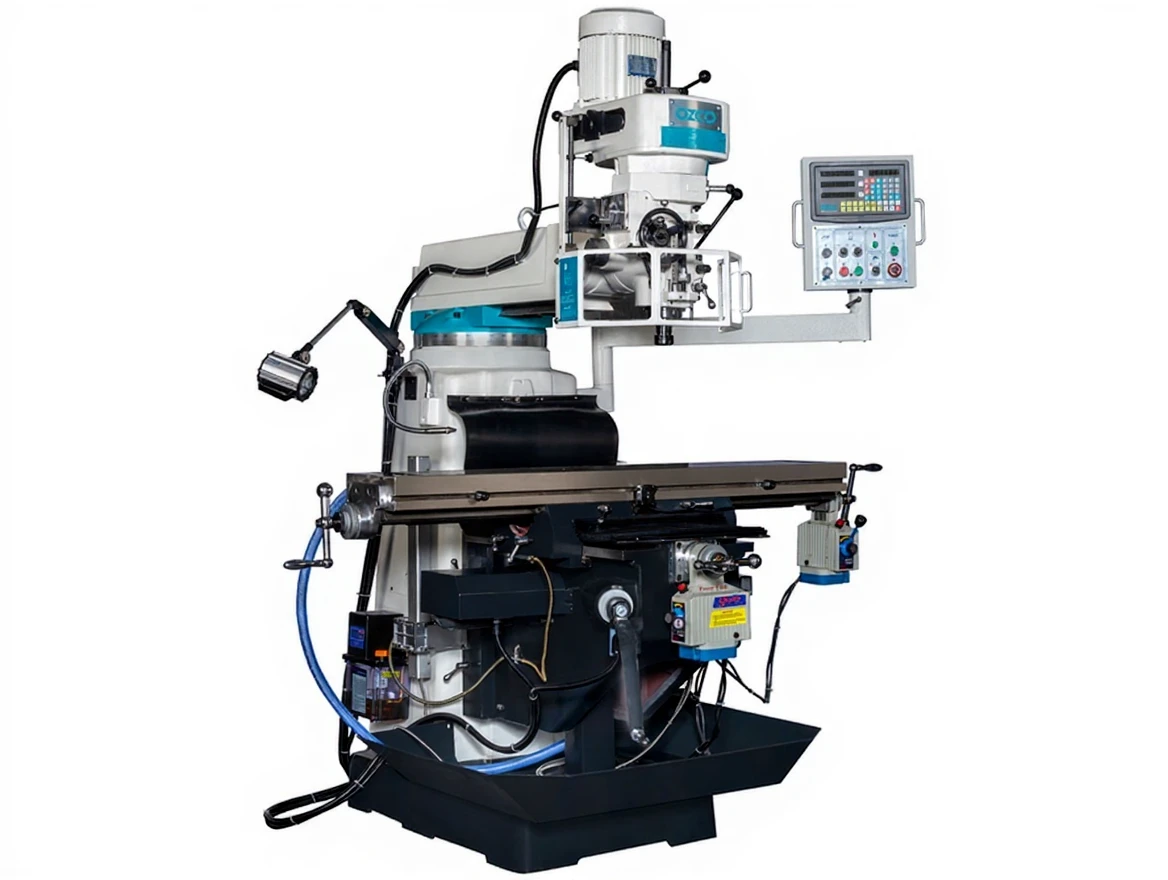

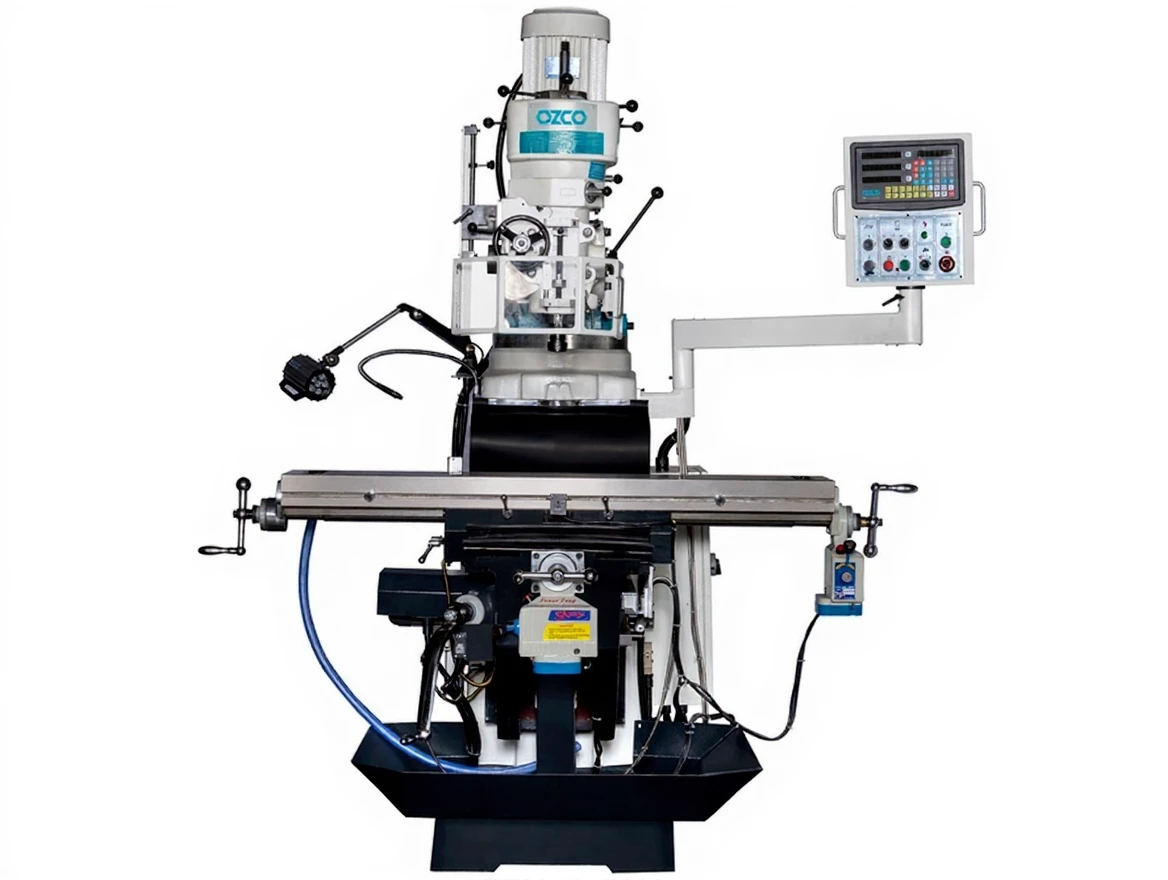

Ozco F4 Moulder Milling Machine
OZCO F4 Moulder Milling Capacity
X-axis movement 920 mm, Y-axis movement 410 mm, Z-axis movement 400 mm, and the spindle diameter is 105 mm.
OZCO F4 Moulder Milling Shipment Scope
Mould clamping set, vice, 11 pieces ISO 40 collet set, and accessories are included.
OZCO F4 Moulder Milling General Features
High-quality Meehanite casting, height-adjustable safety switch guard, X-Y axis electric motor-automatic, Z axis rapid motor-automatic, 3-axis digital coordinate reader, control panel, powerful milling head produced in Taiwan, automatic lubrication, cooling system, lighting, chip tray, compliant with CE standards.
Technical Specifications F4 Moulder Milling
Motor Power 3.75 kW, 400 V
Cooling Pump Power 1/8 Hp (100 W)
Table Dimensions 1370×254 mm
X Axis Movement 920 mm
Y Axis Movement 410 mm
Z Axis Movement 400 mm
T Slot Dimensions 3×16 mm
Spindle Taper ISO 40
Spindle Speed 65-4500 rpm
Steps 16
Spindle Diameter 105 mm
Spindle Movement 127 mm
Spindle Feed [ PHONE HIDDEN ] mm/rev
Head Rotation Angle right/left: + – 90°, front/back: 45°
Distance Between Spindle and Table 40-446 mm
Distance Between Spindle and Column 200-680 mm
RAM Movement 470 mm
Machine Dimensions (UxGxY) 1650x1550x2235 mm
Net Weight 1450 Kg
