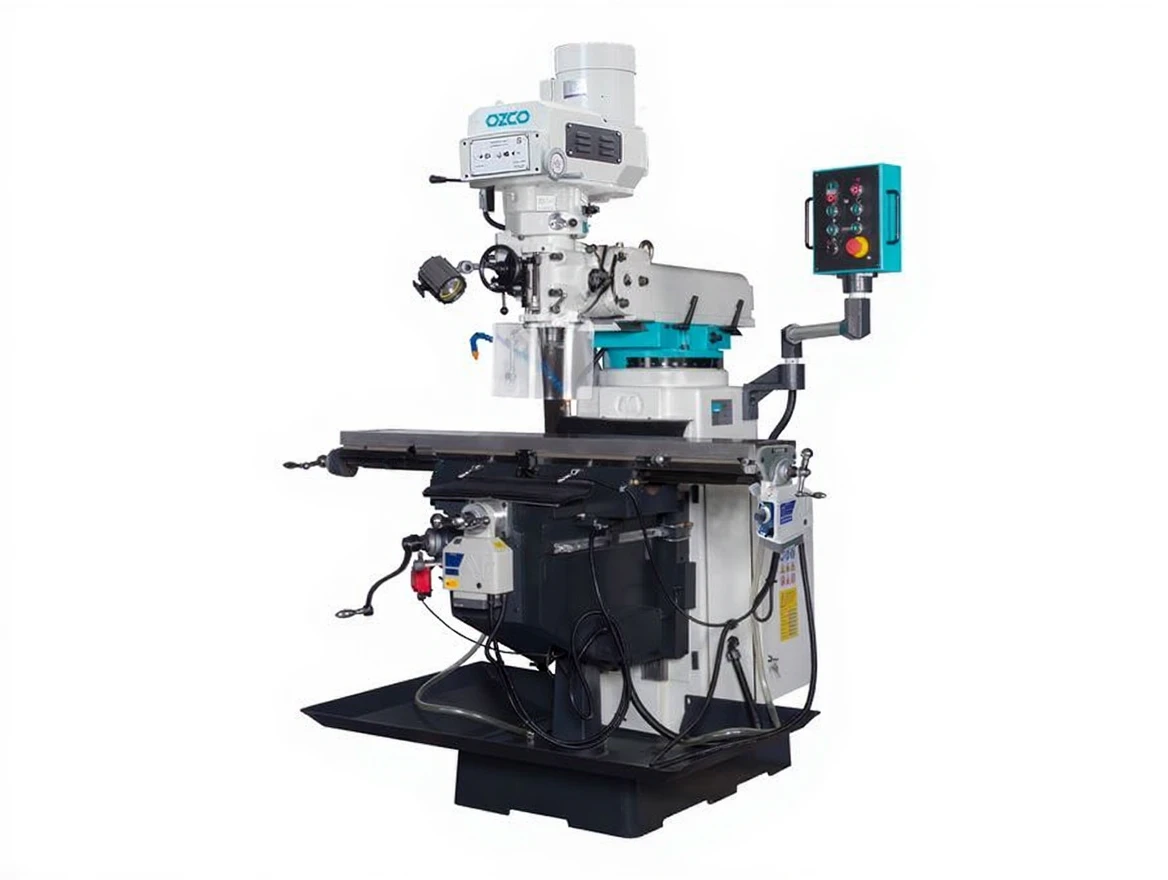

1370×254 mm Pro Moulder Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
FR4V Pro |
Description
Ozco F4V Pro Molder Milling Machine
OZCO F4V Pro Mold Maker Milling Capacity
X axis movement is 825 mm, Y axis movement is 400 mm, Z axis movement is 406 mm, and Pinol diameter is 105 mm.
OZCO F4V Pro Molder Milling Cutter Included in Shipment
There is a die clamping set, a vise, a 15-piece ISO 40 collet set and a toolbox.
OZCO F4V Pro Molding Milling Cutter General Features
High quality Meehanite casting, Height adjustable visor with safety switch, Schneider electrical system,
Technical Specifications F4V Pro Molder Milling Cutter
Engine Power 3.75 kW, 400 V
Cooling Pump Power 1/8 Hp (100 W)
Table Dimensions 1370×254 mm
X Axis Travel 825mm
Y Axis Movement 400 mm
Z Axis Travel 406 mm
T Slot Dimensions 3×16 mm
Spindle Taper ISO 40
Spindle Speed 66-3165 rpm
Stage Vario Speed Adjustment
Pinole Diameter 105 mm
Pinol Movement 127 mm
Pinol Feed [ PHONE HIDDEN ] mm/rev
Head Rotation Angle – 90°
Distance Between Spindle and Table 40-446 mm
Distance Between Shaft and Column 200-680 mm
RAM Movement 480 mm
Machine Dimensions(LxWxH) 1750x1500x2200 mm
Net Weight 1300 Kg
