Ø 14 (8200mm) Top-Mounted Electric Motor Driven Agricultural Spiral Conveyor
| Brand | Dilsizler |
|---|---|
| Model Type |
⌀14'lük 8mt |
Dilsizler Ø 14 (8200mm) Top-Mounted Electric Motor Driven Agricultural Spiral Conveyor
"Spiral Conveyors Driven by Top-Mounted Electric Motors" operate with 220 volts electrical energy. The electric motor transfers motion to the spiral blade through a pulley system. As the blade rotates, it pulls the product from the rear end of the pipe through the suction mouth, enabling transportation, loading, and stacking to the desired location through the discharge mouth at the front. These are commonly used by Agricultural Credit Cooperatives, Screening Facilities, and Farmers.

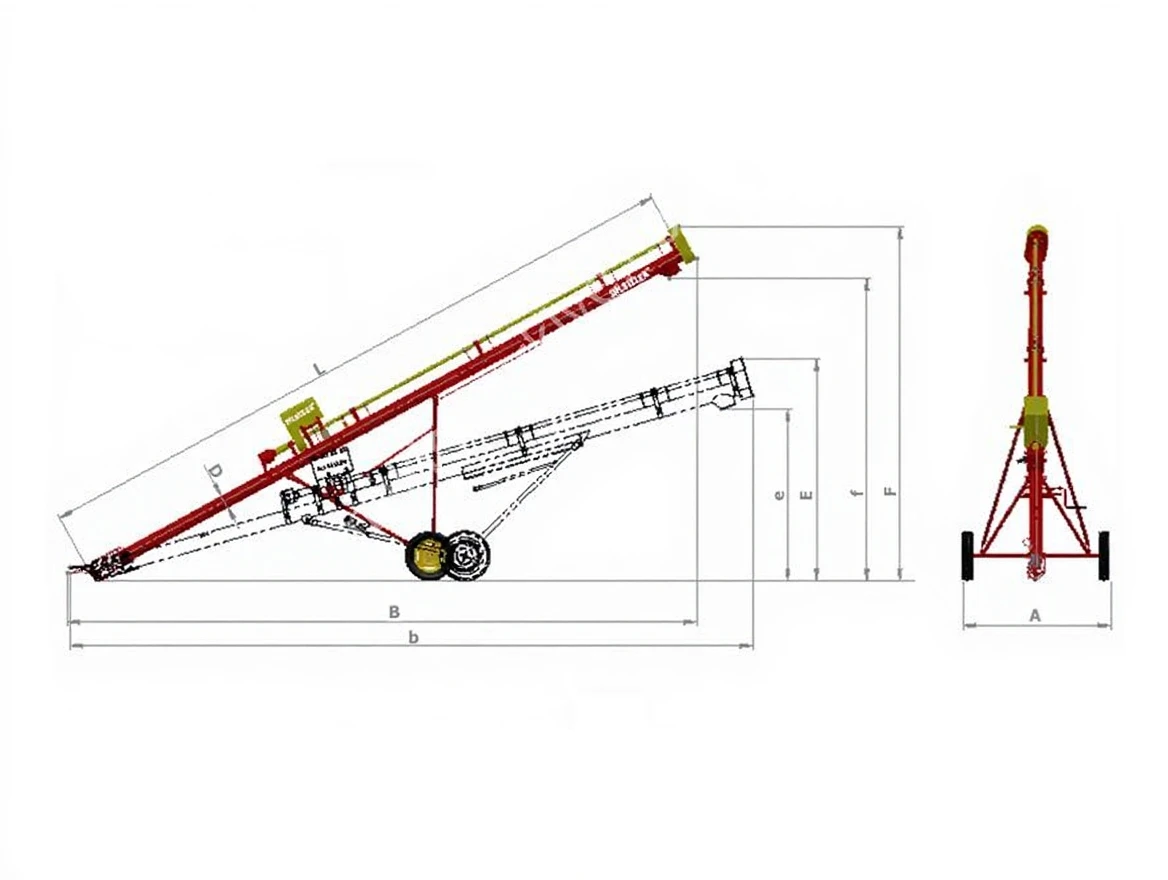

Technical Specifications of Top-Mounted Electric Motor Driven Spiral Conveyors:
|
odel |
Power/HP |
Energy |
Carrying Capacity |
Total Weight |
D |
L |
A |
b |
B |
Min. Operating Position |
Max. Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Ø 14' x 6m |
3 hp |
220 V |
Grain: 23 tons/hour |
240 kg |
139.7 |
6000 |
1580 |
6120 |
5700 |
e: 1880, E: 2600 |
f: 2780, F: 3550 |
|
Ø 14' x 8m |
3 hp |
220 V |
Seed: 11 tons/hour |
260 kg |
139.7 |
8000 |
1790 |
8200 |
7800 |
e: 1950, E: 2660 |
f: 3150, F: 3870 |
|
Ø 14' x 10m |
4 hp |
220 V |
|
320 kg |
139.7 |
10000 |
1880 |
10200 |
9760 |
e: 2150, E: 2820 |
f: 3650, F: 4350 |
Note: Our measurements are in millimeters 'mm'.
