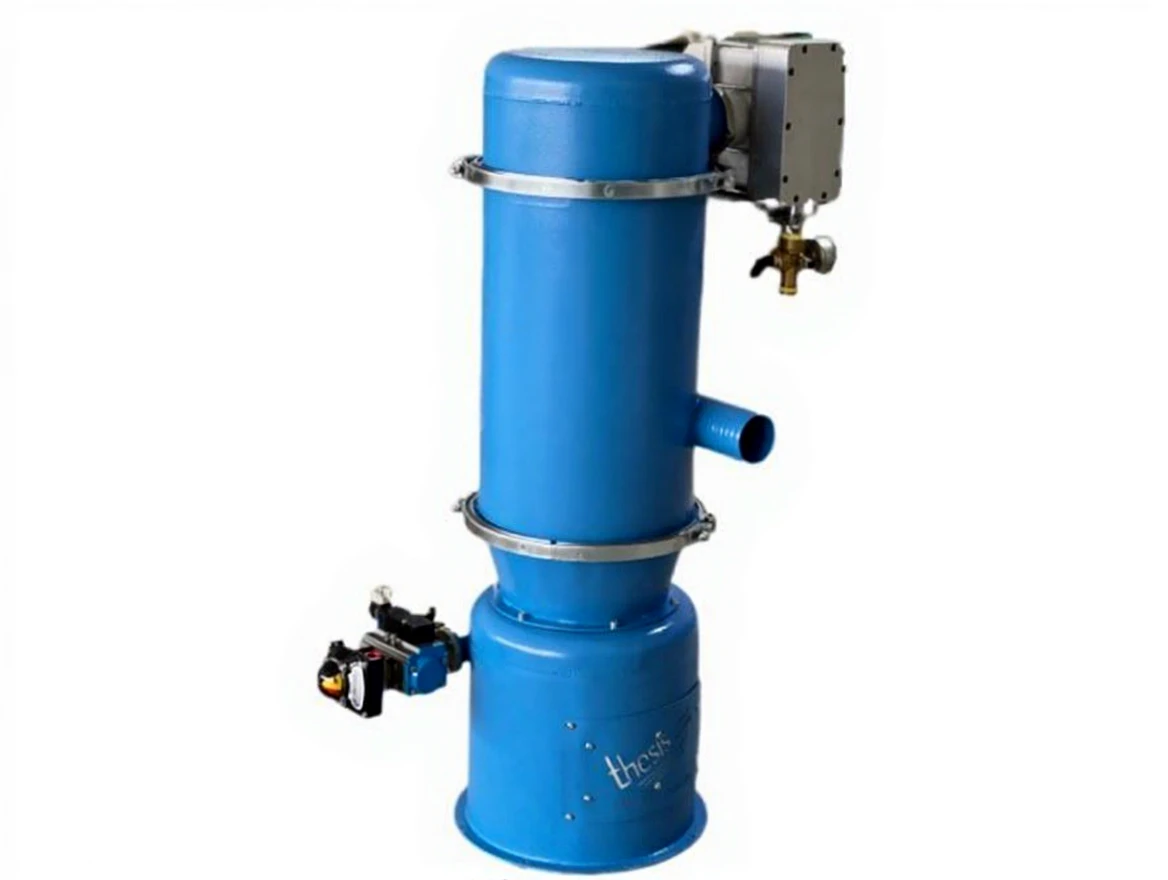

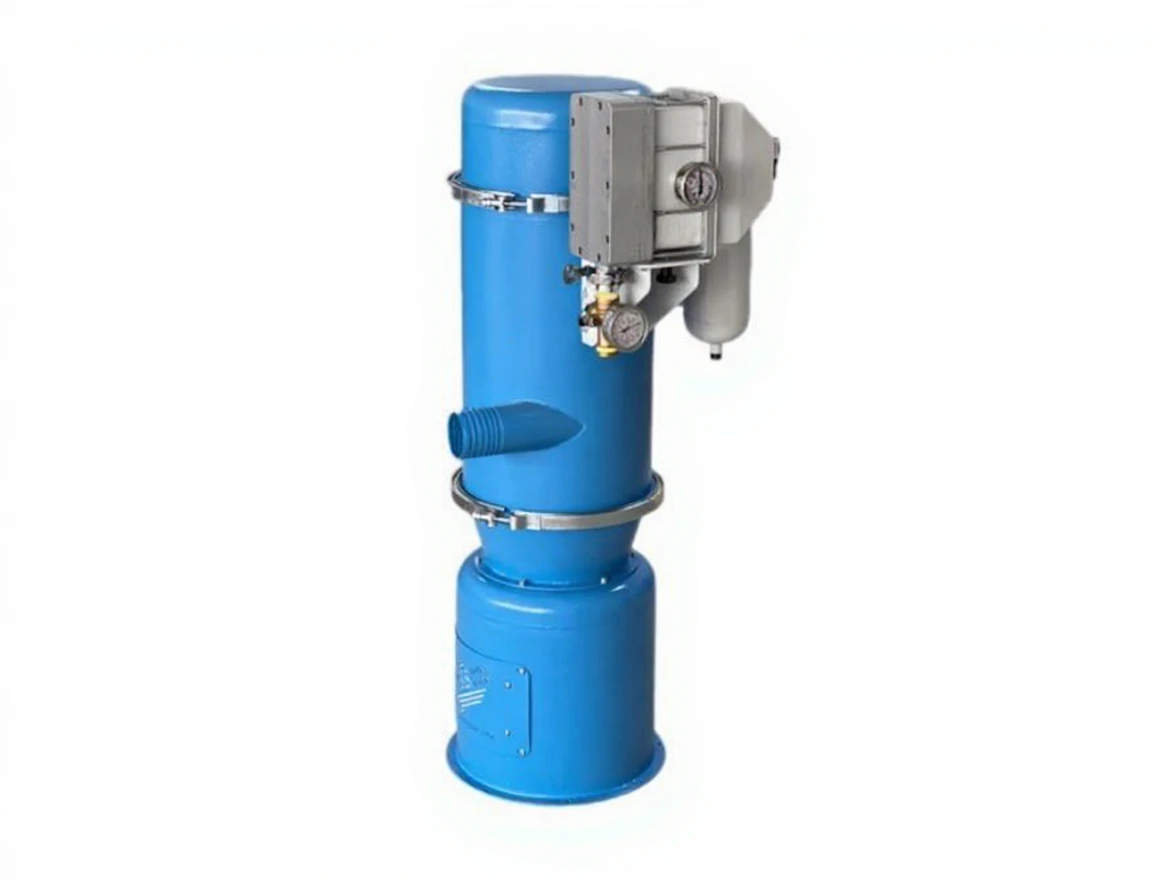

14 Liter Dust-Transfer Vacuum Conveying Conveyor
| Brand | Thesis Makina |
|---|---|
| Model Type |
TH21-14 LT |
Description
Thesis TH21-14 LT Vacuum Conveying Conveyor
• Easy to install and commission turnkey conveyor.
• Manual disassembly and cleaning possibility.
• Low noise level operation.
• Completely pneumatic system.
• Polyester bag filter (with [ PHONE HIDDEN ] micron options).
Thesis TH21-14 LT Technical Data
|
Description |
Unit |
Value |
|---|---|---|
|
Feed Pressure Range |
Bar |
4-6 |
|
Air Consumption Range |
Nl/min |
2100-2205 |
|
Vacuum Range |
-kPa |
60-72 |
|
Material |
— |
Deep Drawing Steel |
|
Temperature Range |
°C |
0-60 |
|
Filter Area |
m² |
0.5 |
|
Material Volume |
L |
14 |
|
Minimum Particle Size |
µm |
5 or 20 |
Capacity at different conveying distances (tons/hour)
|
Conveying Distance (m) |
Capacity (tons/hour) |
|---|---|
|
5 m |
4.1 |
|
10 m |
2.3 |
|
20 m |
1.5 |
|
30 m |
1.0 |
