1400 mm Special Pneumatic Front Cover Rotating Basket Washing Machine

Brand Wespy
Model Type

SP-Large-1600

Description

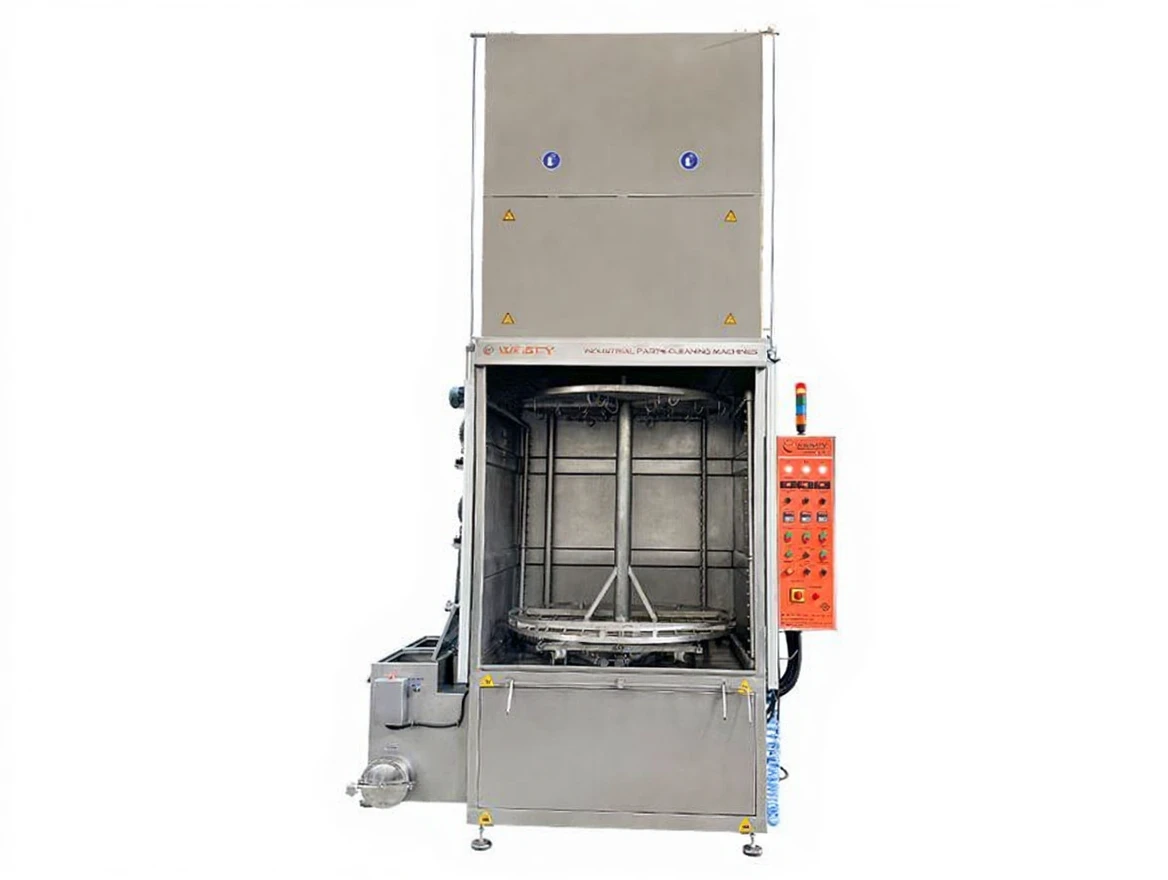

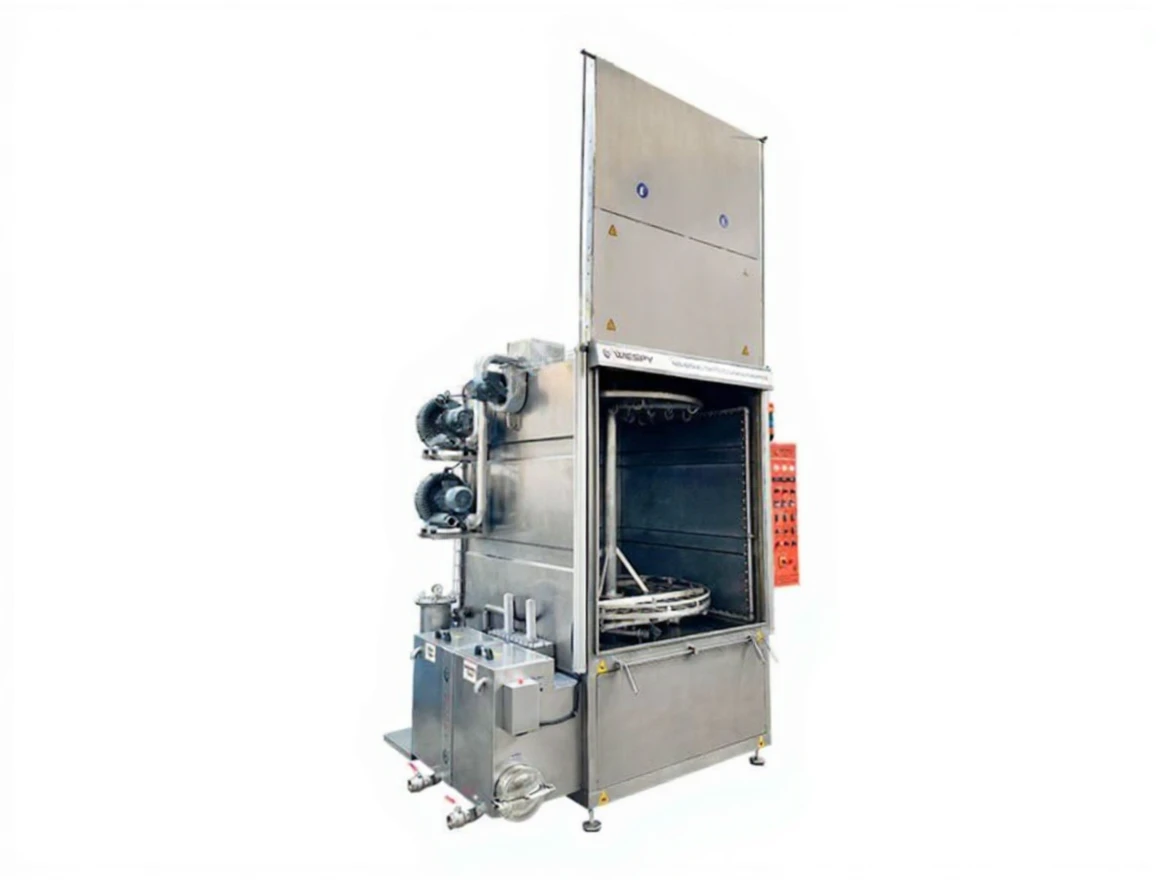

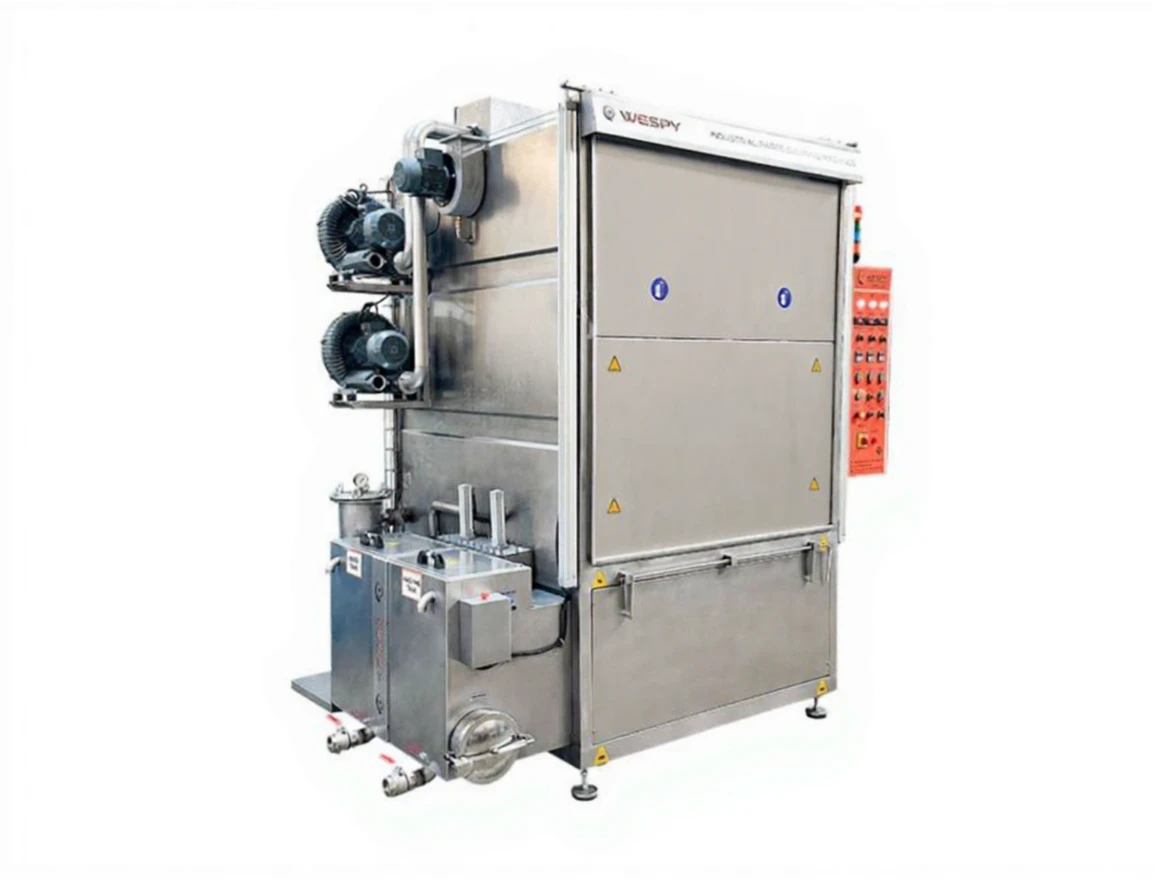

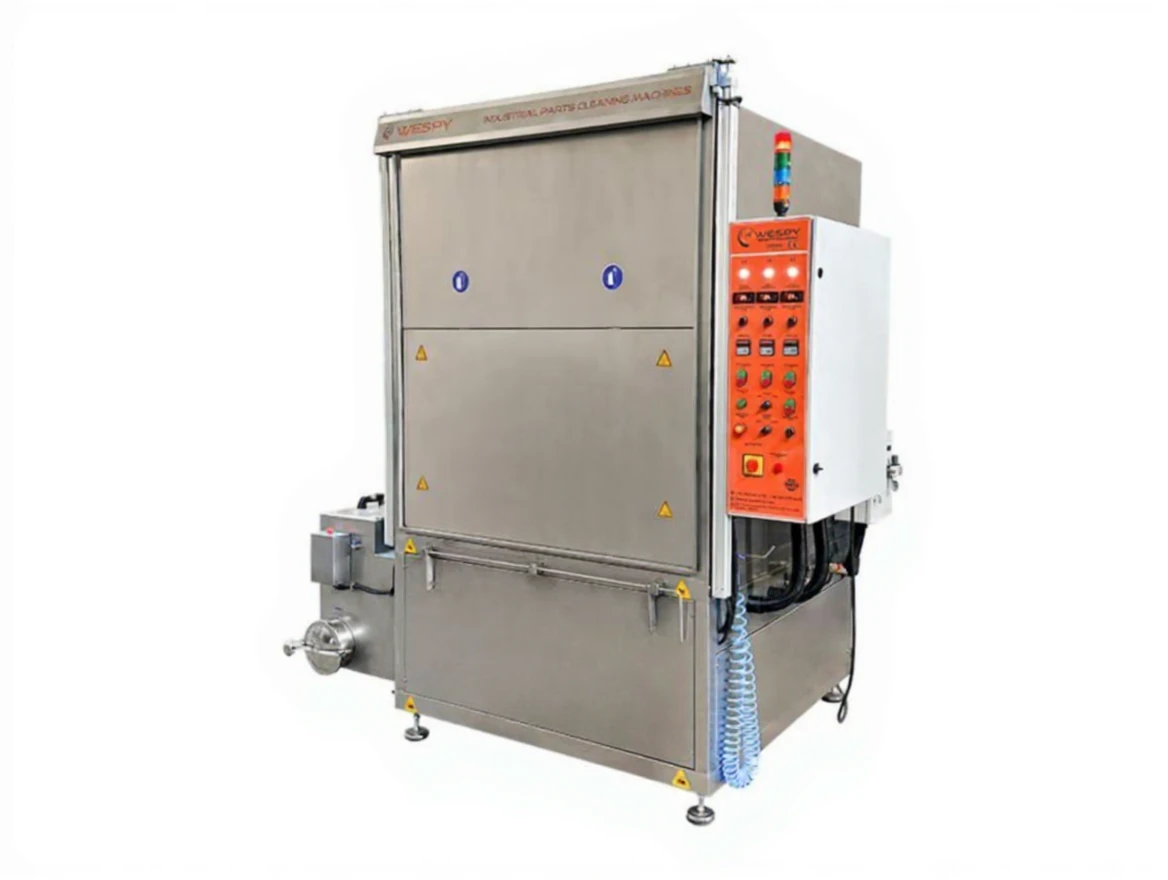

Wespy SP-Large-1600 Special Pneumatic Front Cover Rotating Basket Washing Machine (Washing – Rinsing – Drying)

A basket placed on a stainless rotating platform with a sliding system is subjected to washing, rinsing, and drying with high-pressure detergent water in a closed chamber where the parts to be washed are placed.

Depending on the structure of the part and the level of dirtiness, washing, rinsing, and drying processes are carried out to clean oil, chips, dirt, and waste from dirty surfaces at different angles through time-controlled pressurized water nozzles.

With the circulation system, water is filtered, and the consumption of water, detergent, electricity, and time (work power) is minimized for part washing, rinsing, and drying.

Feature Value
Basket Diameter Ø 1400 mm
Loading Height 1500 mm
Basket Capacity 650 kg
Thermostat 0.90 °C
Washing Capacity 650 L
Rinsing Capacity 450 L
Number of Pumps 3 units
Pump Power 3×3 Bar
Oil Scraper Standard
Automatic Water Intake Standard
Drying Standard
Heater (kW) 7.5×3
Electricity (V/Phase) [ PHONE HIDDEN ]
Cover Opening Pneumatic
Body Structure 304-430 (AISI)
Machine Dimensions 1650x2400x2350 mm
