1400mm Sleave Gearless Drum Flexo Printing Machine
| Brand | Nort |
|---|---|
| Model Type |
Andromeda 1408 SGS |

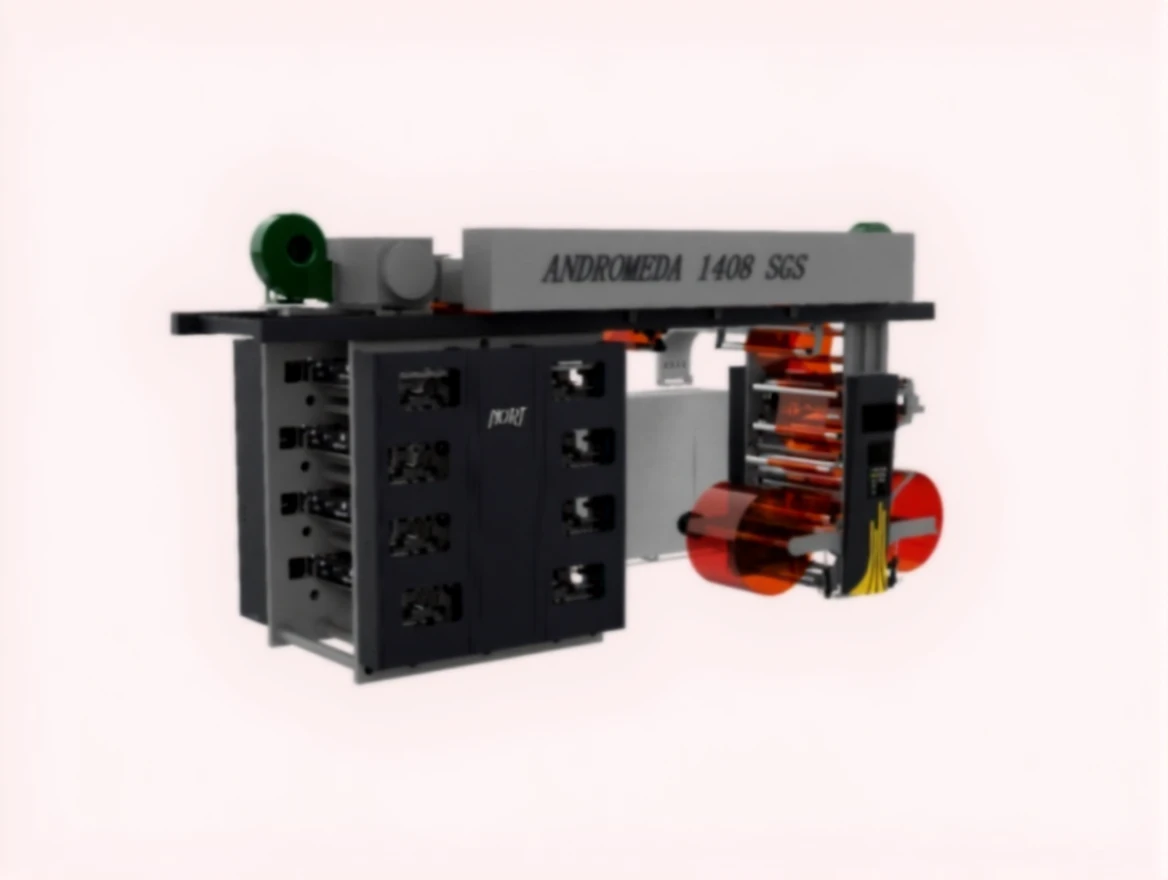

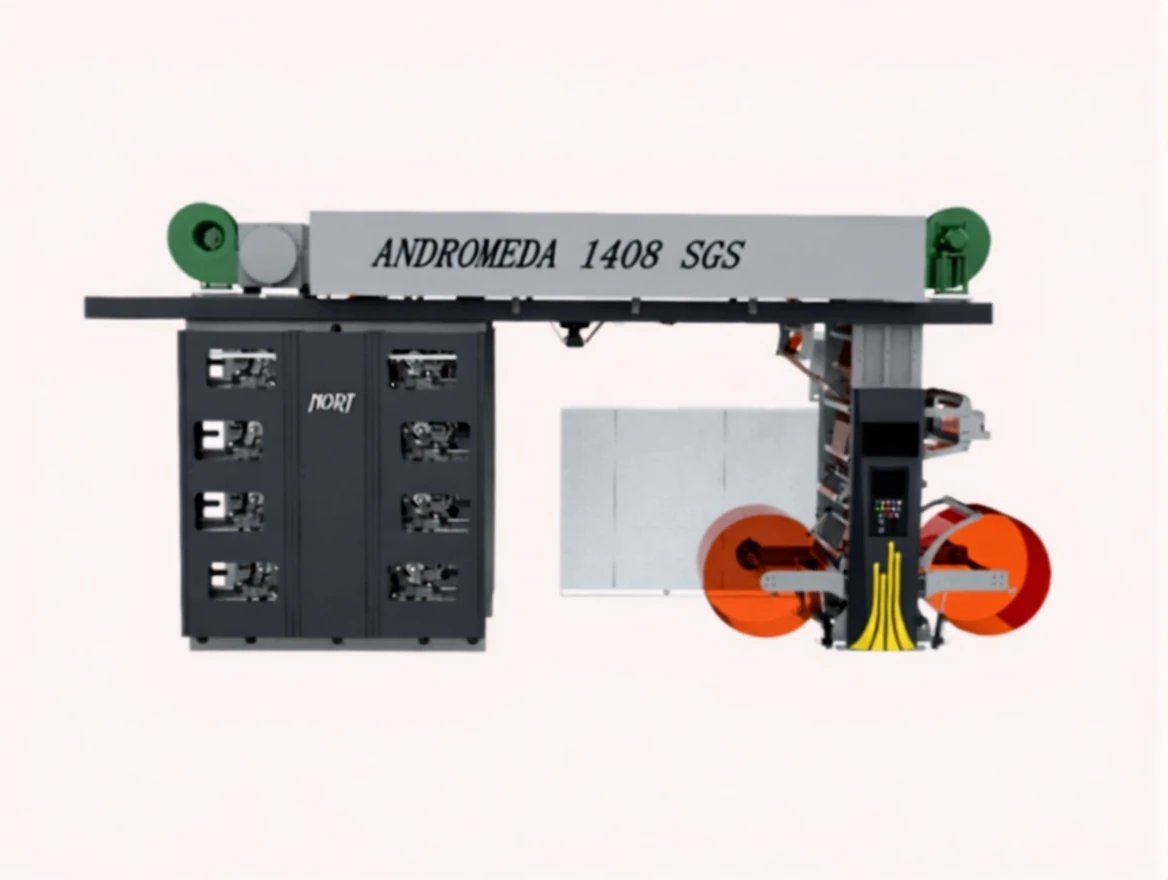

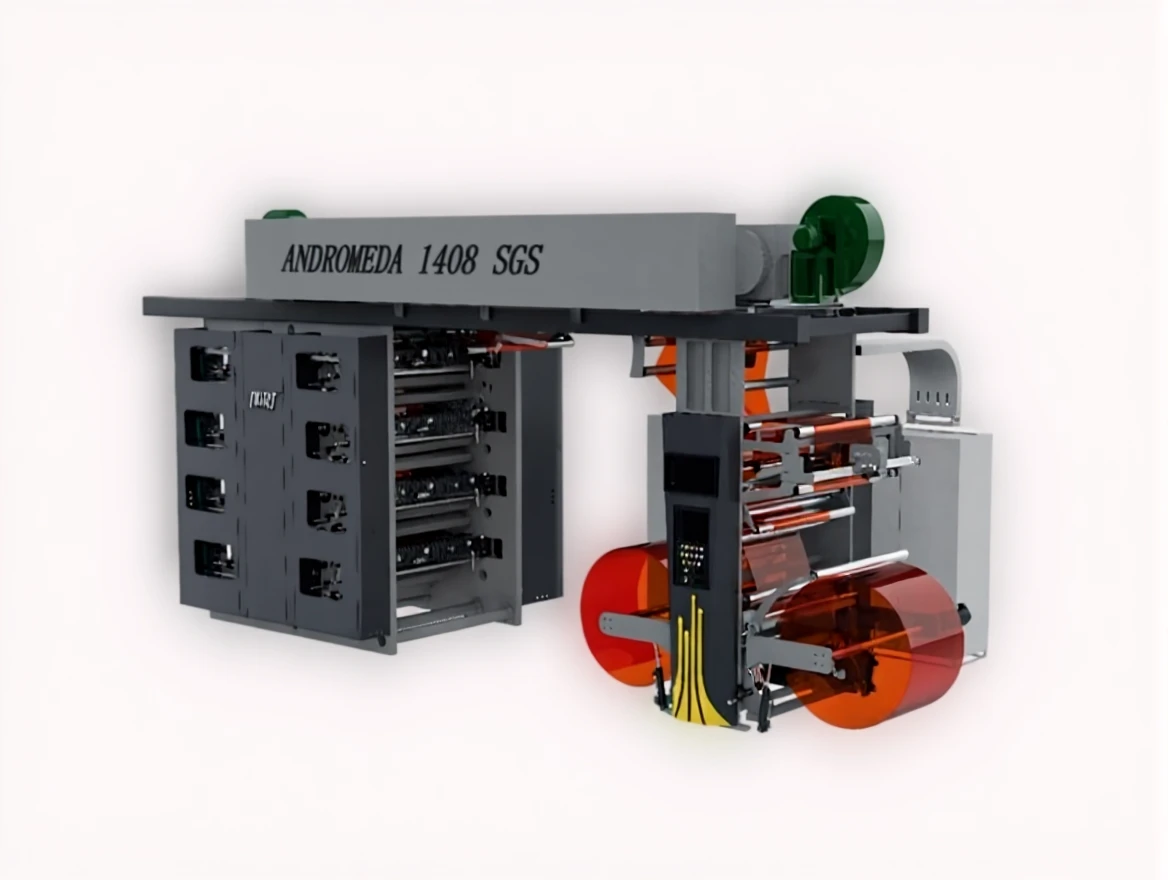

Andromeda 1408 SGS 1400mm Sleave Gearless Drum Flexo Printing Machine
|
Technical Details |
|
ANDROMEDA 900KS |
1300 K.S. |
1600 K.S. |
2000 KS |
|
Maximum Coil Loading Diameter |
: |
Ø1200mm |
Ø1200mm |
Ø1200mm |
Ø1200mm |
|
Maximum Film Width |
: |
950mm |
1350mm |
1650mm |
2050mm |
|
Maximum Print Width |
: |
900mm |
1300mm |
1600mm |
2000mm |
|
Bobbin Diameter |
: |
76mm (3”)-152mm(6”) Optional |
76mm (3”)-152mm(6”) Optional |
76mm (3”)-152mm(6”)Optional- SHAFTLESS |
76mm (3”)-152mm(6”)Optional – SHAFTLESS |
|
Printing Unit |
: |
6-8 Colors |
6-8 Colors |
6-8 Colors |
6-8 Colors |
|
Printing Types |
: |
6 0 – 8 0 |
6 0 – 8 0 |
6 0 – 8 0 |
6 0 – 8 0 |
|
Print Repeat |
: |
350-1000mm |
350-1000mm |
350-1000mm |
350-1000mm |
|
Solvent Tension |
: |
Min. 25 – Max 300nm |
Min. 25 – Max 300nm |
Min. 25 – Max 300nm |
Min. 25 – Max 300nm |
|
Central Drum |
: |
Yes – (Optional without drum) | Yes – (Optional without drum) | Yes – (Optional without drum) | Yes – (Optional without drum) |
|
Blood Pressure System |
: |
BALLERINE CONTROLLED BLOOD PRESSURE MONITORING SYSTEM WITH TRANSDUCER RULER |
|||
|
load cell |
: |
None |
None |
None |
None |
|
Gear Pitch |
: |
GEARLESS |
GEARLESS | GEARLESS | GEARLESS |
|
Plate Thickness |
: |
1.14mm |
1.14mm |
1.14mm |
1.14mm |
|
Machine Line Speed |
: |
300m/min – 400m/min |
300m/min – 400m/min |
300m/min – 400m/min |
300m/min – 400m/min |
|
Print Speed |
: |
300m/min – 400m/min |
300m/min – 400m/min |
300m/min – 400m/min |
300m/min – 400m/min |
|
Cliche Boiler System |
: |
Servo Control |
Servo Control |
Servo Control |
Servo Control |
|
Anilox Stand By System |
: |
Servo-motor |
Servo-motor | Servo-motor | Servo-motor |
|
Control System |
: |
PLC 67 Axis Servo |
PLC 67 Axis Servo |
PLC 67 Axis Servo |
PLC 67 Axis Servo |
|
Print Size (Register) 360° |
: |
Servo Control – Automatic Web Control |
Servo Control – Automatic Web Control |
Servo Control – Automatic Web Control |
Servo Control – Automatic Web Control |
|
Side Register Setting |
: |
Servo Automatic Web |
Servo Automatic Web |
Servo Automatic Web |
Servo Automatic Web |
|
Camera |
: |
Position Controlled |
Position Controlled | Position Controlled | Position Controlled |
|
Drying |
: |
2 Centers, Printing – Tunnel 3 Stage PID Controlled |
|||
