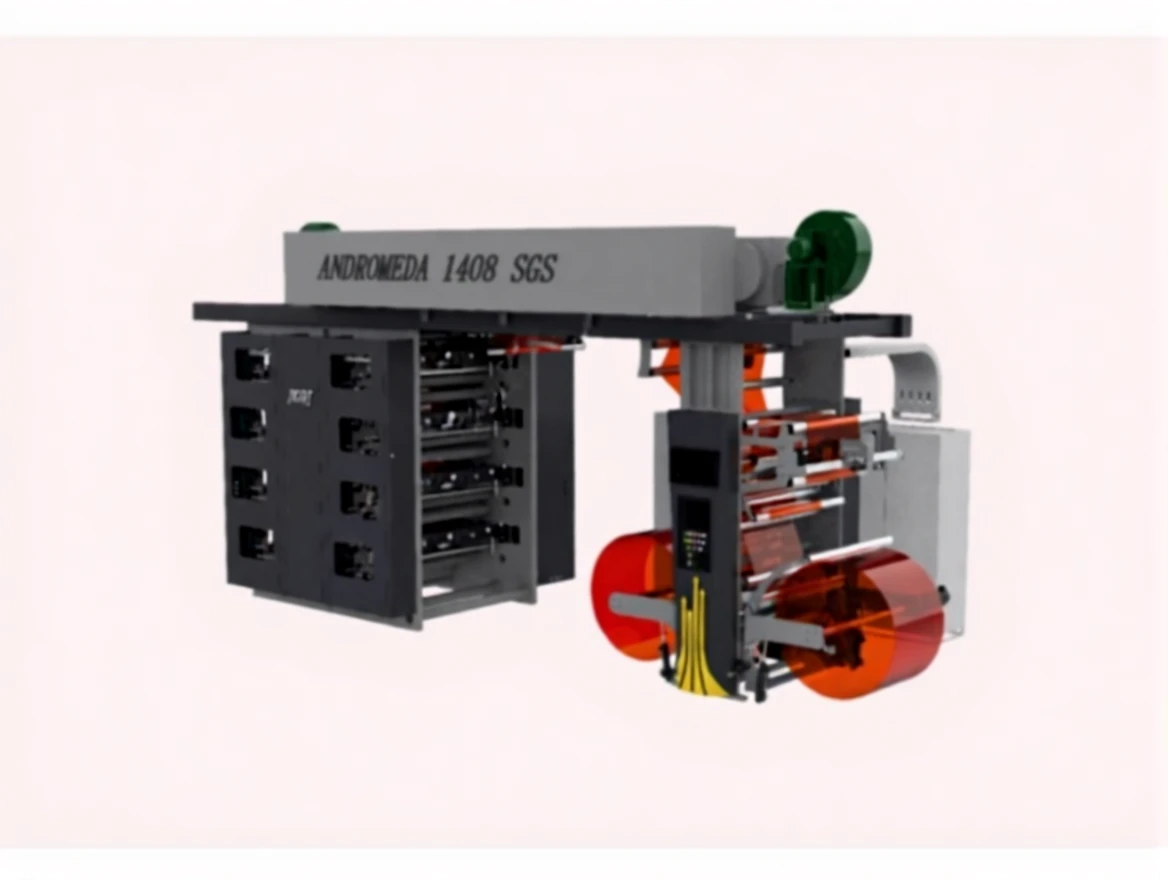

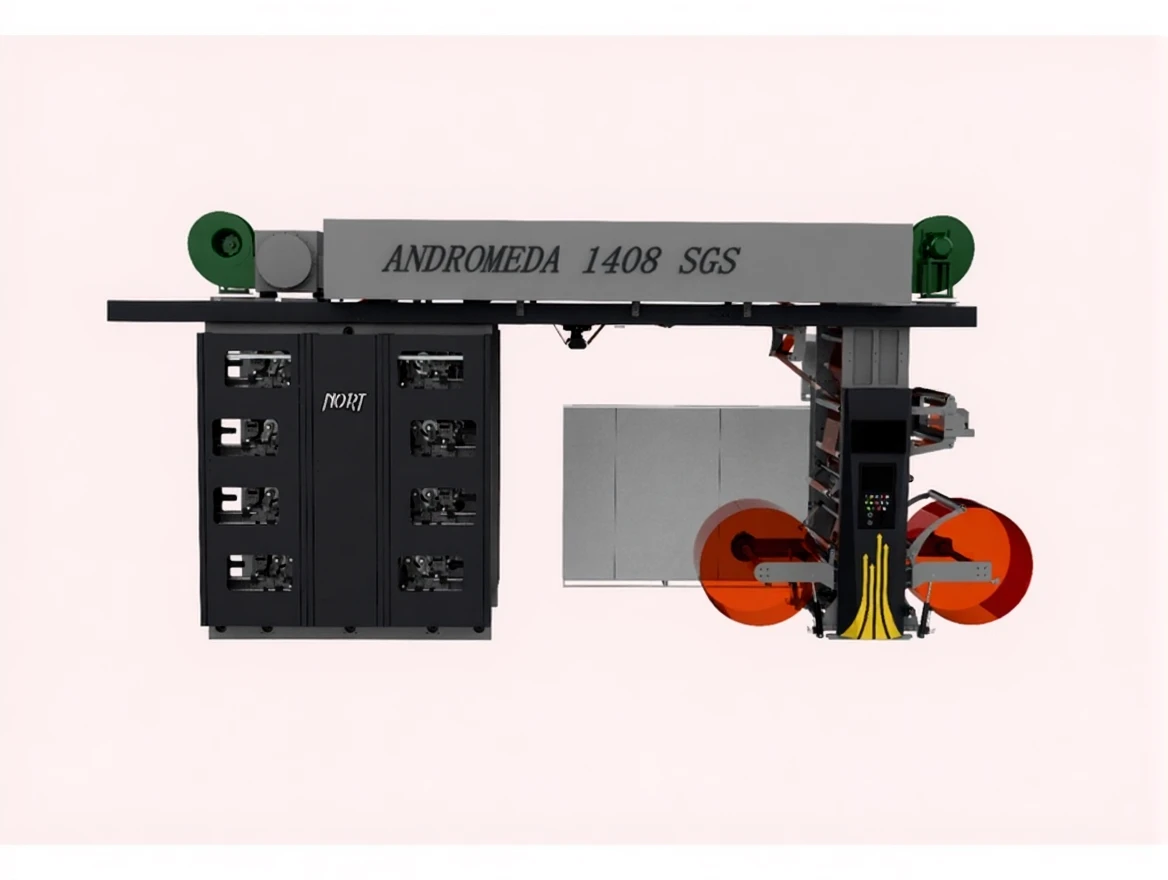

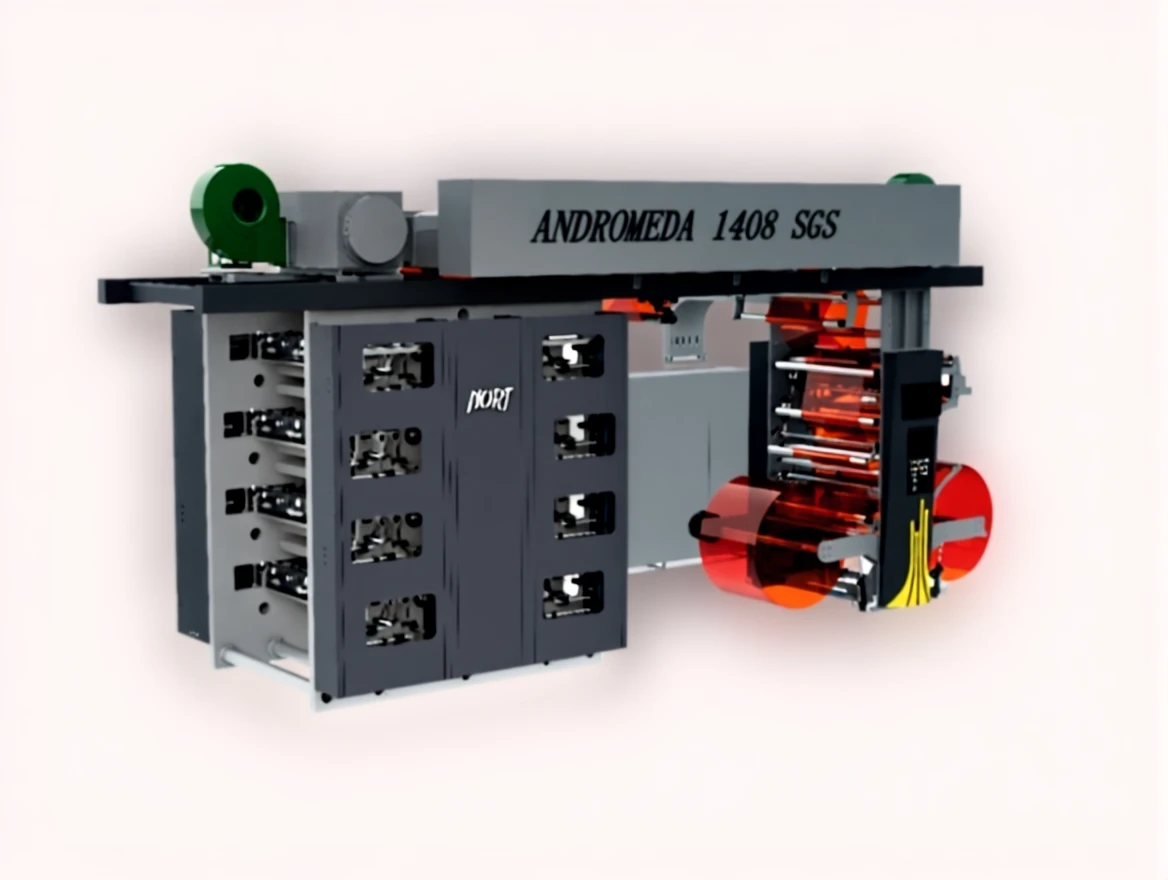

1400mm Sleave Gearless Drum Flexo Printing Machine

Technical Details

ANDROMEDA 900 HP

1300 HP

1600 HP

2000 HP

Maximum Reel Loading Diameter

:

Ø1200mm

Ø1200mm

Ø1200mm

Ø1200mm

Maximum Film Width

:

950mm

1350mm

1650mm

2050mm

Maximum Print Width

:

900mm

1300mm

1600mm

2000mm

Roll Diameter

:

76mm (3”)-152mm(6”) Optional

76mm (3”)-152mm(6”) Optional – SHAFTLESS

76mm (3”)-152mm(6”) Optional – SHAFTLESS

Printing Unit

:

6-8 Colors

6-8 Colors

6-8 Colors

6-8 Colors

Print Types

:

6+0 – 8+0

6+0 – 8+0

6+0 – 8+0

6+0 – 8+0

Print Repeat

:

350-1000mm

350-1000mm

350-1000mm

350-1000mm

Tension Control

:

Min. 25 – Max 300 nm

Min. 25 – Max 300 nm

Min. 25 – Max 300 nm

Min. 25 – Max 300 nm

Central Drum

:

Tension System

:

BALERIN CONTROLLED TRANSDUCER TENSION FOLLOWING SYSTEM

Loadcell

:

None

None

None

None

Gear Pitch

:

GEARLESS

Plate Thickness

:

1.14mm

1.14mm

1.14mm

1.14mm

Machine Line Speed

:

300m/min – 400m/min

300m/min – 400m/min

300m/min – 400m/min

300m/min – 400m/min

Print Speed

:

300m/min – 400m/min

300m/min – 400m/min

300m/min – 400m/min

300m/min – 400m/min

Plate Recovery System

:

Servo Control

Servo Control

Servo Control

Servo Control

Anilox Standby System

:

Servo Motor

Control System

:

PLC  + 67 Axis Servo

PLC  + 67 Axis Servo

PLC  + 67 Axis Servo

PLC  + 67 Axis Servo

Print Length (Register) 360°

:

Servo Control – Automatic Web Control

Servo Control – Automatic Web Control

Servo Control – Automatic Web Control

Servo Control – Automatic Web Control

Side Register Adjustment

:

Servo Automatic Web

Servo Automatic Web

Servo Automatic Web

Servo Automatic Web

Camera

:

Position Control

Drying

:

2 Centers, Printing – Tunnel 3 Stage PID Controlled
