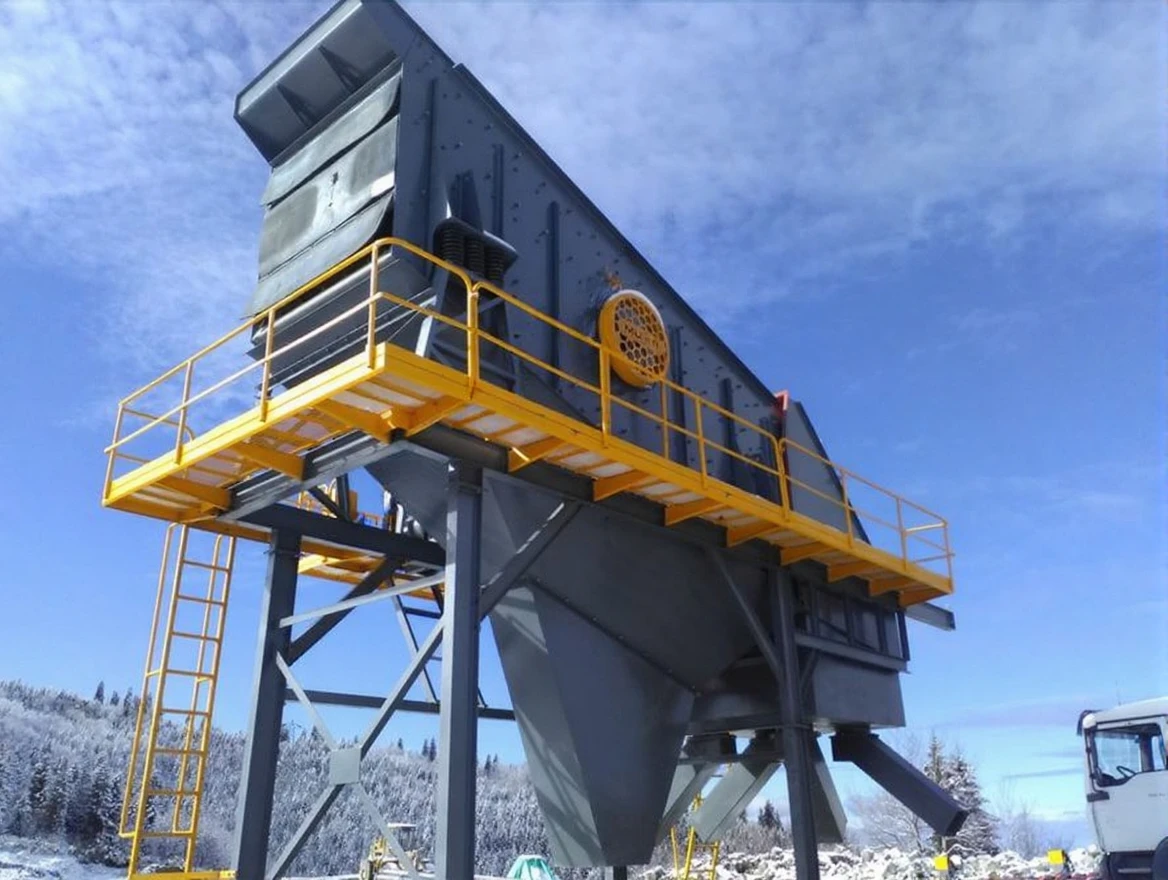

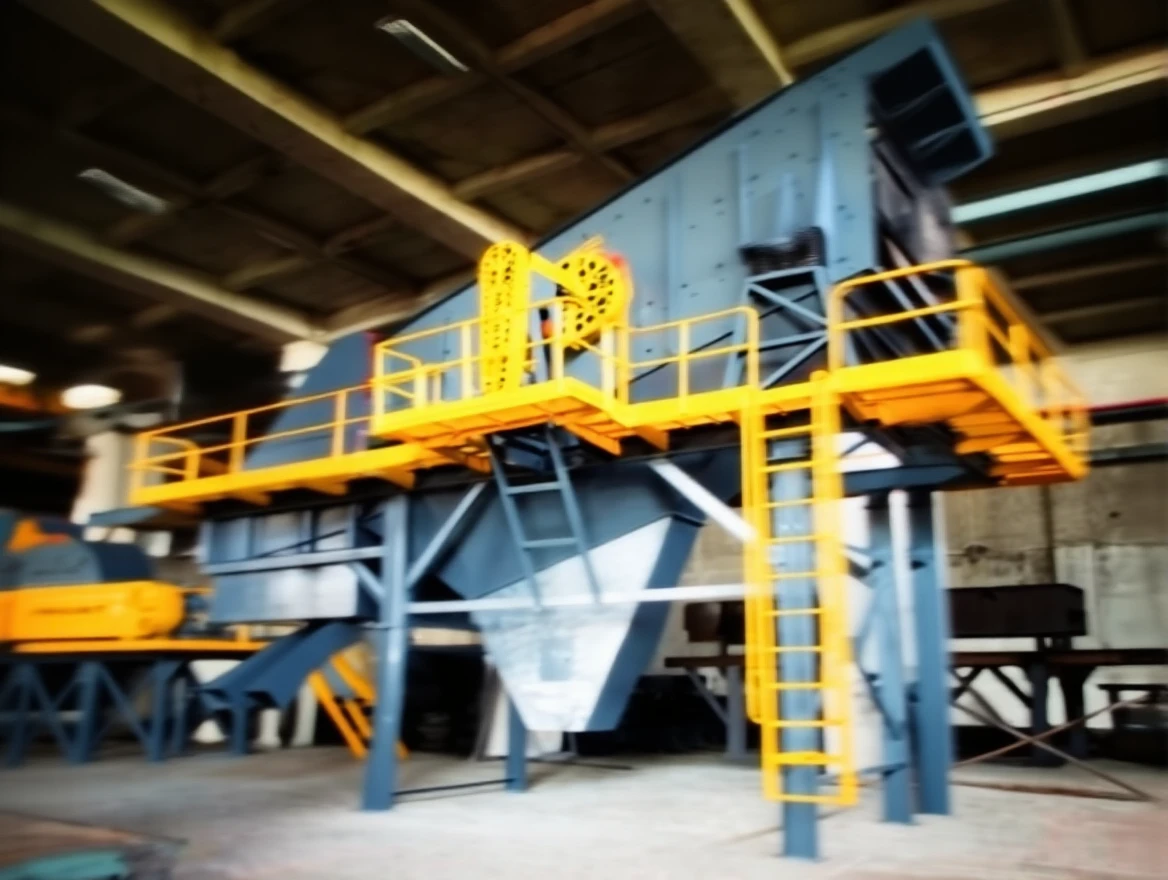

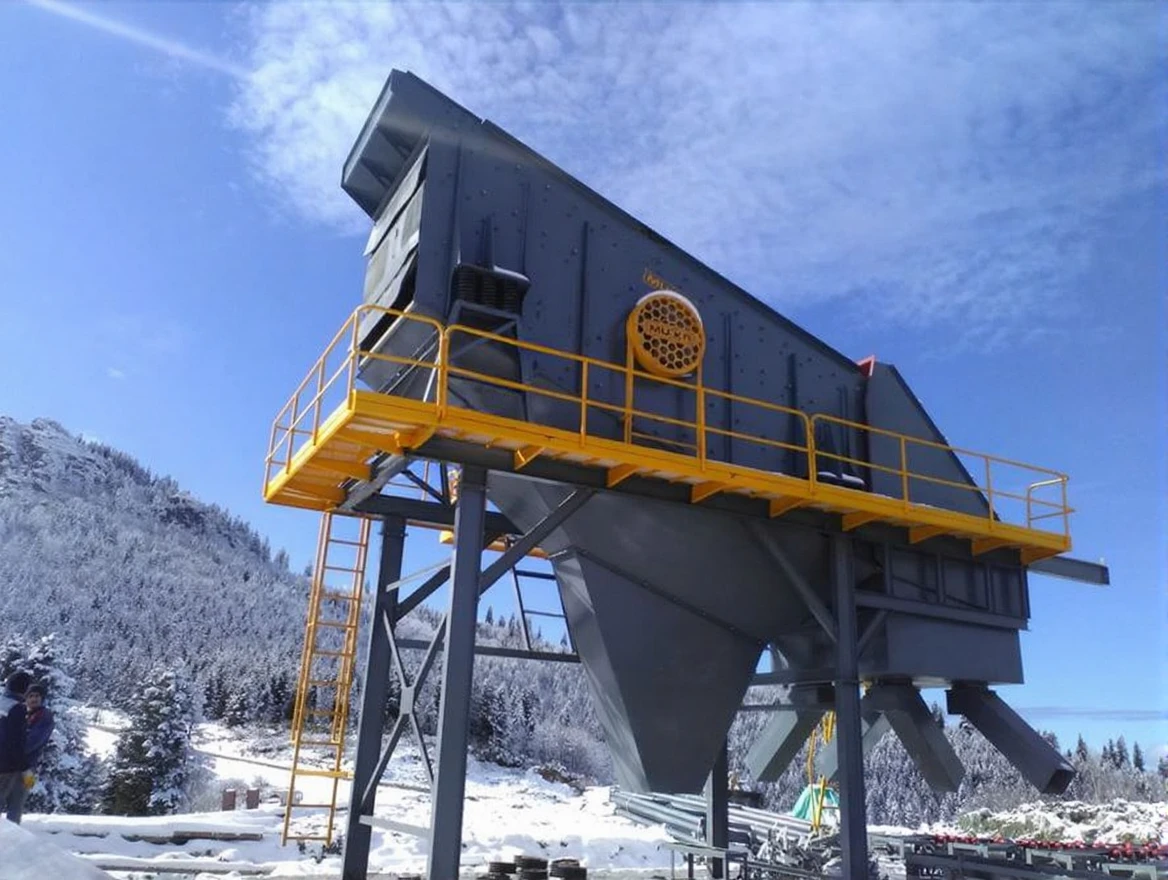

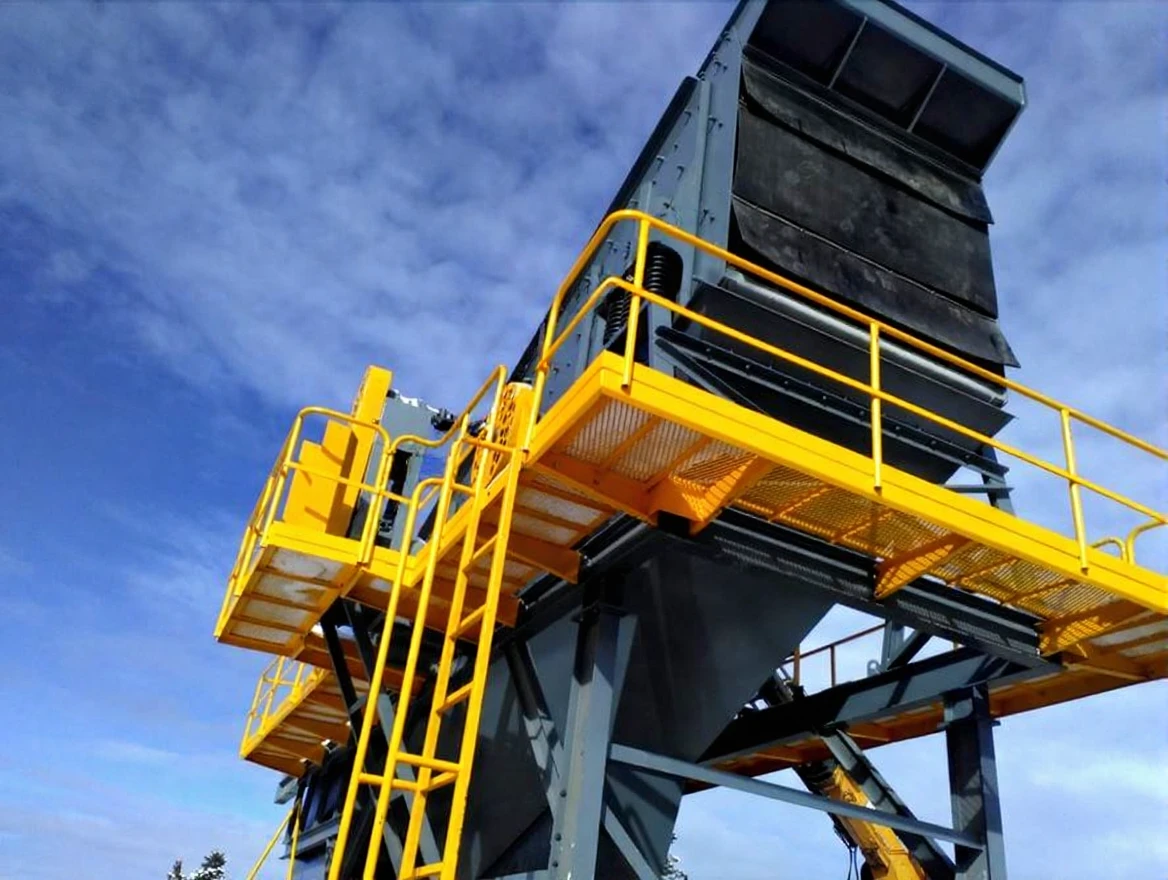

Muka MVS1450 Vibrating Screen
These are specially designed heavy-duty screens that can effectively and efficiently screen high-capacity materials according to their needs.
• Heavy-duty frame structure designed to serve even under the toughest conditions.
• Deep, high-volume, durable, and lined feed chutes designed to provide material to the screen
• Mercury spring consoles for easy maintenance and replacement with modular design
• Heavy-duty single or double-shaft structure with two bearings for screen
• Steel screen wires, rubber polyurethane screening surfaces for different screening options.
|
Model |
Unit |
MVS1240 |
MVS1450 |
MVS1640 |
MVS1850 |
MVS2050 |
MVS2060 |
MVS2260 |
MVS2472 |
|
Internal Width of the Screen |
(mm) |
1200 |
1400 |
1600 |
1800 |
2000 |
2000 |
2200 |
2400 |
|
Internal Length of the Screen |
(mm) |
4000 |
5000 |
4000 |
5000 |
5000 |
6000 |
6000 |
7200 |
|
Number of Decks |
(type) |
1-2-3-4 |
2 – 3 – 4 |
2 – 3 – 4 |
2 – 2 – 4 |
2 – 3 – 4 |
2 – 3 – 4 |
2 – 3 – 4 |
3 – 4 |
|
Motor Power |
(kW) |
2.2-11 |
5.5-15 |
7.5-15 |
11 – 22 |
15 – 22 |
22 |
30 |
2 x 22 |
|
Indicative Capacity |
(tph) |
200 |
275 |
300 |
500 |
600 |
700 |
800 |
950 |
|
Operating Angle |
(°) |
Between 18° and 22° / 18° ile 22° arasında |
|||||||
|
Acceleration |
(G) |
2< G< 5 |
|||||||
