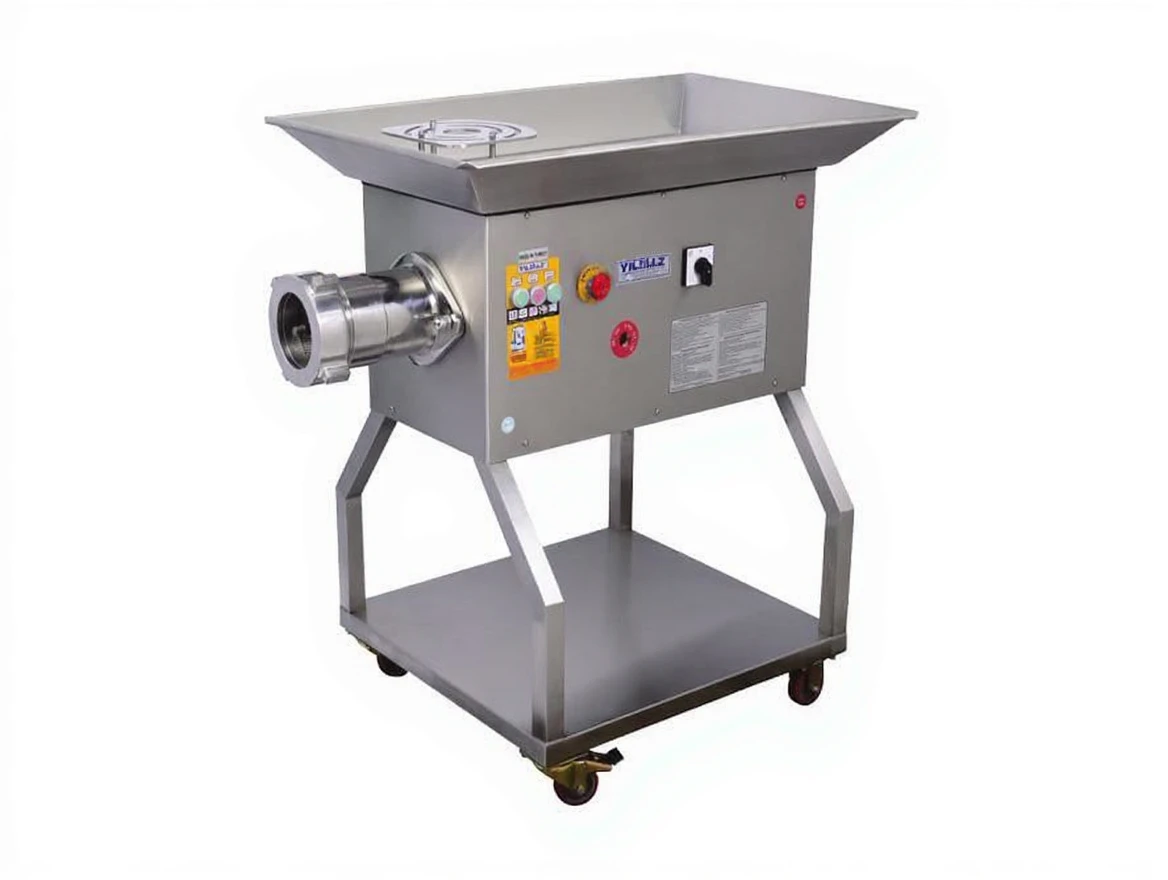

147 Kg 130 Mm Meat Grinder

Product Advantages:

• The machine is designed by our company complying with CE standards for the first time, considering hygiene and human health.

• The machine’s gearbox body is made of aluminum. To prevent the oxide and corrosion of the gearbox front cover, cast iron is used.

• The machine has a 4 kW 5.5 Hp three-phase motor.

• 2 (two) contactors are used as motor protectors in the machine.

• The upper tray of the machine (meat loading hopper) and its body are made of 304 quality stainless steel.

• The casing (meat output hopper) of the machine, auger, ring (nut), and meat inlet throat are made of 304 quality stainless steel casting.

• Two M16 stainless bolts, 2 M16 closed cap stainless nuts are used for easier disassembly and assembly of the meat outlet hopper.

• The meat outlet hopper is designed to be easily disassembled and assembled for cleaning and hygiene purposes.

• There is a stainless steel wrench to disassemble and assemble the ring (nut) and meat outlet hopper.

• There is a carrying handle on the back cover of the machine.

• There is an emergency stop button for forward-reverse-stop and emergency situations on the machine.

• Our machines have hand protection devices for the sake of work and worker health.

• All connections and equipment of the meat and meat processing units in the machine are made of 304 quality stainless steel casting.

• There are 2 movable and 2 fixed wheels in the machine.

• The wheeled subframe of our machine is made of 304 quality profile steel.

• 3 mirrors, 2 knives, and 1 front bushing are used in the machine.

• The machine has an oil and flame-resistant electrical connection cable.

• A nerve separator apparatus can be attached to our machine if desired.

  CODE	INOX E130-321 TR
  CAPACITY	1000 Kg / H
  MOTOR POWER	4 kW. 5.5 Hp. 400 Volt 50 Hz.
  MIRROR / KNIFE / BUSHING	3 / 2 / 1
  WIDTH/LENGTH/HEIGHT	690 x 1120 x 1115 mm
  WEIGHT	147 kg
