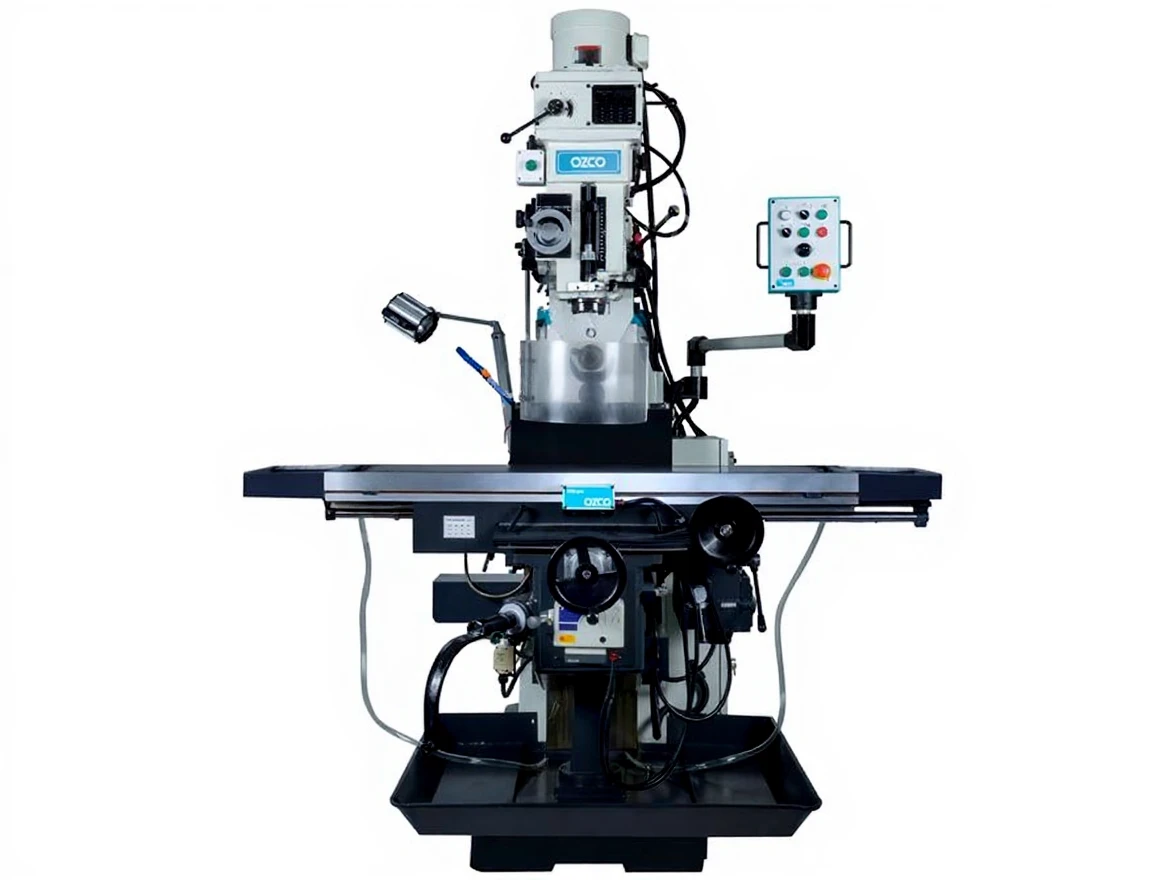

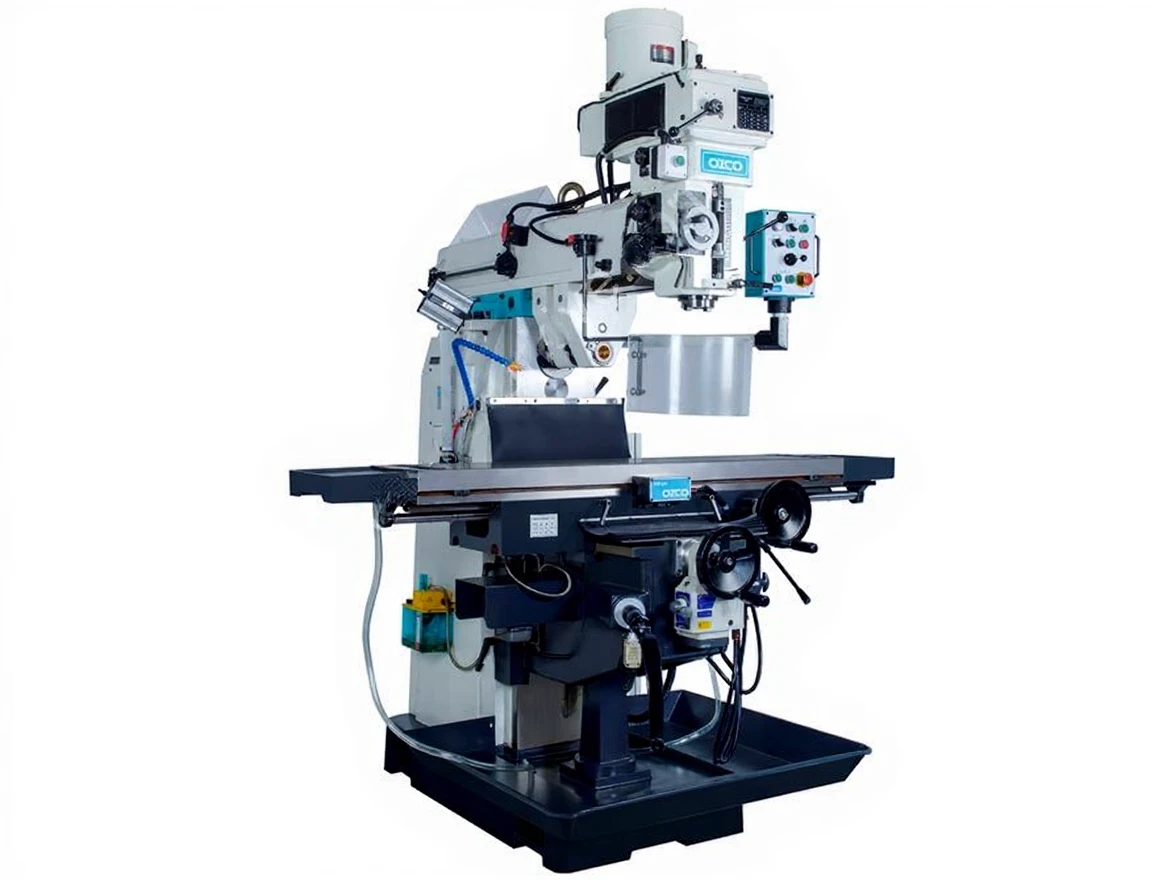

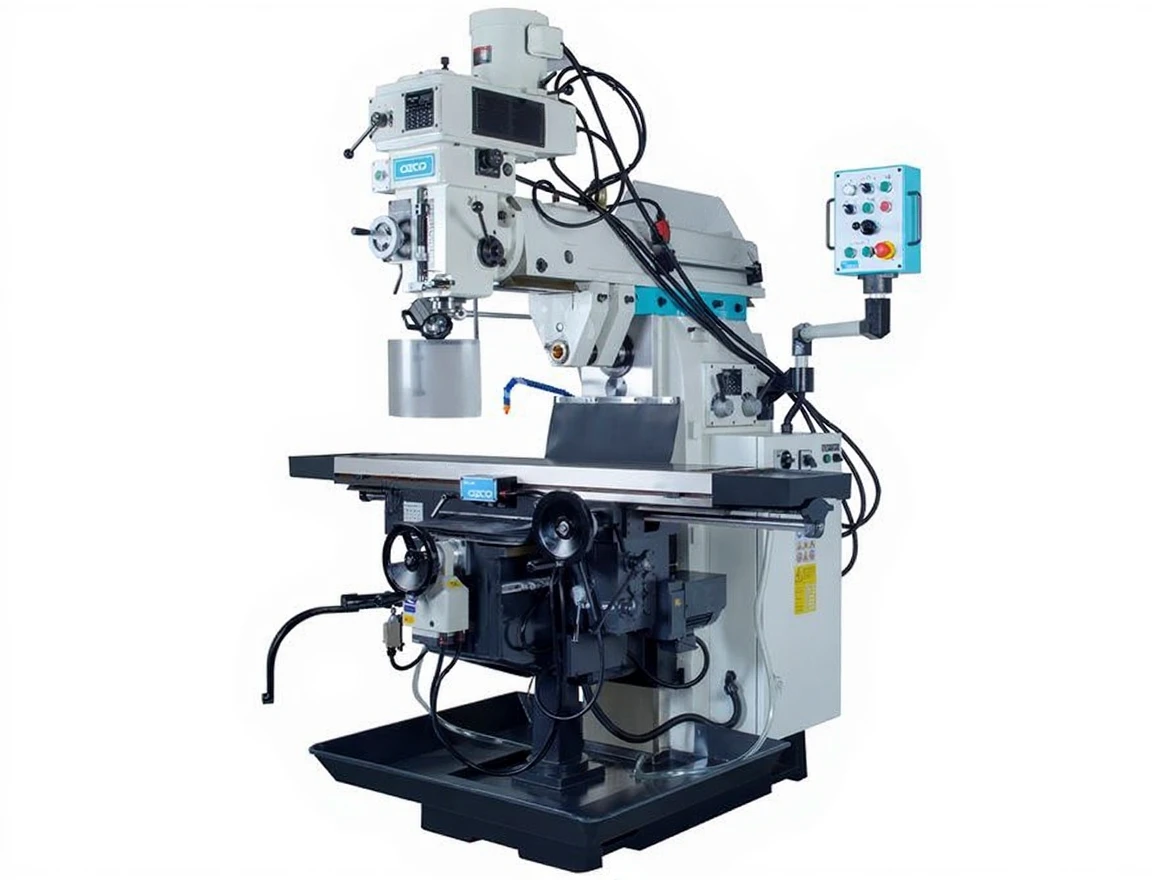

1470×300 mm Pro Universal Mold Maker Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
FR5 PRO |
Description
OZCO FR5 Pro Universal Mold Maker Milling Machine
OZCO FR5 Pro Universal Mold Maker Milling Capacity
X axis movement 1130 mm, Y axis movement 400 mm, Z axis movement 450 mm, Quill diameter is 110 mm.
OZCO FR5 Pro Universal Mold Maker Milling Shipment Scope
Mold clamping set, Vise, 15 pieces ISO 40 collet set, Tooling
OZCO FR5 Pro Universal Mold Maker Milling General Features

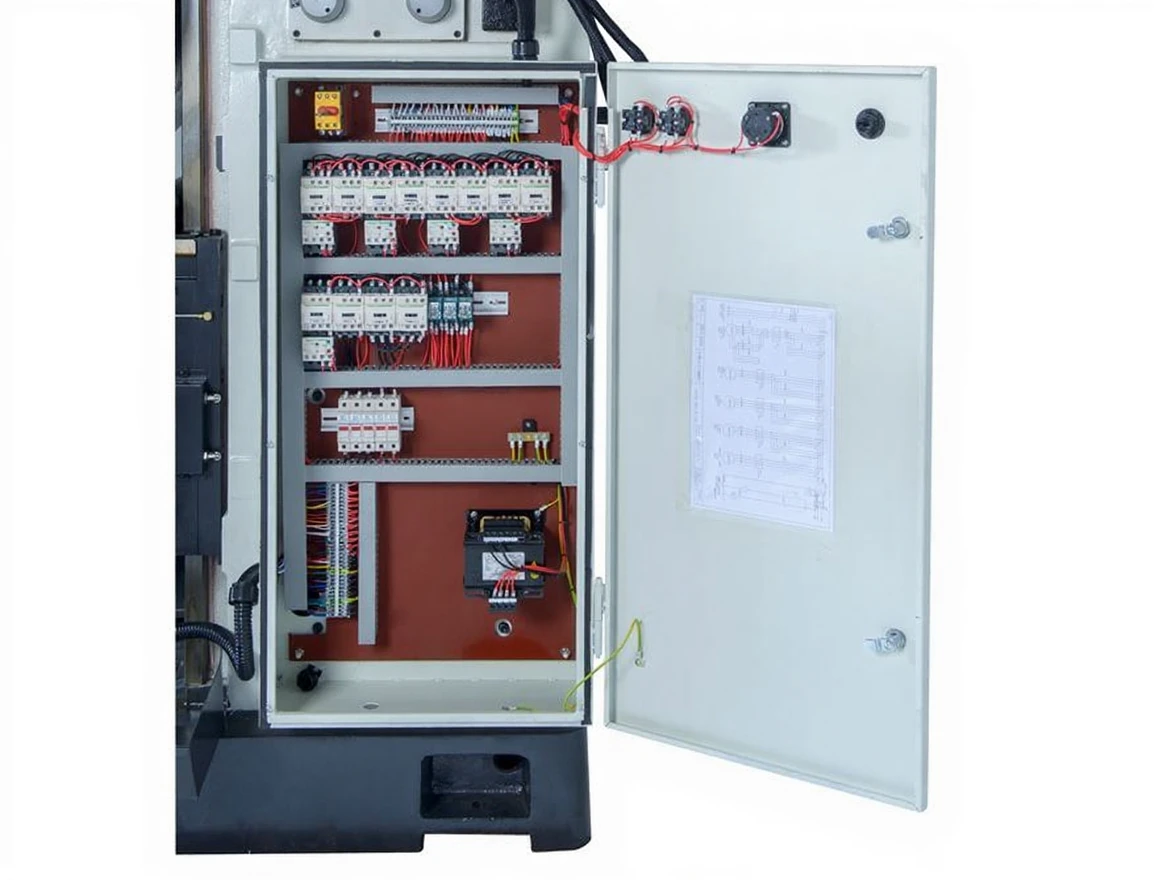

X axis ball screw-geared, automatic, Y axis electric motor-automatic, Z axis rapid motor-automatic, Height adjustable safety switch guard, Schneider electric system, Turcite-B coated slides, Lighting, Cooling system, Chip tray, Compliant with CE standards.
Technical Specifications FR5 Pro Universal Mold Maker Milling
Motor Power Vertical:5 Hp (3.75 kW), Horizontal: 5 Hp (3.75 kW) 400 V w
Cooling Pump Power 1/8 Hp (100) w
Table Dimensions 1470×300 mm
Table Load Capacity (max.) 300 kg.
X Axis Movement 1130 mm
Y Axis Movement 400 mm
Z Axis Movement 450 mm
T Slot Dimensions 3×16 mm
Spindle Connection Vertical: ISO40, Horizontal: 40
Spindle Speed Vertical:75-3600, Horizontal:65-1500 rpm
Steps Vertical:16, Horizontal:9
Quill Diameter 110 mm
Quill Movement 140 mm
Head Rotation Angle 390°
Spindle-Table Distance 95-545 mm
Spindle-Column Distance 190-690 mm
Table Feed X:3/4 Hp, Y,Z: 1/2 Hp
RAM Movement 500 mm
Machine Dimensions (UxGxY) 1750x1620x2350 rpm
Net Weight 2350 kg
