15 Kwa Full Revision Frequency Machine

15 Kwa Full Revision Frequency Machine

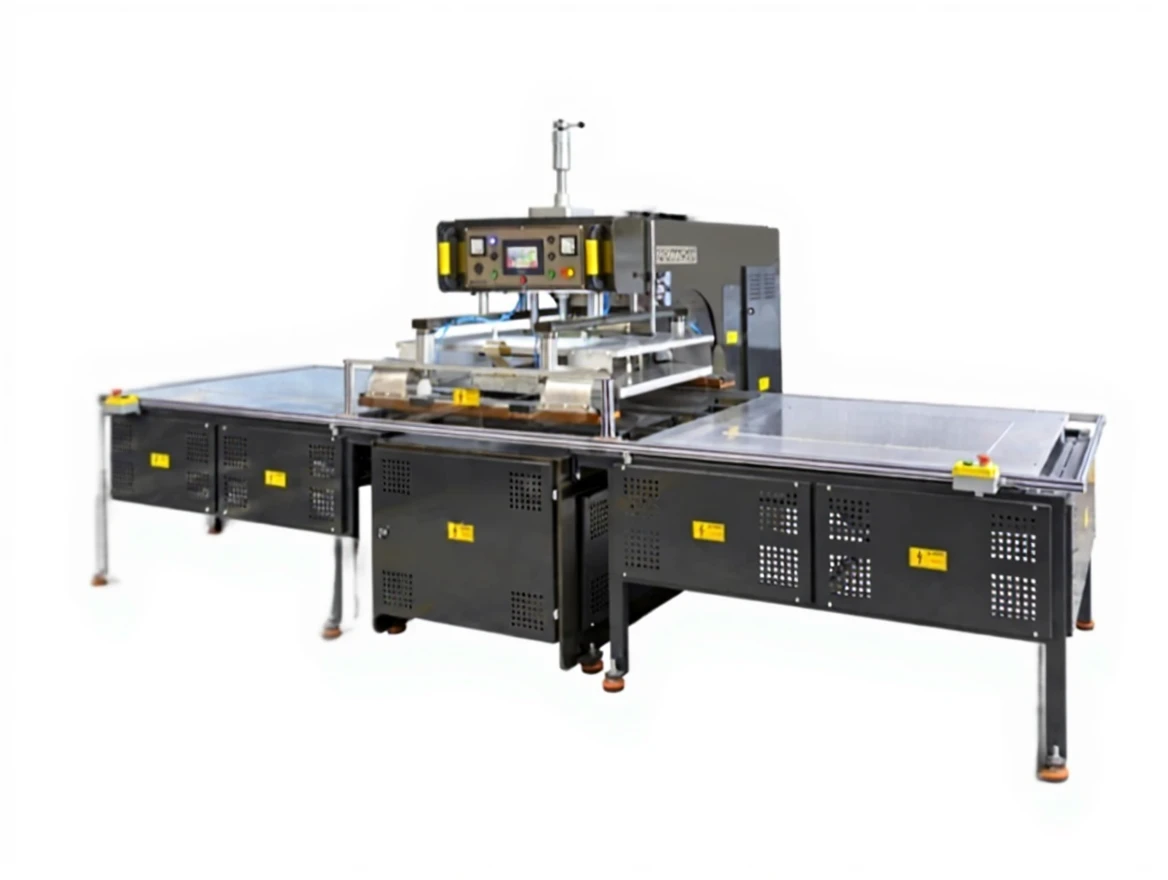

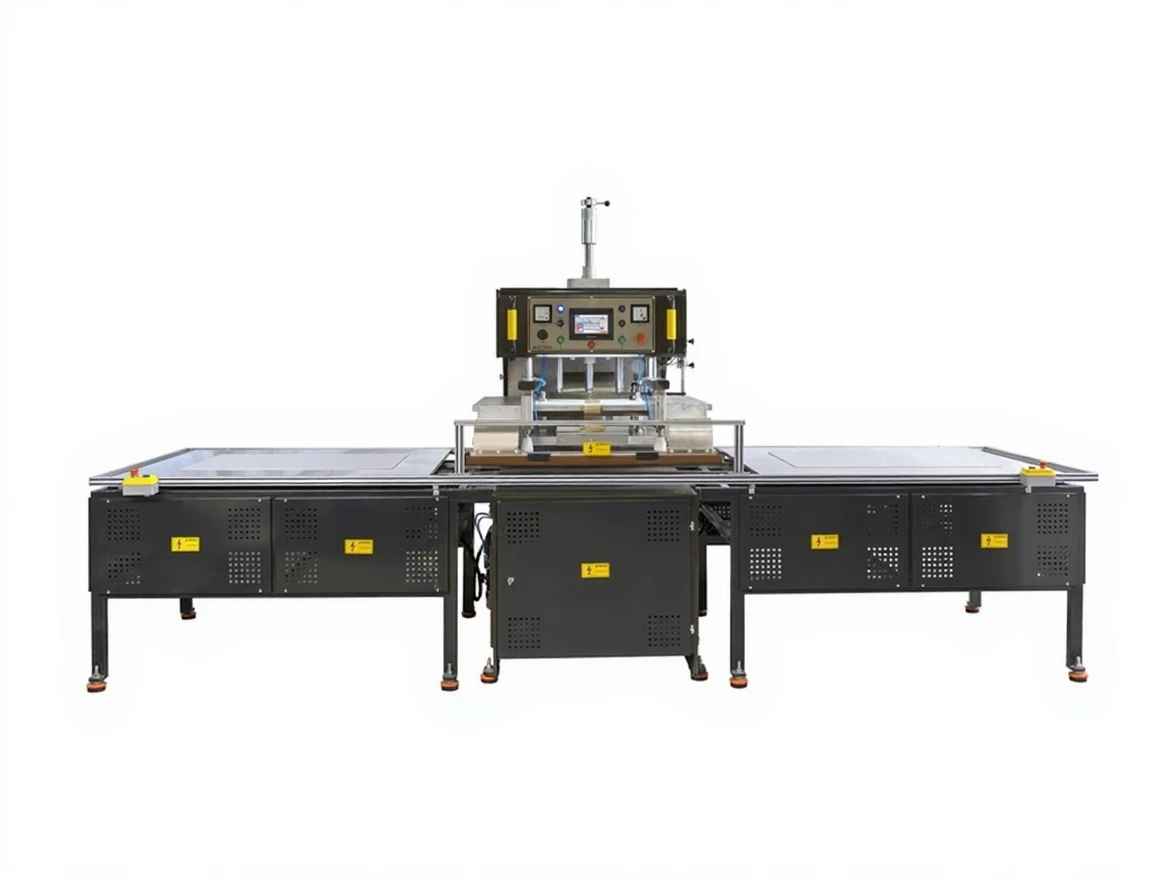

The TR 250 OH machine has a power of 25 kVA. The automatically moving machine provides convenience and comfort in double carrier positioning. These machines are suitable for high speeds, their speeds are adjustable, and mass production can be done when needed. The machines have hydraulic or pneumatic working options and are produced in six different models. Additionally, they are suitable for use in various sectors such as footwear, packaging, stationery, medical products, textiles, automotive, and toy industries.

Fermaksan TR 250 S Technical Specifications

• Bottom Plate: 900 x 1200 mm

• Top Plate: 650 x 750 mm

• Working Principle: Hydraulic or Pneumatic

• Output Power of Generator: 15, 20, 25, 30 kVA

• Operating Voltage: 3 x 400 V 50 – 60 Hz

• Voltage Fixing Range: 195 x 235 V

• Input Power:

  • Hydraulic: 38 kVA

  • Pneumatic: 35 kVA

• Oscillator Type: Lamp

• Oscillator Cooling: With air cooling

• Correction: Silicon diode

• Frequency: 27.12 MHz + 1%

• Weight:

  • TR 250: 1100 kg

  • TR 250 MH: 1250 kg

  • TR 250 OH: 1400 kg

• Machine Dimensions:

  • TR 250: 1200x1900x2400 mm

  • TR 250 MH: 3250x1900x2400 mm

  • TR 250 OH: 3450x1900x2400 mm
