15 m3 Fertilizer Spreader Machine

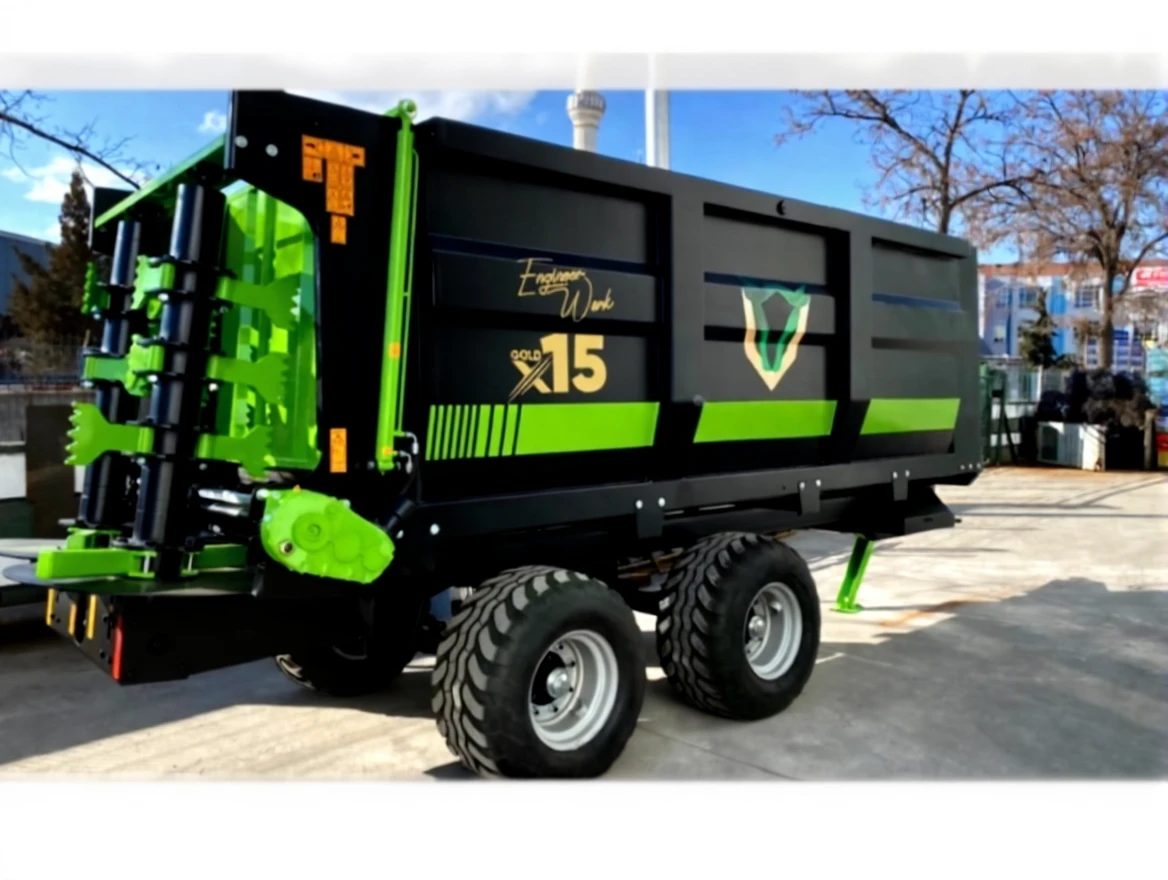

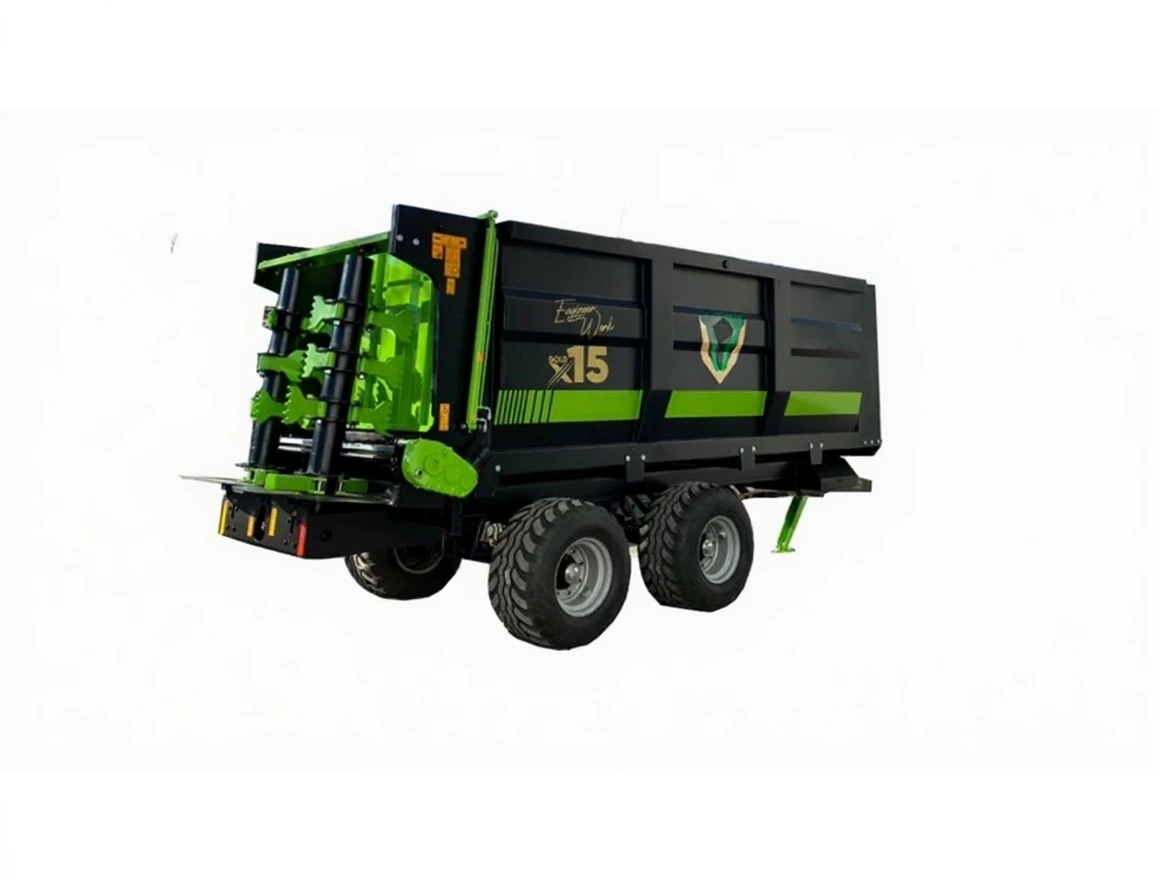

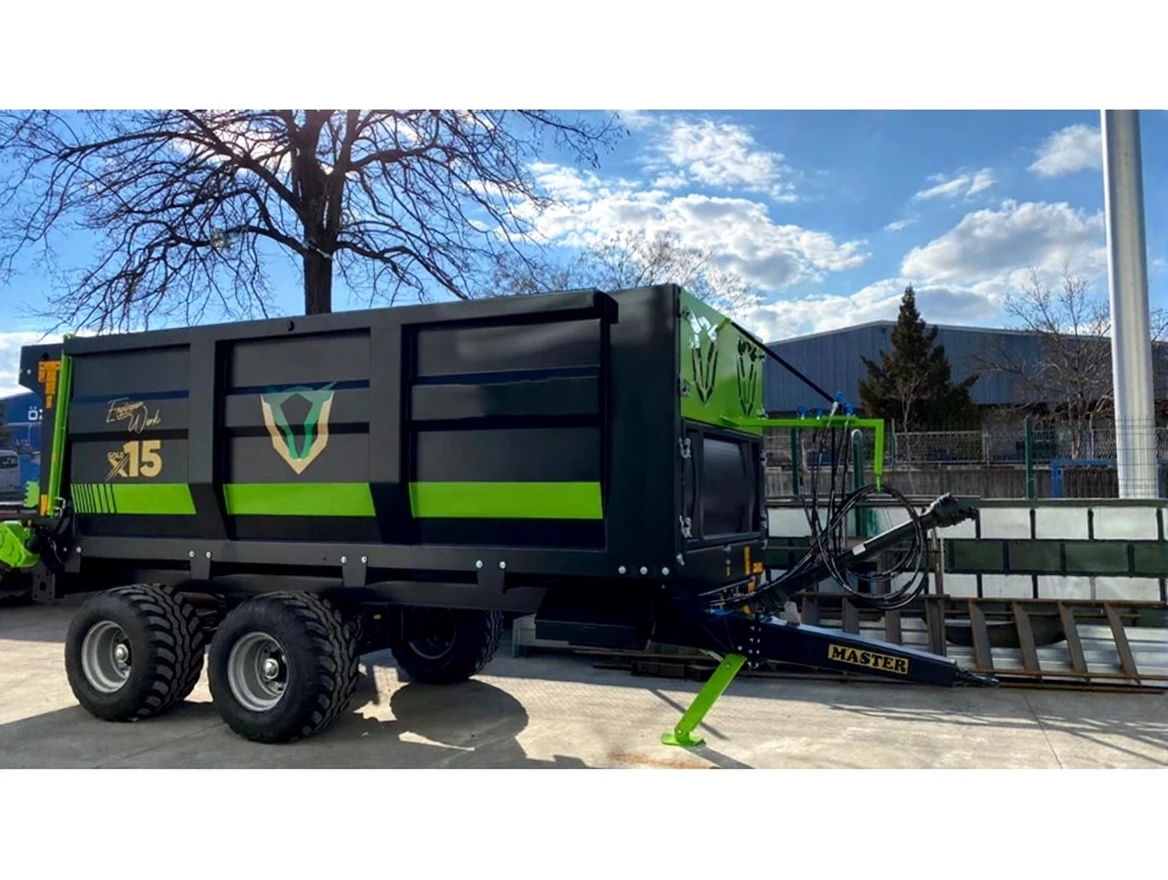

The Agromeks KGD-15 15m³ Fertilizer Spreader Machine is an agricultural machine with superior features that makes fertilization processes in agriculture more efficient, economical, and environmentally friendly. Designed to increase productivity on farms and reduce labor, this machine ensures the homogeneous distribution of solid animal manures across fields. This improves soil health, increases crop yield, and reduces labor costs.
The machine can be easily used even with tractors that have low horsepower. The main reason for this is that it operates with low fuel consumption thanks to a special mechanism designed with a single and double axle tandem scissors system, allowing it to work without overloading the tractor. This feature offers a very economical solution for small and medium-sized farms.
With a fertilizer distribution width ranging from 5 to 15 meters, it provides fast and effective fertilization in large agricultural areas. Thus, equal amounts of fertilizer are distributed to every area of the fields, which increases soil productivity. The 12 mm heat-treated chain and disc shaft safety system prevents foreign objects like stones from damaging the machine, thereby extending its lifespan and ensuring safe operation. This system ensures that operators can work safely.
The capacity of the Agromeks KGD-15 is 15 m³, with a carrying capacity of 17 tons of fertilizer. This allows for efficient fertilizer distribution even in large areas. The machine operates at 540 rpm PTO (power take-off) and the hydraulic conveyor system makes the fertilizer carrying process quite fast and easy. Additionally, there are 2 spiral numbers, which ensures more efficient fertilizer distribution.
Each conveyor transmission and spiral transmission system has 2 transmissions, providing high durability and long life for every part of the machine. The tire size is [ PHONE HIDDEN ], allowing it to operate smoothly even in challenging terrain conditions. These tires are durable against various difficulties in the field and increase the machine's mobility.
Operating with a minimum of 75 hp tractor power, the Agromeks KGD-15 is offered with a 2-year service warranty. This warranty guarantees customers the long-term use of the product and provides quick solutions for potential technical issues. Additionally, this warranty offered for all Agromeks fertilizer spreaders provides extra assurance to customers.
Agromeks KGD-15 Technical Specifications
|
Model |
Model |
جذومنلا |
KGD-5 |
KGD-10 |
KGD-15 |
KGD-20 |
|
Length |
Length |
لوطلا |
606 cm |
725 cm |
750cm |
820cm |
|
Width |
Width |
ضرعلا |
210 cm |
210 cm |
220cm |
230cm |
|
Height |
Height |
عافترلإا |
230cm |
240 cm |
260cm |
275cm |
|
Weight |
Weight |
نزولا |
2940 kg |
3900 kg |
4500kg |
5100kg |
|
Conveyor |
Conveyor |
لقانلا |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
|
Capacity (m3) |
Capacity (m3) |
ةعسلا |
6 m3 |
10 m3 |
15 m3 |
20 m3 |
|
Capacity (ton) |
Capacity (ton) |
ةعسلا |
6 ton |
12 ton |
17ton |
22ton |
|
Spiral movement |
Spiral movement |
ينوزلحلا ةكرح |
PTO |
PTO |
PTO |
PTO |
|
Spiral transmission number |
Spiral transmission number |
ينوزلحلا لقن ددع |
2 |
2 |
2 |
2 |
|
Conveyor transmission number |
Conveyor transmission number |
لقانلا ددع |
1 |
1 |
1 |
1 |
|
Security system |
Security system |
نملأا ناظن |
Slip shaft |
Slip shaft |
Slip shaft |
Slip shaft |
|
Beaters number |
Beaters number |
براضملا ددع |
2 |
2 |
2 |
2 |
|
Conveyor type |
Conveyor type |
لقانلا عون |
12 mm Heat treated chain |
12 mm Heat treated chain |
12 mm Heat treated chain |
12 mm Heat treated chain |
|
12mm Heat treated chain |
12mm Heat treated chain |
12mm Heat treated chain |
12mm Heat treated chain |
|||
|
Axle type |
Axle type |
روحملا عون |
Single axle |
Double axle / Tandem scissors |
Double axle / Tandem scissors |
Double axle / Tandem scissors |
|
Single axle |
Double axle / Tandem scissors |
Double axle / Tandem scissors |
Double axle / Tandem scissors |
|||
|
Tire size |
Tire size |
تاراطلإا مجح |
400/60-15,5 |
400/60-15,5 |
400/60-15,5 |
|
|
Minimum required power |
Minimum required power |
ةبولطملا ةوقلل ىندلأا دحلا |
55 HP |
75 HP |
90hp |
100hp |
|
Tail shaft rotation |
Tail shaft rotation |
تفشلا نارود |
540 |
540 |
540 |
540 |
|
Manure spreading width |
Manure spreading width |
ةدمسلأا شر ضرع |
5-15 m |
5-15 m |
5-15m |
5-15m |
|
Warranty period |
Warranty period |
فترة الضمان |
2 Years |
2 Years |
2 years |
2 years |
