15 Ton C Type Excentric Press

Brand

Model Type

EEPY 15

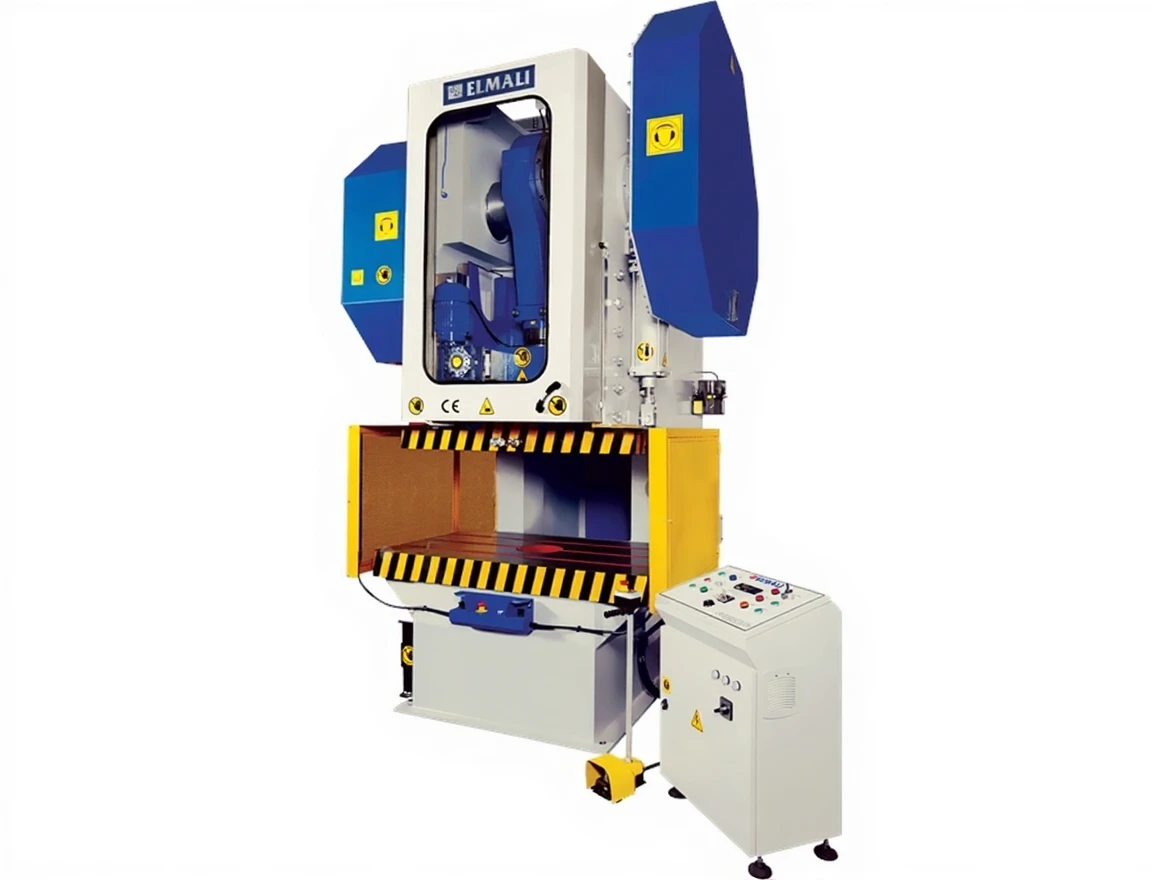

Elmalı EEPY 15 C Type Excentric Press

Elmalı EEPY 15 Features:

– PLC application and screen
– Steel construction body
– Parts such as crank, connecting rod, and toggle are made of steel casting
– Pneumatic clutch and brake combination
– 4-surface supported crank
– Crank adjustment with ratchet
– Mechanical fuse
– T-slot main table
– T-slot auxiliary table
– Single stroke, continuous stroke features
– Pedal and two-hand control
– Central lubrication
– Electric counter
– Servo drive
– Speed control unit
– Automatic central lubrication
– Photoelectric light curtain
– Compliance with CE directives
– 8-surface supported crank
– Crank cushioning cylinders
– Hydraulic fuse
– Non-standard table and stroke
– Anti-vibration pad

Elmalı EEPY 15 Technical Specifications :

	ton	a mm	b mm	C mm	d mm	e mm	f mm	g mm	h mm	1 mm	1 mm	1 mm	m.n mm	o mm	D.I mm	S mm	mm	ad/dk spm	kW	rpm	kg
EEPY 15	15	140	250	270	240	50	720	1100	1630	270	580	0110	280 480	030	225 150	660	10 50	150	2.2	1000	800
EEPY 25	25	175	300	310	290	50	870	1380	1870	490	670	0145	375 570	035	260 170	710	10 60	120	3	1000	1300
EEPY 40	40	220	340	340	330	60	1050	1280	2100	575	740	0150	440 630	040	290 180	720	10 70	55	4	1450	2100
EEPY 60	60	260	360	395	380	70	1340	1450	2200	630	875	0150	520 720	040	340 220	730	10 95	55	4	1450	2750
EEPY 80	80	280	400	420	400	85	1400	1735	2220	670	1040	0190	540 740	040	370 230	755	10 100	50	7.5	1450	4000
EEPY 100	100	300	450	465	420	85	1400	1900	2450	710	1135	0200	600 780	050	405 240	775	10 110	50	11	1450	4650
EEPY 125	125	310	500	510	450	100	1500	2200	2700	790	1250	0210	630 820	055	500 250	785	10 125	50	11	1450	6000
EEPY 150	150	320	500	540	500	120	1600	2280	2750	840	1300	0220	660 920	055	600 290	805	10 125	50	15	1450	7100
EEPY 200	200	340	500	600	510	130	1900	2400	3000	920	1420	0240	680 1000	060	620 350	805	20 140	5018.5	1450	9200
EEPY 250	250	350	520	630	520	150	2000	2500	3100	930	1430	0250	700 1100	060	670 380	810	20 160	40	22	1480	12000
EEPY 300	300	370	530	650	470	150	2000	2700	3200	940	1440	0260	700 1200	060	780 400	810	20 200	32	30	1450	13200

Brand	Elmalı
Model Type	EEPY 15

Category: Metal Press Tables

Description

	ton	a mm	b mm	C mm	d mm	e mm	f mm	g mm	h mm	1 mm	1 mm	1 mm	m.n mm	o mm	D.I mm	S mm	mm	ad/dk spm	kW	rpm	kg
EEPY 15	15	140	250	270	240	50	720	1100	1630	270	580	0110	280 480	030	225 150	660	10 50	150	2.2	1000	800
EEPY 25	25	175	300	310	290	50	870	1380	1870	490	670	0145	375 570	035	260 170	710	10 60	120	3	1000	1300
EEPY 40	40	220	340	340	330	60	1050	1280	2100	575	740	0150	440 630	040	290 180	720	10 70	55	4	1450	2100
EEPY 60	60	260	360	395	380	70	1340	1450	2200	630	875	0150	520 720	040	340 220	730	10 95	55	4	1450	2750
EEPY 80	80	280	400	420	400	85	1400	1735	2220	670	1040	0190	540 740	040	370 230	755	10 100	50	7.5	1450	4000
EEPY 100	100	300	450	465	420	85	1400	1900	2450	710	1135	0200	600 780	050	405 240	775	10 110	50	11	1450	4650
EEPY 125	125	310	500	510	450	100	1500	2200	2700	790	1250	0210	630 820	055	500 250	785	10 125	50	11	1450	6000
EEPY 150	150	320	500	540	500	120	1600	2280	2750	840	1300	0220	660 920	055	600 290	805	10 125	50	15	1450	7100
EEPY 200	200	340	500	600	510	130	1900	2400	3000	920	1420	0240	680 1000	060	620 350	805	20 140	5018.5	1450	9200
EEPY 250	250	350	520	630	520	150	2000	2500	3100	930	1430	0250	700 1100	060	670 380	810	20 160	40	22	1480	12000
EEPY 300	300	370	530	650	470	150	2000	2700	3200	940	1440	0260	700 1200	060	780 400	810	20 200	32	30	1450	13200
