150-240 Ton / Hour Mobile Crushing Plant

General Makina General 950

150-240 Ton / Hour Mobile Crushing Plant

IMMEDIATE DELIVERY MOBILE CRUSHER FACILITIES FROM GENERAL MAKİNA

We have been bringing life to buildings as a result of your trust since 1979

Available from stock, take a look at our Breakers. General Makina has been producing domestically and internationally for 46 years, with ISO 9001 and CE quality certificates.

A FIRST IN TURKEY!!!

The New System is crushing and screening and has a capacity of 150-240 tons/hour.  Ideal for crushing Granite and Basalt.

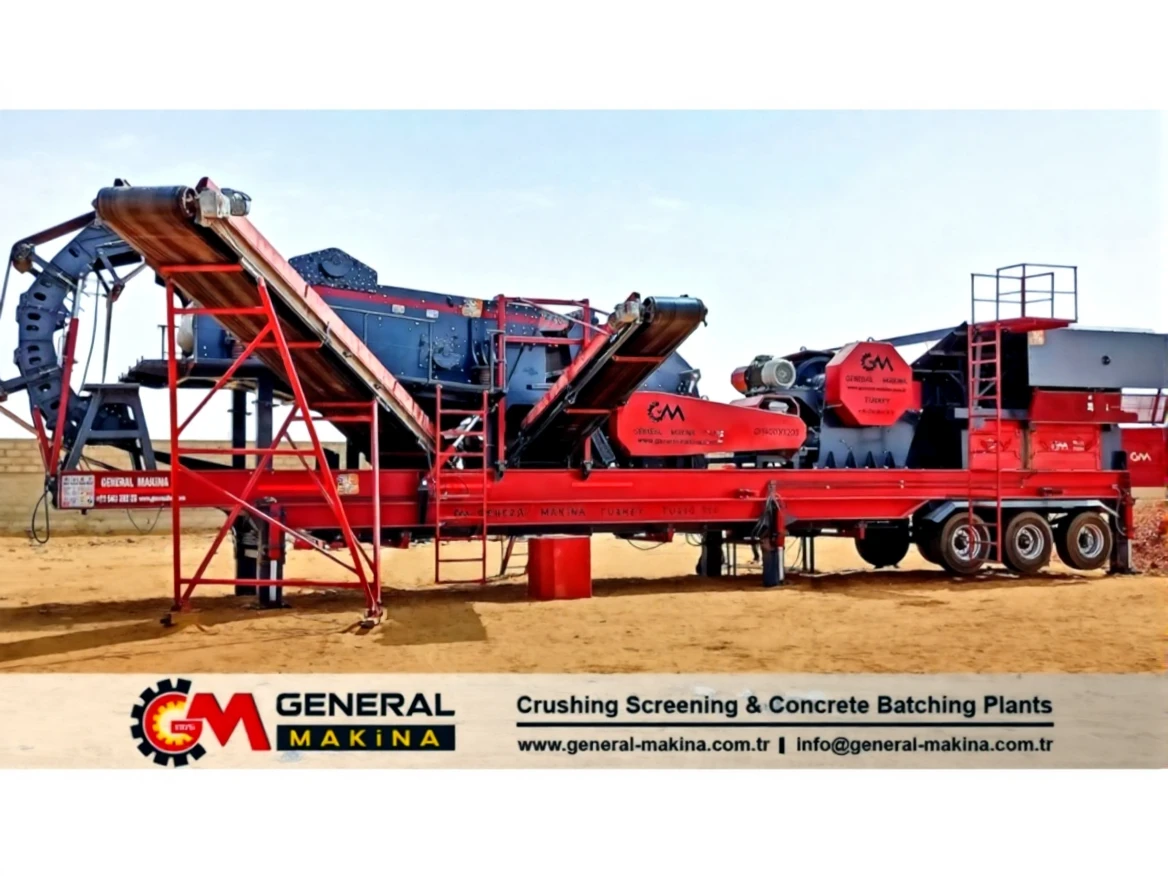

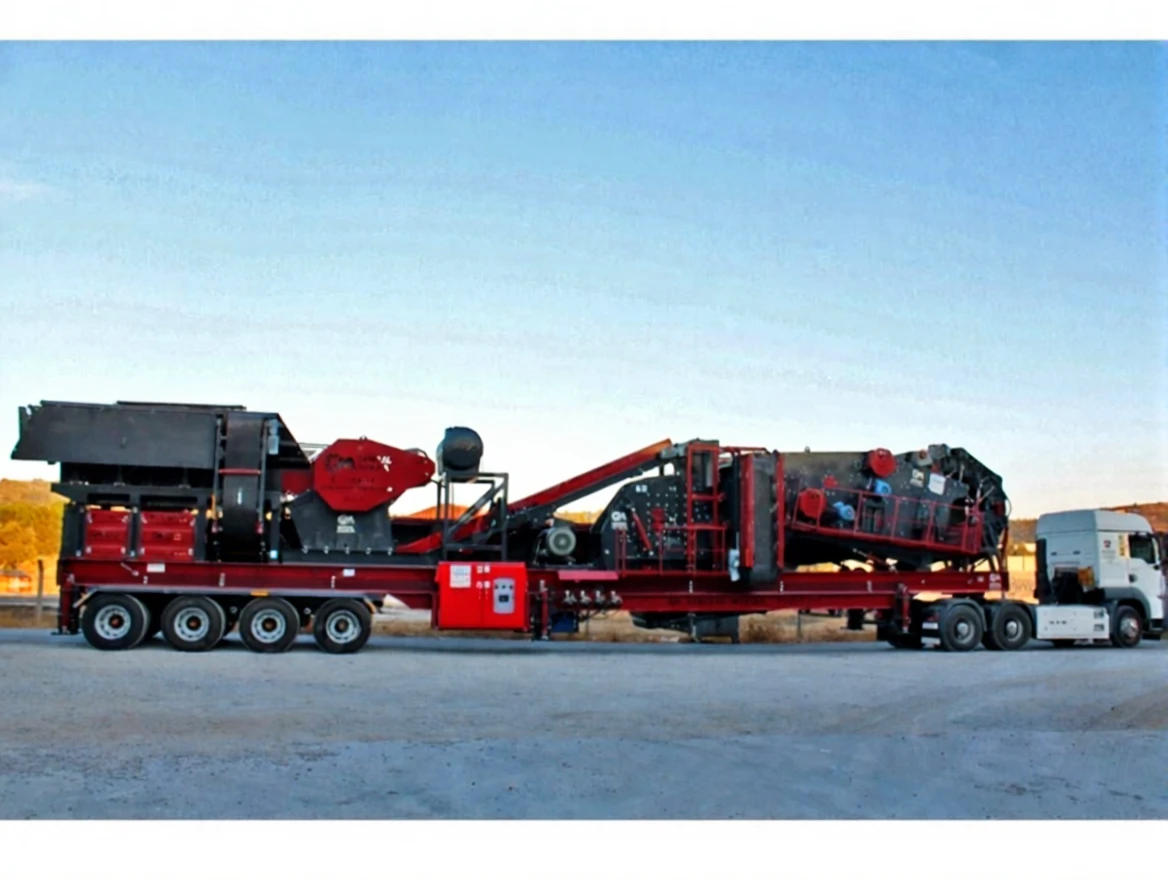

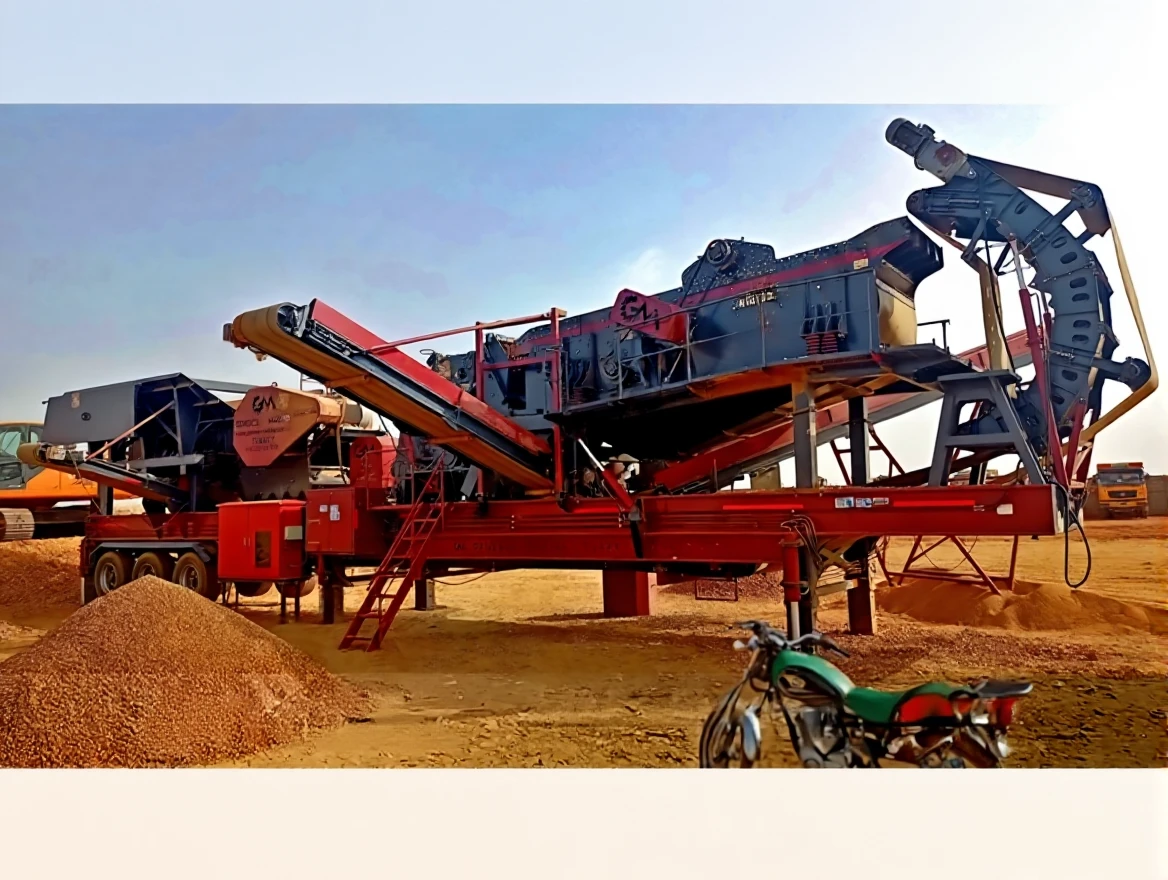

GENERAL 950 Closed Circuit Crushing System The entire system is collected on a single platform and can be transported with 1 truck.
It is designed to be put into operation within 30 minutes.
It is the most suitable mobile crusher plant for crushing materials such as hard and hard-to-break stones (Basalt, Granite) and minerals (Iron Ore, Chrome Ore, Quartz).
It is the most ideal crusher unit for crushing abrasive materials.

Vibrating Feeder and Hopper
The feeder system is driven by 2 vibromotors. In this way, trouble-free operation and minimum maintenance are provided.
The feeder hopper is suitable for feeding with Excavators and Loaders, and in permanent operations, feeding can be done with trucks with additional hoppers.
All wear points in the Feeder and Hopper are protected by replaceable wear armor.
There is a screening system in the Feeder Table. Thanks to the by-pass conveyor, this sifted soiled material can be poured into the stock area.

Jaw Crusher (Crusher)
Size: 900×650 mm Primary type
Engine power: 75 Kw
It has an adjustment mechanism and the jaw crusher can be adjusted easily.
* Main Conveyor Belt System 800 mm
Crawler type conveyor has tires.
* Double Transfer Horizontal Screen with High Sieving Capacity
Size: 1600x5000mm
Engine Power 15 KW
Number of Floors: 3 Floors

Secondary Impact Crusher (Hard Material Crusher)
1200×1400 mm Special type Secondary Impact Crusher system
Engine: 160 Kw
* Under Sieve Stock Conveyor 1000 mm Scorpion Model
* Stock Conveyor 2 pieces 600 mm Folding type
* Mobile Chassis System 3-Axle Special Construction Chassis
* Hydraulic System
There are 6 hydraulic leg mechanisms in the system. After these legs are locked, they are strengthened with 6 fixed legs.
* Panel Material is Siemens Brand.
* The Panel System has Siemens Soft Starter system and special control system.

High Technology:
All functions can be controlled with the Remote Control (Radio Control System). The special touch screen remote control system provides easy installation.
Generator System is Optional, 6 Cylinder diesel engine of Cummins,Perkins,Doosan,Deutz brands and Marelli Alternator.
Capacity: It varies according to the crushed material and feeding, final product dimensions and has a capacity of 160 – 240 tons.
Dust Removal System prevents dust by spraying high pressure water into the nozzle to suppress dust on conveyors.
Drive Drums are Rubber Coated and Gear Type.
The reducers are special reducers with 3 transmissions.
Conveyor Belt Tires are Derby or Eksaş Brand.
Bearings: SKF or FAG Bearings
The flat product used is Ereğli Iron and Steel Product and is A1 Quality.
* By-pass system
* Magnetic magnet (optional)
* Generator System (optional)
* Additional Hopper for feeding by truck
* Dedusting System
* Frequency Control System is used instead of Soft starter.

This System allows the operating speed of the Crusher to be adjusted. Moreover, when working with a generator, this device enables non-disruption operation, low generator selection and low fuel consumption. Approximate fuel consumption is 30 – 35 Lt/Hour (Optional) ** All our products are European Union CE certified.

Transportation Dimensions:
Width 4300 mm x Length 18.800 mm x Height 4330 mm

Weight :
70,000 kg
