150/50 Ton Column Type Hydraulic Press

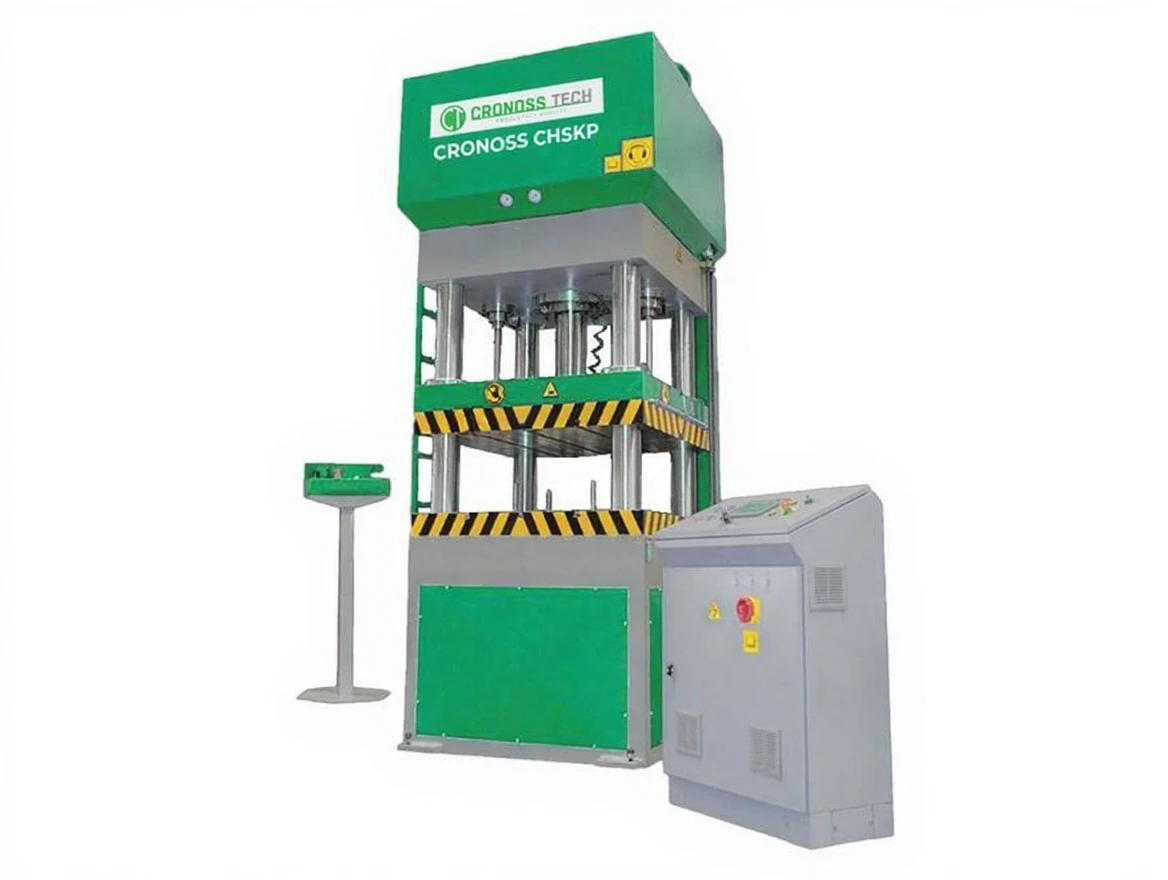

CHKSP 150/50 – 4 COLUMN HYDRAULIC PRESS MACHINE

STANDARD FEATURES

• 4-column hydraulic press body structure

• Body material St52 – ERDEMİR

• Ø90 mm column shafts (4 pieces), induction hardened and chrome plated

• Bronze Zr14 sliding bearing

• Piston capacity: 150 tons

• Die capacity: 50 tons

• Vibration stress relief

• WPQR & WPS approved EN ISO 15614-1:2017 welding application
  (Welding applications are inspected by welding coordination engineers certified according to EN ISO 14731)

• Max. working pressure: 250 bar

• Rexroth or Parker hydraulic system

• Main pump: 36 cm³ (Rexroth or Parker)

• Total motor power: 18.5 kW – IE3

• Automatic lubrication system (adjustable from the screen)

• Piston stroke adjustment (adjustable from the screen)

• Die stroke adjustment (adjustable from the screen)

• Piston tonnage (pressure) adjustment (adjustable from the screen)

• Die tonnage (pressure) adjustment (adjustable from the screen)

• System error information can be monitored from the screen

• Press status information can be monitored from the screen

• Mold memory

• Hydraulic unit oil temperature information can be monitored from the screen

• Linear distance measuring device (Novatechnik or Turck)

• PLC: DELTA

• Touch panel: DELTA – 7”

• Siemens – Schneider switchgear materials

OPTIONAL FEATURES

• CE application

• Safety PLC (Siemens Failsafe / Pilz PNOZ Multi)

• Light barrier (Leuze / Pilz / Sick – 1 piece)

• Traceable feedback valves

• Hydraulic piston locking system

• Proportional speed and pressure control system

TECHNICAL SPECIFICATIONS

Distance Between Columns : 800 × 800 mm

Parallelism Tolerance : 120 micron/mt
Perpendicularity Tolerance : 60 micron/mt

Piston Stroke : 600 mm
Die Stroke : 200 mm

Min. Gap Height : 100 mm
Max. Gap Height : 700 mm

Moving Table Fast Descent Speed : 150 mm/s
Moving Table Pressing Speed : 12 mm/s
Moving Table Return Speed : 170 mm/s
Die Table Forward Speed : 30 mm/s

Main Cylinder Inner Diameter : Ø280 mm – CK45
Die Cylinder Inner Diameter : Ø160 mm – CK45
Auxiliary Acceleration Cylinders : 2 pieces

Approximate Height of Press : 3800 mm
Approximate Width of Press : 1150 mm
Approximate Depth of Press : 1150 mm
Height of Lower Table from Ground : 1200 mm

Approximate Weight : 9 tons

🔒 PRODUCTION NOTE (FIXED USE)

This machine is produced in Turkey by CRONOSS, with its own engineering and production infrastructure.
