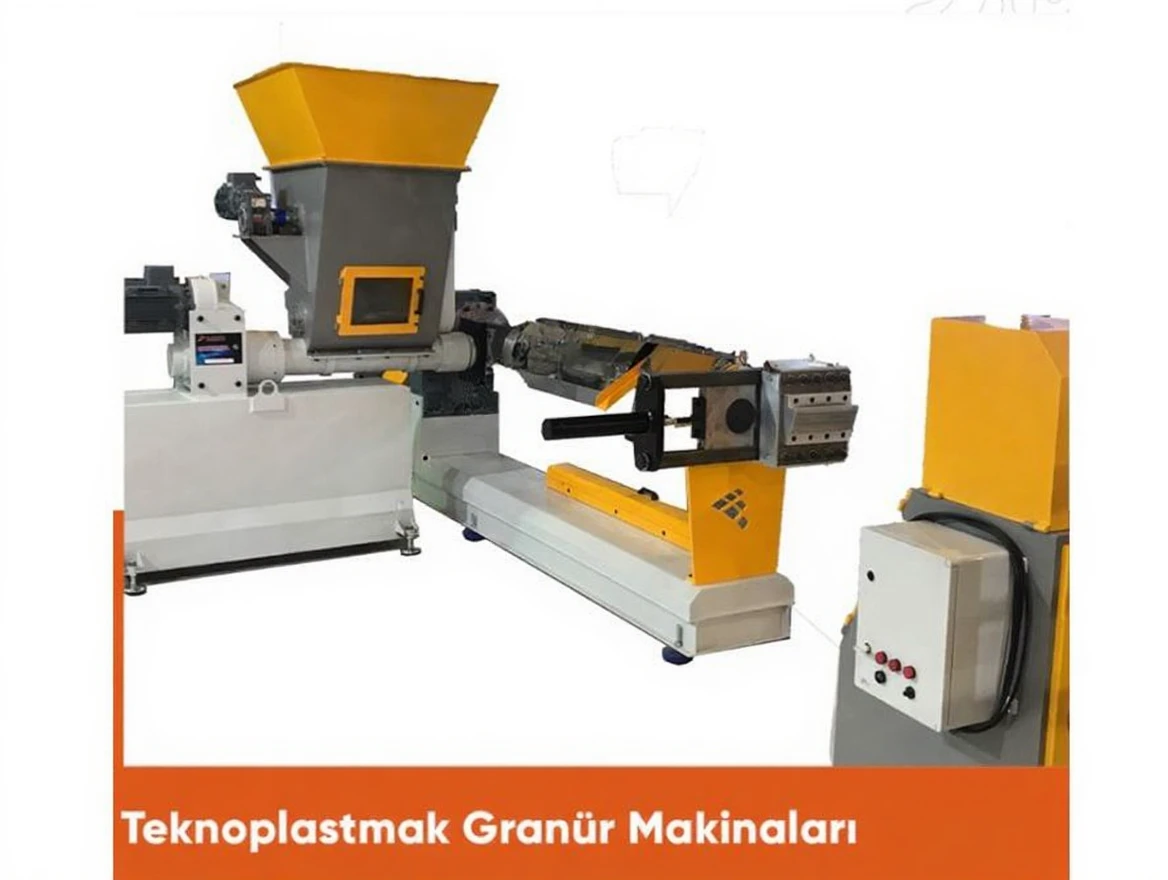

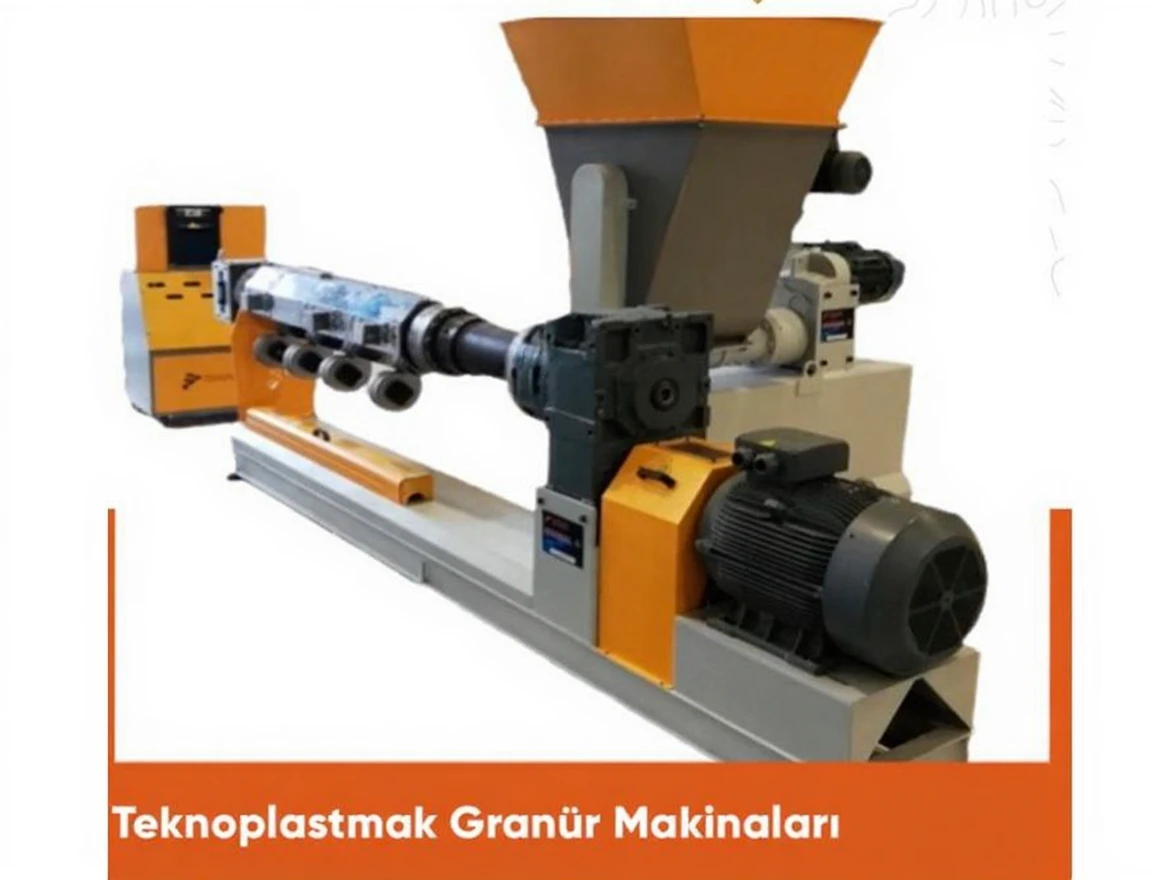

Ø150 500-800 Kg/Hour Plastic Recycling Granule Extruder

Ø15Kg/Hour Plastic Recycling Granule Extruder

The process begins with the separation of plastic materials, which are then cleaned through a washing system after being broken and fragmented, and transported to pools. During this process, they undergo washing and rinsing. In the next stage, to remove the existing water, they are transferred to the agglomerator machine by being dewatered in the squeezing system, which reduces their current mass and increases their density. At the same time, they are dried and become ready for processing in the extruder.
In the extruder stage, the plastic material under high temperature and pressure, after passing through filtration, is shaped into granules according to the desired dimensions and stored.

Our agglomerate models suitable for the needs and capacities of our customers are recommended. Agglomerator machines play a role in crushing and drying tasks. Plastic is transferred into the agglomerator and, due to friction from the rotating blades on the high-speed rotating axe and fixed blades, the moisture on the plastic is vaporized, and the product is heated and dried.

Technical Specifications:

Screw Diameter: Ø150

Motor Power: 132-160 kW

Resistance Power: 120 kW

Screw Ratio (L/D): 36/46

Capacity: 500-800 kg/h
