150 cm Stone Crusher Machine

Brand Agromeks
Model Type

150 cm

Description

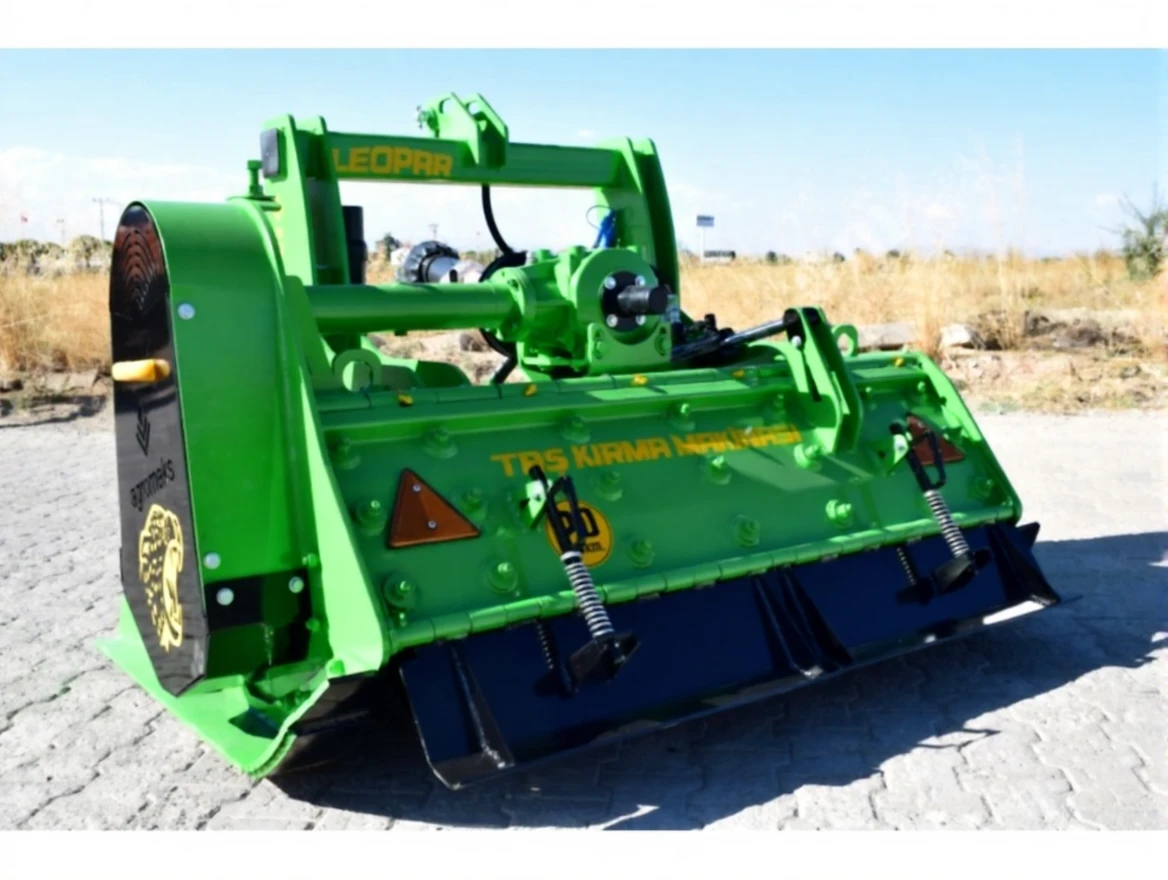

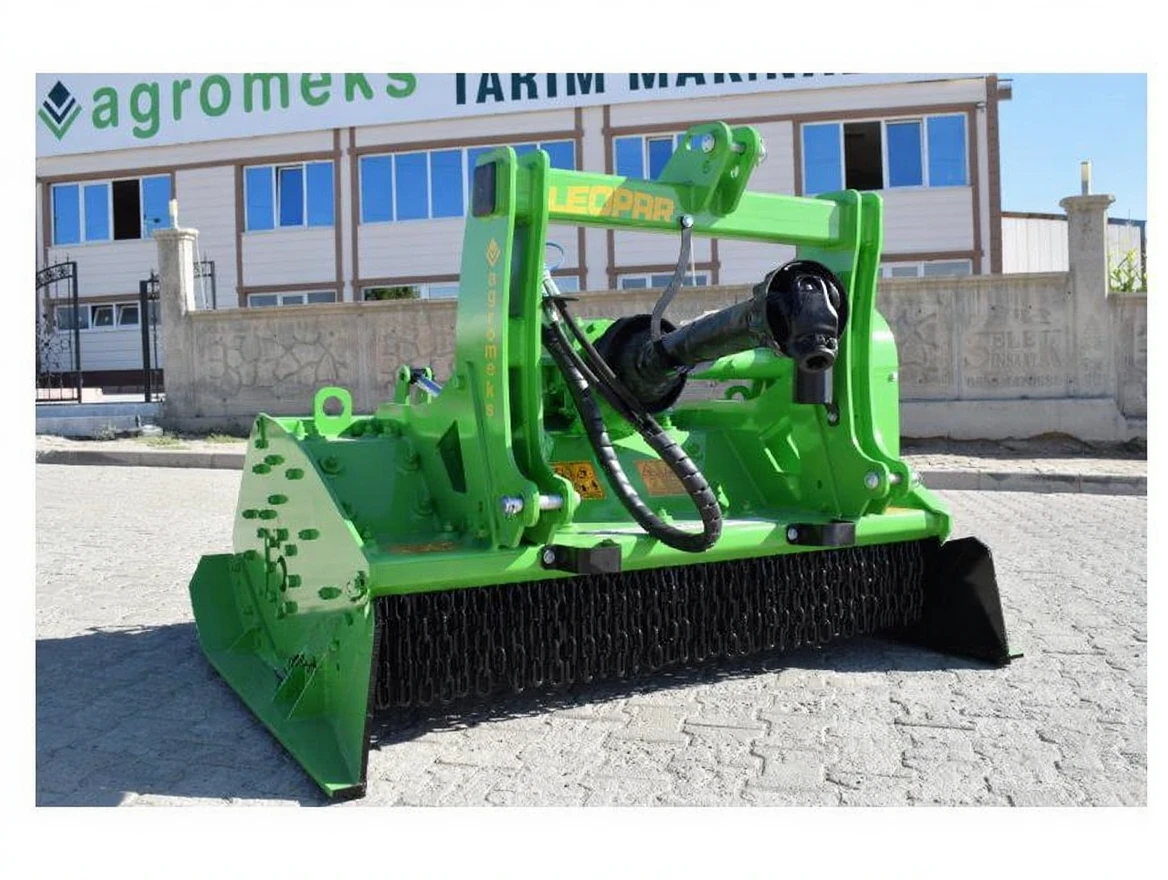

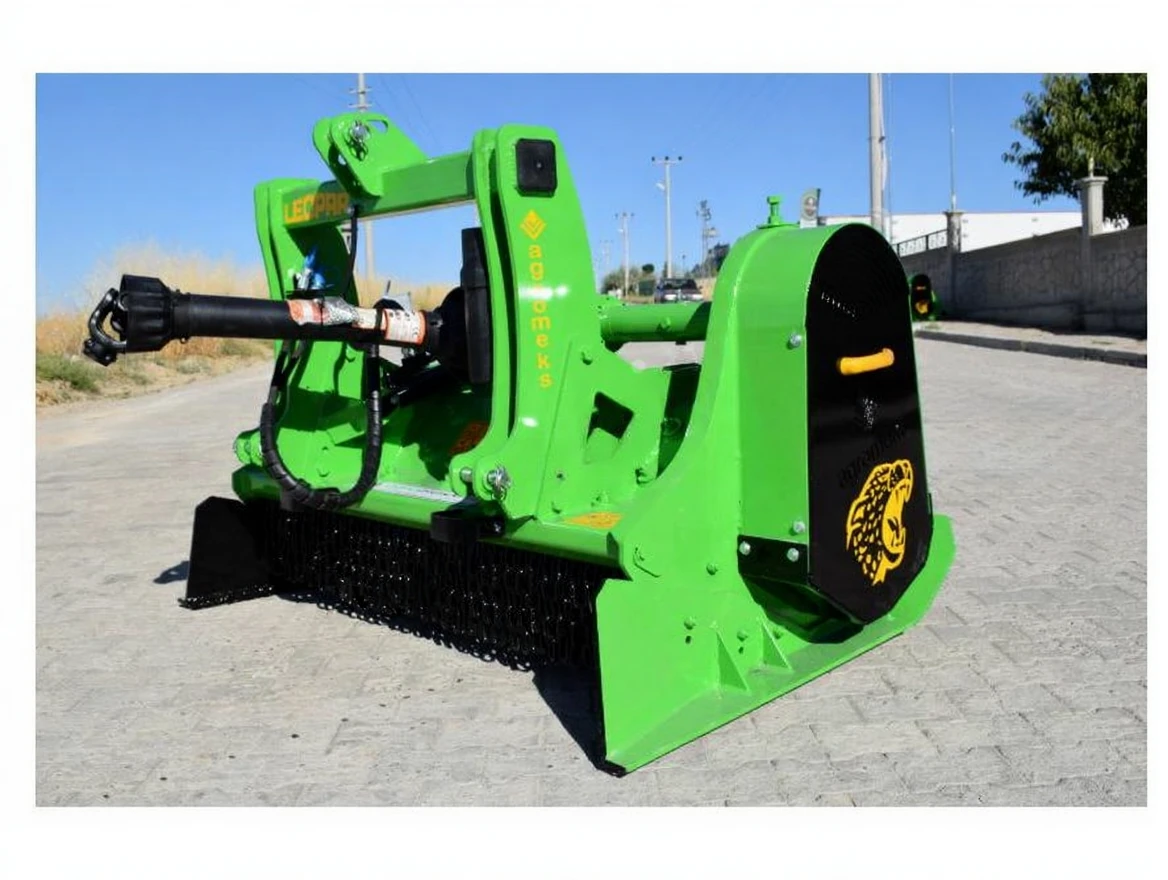

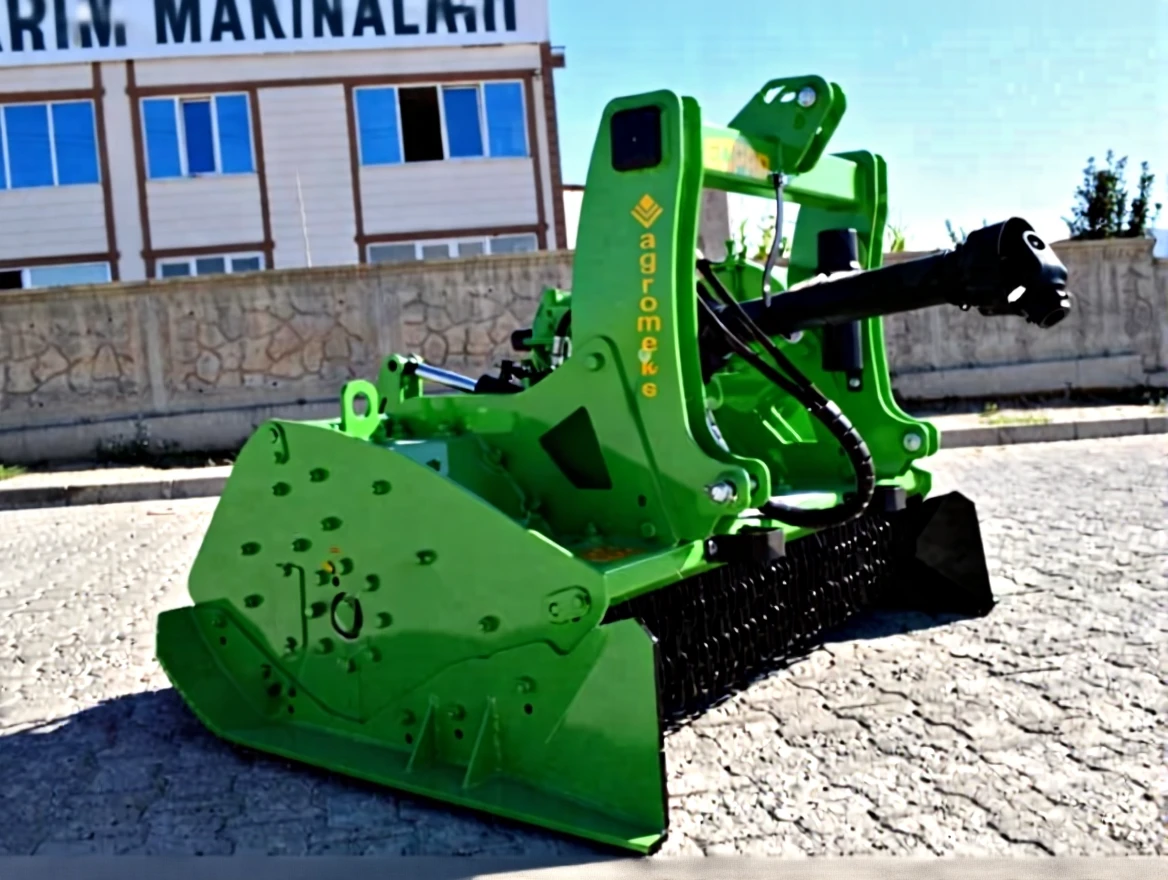

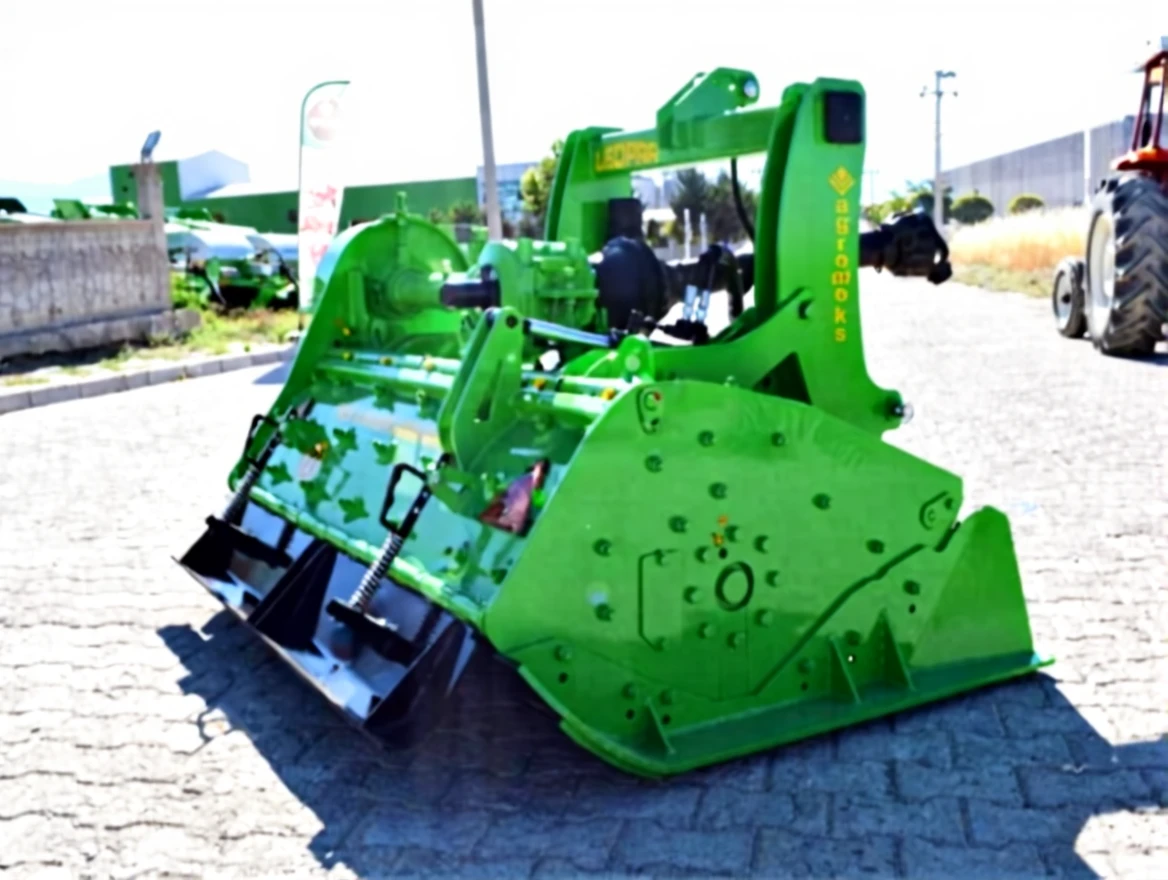

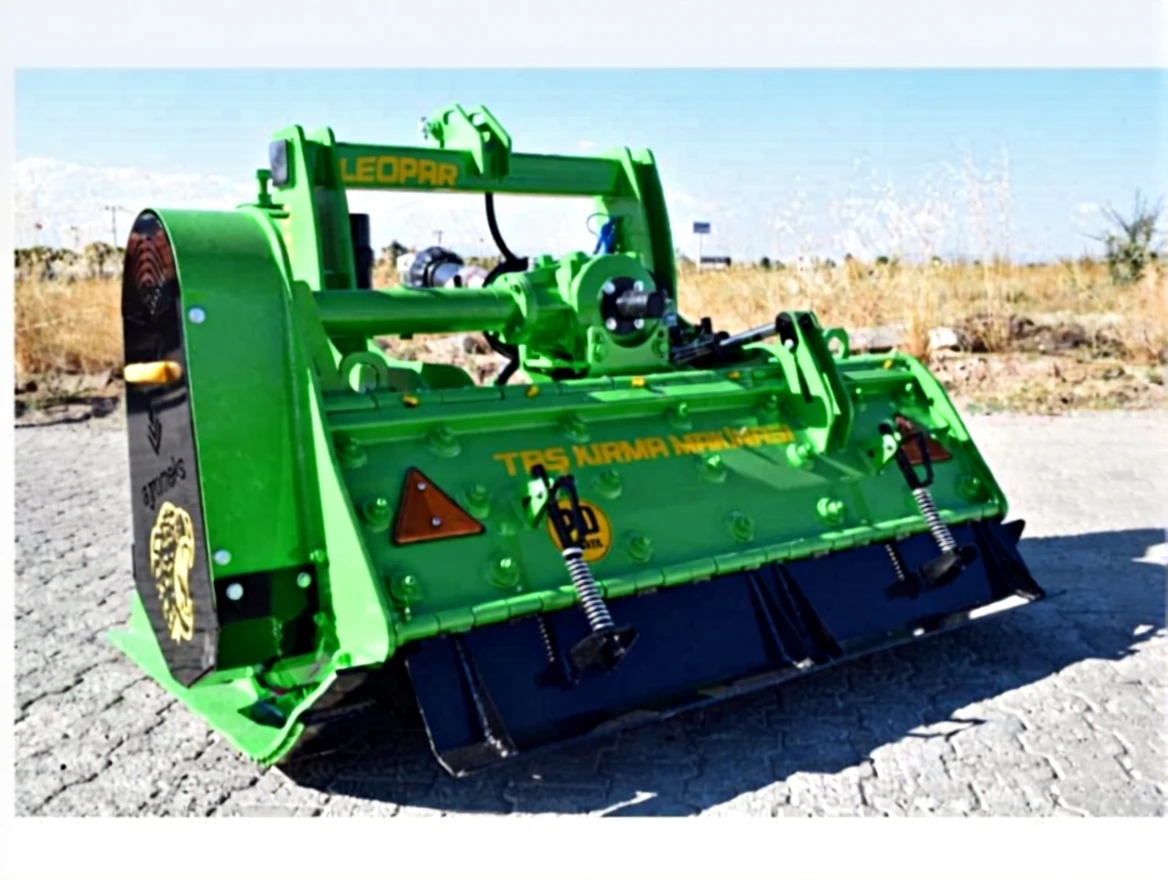

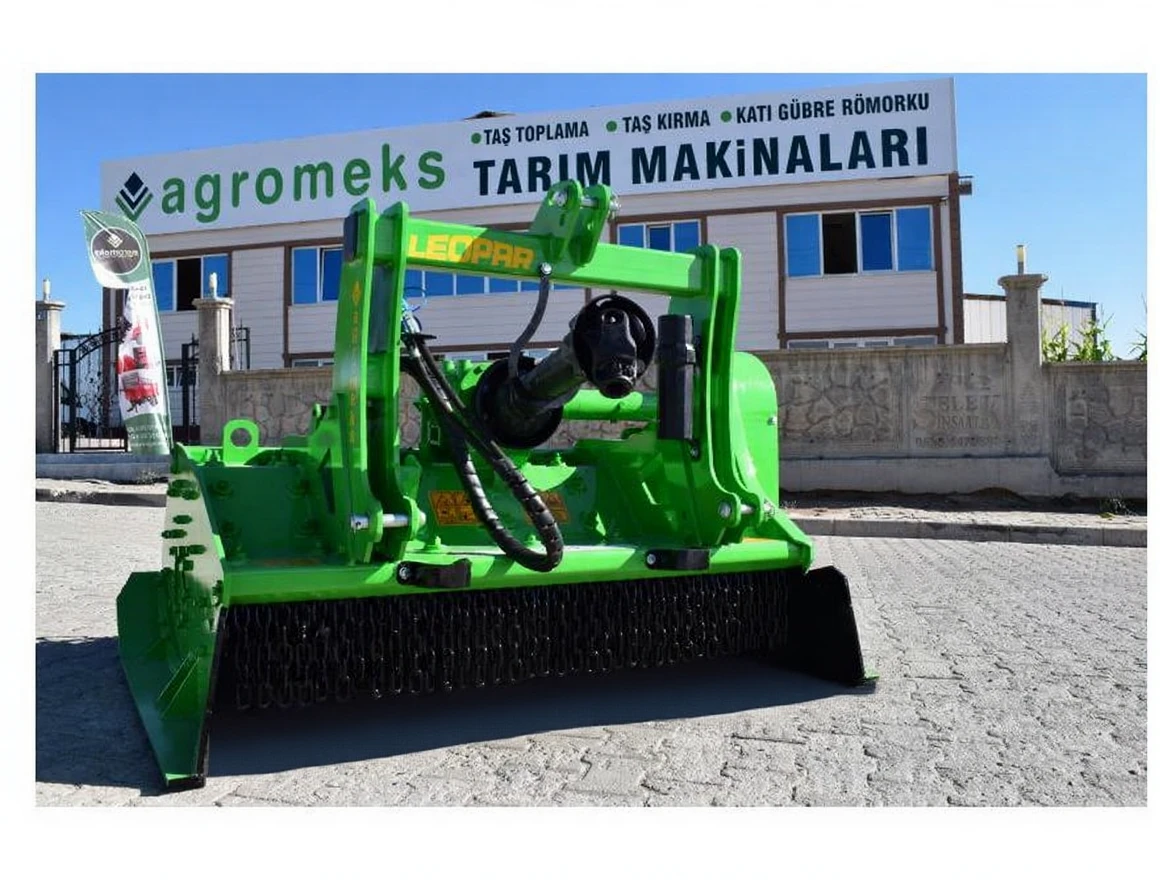

150 cm Stone Crusher Machine

Agromeks 150 Cm Stone Crusher Machine offers an excellent solution for making stony lands suitable for agriculture. Designed to process agricultural soils and enrich them in terms of minerals, this machine increases efficiency and makes the land usable. It can be used in various areas such as farms, vineyards, greenhouses, and even beaches, and is not limited to agricultural fields. It can also work effectively in industrial areas, breaking stones to improve the soil structure.

This Agromeks Stone Crusher Machine effectively processes stones with a width of 150 cm and a maximum depth of 20 cm. The working speed varies between 0.3-2 km/h, providing the user with different speed options for fast and efficient processing over large areas. Stones are ground without penetrating deep into the soil, making your fields more efficient.

The machine is equipped with 34 carbide blades. These blades are extremely durable and perform excellently even with long-term use. The boron carbide material increases the wear resistance of the blades, extending the machine's lifespan. Thanks to the helix blade position, stones are broken more effectively, and a more homogeneous processing is achieved in the soil.

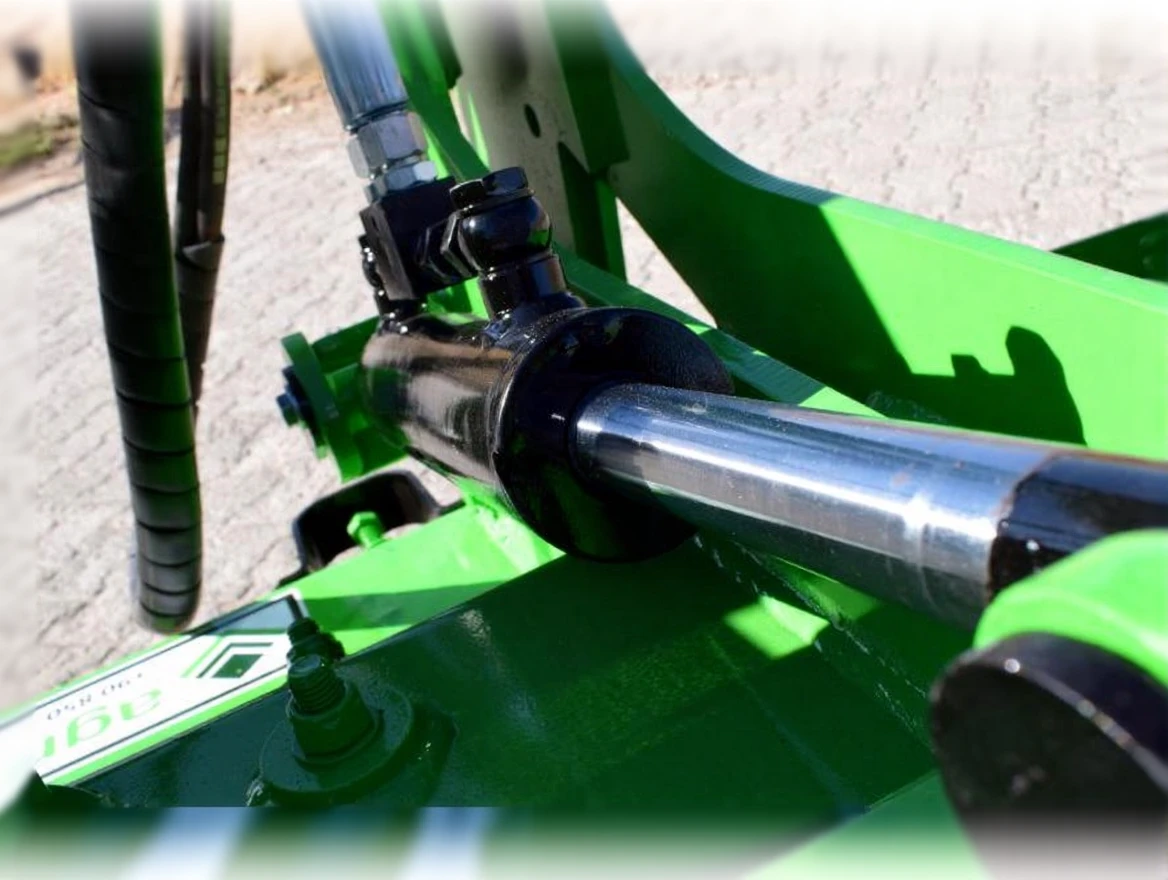

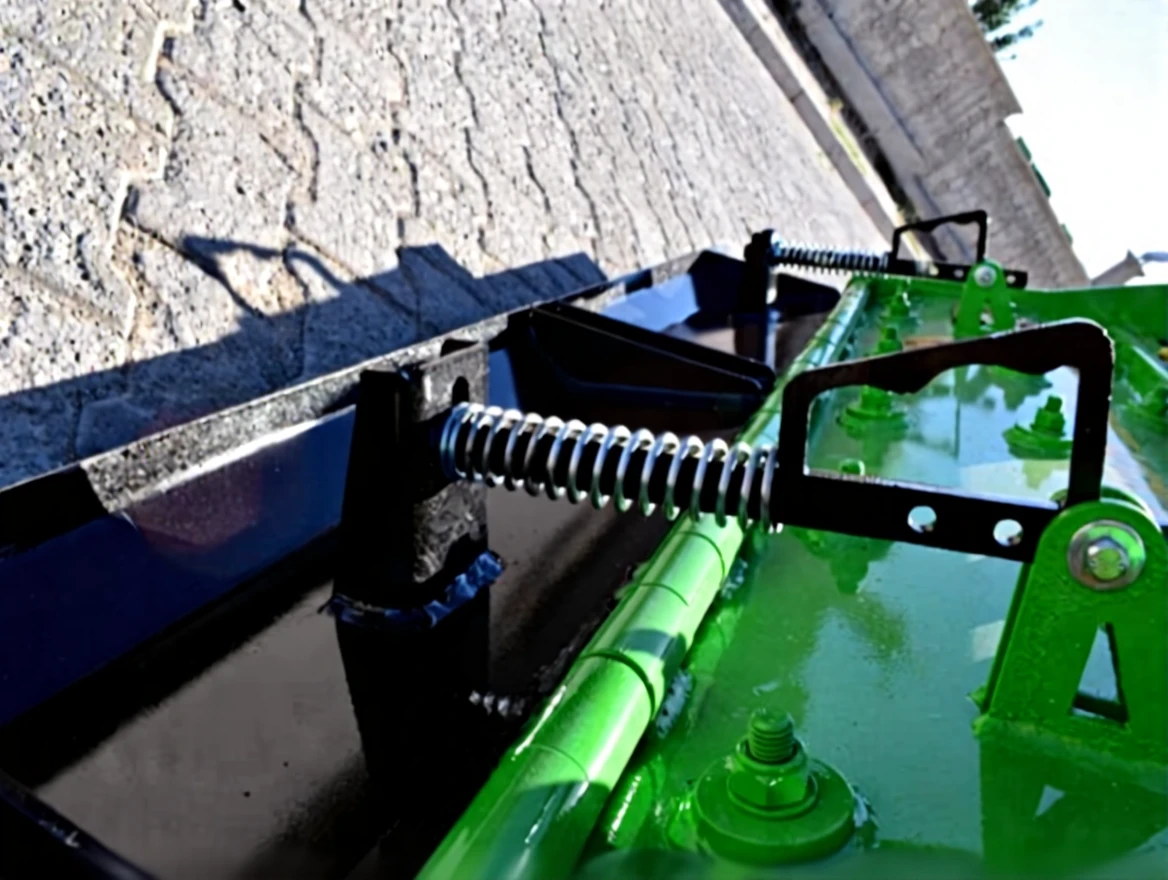

The Hardox inner coating of the machine increases durability, ensuring smooth operation even in harsh conditions. Hardox material is high-strength steel, allowing the machine to operate stably and efficiently for many years. Additionally, the hydraulic rear cover feature allows for easy unloading of stones and quick access during processing.

The specially made gearbox from Italy ensures the efficient operation of the machine. This high-quality gearbox guarantees the long-term durability and smooth operation of the machine. The unbalanced rotor balancing is produced using advanced technology equipment, ensuring that the machine remains balanced at all times and preventing any issues caused by vibrations.

The machine can operate with tractors with a minimum power of 80 HP, and thanks to the tractor's super creep gear feature, it provides high torque at low speeds, allowing you to process stones in the most efficient way. The oil pump is powered by the tractor, allowing it to operate without the need for an additional power source.

Agromeks 150 Cm Stone Crusher Machine is an ideal solution for any agricultural business looking to increase efficiency in stony lands, improve soil structure, and reduce labor costs. This machine, backed by a 2-year warranty, offers excellent performance in all challenging conditions.

Agromeks 150 Cm Technical Specifications

İş genişliği

Working width

150cm

150 cm

Toprak işleme derinliği

Working depth

Max:20cm

Max. 20 cm

Çalışma hızı

Working speed

0,3-2 km/sa

0,3-2 km/hr

Makine ağırlığı

Machine weight

1465 kg

1465 kg

Makine genişliği

Machine width

178cm

178 cm

Makine uzunluğu

Machine length

115cm

115 cm

Makine yüksekliği

Machine height

130cm

130 cm

Kırıcı bıçak sayısı

Total numer of blades

34 adet

34

Kırıcı bıçak özelliği

Blades feature

Bor Karbür

Boron Carbide

Makine iç kaplaması

Machine inside coating

Hardox v.b.

Hardox

Kırıcı bıçak pozisiyonu

Blades position

Helis

Helix

Kuyruk mili devri

PTO speed

540d/sa

540 rpm

Makine arka kapak

Machine rear door

Hidrolik

Hydraulic

Yağ pompası güç kaynağı

Oil pump power supply

Traktör

Tractor

Güç gereksinimi

Required tractor

Min:80hp

Min. 80 HP

Gerekli traktör özelliği

Tractor feature

Süper Sürünger vites

Creep speeds
