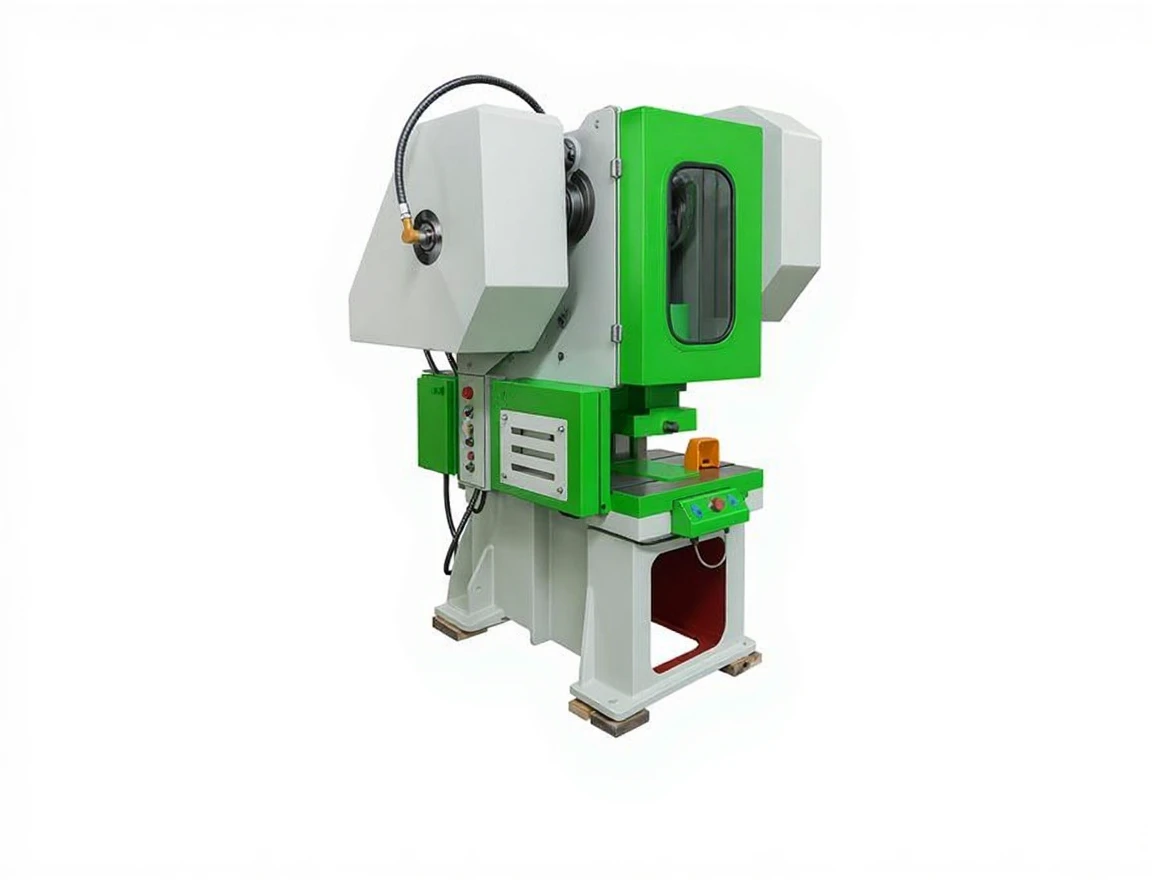

150 Ton C Type Eccentric Press

C Type Eccentric Press – CECP 150 Tons

Standard Features

• Steel construction body

• Record with bearing from 4 surfaces

• Spheroidal graphite cast iron connecting rod and gear bearings

• Crankshaft and transmission shafts 4140 tempered steel

• Central system fully automatic grease lubrication

• Pneumatic clutch and brake combination

• Compliant with CE safety directives

• Double-coil safety valve

• Manually adjustable stroke

• Beam barrier finger – hand protection safety system

• PLC control system

• Double foot pedal control system

• Mechanical fuse system

• Emergency reverse motor movement

• Compliant with occupational safety regulations

• Compliant with CE standards

Optional Features

• Vibration-resistant wedge

• Spare table

• Press feeding systems

• 1 set of mold with desired features

• 8 bearing slideway

Technical Specifications

• Capacity: 150 Tons

• Throat Depth: 320 mm

• Table – Ram Distance: 500 mm

• Slide – Table Distance: 540 mm

• Distance Between Walls: 500 mm

• Adjustment of Ram: 120 mm

• Approximate Width of Press: 1600 mm

• Approximate Depth of Press: 2280 mm

• Approximate Height of Press: 2750 mm

• Front Anchorage Measurement: 840 mm

• Side Anchorage Measurement: 1300 mm

• Table Hole Diameter: 220 mm

• Table Size: 660 × 920 mm

• Mold Fastening Slot Diameter: 55 mm

• Ram Size: 600 × 290 mm

• Ground Table Size: 805 mm

• Stroke Adjustment: 10 – 125 mm

• Number of Strokes / Minute: 42 strokes per min

• Motor Power: 15 kW

• Motor Speed: 1450 RPM

• Approximate Weight: 7100 kg

Manufacturing Information

This machine is manufactured by CronossTech in Turkey.
