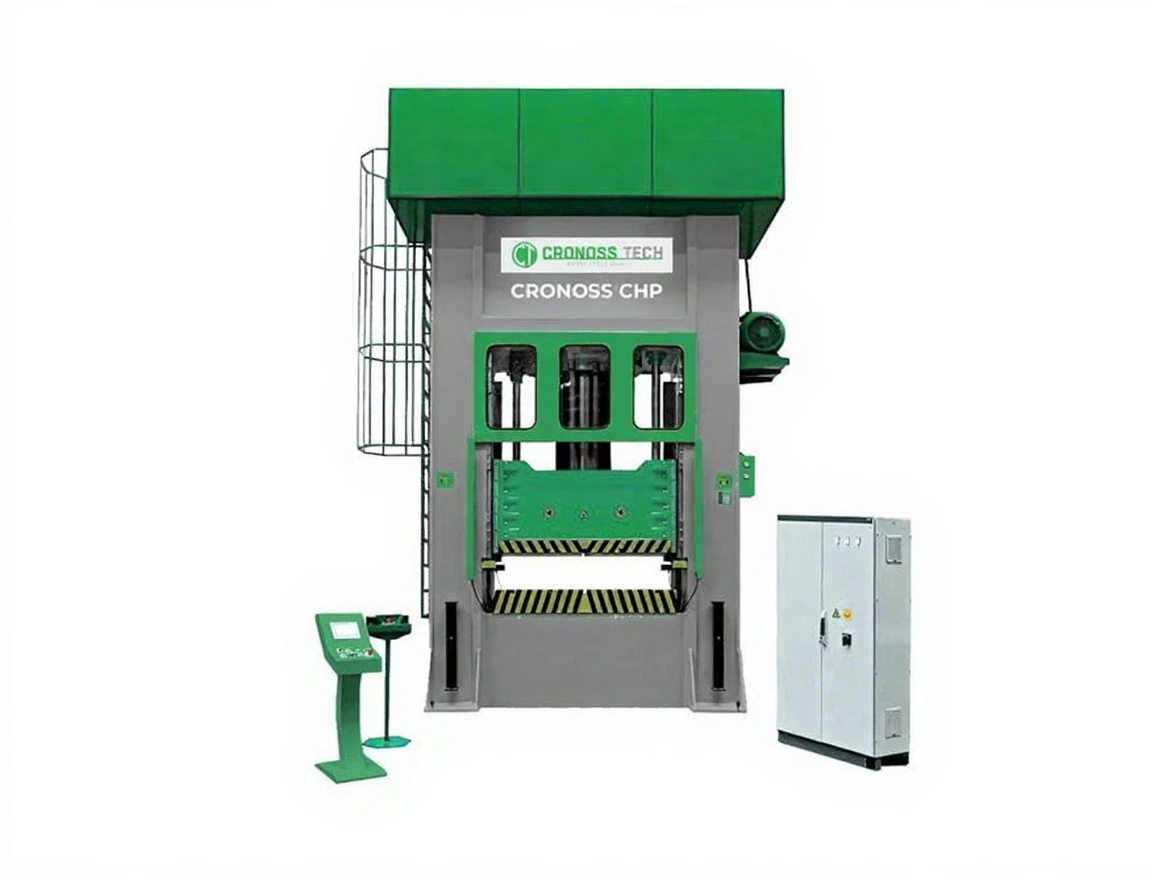

150 Ton H Type Single Effect Hydraulic Press

CHP – H Type Single Effect Hydraulic Press | 150 Tons

STANDARD FEATURES

• Steel construction body and parts with stress / welding stress relieved by vibration method

• 8 surface slide / bearing for high precision and long-lasting use

• PLC control system and touch operator panel

• Argon welding application for clamping elements and steel pull pipes

• Accredited by TÜRK-AK WPQR and WPS approvals
  EN ISO 15614-1:2017 welding application certificate
  (Welding applications are inspected by welding coordination engineers certified according to EN ISO 14731)

• Parallelism and perpendicularity tolerances compliant with ISO and DIN standards
  (≤ 120 microns / meter)

• PARKER / REXROTH hydraulic unit

• SIEMENS / SCHNEIDER electrical consumables

• Automatic central lubrication system

• Dual hand control system

OPTIONAL FEATURES

• CE application

• Safety PLC (SIEMENS Failsafe / PILZ PNOZ Multi)

• Beam barriers (LEUZE, PILZ or SICK – 2 pieces)

• Traceable feedback valves (REXROTH or PARKER – 3 pieces)

• Hydraulic coach locking system (1 piece)

• Proportional velocity and pressure application
  (Different speed, stop and pressure values entered at different points in the pressing process,
  the effect of material and mold deformations on the work done is minimized.)

TECHNICAL SPECIFICATIONS

• Type of Press: Steel construction, 8-slide H type press body

• Body Material: St52 – ERDEMİR

• Slide Bearing: Bronze Zr14

• Press Capacity (Coach): 150 Tons

• Movable Table Size: 800 × 1000 mm

• Fixed Table Size: 800 × 1000 mm

• Parallelism Tolerance: 120 microns / mt.

• Perpendicularity Tolerance: 60 microns / mt.

• Coach Stroke Distance: 500 mm

• Minimum Clearance: 100 mm

• Maximum Clearance: 600 mm

• Maximum Working Pressure: 250 bar

• Total Motor Power: 18.5 kW – IE3

• Main Pump: 32 cm³ – REXROTH or PARKER

• Movable Table Rapid Descent Speed: 150 mm/sec

• Movable Table Creep Speed: 12 mm/sec

• Movable Table Return Speed: 170 mm/sec

• Main Cylinder Inner Diameter: Ø 280 mm – Ck45

• Assisting Acceleration Cylinders: 2 pieces

• Press Approximate Height: 3650 mm

• Press Approximate Width: 2950 mm

• Press Approximate Depth: 2000 mm

• Lower Table Height from Ground: 1250 mm

• Pre-fill Valve: NG 100

• Cooling System: EMMEGI – CIESSE – PARKER

• Off-line Filtering: REXROTH or PARKER

• Air Filter: 10 micron permeability

• Return Filter: 25 micron permeability

• Filter Contamination Alert: Electronically controlled

• Lubrication Method: Automatic (adjustable from screen)

• Coach Stroke Adjustment: Adjustable from screen

• Coach Ton (Pressure) Adjustment: Adjustable from screen

• System Error / Press Status Information: Monitorable via screen

• Mold Memory: Available

• Hydraulic Oil Temperature Information: Monitorable via screen

• Linear Distance Scale: NOVATECHNIK or TURCK

• PLC: DELTA

• Touch Panel: DELTA 7”

• Approximate Weight: 7 tons
