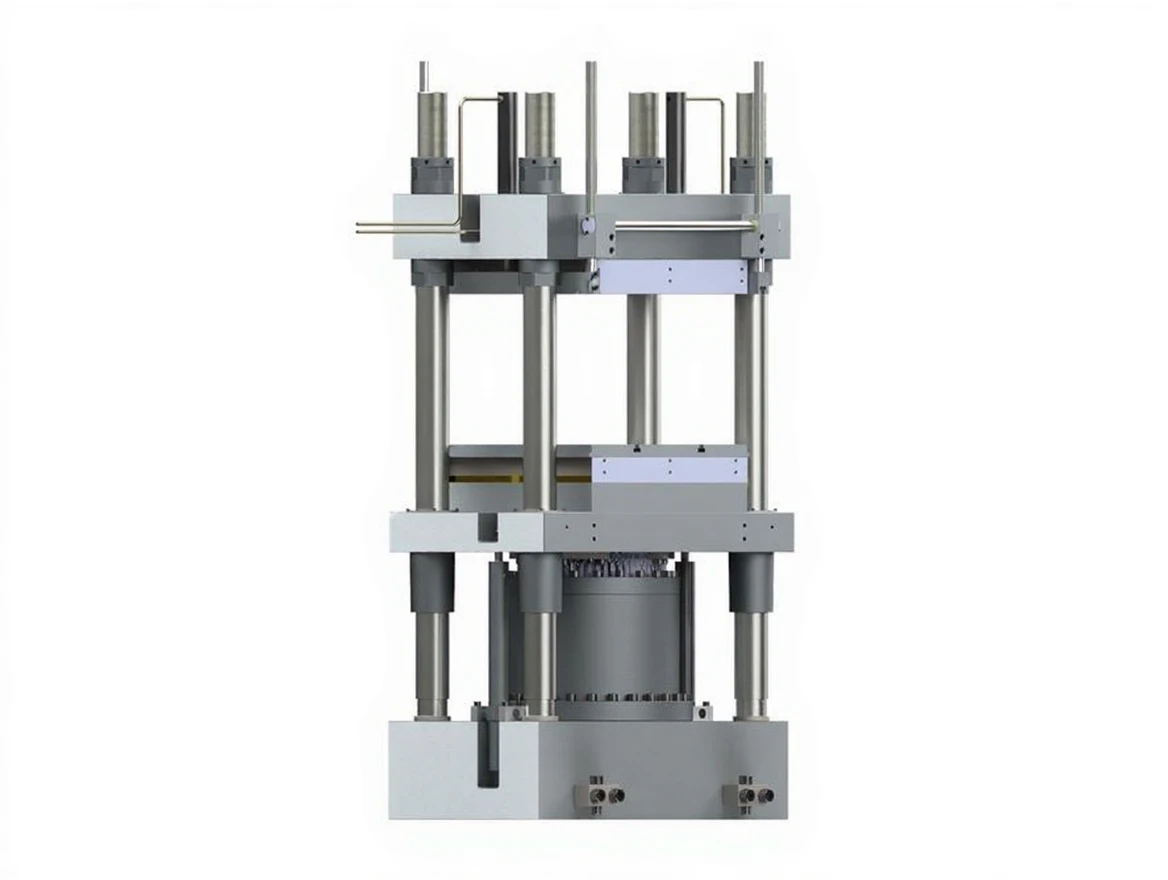

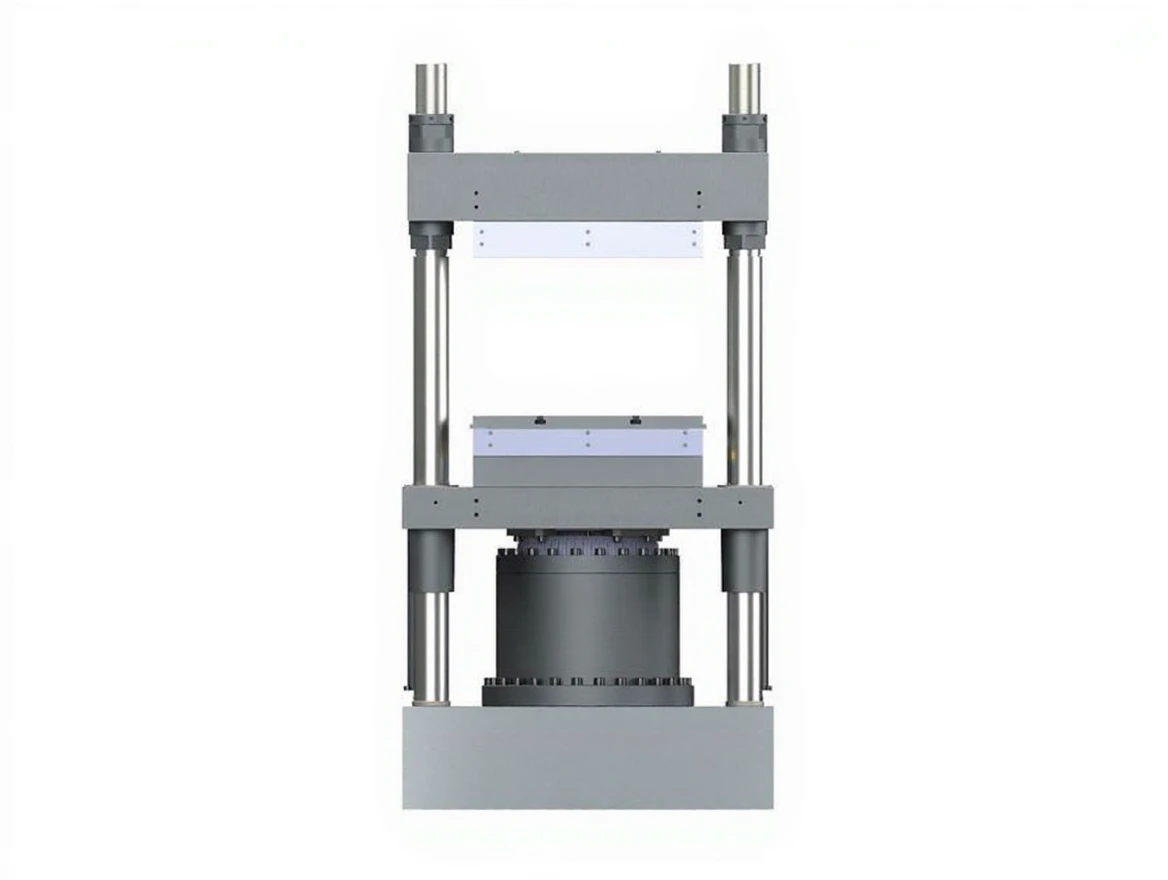

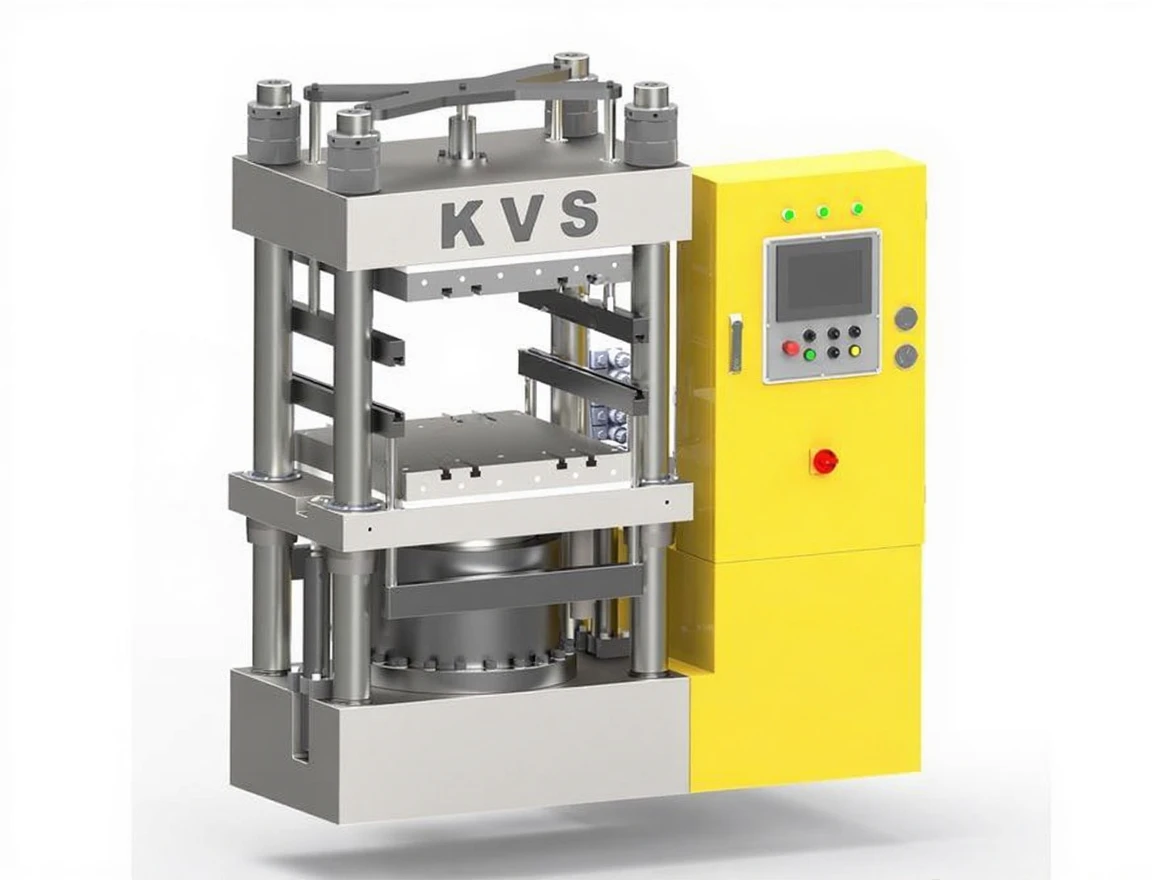

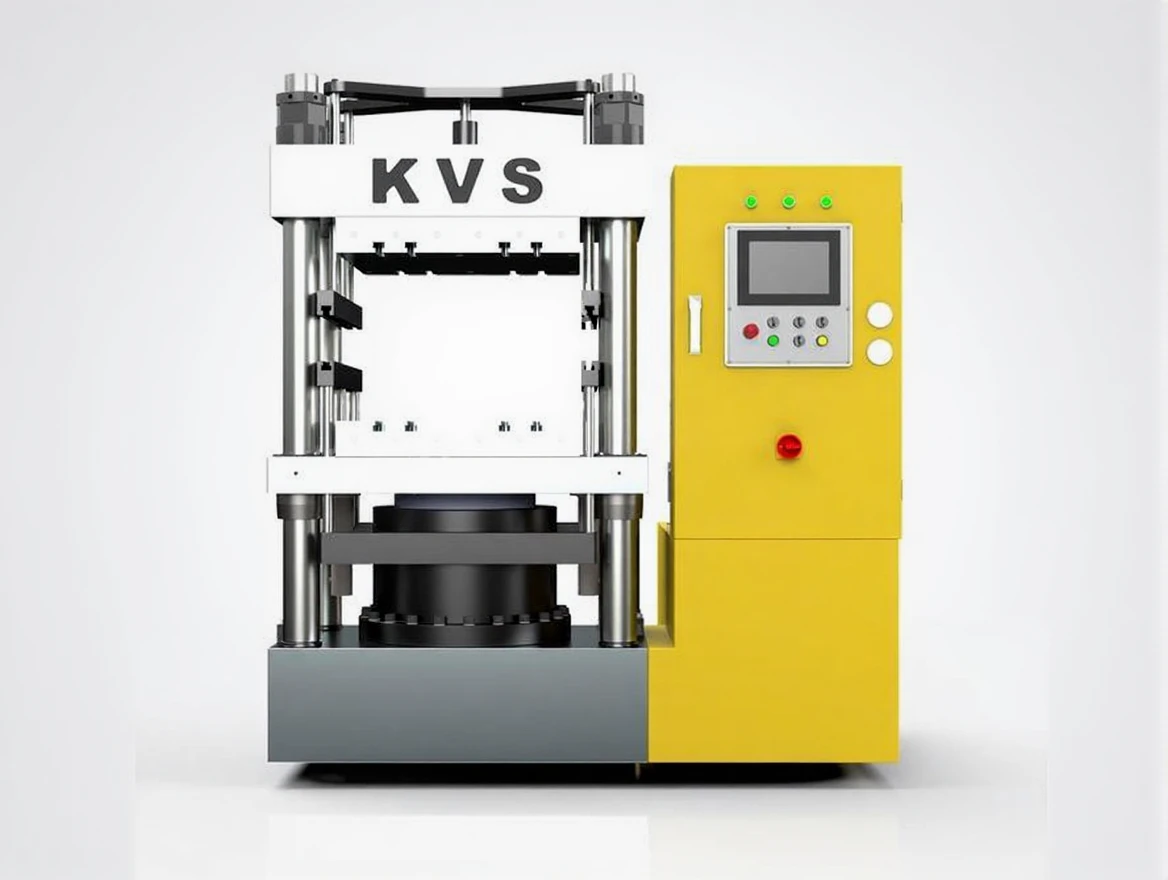

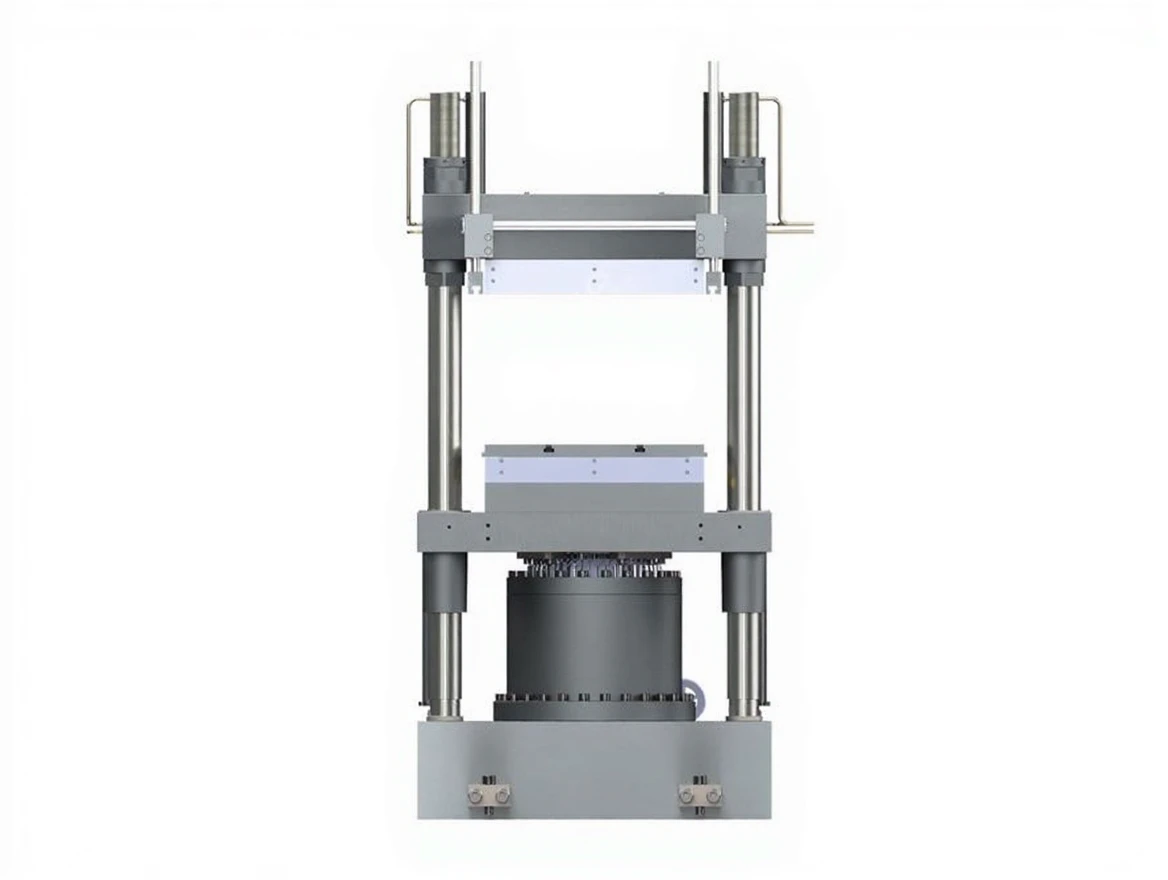

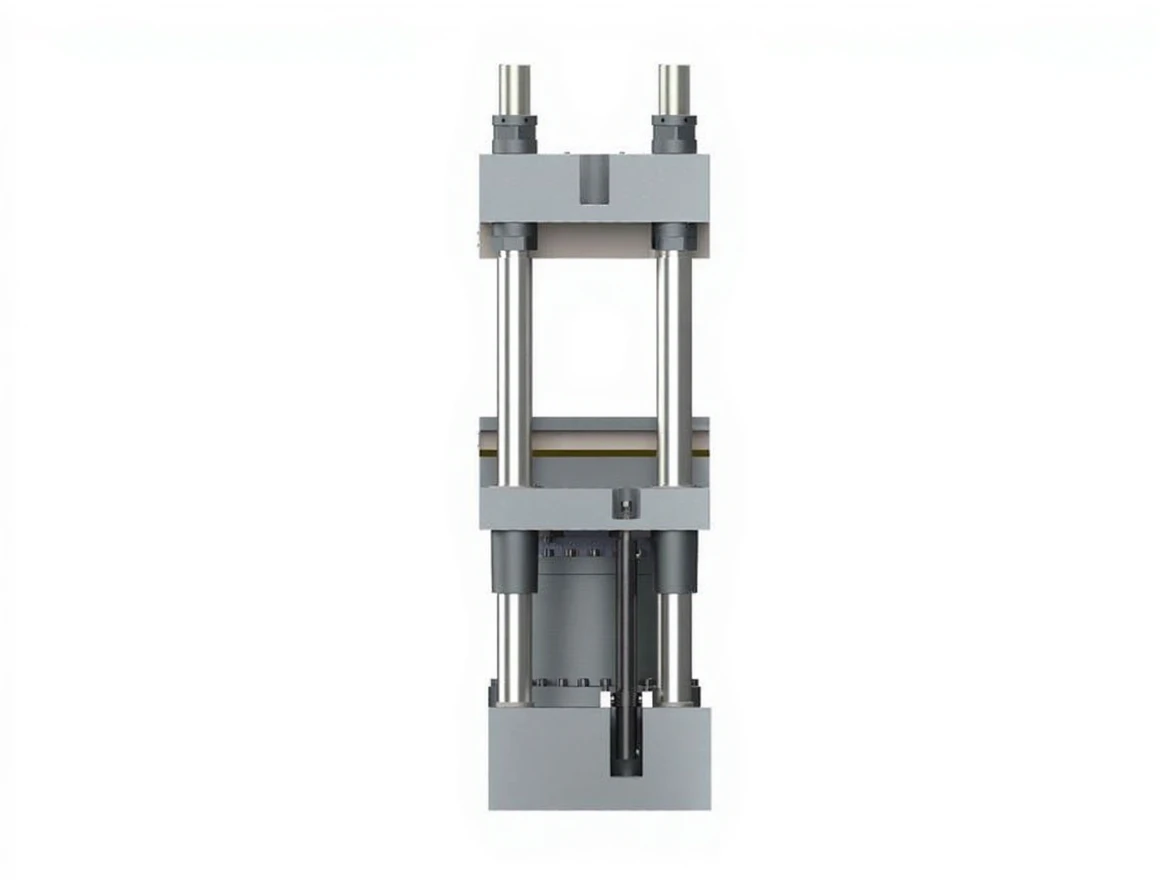

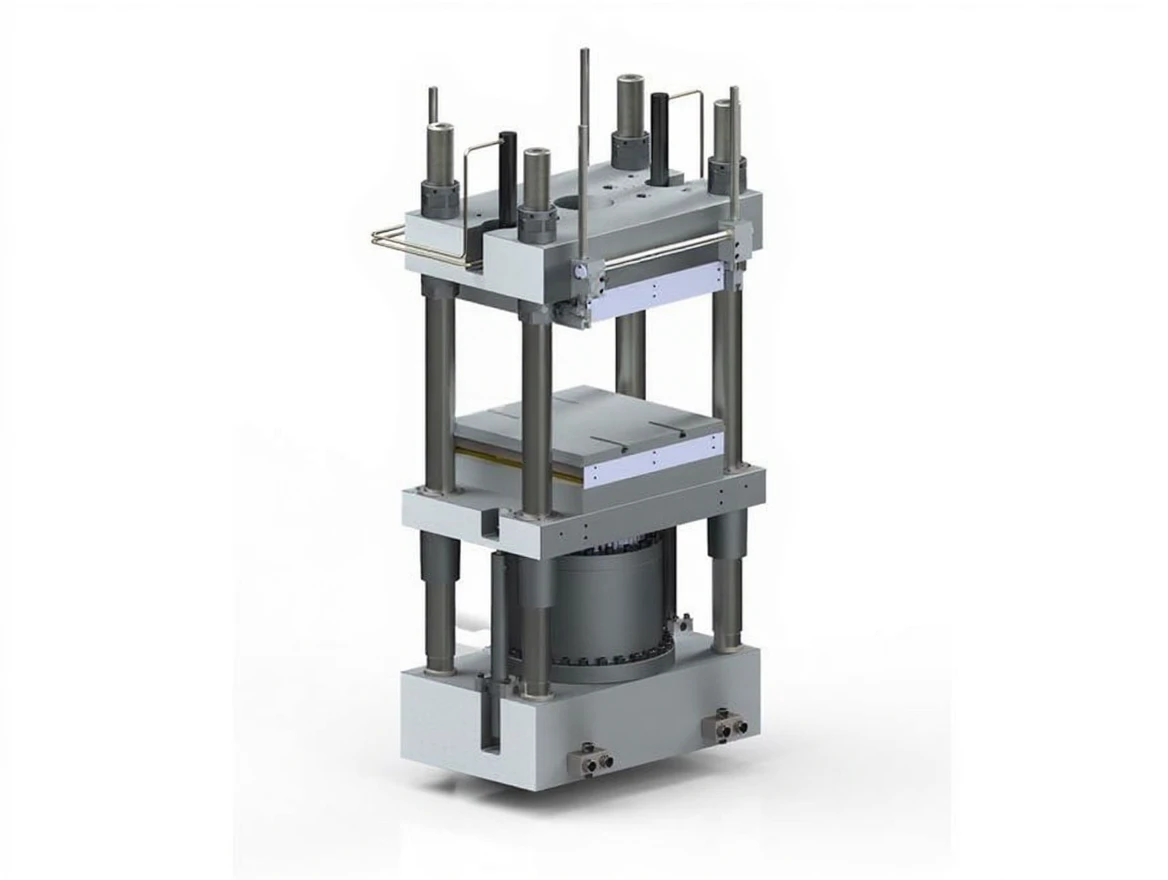

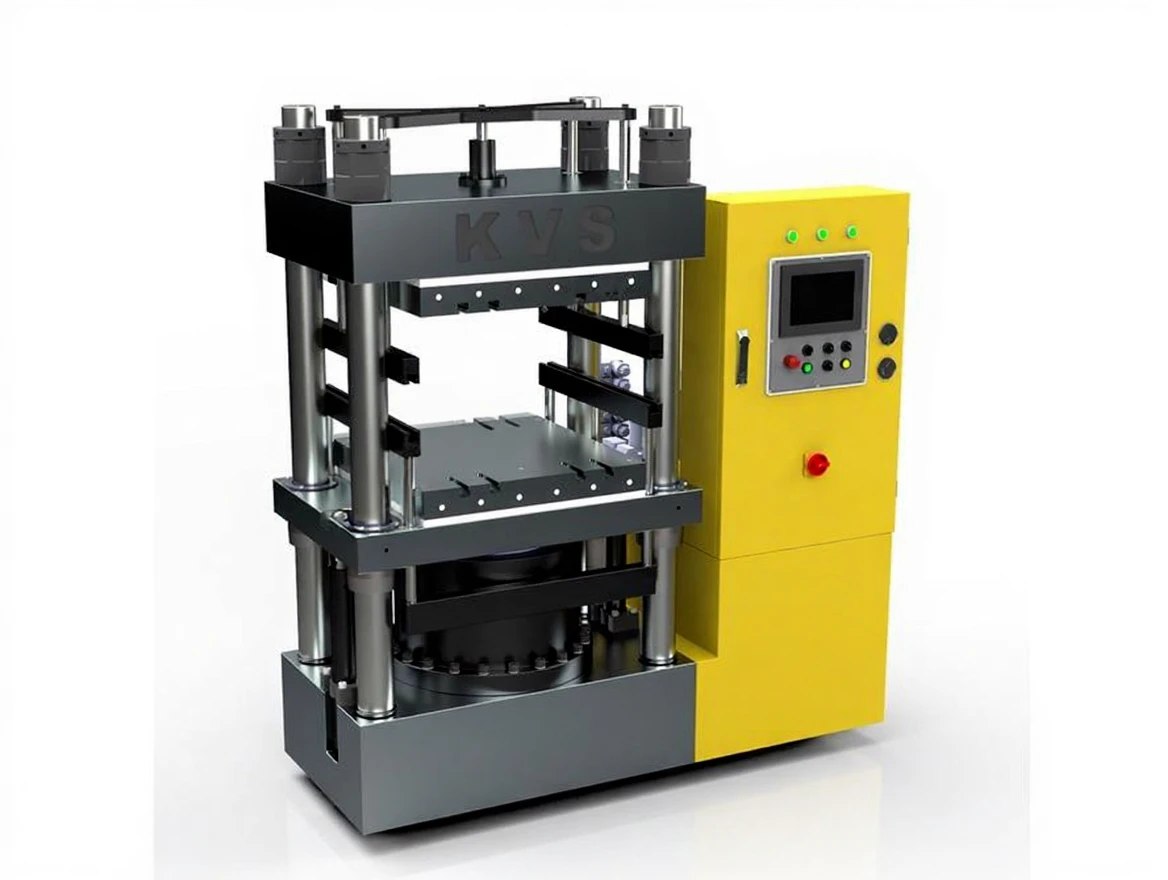

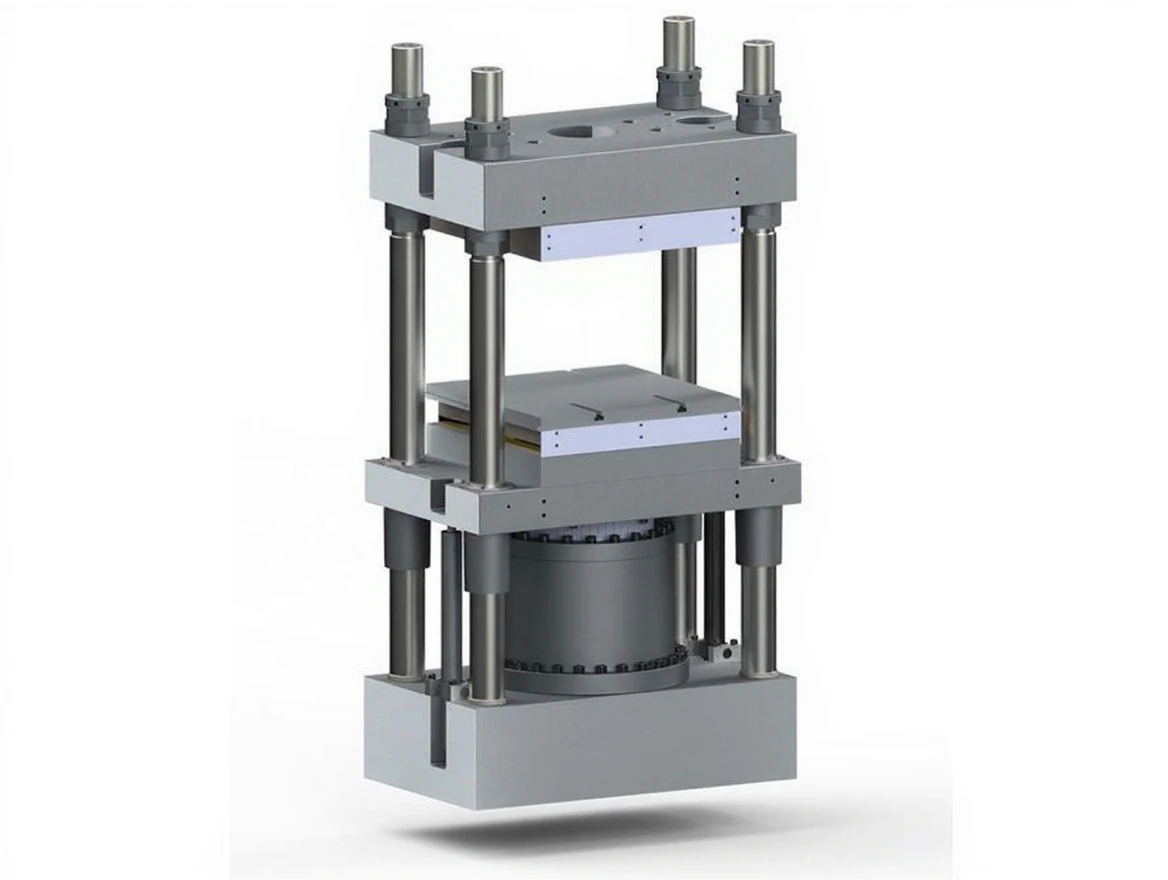

150 Ton Rubber Vulcanization Machine
| Brand | KVS |
|---|---|
| Model Type |
PRS / N-150 |
Description
150 Ton Rubber Vulcanization Machine
| MODEL | TYPE | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ |
| N-50 | N-80 | N-100 | N-150 | N-200 | N-250 | N-300 | N-400 | N-500 | ||
| Clamping Force | Ton | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 250 | 250 | 250 | 250 | 300 | 300 | 400 | 400 | 400 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mold Size | mm | 400*300 | 500*400 | 550*450 | 600*500 | 700*600 | 750*650 | 800*700 | 850*750 | 1,000*900 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | Kw | 10 | 10 | 12 | 12 | 15 | 18 | 20 | 25 | 30 |
| System Pressure | Bar | 210 | ||||||||
| Oil Tank | Lt | 150 | 150 | 200 | 200 | 250 | 250 | 400 | 400 | 450 |
| Pump Type | Pallet | |||||||||
| Dimensions W/H | Mt | 1.2*2.0 | 1.2*2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.8X2.2 | 2.0X2.5 | 2.0X2.5 |
| Weight | Kg | 4.5 | 5 | 5 | 5 | 5.5 | 6 | 6.5 | 7 | 8 |
| Height | Mt | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Rubber vulcanization machines enable the easiest production of rubber products.
At Kavis Machine, we manufacture machines ranging from 50 tons to 5,000 tons.
The 2RT, 3RT, 4RT mold separation systems commonly used in other machines can also be easily used in this machine, providing a highly efficient production process with high safety.
Fully enclosed cabin is compliant with CE safety procedures.
Options:
- Top Plate Lifter
- Bottom Plate Lifter
- Product ejector
- 2RT / 3RT / 4RT
- External top and bottom ejectors
- Mold Plate rotation 180 degrees
