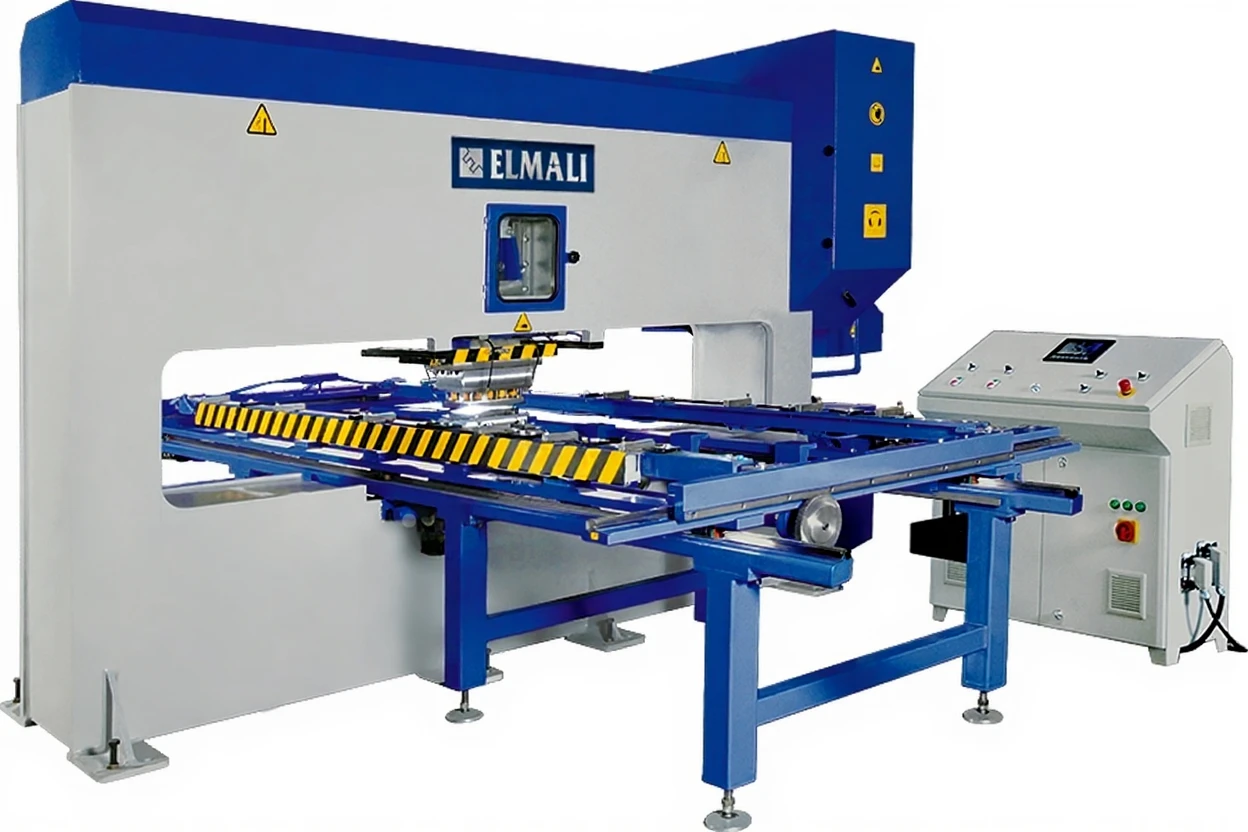

150 Ton Sheet Hole Punching Press

Brand

Elmalı

Model Type

EDP-150

Elmalı EDP-150

150 Ton Sheet Hole Punching Press

Elmalı EDP-150 General Features:

Steel construction body
Pneumatic grip and brake combination
Dual-axis servo drive
PLC application and screen
Speed control unit
4-surface supported ram
T-channel main table and ram
Ram and parts under load like connecting rod are made of steel casting
Automatic central lubrication
Ram adjustment with ratchet device
Optional Features
Compliance with CE directives
Non-standard driver size
Sheet lubrication unit
Pneumatic clamp

Elmalı EDP-150 Technical Specifications :

	ton	mm	mm	ad/dk spm	mm	a mm	b mm	C mm	d mm	e mm	g mm	h.t mm	j.k. mm	Lm mm	n
EDP-40	40	1250 2500	40	50 150	70	2500	450	350	6000	2200	3600	800	500 550	060 400	mm 220 600	mm 055	mm 3600	kw 5.5	kg 5700
EDP-60	60	1250 2500	40	50 150	70	2500	500	360	6000	2300	3600	920	500 560	060 400	220 600	055	7000 3600	7.5	6000
EDP-80	80	1250 2500	40	50 150	70	2500	500	360	6000	2400	3600	920	500 570	0100 420	220 600	055	7000 3600	11	7500
EDP-120	120	1250 2500	40	100	100	2500	550	380	6000	2550	3800	920	500 660	0100 420	250 470	055	7000 3800	15	10000
EDP-150	150	1250 2500	40	100	120	2500	600	400	6000	2600	4000	920	550 700	0100 420	290 500	055	7	18.5	12000
EDP-200	200	1250 2500	40	80	120	2500	650	420	6000	2900	4100	1000	620 790	0100 420	350 620	055	4100 7000	22	19000
EDP-300	300	1250 2500	40	80	120	2500	650	420	7500	3000	4500	1000	700 1020	0100 420	350 620	055	4100 7000	22	27500

Brand	Elmalı
Model Type	EDP-150

Category: Metal Press Tables

Description

	ton	mm	mm	ad/dk spm	mm	a mm	b mm	C mm	d mm	e mm	g mm	h.t mm	j.k. mm	Lm mm	n
EDP-40	40	1250 2500	40	50 150	70	2500	450	350	6000	2200	3600	800	500 550	060 400	mm 220 600	mm 055	mm 3600	kw 5.5	kg 5700
EDP-60	60	1250 2500	40	50 150	70	2500	500	360	6000	2300	3600	920	500 560	060 400	220 600	055	7000 3600	7.5	6000
EDP-80	80	1250 2500	40	50 150	70	2500	500	360	6000	2400	3600	920	500 570	0100 420	220 600	055	7000 3600	11	7500
EDP-120	120	1250 2500	40	100	100	2500	550	380	6000	2550	3800	920	500 660	0100 420	250 470	055	7000 3800	15	10000
EDP-150	150	1250 2500	40	100	120	2500	600	400	6000	2600	4000	920	550 700	0100 420	290 500	055	7	18.5	12000
EDP-200	200	1250 2500	40	80	120	2500	650	420	6000	2900	4100	1000	620 790	0100 420	350 620	055	4100 7000	22	19000
EDP-300	300	1250 2500	40	80	120	2500	650	420	7500	3000	4500	1000	700 1020	0100 420	350 620	055	4100 7000	22	27500
