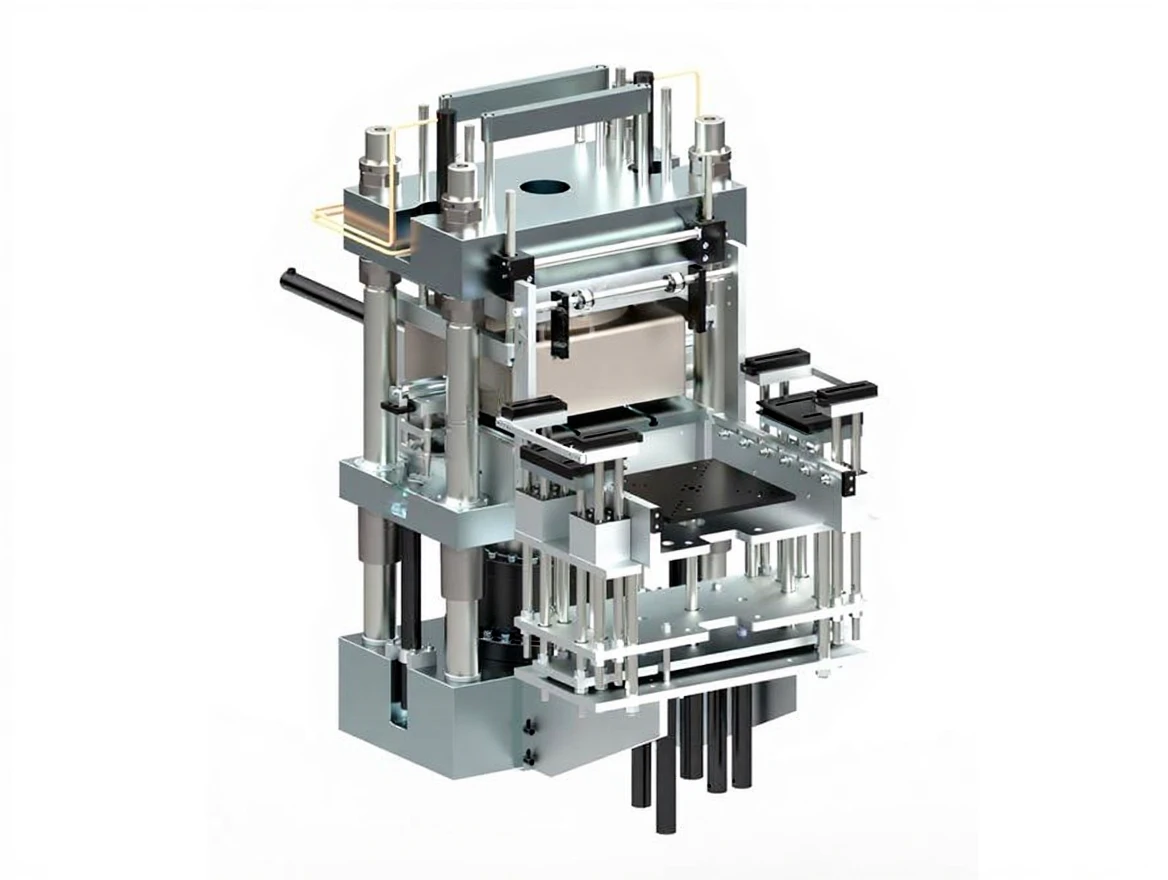

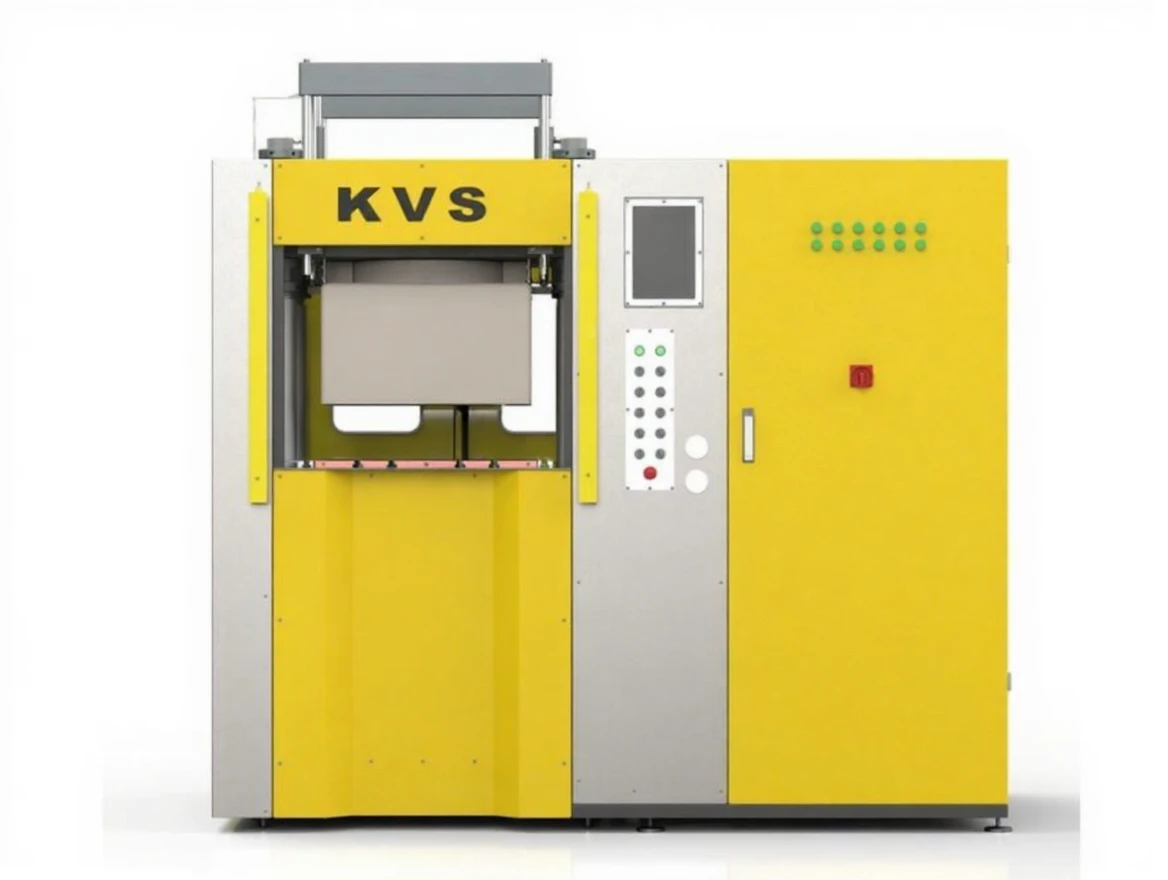

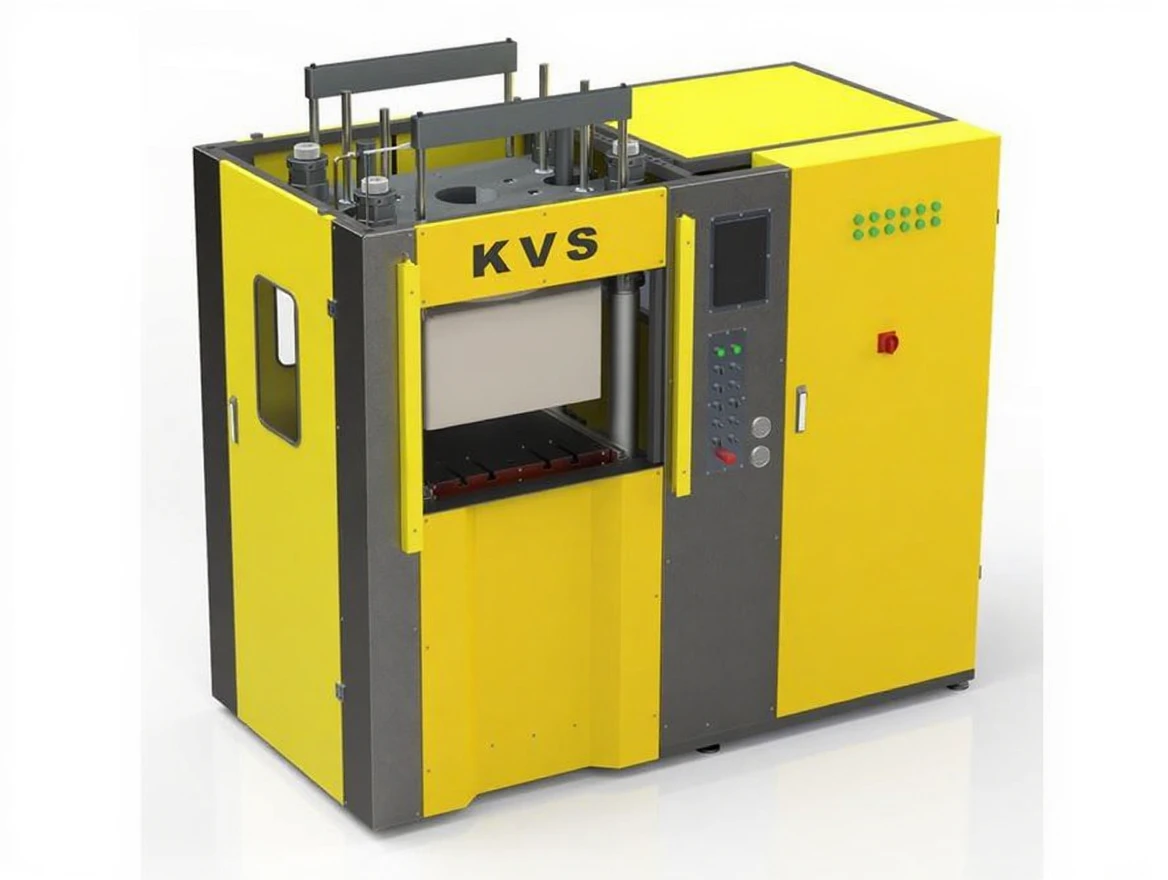

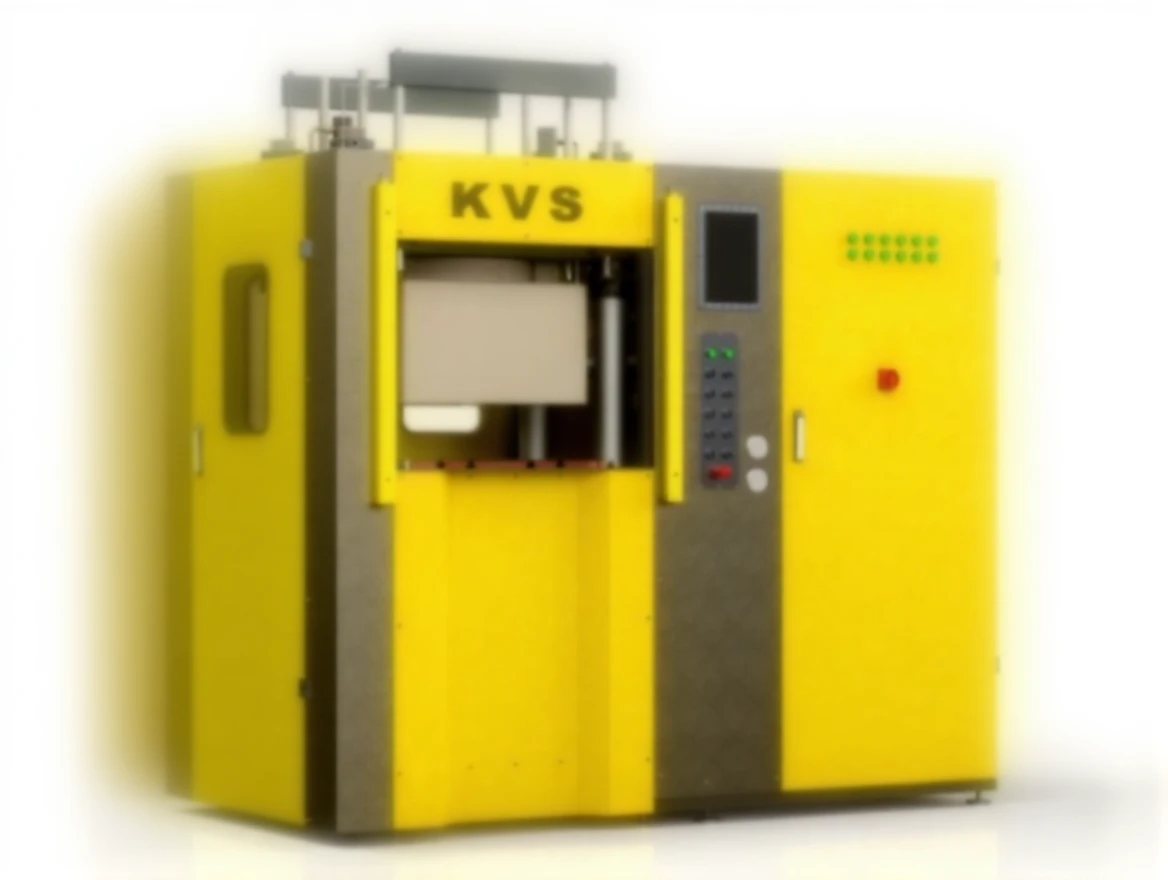

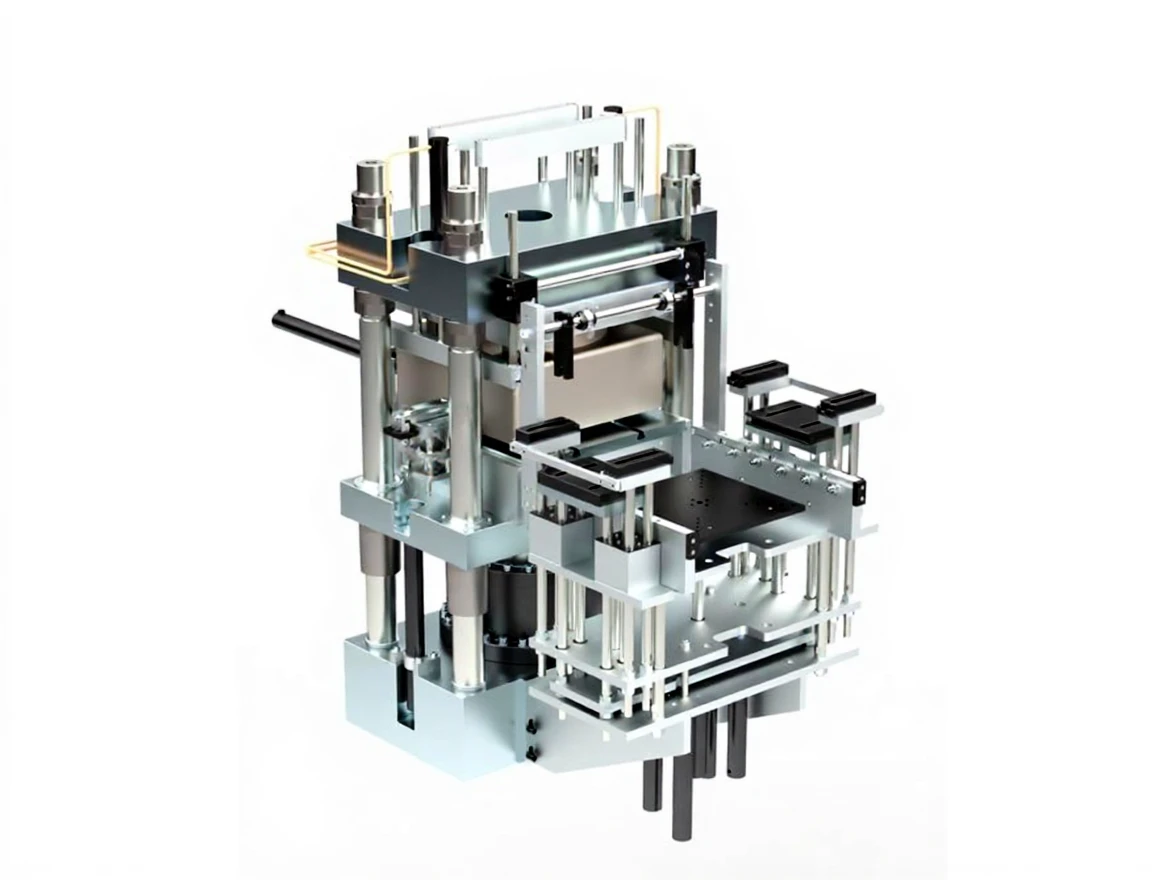

150 Ton Vacuum Rubber Vulcanization Machine
| Brand | KVS |
|---|---|
| Model Type |
VKM / V-150 |
Description
150 Ton Vacuum Rubber Vulcanization Machine
| MODEL | TYPE | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ |
| V-50 | V-80 | V-100 | V-150 | V-200 | V-250 | V-300 | V-400 | V-500 | ||
| Clamping Force | Ton | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mold Size | mm | 250*250 | 350*350 | 400*400 | 450*450 | 550*550 | 600*600 | 650*650 | 700*700 | 950*950 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | Kw | 5 | 10 | 12 | 12 | 13 | 15 | 20 | 30 | 35 |
| System Pressure | Bar | 210 | ||||||||
| Oil Tank | Lt | 150 | 200 | 200 | 200 | 250 | 250 | 400 | 400 | 500 |
| Pump Type | Vane | |||||||||
| Dimensions width/Length | Mt | 1.2*2.0 | 1.2*2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.8X2.2 | 2.0X2.5 | 2.0X2.5 |
| Weight | Kg | 5000 | 5500 | 5500 | 5500 | 6500 | 7000 | 7500 | 9500 | 13000 |
| Height | Mt | 2.3 | 2.3 | 2.4 | 2.5 | 2.4 | 2.6 | 2.6 | 2.6 | 2.6 |

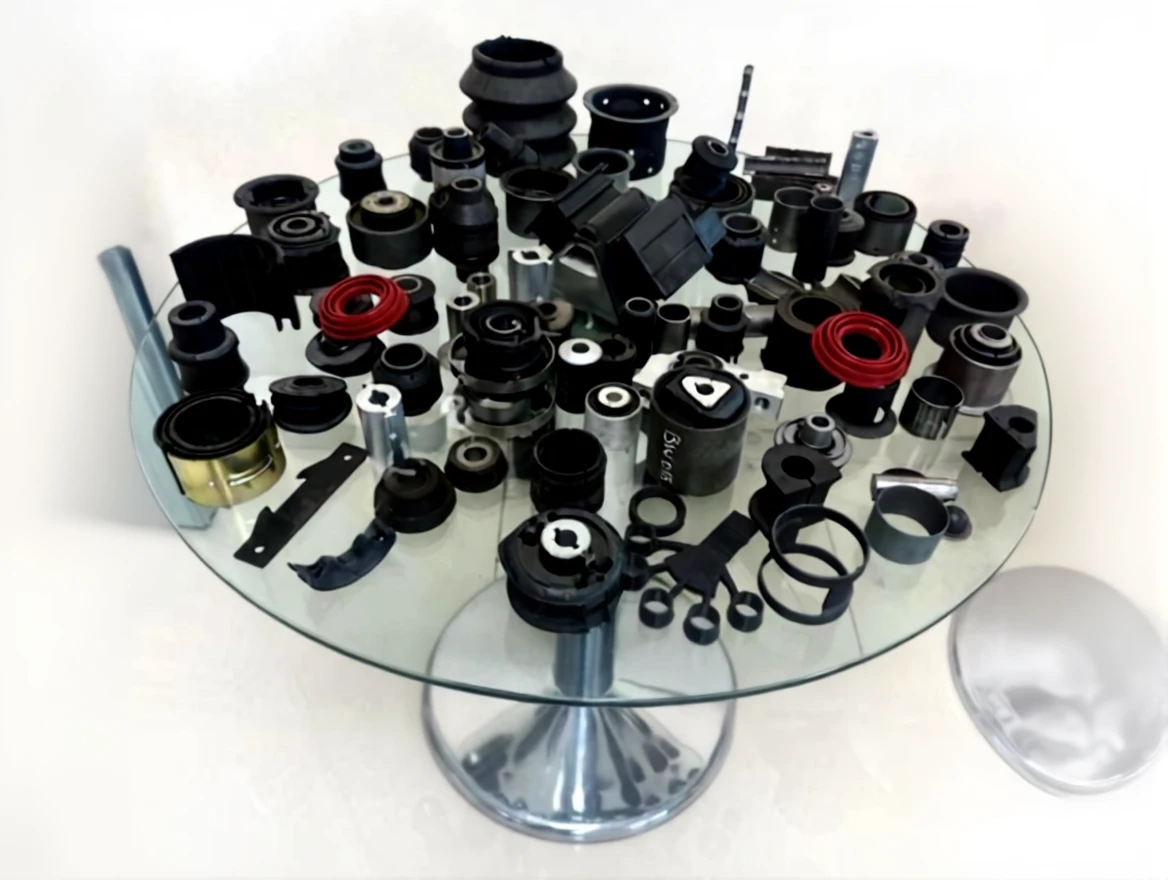

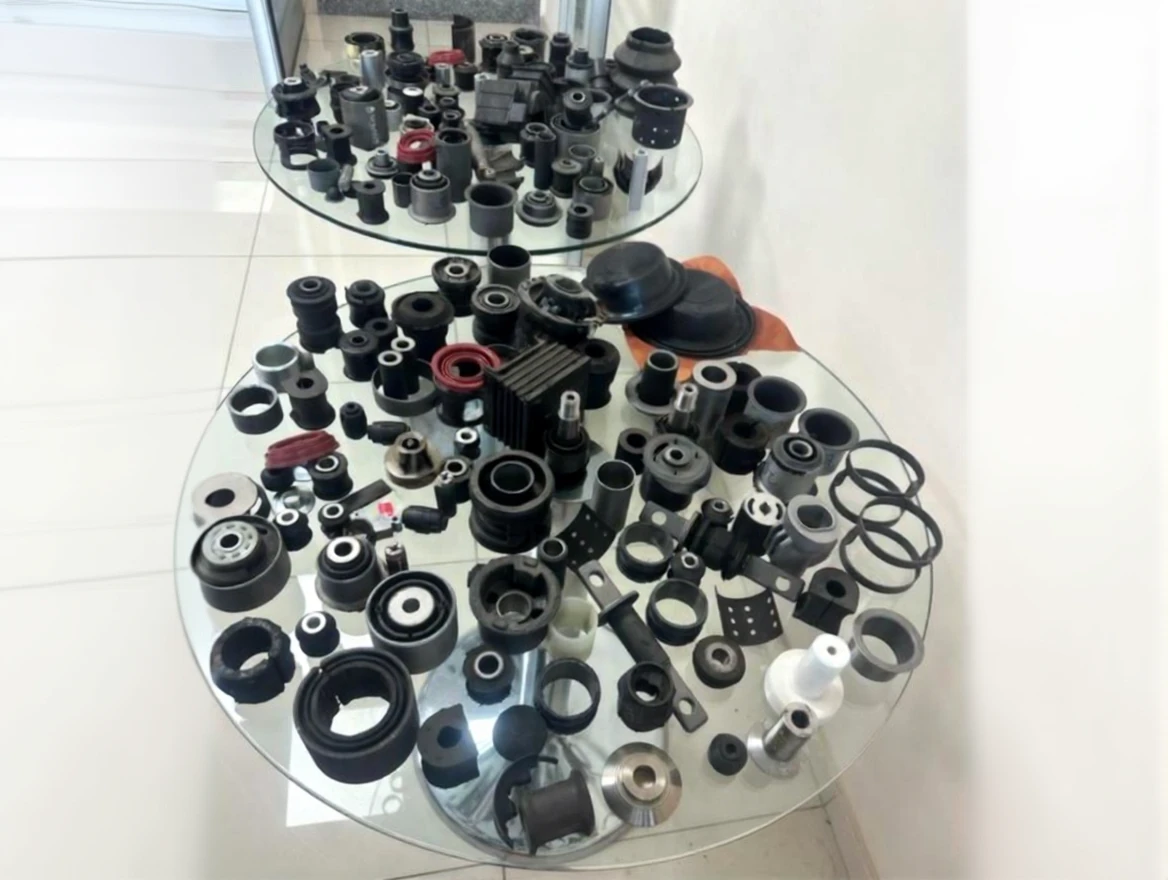

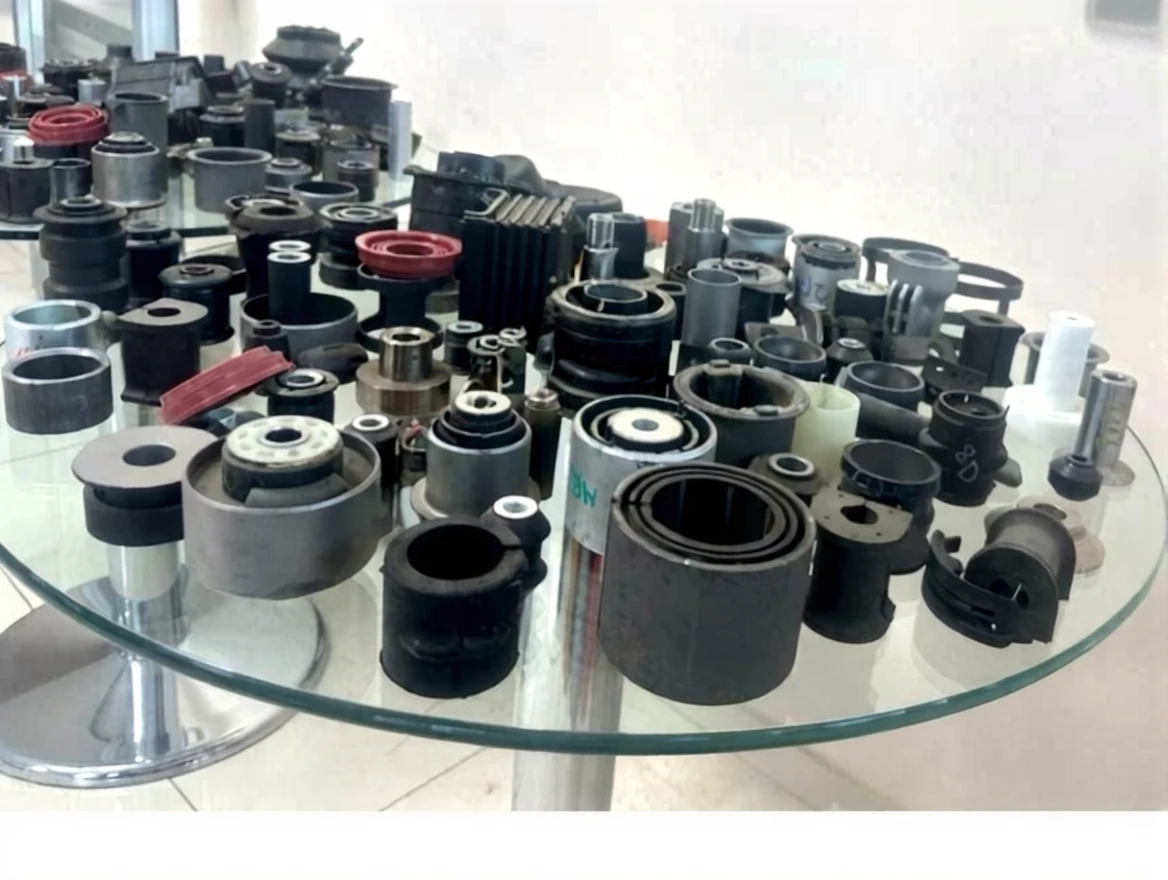

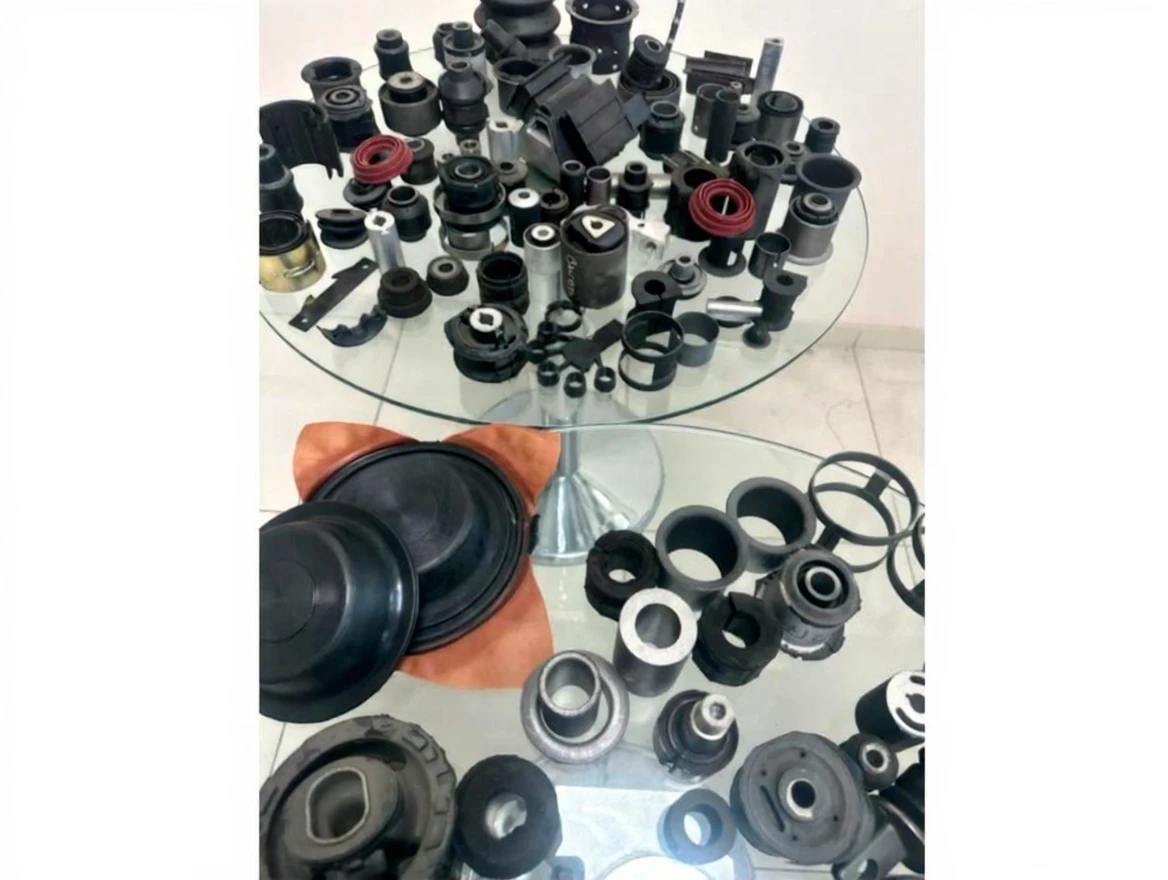

Machines that enable the easiest production of rubber products.
We, as Kavis Machine, manufacture machines from 50 tons to 5,000 tons.
The 2RT, 3RT, 4RT mold separation systems used in other machines can also be easily used in this machine, offering a highly efficient production process with high security.
Fully enclosed cabin complies with CE safety procedures.
Options:
- Top Plate Lifter
- Bottom Plate Lifter
- Product extractor ejector
- 2RT / 3RT / 4RT
- External top and bottom ejectors
- Mold Plate rotation 180 degrees
