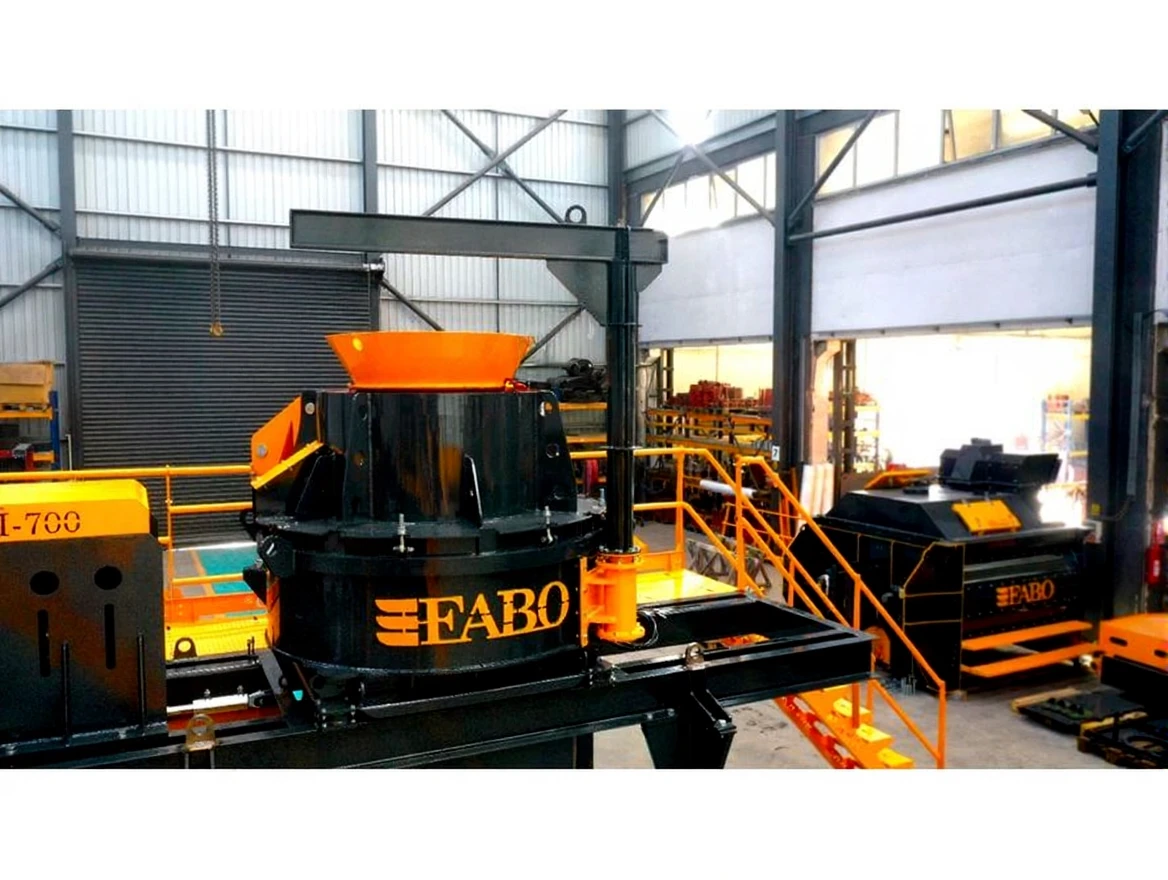

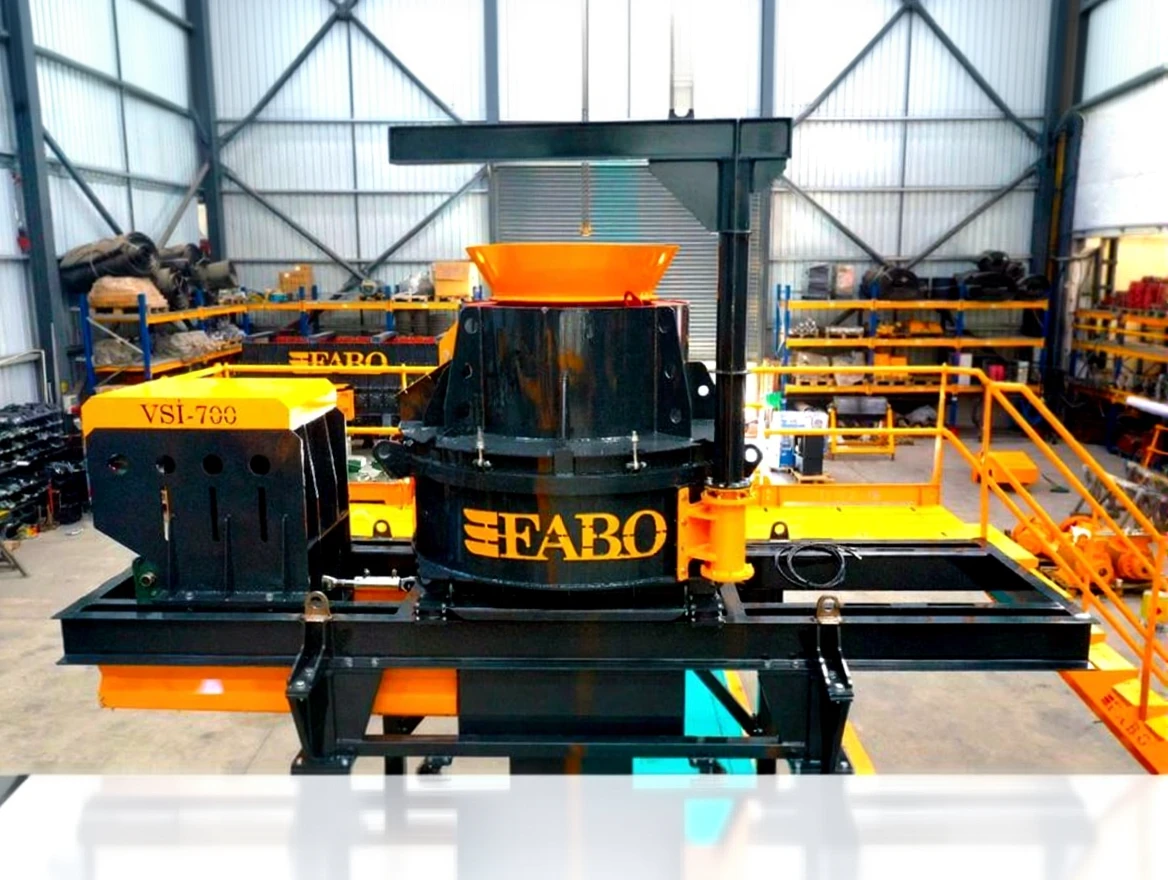

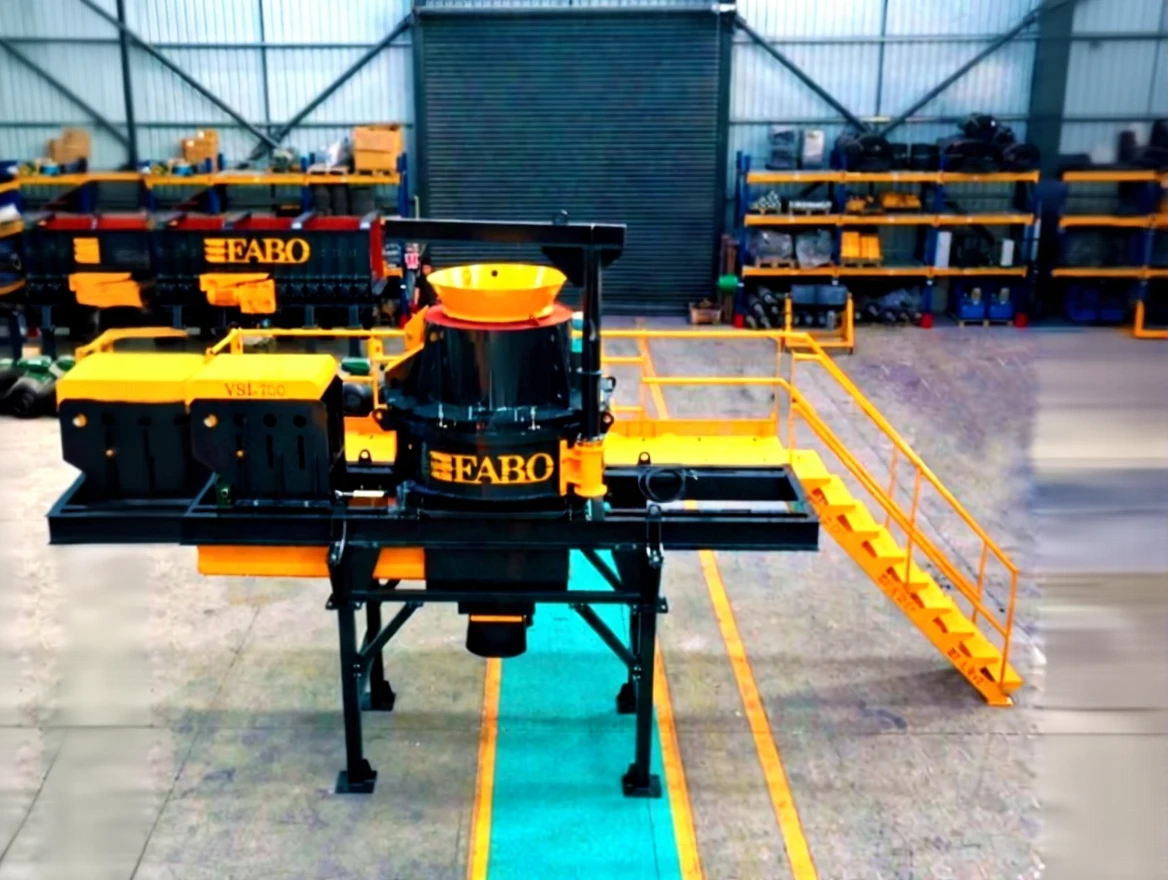

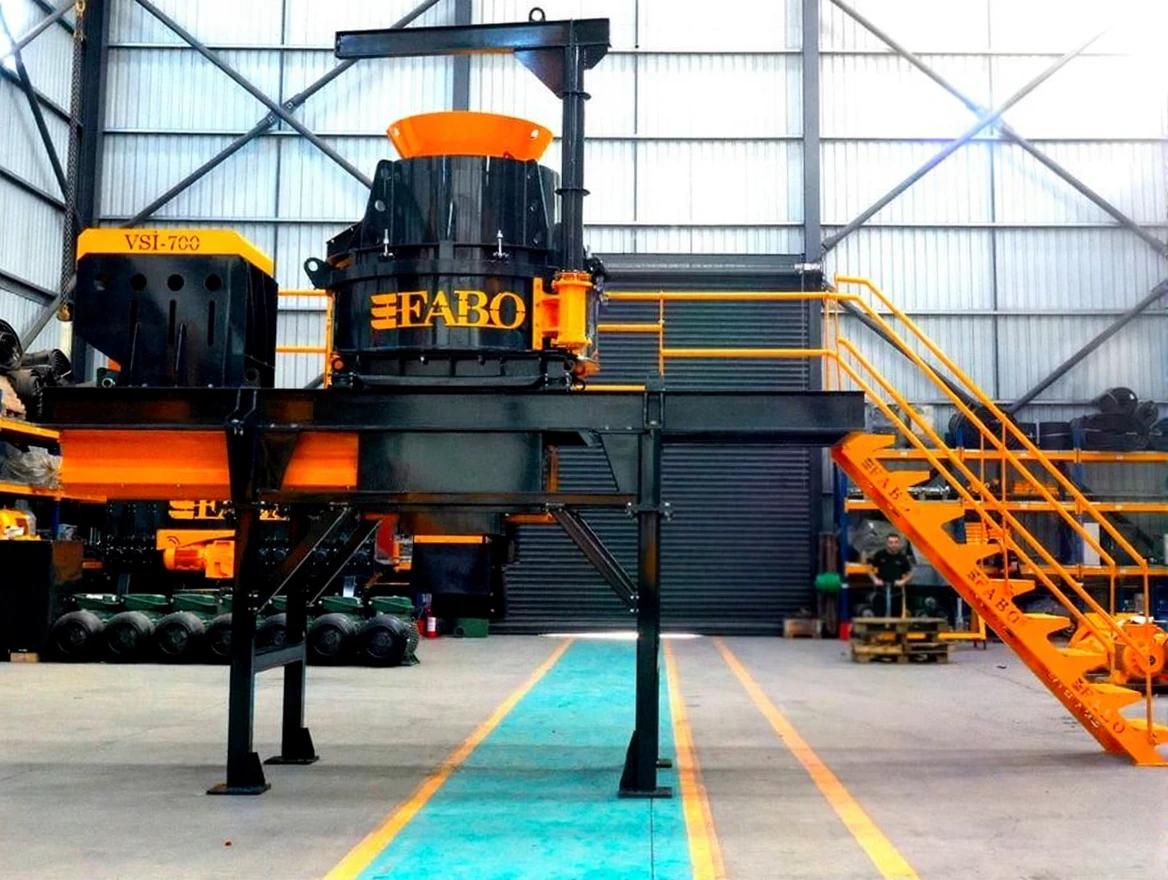

150 TPH Vertical Shaft Crusher

VSI machines are used to obtain fine sand and fine gravel from highly abrasive hard materials such as basalt, granite, gabbro, river stone, etc.

These types of crushers serve as tertiary crushers in facilities with high cubic ratio and fine product.

These high-speed crushers are produced in two different combinations: open rotor and closed rotor. The Vertical Shaft Crusher (VSI) is designed with a unique stone-to-stone crushing principle that offers superior cubic shape for the best quality fine aggregate production while significantly reducing wear costs. It reduces service requirements and durations and increases crushing performance with low investment costs.

General Features and Futures:

– Fine product, low wear cost, cubic shape, application flexibility, and ease of maintenance.

– Stress-relieved welded rotor and crushing chamber

– The internal surfaces of the crusher are lined with wear-resistant liner plates

– Hydraulic opening cover

– Automatic Lubrication system

• Model: FABO VSI-700

• Type: Vertical Shaft Crusher

• Capacity: 100-150 tph

• Maximum Feed: 30 mm

• Rotor Size: Ø 700 mm

• Speed: 50-70 m/s

• Motor: Heavy-duty GAMAK, 200 kW

• Bearings: Heavy-duty SKF-FAG

• Weight: 10000 kg

• Dimensions: 4000 * 3000 * 2450 mm

• Includes chassis, motor, and safety guards.

*All our products are guaranteed for 1 year!

*Installation and Operator Training FREE
