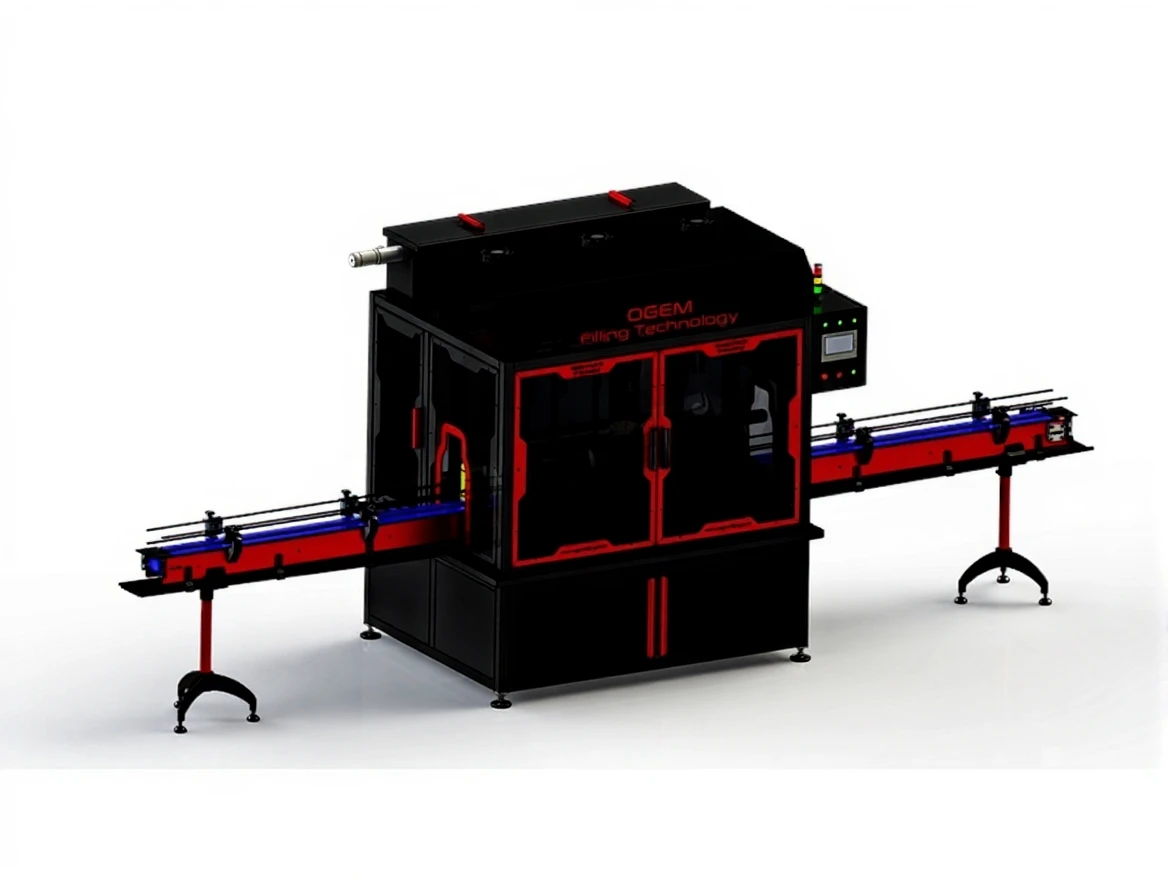

1500-1700 Units/Hour Automatic Packaging Filling Machine

Technical Specifications

✓ The filling machine is fully automatic.
✓ Works with a vacuum system. Depending on demand, it has [ PHONE HIDDEN ] vacuum nozzles.
✓ The weight limits of the machine: According to request.. (Weight range: 100 ml. – 1,000 ml)
✓ The filling machine operates within a temperature range of 5 degrees to 80 degrees.
✓ The machine’s accuracy: At constant air pressure (8 bar-750lt/min), at constant temperature, and in homogeneous products, the general weight accuracy is + – % 1.
✓ The machine’s funnel: Made of PVC material.
✓ There is automatic level control in the funnel. When the funnel is full, the product inlet valve automatically closes or a signal is sent to the pump feeding the machine to stop or operate.
✓ Filling nozzles: Depending on demand, there are [ PHONE HIDDEN ] filling nozzles with a vacuum filling system.
✓ Nozzles can be easily adjusted according to different packaging sizes. It has a tip closure mechanism, thus preventing drips and keeping bottles clean.
✓ The machine’s weight adjustment: It is very easy to adjust the weight from the machine’s PLC screen.
✓ There is an extra adjustment mechanism to also adjust the differences between the filling nozzles.
✓ Materials used in the construction of the machine: The machine chassis is stainless steel coated with electrostatic paint.
✓ The machine covers are made of PVC. The machine nozzles are made of PVC and 904 L high acid-resistant material. The nozzle tips are made of titanium material.
✓ The filling capacity of the machine: At constant air pressure (8 bar-750lt/min, for 500ml, the average is 1500 – 1700 units/hour depending on the packaging type.
✓ (Capacity is an estimate, cannot be guaranteed.)
✓ A total of 6 meters of conveyor belt is used in the filling machine. The chassis is made of PVC, and polypropylene is used for the pallets. It is possible to speed up and slow down the conveyor belt from the control panel.
✓ To operate the machine, 8 bar air (from a compressor) and 380 volts of electrical energy are required.

Note: The capacity of the filling machine may vary depending on the chemical properties of the product to be filled (such as foaming).

Areas of Use

Chemical and Cosmetic:
Liquid detergent, Cologne, Disinfectant, Lotion, Medical Liquids, Bleach, etc…
