1500 Kg Battery Powered Vacuum Marble Ceramic Glass Lifting System

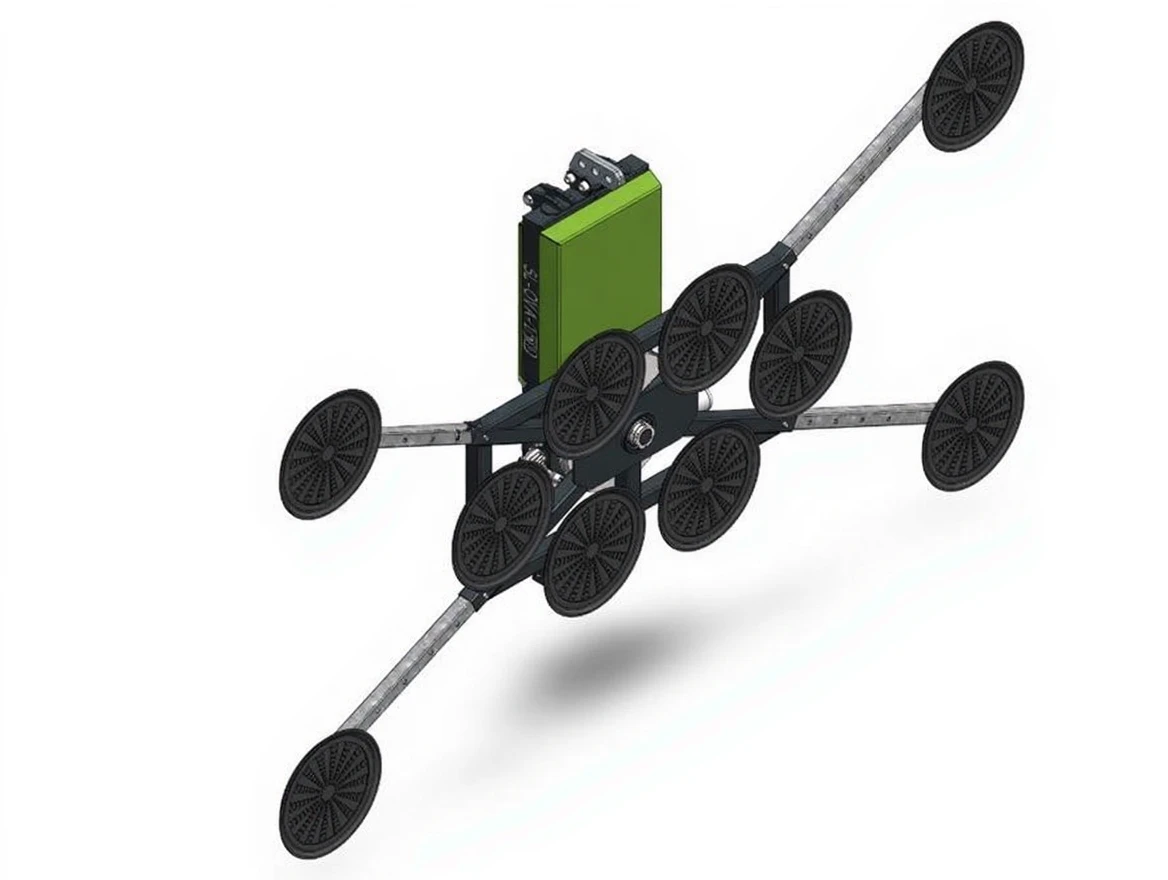

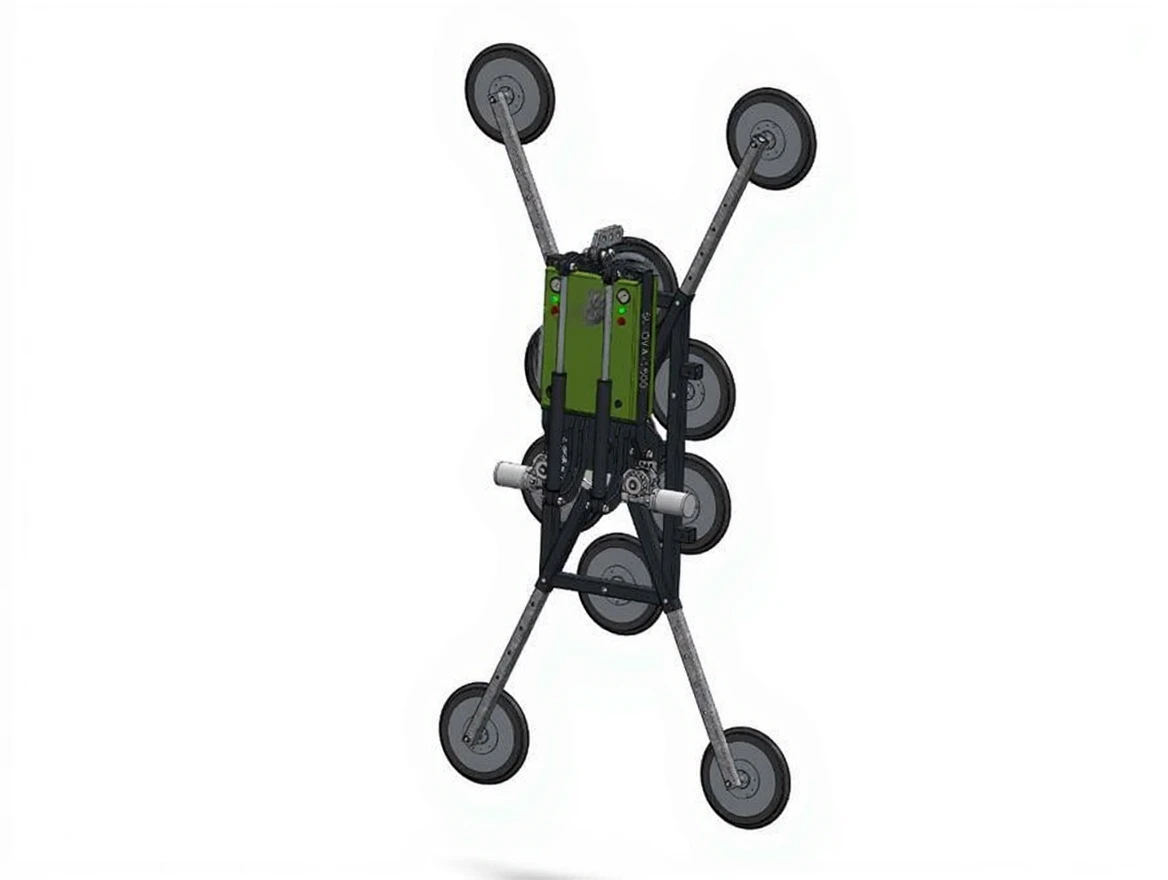

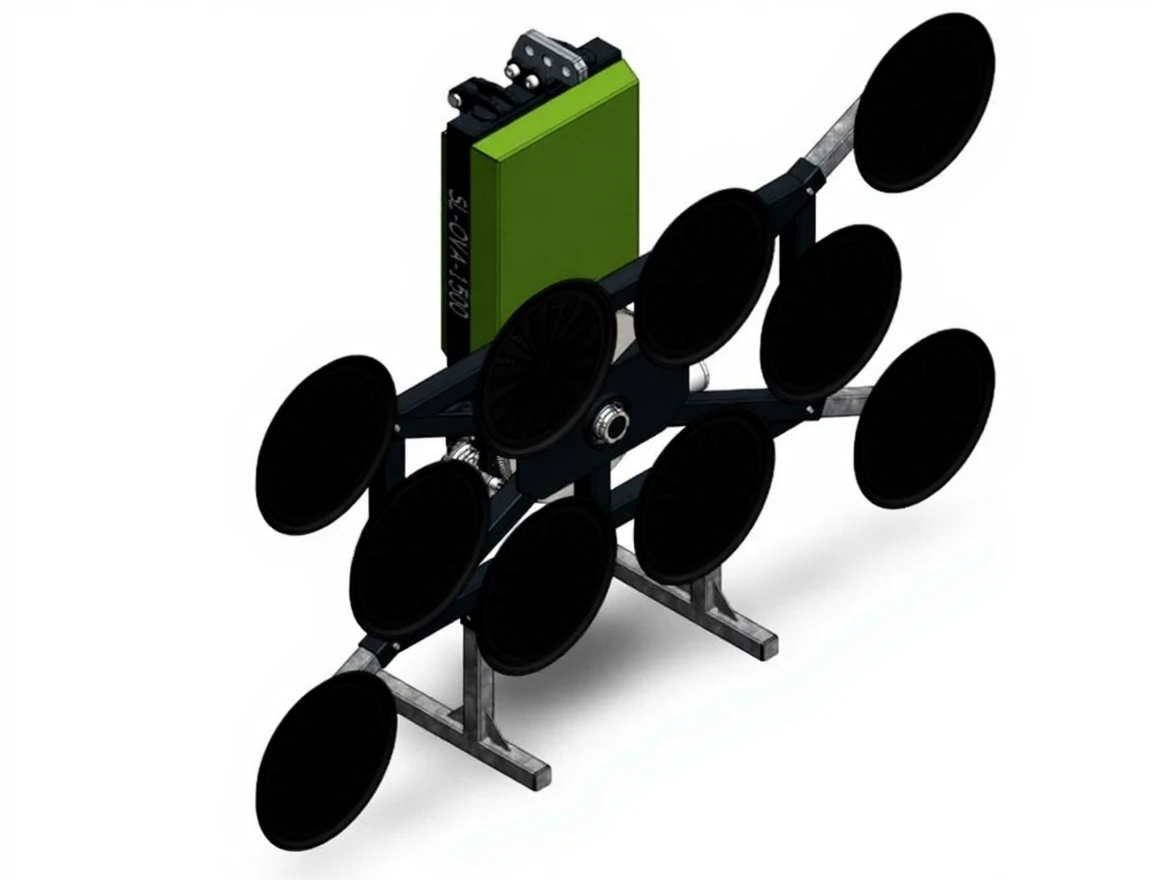

SL-OVA-1500 Vacuum Lifting System

The SL-OVA-1500, which is the powerful model of the SingleLift OVA series, is designed to safely transport loads up to 1500 kg. With its innovative design and high safety standards, this model stands out with its ability to continuously rotate 360 degrees and automatically tilt the load 90 degrees.

The dual-circuit vacuum system maximizes safety during the transport of loads. It operates with 220V electricity in factory environments, while providing uninterrupted use in construction sites or open area applications with the integrated 24V battery.

Technical Specifications

• Dimensions: 2195 x 1300 x 400 mm

• Maximum Carrying Capacity: 1500 kg

• Device Weight: 350 kg (+10 kg)

• Number of Pads: 10 pieces

• Pad Diameter: 450 mm

• Electrical System: 12V – 20 Ah (Battery supported)

• Automatic Tilt Angle: 0° / 90°

• Automatic Rotation Angle: 360° (continuous rotation)

Areas of Use

• Precise and safe transportation of materials such as glass, metal sheets, aluminum panels

• Facade cladding assembly and exterior building facade applications

• Transportation of heavy loads in industrial facilities

• Lifting and installation of loads with high weight capacities in construction sites

• Transportation operations on the factory production line and logistics applications
