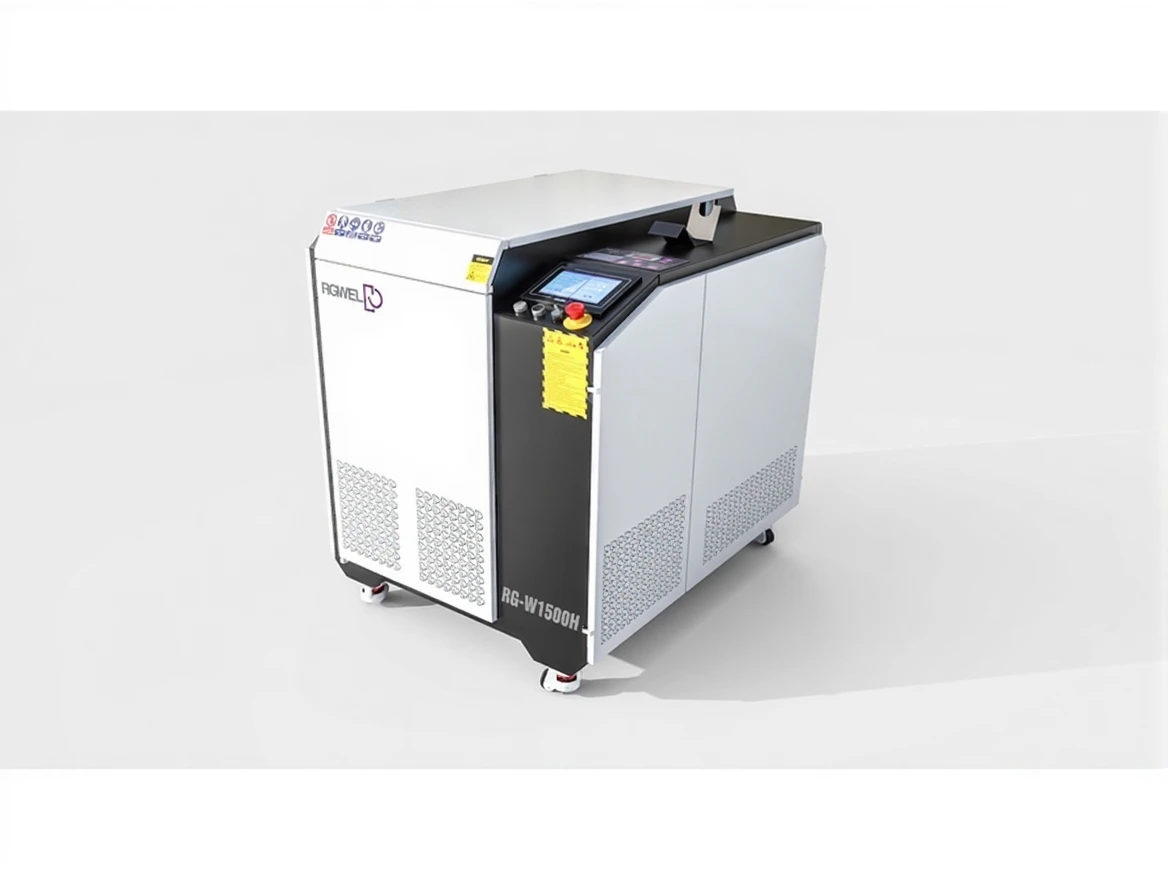

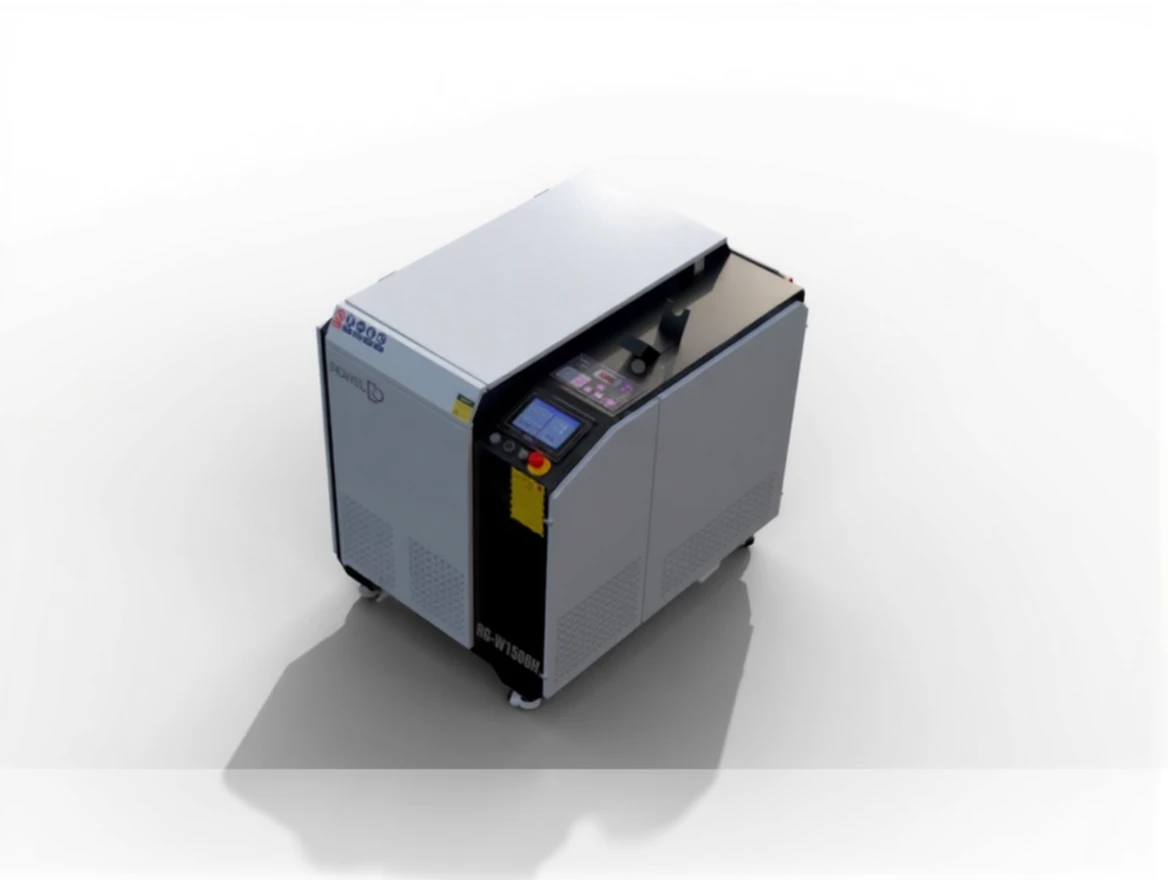

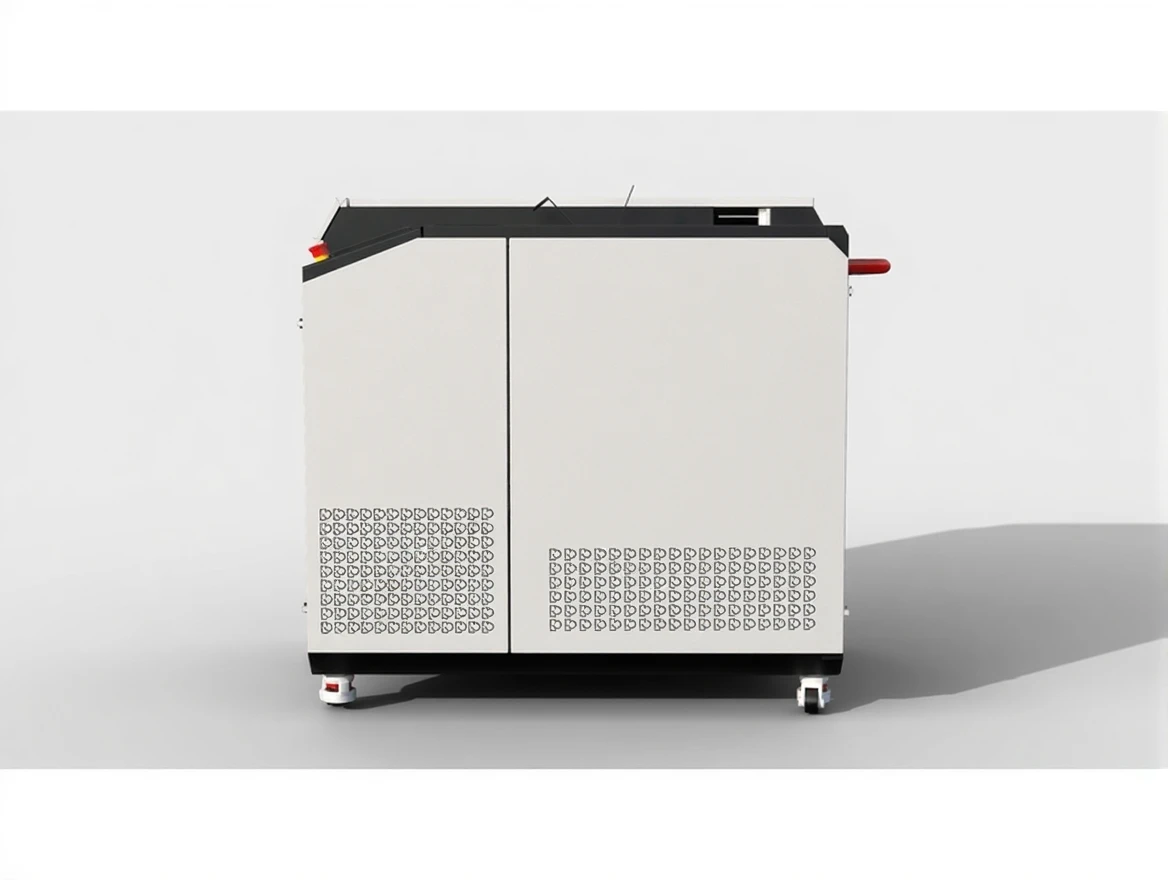

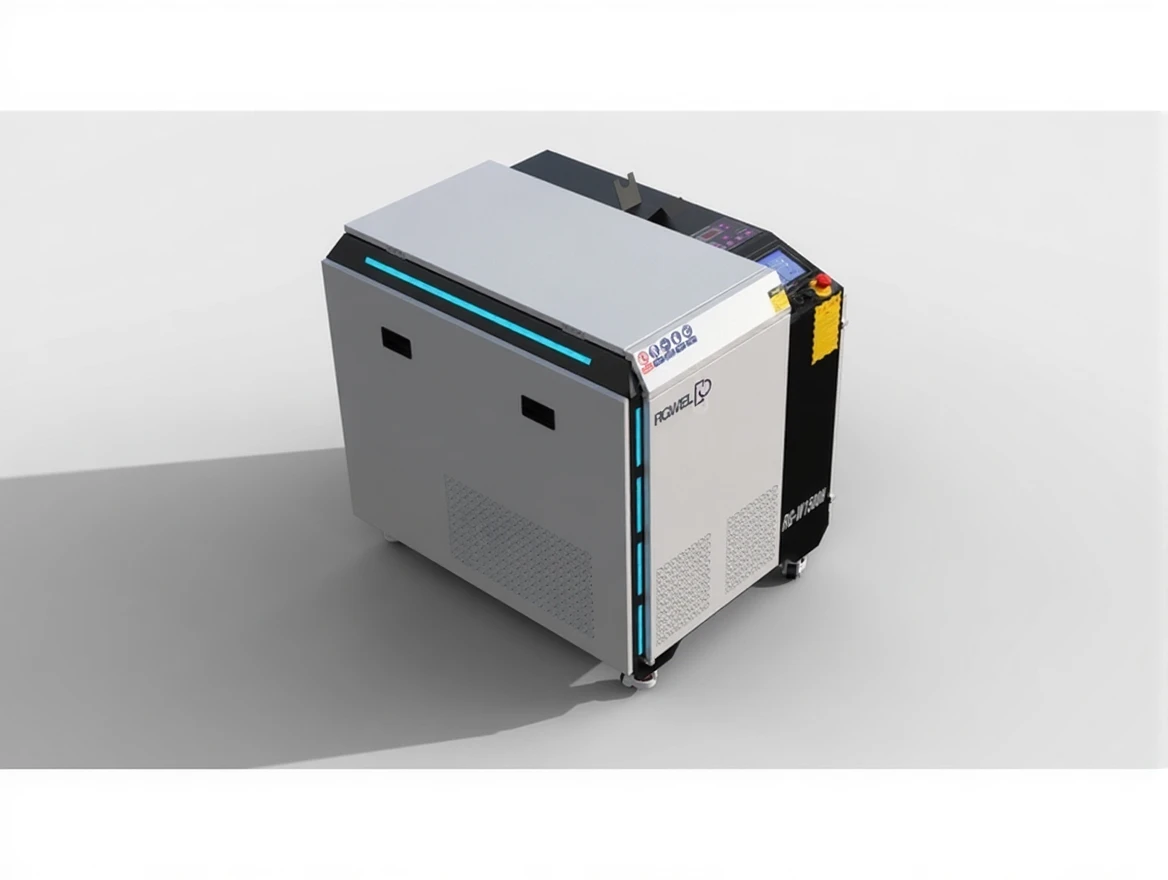

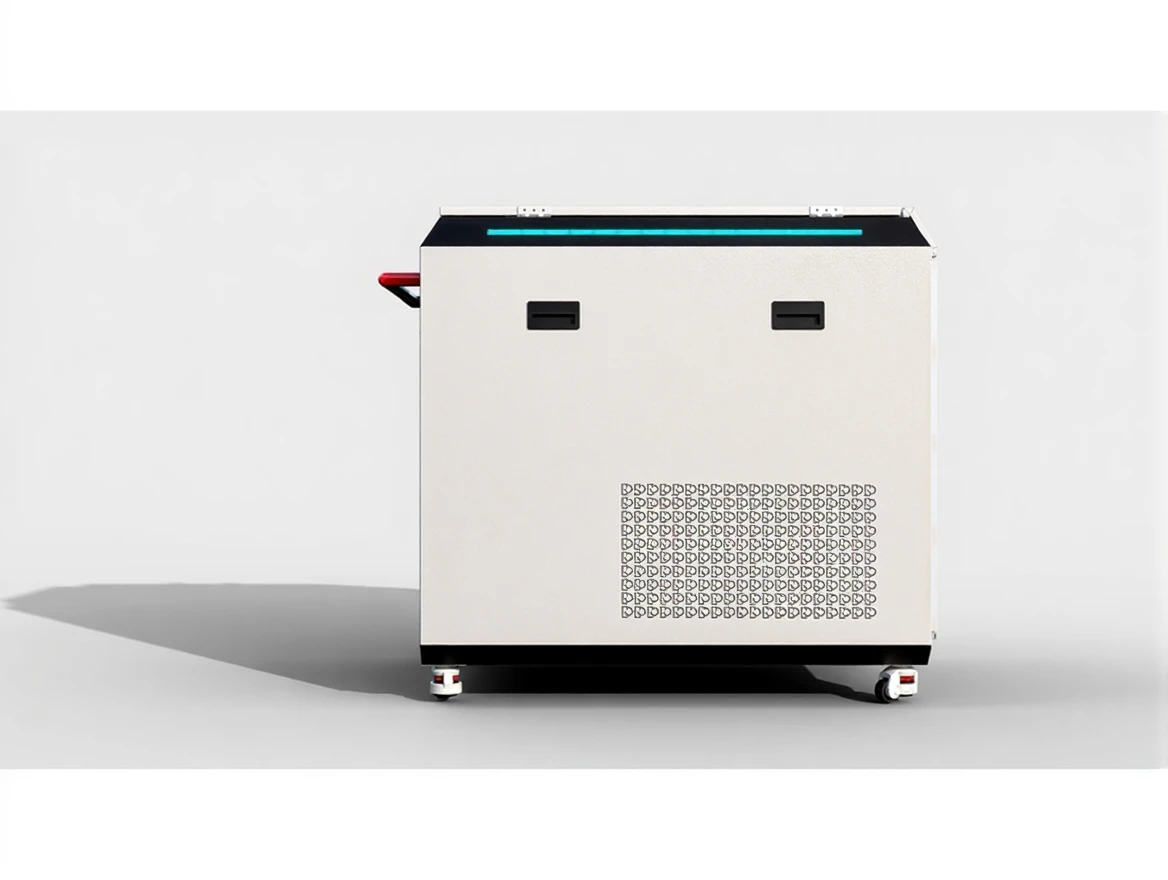

1500 W / 1.5 Kw Handheld Fiber Laser Welding Machine
| Brand | Rgwel |
|---|---|
| Model Type |
RG-W1500H |
Rgwel RG-W1500H
1500 W / 1.5 kW Handheld Fiber Laser Welding Machine
|
1. 7 Different Welding Modes |
|
2. Fully Turkish Interface |
|
3. Cutting Mode |
|
4. Cleaning Mode |
|
5. 100% machine control via smart operating system torch |
|
6. Smart S suitable for industrial use |
|
7. 10 Different Prescription Records |
|
8. Continuous and Intermittent Laser Welding Mode |
|
9. Adjustable Laser Spot Size 02mm – 5mm |
|
10. Fault Record Inquiry, Monitoring and Detection |
|
11. Built-in wire feeding system and control screen inside the body. |
|
12. Single module RAYCUS resonator with a lifespan of 100,000 hours. |
|
13. On-Machine Warning LEDs Malfunction and Operation. 14. Siemens 15. Special winding transformer that protects the system from Harmonic Waves and Power Loss. |
– 1500W/1.5kW AUTO WIRE FEED FIBER LASER WELDING
-S
– INTERNAL WIRE FEEDING SYSTEM AND ELEMENTS
– TORCH PROTECTION COVER (8M)
– SPECIAL WINDING MAINS PROTECTION TRANSFORMER
– ORIGINAL LICENSED SOFTWARE
– WELDING PROTECTION GLASSES 1100NM SHEATH
– HAND TORCH WITH SCREEN CONTROL SYSTEM
– PROTECTIVE LENSES (10PCS)
– NOZZLE SET (10PCS)
– TOOL BAG
– WARRANTY CERTIFICATE AND BOOKLETS
– ON-SITE DELIVERY, TRAINING AND INSTALLATION
– CE certified design completely in compliance with European standards.
– Electrical Control Panel Produced with 100% Domestic Workmanship, equipped with European brands.
– Usage Feature in Turkish, English, Russian, Portuguese, German
– 2 YEAR WARRANTY (On-Site Solution Possibility Within 72 Hours with Local Service Valid in All Regions of Türkiye)
On-site Delivery, Training and Installation throughout Türkiye
5 YEARS Spare Parts Supply Warranty
More Dynamic, More Robust!
-

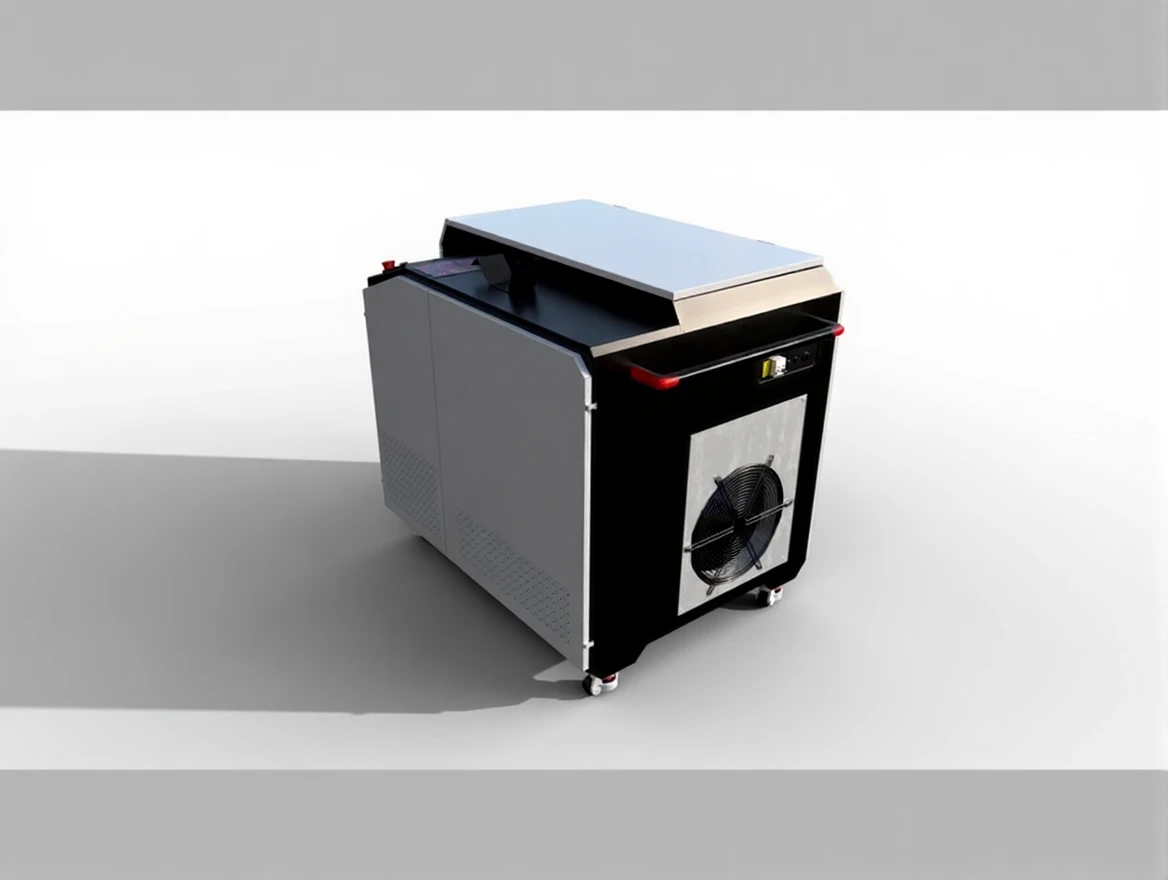

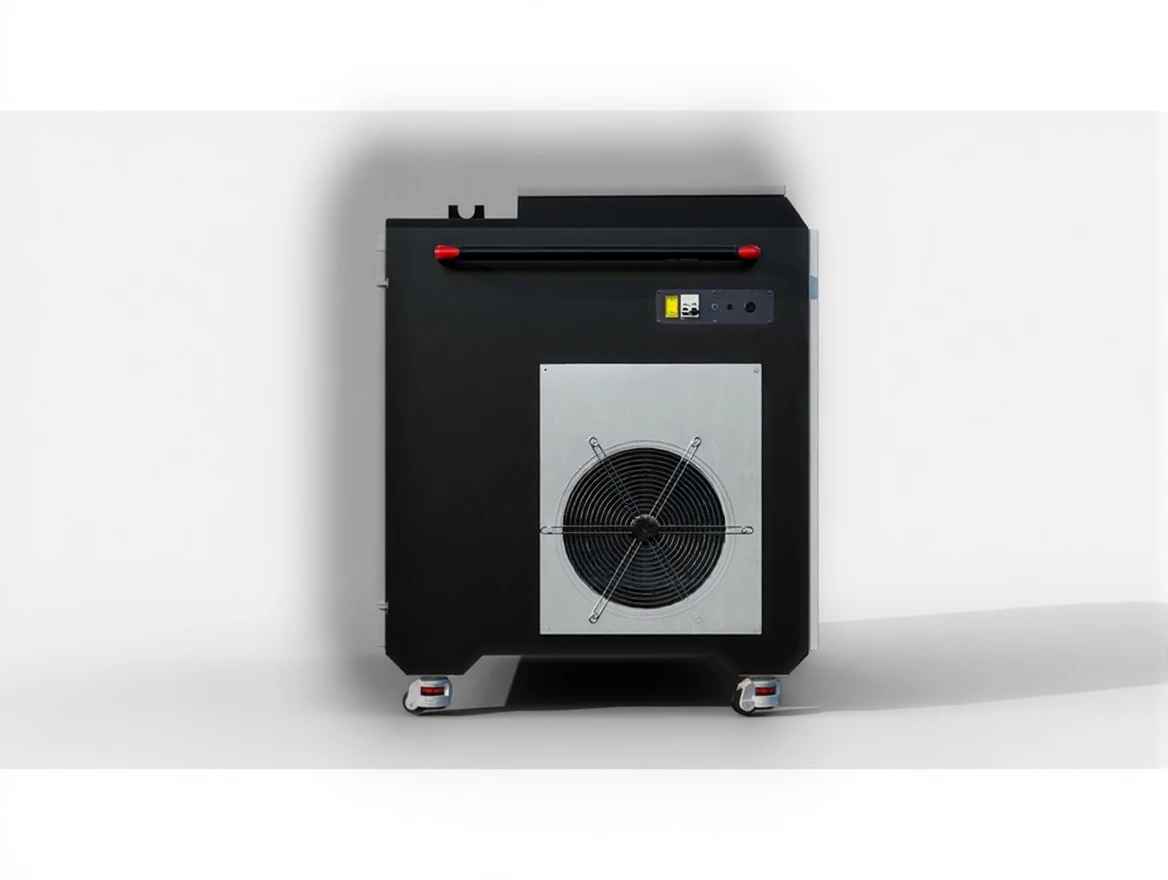

Thanks to the New Generation Body Design, we offer you the entire system in a single body by placing the Chiller and Wire Feeding system in the same body.
-
Longer-lasting, more compact and more efficient 100% Domestic Design RGW aerodynamic body with a thickness of up to 2mm.
-
Intelligent built-in S suitable for industrial use
-
Single module RAYCUS or IPG resonator with a lifespan of 100,000 hours.
-

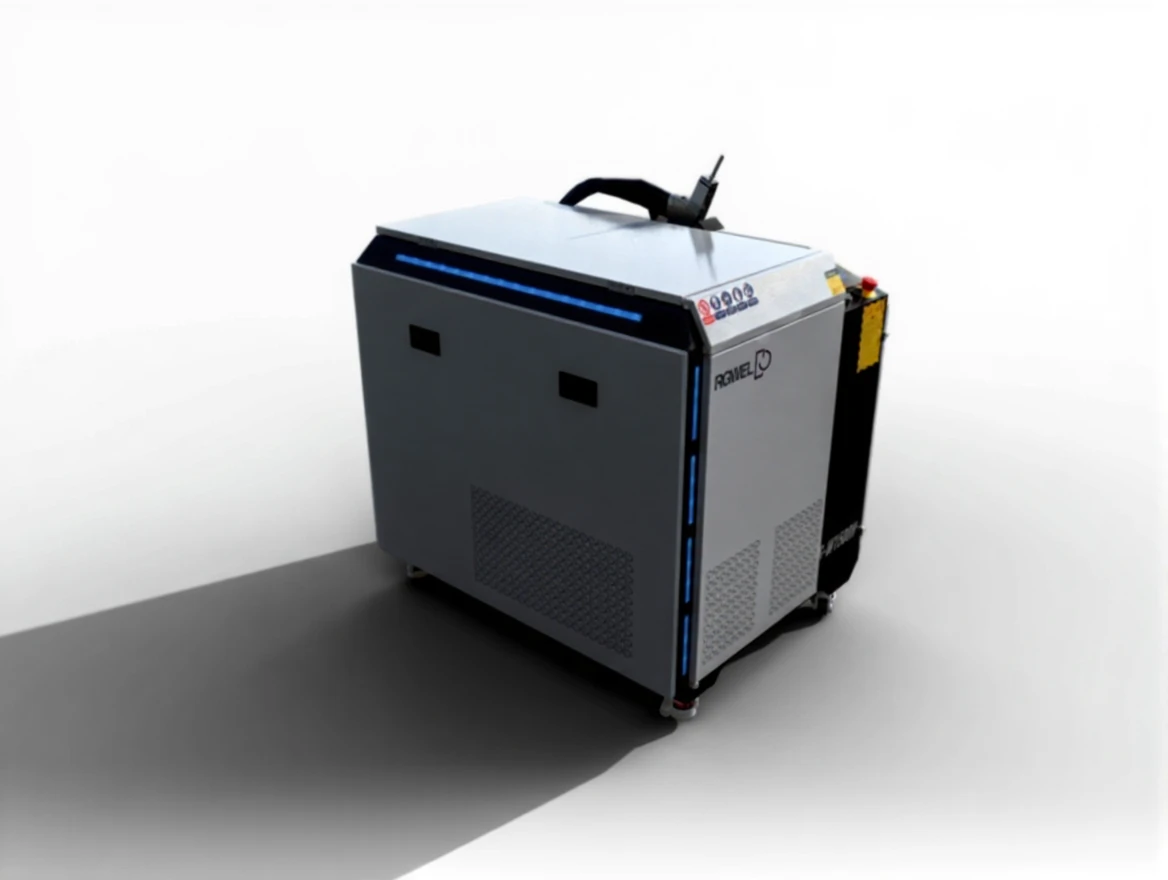

Thanks to the warning LEDs, remote machine control can monitor whether the machine is in fault or ready state.
-

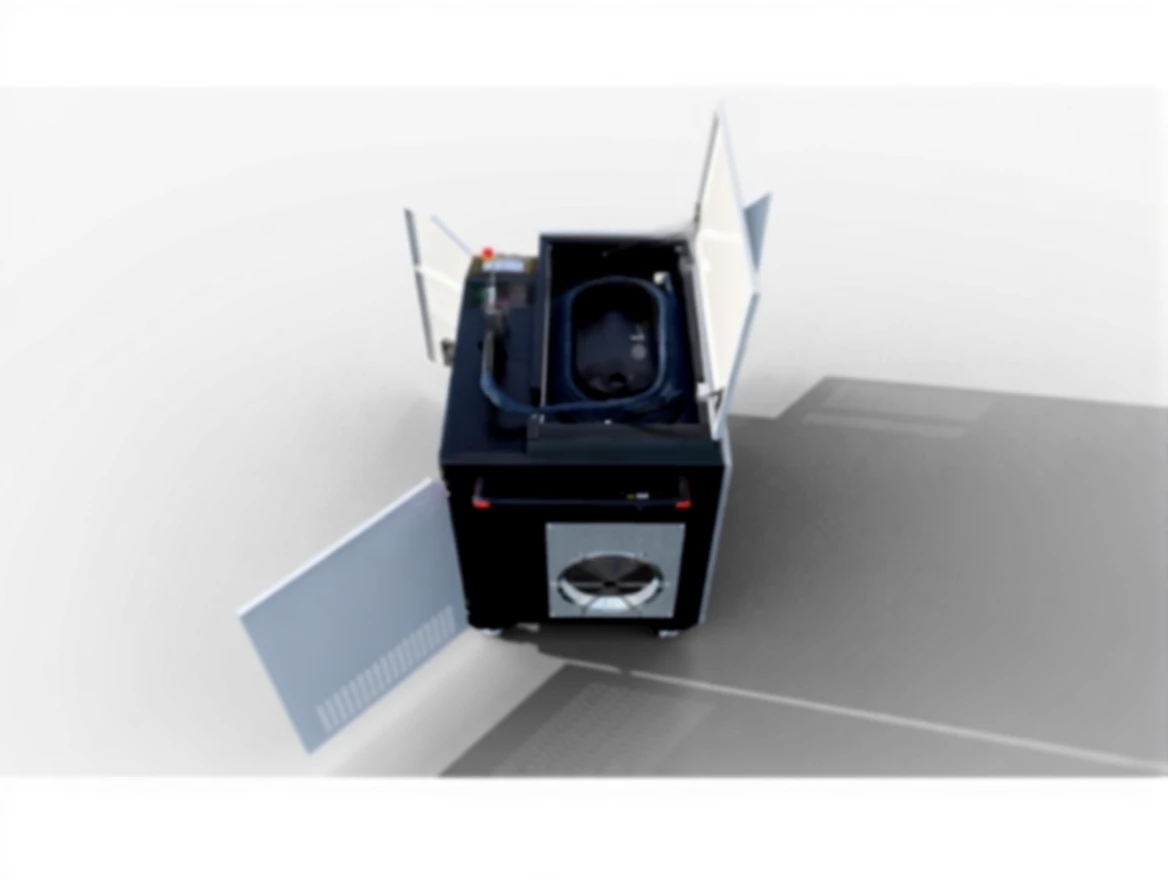

Wire feeding system and control screen are inside the body. (INTERNAL)
-
Electrical Control Panel equipped with 1st Class brands.

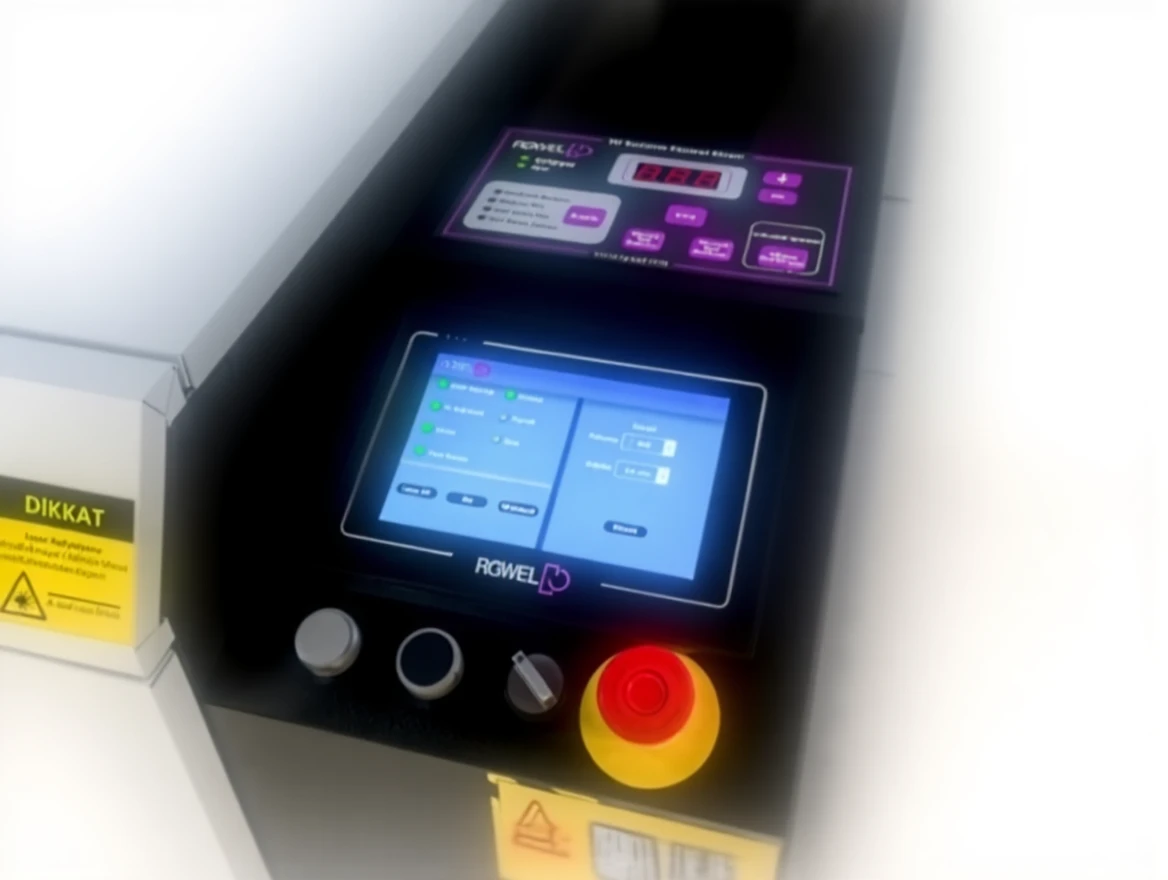

100% Efficient 100% Intelligent Operating System
-
Artificial intelligence operating system with completely Turkish language R1 VERSION
-
With Artificial Intelligence, just select the Material Thickness and Type and all settings are made automatically.
-
Fault record inquiry, monitoring and detection thanks to artificial intelligence and sensors.
-
Ability to cut and clean.
-
Continuous and Intermittent Laser Welding mode.
-
Remote machine control thanks to the smart operating system and the control system on the torch.
-
Adjustable Laser Spot Size 02mm – 5mm
-
Ability to Register 10 Different Welding Recipes.
-
7 Different Welding Modes
Rgwel RG-W1500H Technical Specifications
|
· Machine Type |
Handheld |
|
· Laser Power |
1500W |
|
· Laser Welding Type |
Fiber |
|
· Dot Size |
0.2-5mm |
|
· Weld Depth |
0.8-6mm |
|
· Laser Wavelength |
1080nm |
|
· Pulse Width |
≤10ms |
|
· Laser Cooling Type |
Water Cooling (chiller) |
|
· Total Energy Used |
8kw |
WELDING PARAMETERS
|
Laser power/source thickness |
Black |
carbon steel |
Aluminum/Brass |
|
1000W |
4MM |
3MM |
1.5MM |
|
1500W |
6MM |
4MM |
3MM |
|
2000W |
8MM |
5MM |
4MM |
